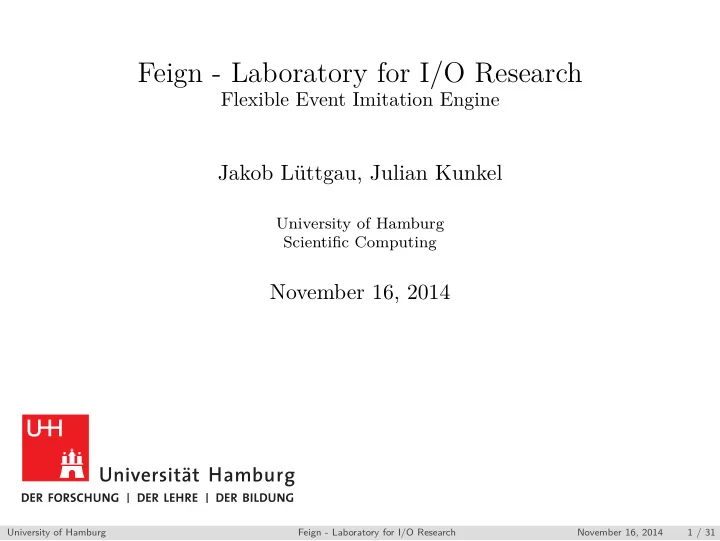

SLIDE 1

Feign - Laboratory for I/O Research

Flexible Event Imitation Engine

Jakob L¨ uttgau, Julian Kunkel

University of Hamburg Scientific Computing

November 16, 2014

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 1 / 31

SLIDE 2

to feign [engl., verb] ◮ to mock, pretend, simulate, [...] imitate, mimic

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 2 / 31

SLIDE 3

Overview

1. Introduction and Background
2. Feign, Flexible Event Imitation Engine
3. Virtual Laboratory for I/O Research
4. Discussion

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 3 / 31

SLIDE 4

Motivation

The supercomputing langscape.

Mostly cluster systems. Very complex.

◮ Hardware, Software, Topologies

Combine to suit..

◮ .. characteristics of applications.

But:

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 4 / 31

SLIDE 5

Motivation

Some problems in supercomputing.

As new systems emerge users and operators want to know how their applications perform.

◮ Running actual application complicated for many reasons.

Not portable.

◮ (Dependencies, system specific optimization, app/data confidential)

◮ Synthetic benchmarks good for peak performance but not to

prospect actual behavior.

◮ Developing application specific benchmarks is work intensive. ◮ When communicating problems to vendors or the open source

community, problems are hard to isolate. Demand for tools with benchmarking, stress testing and debugging capabilities.

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 5 / 31

SLIDE 6

Trace replay to mimic applications

The trace preserves the characteristics.

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 6 / 31

SLIDE 7

Trace Replay

A portable solution to catch application characteristics.

Benefits?

◮ Traces are already very common and portable. ◮ They record the characteristics of an application. ◮ Deterministic by default but jitter can be added. ◮ Easy to modify. Remove confidential information. ◮ Fully automatic.

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 7 / 31

SLIDE 8

Parallel Trace Replay

Not so many tools available.

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 8 / 31

SLIDE 9

Goals

A flexible event imitation engine (feign). Also a virtual laboratory.

◮ Modular to support arbitrary (I/O) libraries. Easy to extend. ◮ With parallel workloads/scientific applications in mind. ◮ Portable by eliminating dependencies. ◮ Efficient, to minimize distortions. ◮ Trace manipulation to adjust to other systems and so it can be

integrated into other applications. One-Time-Effort!

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 9 / 31

SLIDE 10

Analogousness

In many cases the following should be true.

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 10 / 31

SLIDE 11

Trace Replay and Virtual Lab: How to?

Considerable intersection between the two.

Lab

Replay:

◮ Minimal

distortions

◮ Pre-Creation ◮ State Management

Lab:

◮ Experiments ◮ Reporting ◮ Reliable ’Model’

Convenience

◮ Generators ◮ Helper Library

Replay and Lab:

◮ Modifiers

◮ Filter ◮ Add/remove ◮ Mutate

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 11 / 31

SLIDE 12

1. Introduction and Background

Motivation Trace Replay State of the Art Goals

2. Feign, Flexible Event Imitation Engine

Design: Portable, Modular, Efficient, Assistive Prototype Convenience

3. Virtual Laboratory for I/O Research
4. Discussion

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 12 / 31

SLIDE 13

Foundation for flexible replay

Abstraction of input, internal representation and output.

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 13 / 31

SLIDE 14

Foundation for flexible replay (2)

Plugins to support arbitrary trace formats and layers.

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 14 / 31

SLIDE 15

Foundation for flexible replay (3)

Modifiers to account for system specific optimizations, etc..

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 15 / 31

SLIDE 16

Trace Manipulation

For optimal and meaningful playback.

Context-aware operations on the trace and on activities:

◮ filter/remove ◮ insert ◮ modify/mutate

Allow plugins periodically to alter the trace.

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 16 / 31

SLIDE 17

Minimize distortions, establish replayability

Pre-process trace, pre-create environment, manage states.

Pre-processing to derive optimal trace (compression opportunities):

1. Create a stripped temporary trace from a full trace in a first run.
2. Replay the stripped trace.

Pre-processing is also needed to allow:

◮ Environment pre-creation (recreate file system, estimate file sizes) ◮ State management during playback (e.g. map file handles)

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 17 / 31

SLIDE 18

Activity Pipeline

Putting the pieces together.

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 18 / 31

SLIDE 19

Component Overview

Structural components of feign.

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 19 / 31

SLIDE 20

Plugin Development: Generators

Turns out creating layer plugins is cumbersome.. Automation?

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 20 / 31

SLIDE 21

1. Introduction and Background

Motivation Trace Replay State of the Art Goals

2. Feign, Flexible Event Imitation Engine

Design: Portable, Modular, Efficient, Assistive Prototype Convenience

3. Virtual Laboratory for I/O Research
4. Discussion

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 21 / 31

SLIDE 22

Automatic Optimisation Engines

How is automatic optimisation done?

1. Collect possible optimisations and store in database.
2. Classify situations/problems and receive possible optimisation.
3. Apply one or more optimisations.

But what when uncertain?

◮ Let the system experiment on its own! ◮ Or a least make it easier to conduct many experiments.

What kinds of optimizations? Hints? Feign would allow to apply very complex optimisations!

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 22 / 31

SLIDE 23

Virtual Lab vs. Conventional Auto-Tuners

Conventional

◮ Decisions based on past events. ◮ Sometimes hard to decide if optimisation was really good.

Trace Replay supported Lab

◮ Base decisions on PAST and also on FUTURE. ◮ Repeatable. Possible to analyse why optimization was good.

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 23 / 31

SLIDE 24

Virtual Lab

Stack plugins in different ways to craft new tools.

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 24 / 31

SLIDE 25

Virtual Lab (2)

Provide plugins that automatically apply optimizations to traces.

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 25 / 31

SLIDE 26

Virtual Lab (3)

Have reporting plugins to propagate results back to optimization engine.

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 26 / 31

SLIDE 27

Evaluation: POSIX fadvise injection

Find successive lseek() read() patterns and timely inject fadvise().

100 200 300 400 Application Replay

Runtime in s

what Baseline Optimized

.. fadvise(pos,len, WILL_NEED) .. .. lseek(pos) lseek(pos) read(bytes) read(bytes) .. ..

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 27 / 31

SLIDE 28

Evaluation: Coalescing

Merge adjacent read() or write() operations. Show that optimzation works by sampling parameter space for optimum.

0.0

0.5 1.0 10 1k 100k 10M

buffer size runtime in s

.. .. write(10) write(30) write(10) .. write(10) ..

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 28 / 31

SLIDE 29

Virtual Lab: More use cases

◮ POSIX fadvise (stripped reads) ◮ Coalescing (merge adjacent reads/writes) ◮ MPI hints (evaluating impact of arbitrary hint combinations) ◮ Removing Computation (pure I/O kernels) ◮ Experimenting with Jitter ◮ Migrating to a shared file (offsets in file) ◮ Splitting shared file into individual files (rank wise, node wise, etc.)

One-Time-Effort:

◮ Create optimization strategy ONCE, evaluate on arbitrary

applications.

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 29 / 31

SLIDE 30

Conclusion and Discussion

Summary

◮ A flexible replay engine is effective. ◮ Supporting POSIX and MPI is possible with plugins. ◮ Support for arbitrary traces is possible with plugins. ◮ Other applications can integrate feign as a virtual lab.

What is left to do?

◮ Create mature MPI and POSIX plugins.

◮ Unify annotation system for instrumentation and replay.

◮ Multi-threaded processing of the activity pipeline. ◮ Support for multi-threaded applications. ◮ Plugin-to-plugin communication.

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 30 / 31

SLIDE 31

Attribution

Some images where taken from the thenounproject.com

◮ Skull designed by Ana Mar´

ıa Lora Macias

◮ Cactus designed by pilotonic

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 31 / 31

SLIDE 32

Appendix

5. Evaluation

Test Systems Scientific Workloads

6. Implementation

Prototype (Component Overview) API and Plugin Development Plugin Sample

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 1 / 7

SLIDE 33

5. Evaluation

Test Systems Scientific Workloads

6. Implementation

Prototype (Component Overview) API and Plugin Development Plugin Sample

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 2 / 7

SLIDE 34

Test Systems

Measured was on two different systems, a consumer notebook and on the research cluster of the working group ”Scientific Computing” located in the DKRZ (German Climate Computing Center) in Hamburg, Germany.

◮ WR-Cluster with 10 nodes each featuring:

◮ 2×Intel Xeon X5650@2.67GH ◮ 12 GByte RAM ◮ Seagate Barracuda 7200.12

◮ Apple Macbook A1370 (Mid-2011) (Ubuntu 13.10)

◮ 1.8 GHz Core i7 (I7-2677M) (Boosts to 2.8GHz) ◮ 1333 MHz DDR3 SDRAM

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 3 / 7

SLIDE 35

Scientific Workloads

Parallel replay with MPI and POSIX of SIOX trace files.

Max-Planck-Institute Ocean Model (MPIOM) was replayed.

◮ SIOX-provider to read the trace and create feign-activities for the

POSIX and MPI plugin prototypes.

◮ Negotiate which process replays which activity from the trace with

the MPI-replayer/precreator.

◮ Pre-create files using the POSIX-precreator. ◮ Replay the trace with the correct replay plugin, e.g. a POSIX

activity with the loaded POSIX-replayer.

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 4 / 7

SLIDE 36

5. Evaluation

Test Systems Scientific Workloads

6. Implementation

Prototype (Component Overview) API and Plugin Development Plugin Sample

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 5 / 7

SLIDE 37

Component Overview

Structural components of feign.

University of Hamburg Feign - Laboratory for I/O Research November 16, 2014 6 / 7

SLIDE 38

#include <feign.h> // provide some meta information Plugin plugin = { .name = "Example-Replayer", .version = "1.2.3", .intents = FEIGN_REPLAYER, }; int init(int argc, char argv[]) feign_register_plugin(&plugin); return 0; } // expected because of FEIGN_REPLAYER Activity replay(Activity * activity) { // do something and consume activity return NULL; }
