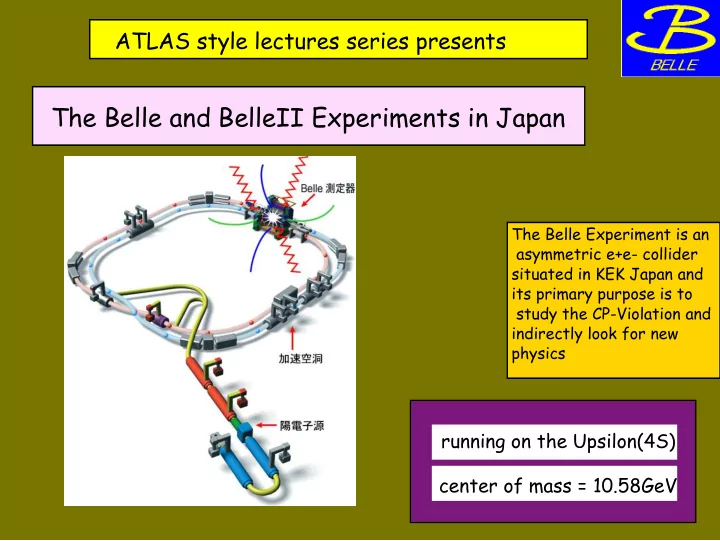

SLIDE 1

ATLAS style lectures series presents

The Belle and BelleII Experiments in Japan

The Belle Experiment is an asymmetric e+e- collider situated in KEK Japan and its primary purpose is to study the CP-Violation and indirectly look for new physics

running on the Upsilon(4S) center of mass = 10.58GeV

SLIDE 2

ATLAS style lectures series presents

The Belle and BelleII Experiments in Japan

The Belle Experiment is an asymmetric e+e- collider situated in KEK Japan and its primary purpose is to study the CP-Violation and indirectly look for new physics

running on the Upsilon(4S) center of mass = 10.58GeV

SLIDE 3

2

Measurement of CP Violation

Objective: Measure time dependent decay asymmetry of B and B going to the same final state aCP(t) = Γ (B0 → fCP; t) − Γ (B0 → fCP; t) Γ (B0 → fCP; t) + Γ (B0 → fCP; t)

3 possible contributions

▸ CP-Violation in decay (direct) ▸ CP-Violation in mixing (indirect) ▸ CP-Violation by interference of

mixing and decay (mixing induced)

s

c d d W+ b c B0 K0

S

J/ψ

+

d d c b W− u, c, t W+ d u, c, t b c W− s B0 K0

S

J/ψ

2

≠

d

c d c b W− s B0 K0

S

J/ψ

+

b s c u, c, t d d d W+ u, c, t W− b W+ c B0 K0

S

J/ψ

2

▸ For B mesons, contributions from indirect CP-Violation are negligible ▸ For many decays, loop diagrams contribute to the amplitudes

possibility to indirectly detect new physics

Martin Ritter The Belle II Experiment

SLIDE 4

3

Measurement of CP-Violation

Experimental challenging task:

▸ lifetime of B mesons is 1.5 ps ▸ flavour of B meson has to be known

Solution

▸ Υ(4S): coherent B-meson pair production ▸ one B to determine flavour (tag side),

ther B for CP measurement (CP side)

▸ boost system using asymmetric beam energies

t → ∆t =

∆z ⟨βγ⟩c

t (ps) ∆

6
4
2

2 4 6 Entries / 0.5 ps 50 100 150 200 250 300 350 ∆z Υ(4S) e− e+ B0

CP

B0

tag

J/ψ µ+ µ− ℓ− K− π− π+ K0

S

Boost ⟨∆z⟩ ∼ 200 ţm

Martin Ritter The Belle II Experiment

SLIDE 5

4

Experimental requirements

9.46

σ(e+e− → Hadrons) [nb] Υ(1S) e+e− Center-of-Mass Energy [GeV] Υ(2S) Υ(3S) Υ(4S)

continuum background 9.44 10.0010.02 10.34 10.37 10.54 10.58 10.62 5 10 15 20 25

Best place to produce BB in a clean environment is at the Υ(4S):

▸ lowest energy with free B mesons ▸ 1/3 of all events are BB ▸ possibility to “turn off” B production by

lowering center of mass energy by 50 MeV

Differences to LHC

Energy is factor O(1000) smaller than for LHC:

▸ there are no real “jets”: we see single particles ▸ mean momentum of charged particles is around 500 MeV

Electron Collider:

▸ full knowledge about the center of mass frame ▸ no underlying events ▸ but: low cross section (more than factor 100)

Martin Ritter The Belle II Experiment

SLIDE 6

5

Belle/Belle II Experiment

Asymmetric e+e− experiment mainly at the Υ(4S) resonance (10.58 GeV) KEKB/Belle SuperKEKB/Belle II

peration

1999 – 2010 2014 – peak luminosity 2.11 × 1034 cm−2s−1 8 × 1035 cm−2s−1 integrated luminosity 1023 fb−1 (772 million BB pairs) 50 ab−1

Martin Ritter The Belle II Experiment

SLIDE 7

6

8

Electromagnetic Calorimeter

▸ no hadronic calorimeter needed due to low energy ▸ around 8000 CsI crystals: pure CsI in the endcaps,

CsI(Tl) in the barrel

▸ crystals are expensive and will be reused from Belle ▸ good pointing and energy resolution

Earthquake

▸ During the earthquake, the Belle detector

(1500 t) moved by 6 cm

▸ but most probably it moved 20 cm in one

direction and then came back

▸ inner detector was already disassembled but

crystals were still in so far tests show that crystals are still working

Martin Ritter The Belle II Experiment

SLIDE 15

8

Electromagnetic Calorimeter

▸ no hadronic calorimeter needed due to low energy ▸ around 8000 CsI crystals: pure CsI in the endcaps,

CsI(Tl) in the barrel

▸ crystals are expensive and will be reused from Belle ▸ good pointing and energy resolution

Earthquake

▸ During the earthquake, the Belle detector

(1500 t) moved by 6 cm

▸ but most probably it moved 20 cm in one

direction and then came back

▸ inner detector was already disassembled but

crystals were still in so far tests show that crystals are still working

Martin Ritter The Belle II Experiment

SLIDE 16

9

Particle Identification System

Good separation between Kaons and Pions is very important

▸ Momentum and dE/dx will be measured in the tracking system ▸ Use of Cherenkov detectors to measure speed of the particle ▸ Cherenkov light is the optical analogy

to the sonic boom

▸ particles that are faster than the speed

f light in a given medium emit

cherenkov light

▸ direction of the light is dependent on

β

Martin Ritter The Belle II Experiment

SLIDE 17

10

Time of Propagation Counter

DIRC = Detecton of internaly reflected Cherenkov light

▸ array of rectangular quartz bars ▸ cherenkov light is reflected internally ▸ MCP-PMT array at the end will detect

position and time

▸ 40 ps time resolution, 3 σ K/π

separation

Martin Ritter The Belle II Experiment

SLIDE 18

11

Endcap A-RICH

RICH = Ring Imaging Cherenkov Detector

▸ silica aergoel radiators used to create

Cherenkov light

▸ light will form in circle screen ▸ two layers of different refractive materials

used to produced focussed ring

▸ 4 σ K/π separation

Silica Aerogel

▸ produced by drying silica gel in a specific

way

▸ low density (world record at 1.9 mg/cm3) ▸ low refractive index

Martin Ritter The Belle II Experiment

SLIDE 19

12

Central Drif Chamber

▸ wire chamber with ∼ 15000 sense

wires

▸ drif time ∝ distance to wire ▸ position resolution of O(100 ţm) ▸ stereo wires to get θ-information ▸ determination of particle

momentum

Martin Ritter The Belle II Experiment

SLIDE 20

13

Contribution to PID

Drif chamber also contributes to particle identification due to different energy losses for different kind of particles

Muon momentum 1 10 100 Stopping power [MeV cm2/g] Lindhard- Scharff Bethe Radiative Radiative effects reach 1%

µ+ on Cu

Without δ Radiative losses βγ 0.001 0.01 0.1 1 10 100 1000 104 105 106 [MeV/c] [GeV/c] 100 10 1 0.1 100 10 1 100 10 1 [TeV/c] Anderson- Ziegler Nuclear losses Minimum ionization Eµc

µ− µ π K p

e

D

e Energy deposit per unit length (keV/cm) Momentum (GeV/c) 8 12 16 20 24 28 32 0.1 1 10

Particle Identification uses the combined information of all sub detectors the particle traversed

Martin Ritter The Belle II Experiment

SLIDE 21

14

Strip Vertex Detector

n bulk strip

+

n strip

+

p

electron hole

stop p-

▸ 4 layer double sided strip detector ▸ pitch of 50 ţm resp. 160 ţm ▸ shaping time of 20 − 50 ns

Martin Ritter The Belle II Experiment

SLIDE 22

15

SVD Material Budget

To reduce the material budget, the readout chips will be thinned down and put directly

n the sensor

Martin Ritter The Belle II Experiment

SLIDE 23

15

SVD Material Budget

To reduce the material budget, the readout chips will be thinned down and put directly

n the sensor

they call it the “Batman-shape”

Martin Ritter The Belle II Experiment

SLIDE 24

16

Pixel Vertex Detector

▸ innermost part of the detector ▸ 2 layer pixel detector (8M pixels) ▸ readout time of 20 ms ▸ data rate of 240 Gb/s = 30 GB/s ▸ pixel size of 50 × 50 ţm and 50 × 75 ţm ▸ single track vertex resolution

O(15 − 30 ţm)

VON EINEM AUTODESK-SCHULUNGSPRODUKT ERSTELLT

14.00 22.00 136.00 90.00 124.00 170.00 23.00 23.00 23.00 23.00

Martin Ritter The Belle II Experiment

SLIDE 25

17

Material budget

PXD different design compared with existing Silicon detectors

▸ silicon sensors self supporting ▸ sensitive area will be thinned down to 75 ţm ▸ almost no additional material inside of the

acceptance total material budget of 0.28% X0 But: Silicon is very brittle: Once there is a small crack, this crack can grow very easily

Martin Ritter The Belle II Experiment

SLIDE 26

17

Material budget

PXD different design compared with existing Silicon detectors

▸ silicon sensors self supporting ▸ sensitive area will be thinned down to 75 ţm ▸ almost no additional material inside of the

acceptance total material budget of 0.28% X0 But: Silicon is very brittle: Once there is a small crack, this crack can grow very easily

Martin Ritter The Belle II Experiment

SLIDE 27

18

Martin Ritter The Belle II Experiment

SLIDE 28

19

Martin Ritter The Belle II Experiment

SLIDE 29

20

Conclusions

Belle/Belle II is a precision measurement focusing on the production of B mesons

▸ Center of Mass energy of 10.58 GeV ▸ boosted system to transform lifetime difference between the two B mesons into

vertex difference

▸ very good vertex detector ▸ good identification of final state particles (K,π)

Belle II will increase the data sample of BB Events by a factor of 50

▸ opens possibilities to examine very rare decays ▸ will push sensitivity of CP measurements to a level to really challenge SM

Martin Ritter The Belle II Experiment

SLIDE 30

SLIDE 31

22

Tank you for your attention

Martin Ritter The Belle II Experiment

SLIDE 32

23

Unitarity Triangle

▸ unitarity of CKM matrix leads to column constraints ∑k VikV ∗ jk = 0 ▸ triangles in complex space ▸ almost degenerate in Kaon system, large angles in B meson system

VudV ∗

ub O(λ3)

+ VcdV ∗

cb O(λ3)

+ VtdV ∗

tb O(λ3)

= 0

3

φ

2

φ

2

φ

d

m ∆

K

ε

K

ε

s

m ∆ &

d

m ∆

ub

V

1

φ sin 2

(excl. at CL > 0.95) < 0

1

φ

sol. w/ cos 2

2

φ

1

φ

3

φ

ρ

−0.4 −0.2 0.0 0.2 0.4 0.6 0.8 1.0

η

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

excluded area has CL > 0.95 Moriond 09

CKM

f i t t e r

ρ = (1 − λ2 2 ) ρ η = (1 − λ2 2 ) η ϕ1 = arg ⎛ ⎝− Vcd V∗

cb

Vtd V∗

tb

⎞ ⎠ ϕ2 = arg ⎛ ⎝− Vtd V∗

tb

Vud V∗

ub

⎞ ⎠ ϕ3 = arg ⎛ ⎝− Vud V∗

ub

Vcd V∗

cb

⎞ ⎠

Martin Ritter The Belle II Experiment

SLIDE 33

24

Standard Silicon Detector

for example ATLAS

▸ multiple sensitive modules are glued on support ribs which provide mechanical

stability

▸ support, cooling and cables inside acceptance region (between 5% and 30% X0)

too much material for Belle II (10 GeV CM energy)

Martin Ritter The Belle II Experiment
