ONE-POT SYNTHESES USING CARBONYL COMPOUNDS CATALYZED BY CE(III) SUPPORTED ON A WEAKLY ACIDIC CATION-EXCHANGER RESIN Eva Havrnkov , Pavel Pazdera* *E-mail: pazdera@chemi.muni.cz, havrankovae@gmail.com Centre for Syntheses at Sustainable

  1. ONE-POT SYNTHESES USING CARBONYL COMPOUNDS CATALYZED BY CE(III) SUPPORTED ON A WEAKLY ACIDIC CATION-EXCHANGER RESIN Eva Havránková , Pavel Pazdera* *E-mail: pazdera@chemi.muni.cz, havrankovae@gmail.com Centre for Syntheses at Sustainable Conditions and Their Management, Department of Chemistry, Faculty of Science, Masaryk University, UKB, Kamenice 753/5, CZ-625 00 Brno, Czech Republic.

  2. Introduction One of the possibilities to sophisticate compound syntheses is catalysis using supported catalyst which combines the advantages of both homogeneous and heterogeneous catalyst. An application of Ce(III) inorganic salts, first of all CeCl 3 .7H 2 O doped by sodium iodide, not until has been described from start of 21st Century. Twenty communications has been present during this time only. Catalysis by Ce(III) salts has been used for an activation of carbonyl compounds and their derivatives in syntheses. Easily available, cheap and mechanically and thermally stable industrial cation-exchangers may be used as carriers 1 . These in connection with complex of cerium in oxidation state of 3 + provide an effective, easily separable and recyclable catalytic system. This system has been studied with a view to its possible synthetic applications on model three-component domino syntheses, i.e. Kabachnik-Fields one-pot synthesis of α - aminophosphonates 2 , and Prins-Ritter one-pot synthesis of 4-amidotetrahydropyran derivatives 3 , respectively.

  3. Preparation of catalysts 1) Preparation of 30 mol% CeCl 3 .7H 2 O and 30 mol% of NaI supported on silica gel 4 : Silica gel was added to a mixture of CeCl 3 .7H 2 O and NaI in acetonitrile, and the mixture was stirred overnight at room temperature. The acetonitrile was removed by rotary evaporator and the resulting mixture was used as a catalyst. 2) Preparation of cation Ce(III) supported on a weak acid macroporous cation-exchanger resin (D113 Noromite; 4.5 mol/l) 1 : Resin and water were stirred for 5 min. Than was slowly added a solution of sodium carbonate to pH cca 12. Subsequently, the aqueous phase was decanted and the solid phase was washed with of water. The solid phase was stirred with a solution of CeCl 3 .7H 2 O in water overnight. The aqueous phase was again decanted and the solid phase washed with water and methanol, respectively. Finally, the thus prepared catalyst was dried under vacuum at room temperature to constant weight. The Ce(III) capacity in this resin was 2.3 mmol/g. An equivalent amount of NaI or eventual proline such as supported Ce(III) catalyst was added into a reaction mixture.

  4. Preparation of α -aminophosphonates • Scheme of the reaction: O OEt P H OEt OEt O O P NH catalytic system OEt H Ar NH 2 + + Ar ethanol, r .t. H O R H R P OEt EtO • Key cerium containing intermediate for Kabachnik-Fields synthesis: H R 3+ Ce N H R O R 3+ Ce N EtO H 3+ P O R Ce R EtO H

  5. Preparation of α -aminophosphonates – table of results Reactants Catalyst Molar Yield Time Ratio [eqv] [%] [min] Benzaldehyde; - 1 : 1,1 N.R. 1440 Aniline; CeCl 3 .7H 2 O 2 1 : 1,1 : 0,03 95 300 Diethyl phosphite CeCl 3 .7H 2 O/NaI 1 : 1,1 : 0,03 96 240 CeCl 3 .7H 2 O/NaI supported on resin 1 : 1,1 : 0,03 98 220 CeCl 3 .7H 2 O/NaI supported on silica gel 1 : 1,1 : 0,03 93 330 Proline/CeCl 3 .7H 2 O/NaI supported on resin 1 : 1,1 : 0,03 96 180 4-CH 3 O- - 1 : 1,1 N.R. 1440 Benzaldehyde; CeCl 3 .7H 2 O 2 1 : 1,1 : 0,03 91 270 Aniline; Diethyl CeCl 3 .7H 2 O/NaI 1 : 1,1 : 0,03 93 240 phosphite CeCl 3 .7H 2 O/NaI supported on resin 1 : 1,1 : 0,03 93 180 CeCl 3 .7H 2 O/NaI supported on silica gel 1 : 1,1 : 0,03 90 280 Proline/CeCl 3 .7H 2 O/NaI supported on resin 1 : 1,1 : 0,03 94 150 *At room temperature; ethanol as a solvent.

  6. Preparation of α -aminophosphonates – table of results Reactants Catalyst Molar Yield Time Ratio [eqv] [%] [min] 4-NO 2 - - 1 : 1,1 N.R. 1440 Benzaldehyde; CeCl 3 .7H 2 O 2 1 : 1,1 : 0,03 90 780 Aniline; Diethyl CeCl 3 .7H 2 O/NaI 1 : 1,1 : 0,03 92 660 phosphite CeCl 3 .7H 2 O/NaI supported on resin 1 : 1,1 : 0,03 94 600 CeCl 3 .7H 2 O/NaI supported on silica gel 1 : 1,1 : 0,03 90 780 Proline/CeCl 3 .7H 2 O/NaI supported on resin 1 : 1,1 : 0,03 94 420 Benzaldehyde; - 1 : 1,1 N.R. 1440 4-Cl-Aniline; CeCl 3 .7H 2 O 2 1 : 1,1 : 0,03 93 540 Diethyl phosphite CeCl 3 .7H 2 O/NaI 1 : 1,1 : 0,03 94 420 CeCl 3 .7H 2 O/NaI supported on resin 1 : 1,1 : 0,03 97 360 CeCl 3 .7H 2 O/NaI supported on silica gel 1 : 1,1 : 0,03 91 560 Proline/CeCl 3 .7H 2 O/NaI supported on resin 1 : 1,1 : 0,03 96 270 *At room temperature; ethanol as a solvent.

  7. Preparation of α -aminophosphonates – table of results Reactants Catalyst Molar Yield Time Ratio [eqv] [%] [min] Benzaldehyde; - 1 : 1,1 N.R. 1440 4-Aminophenol; CeCl 3 .7H 2 O 2 1 : 1,1 : 0,03 90 600 Diethyl phosphite CeCl 3 .7H 2 O/NaI 1 : 1,1 : 0,03 94 420 CeCl 3 .7H 2 O/NaI supported on resin 1 : 1,1 : 0,03 96 350 CeCl 3 .7H 2 O/NaI supported on silica gel 1 : 1,1 : 0,03 93 510 Proline/CeCl 3 .7H 2 O/NaI supported on resin 1 : 1,1 : 0,03 96 280 *At room temperature; ethanol as a solvent.

  8. Preparation of 4-amidotetrahydropyranes • Scheme of the reaction: NHCOMe O OH H + catalytic system/AcCl + CH 3 CN O CH 3 CN, r .t. R R • Key cerium containing intermediate for Prins-Ritter synthesis: 3+ Ce R O O R H + 3+ O Ce R H

  9. Preparation of 4-amidotetrahydropyranes – table of results Reactants Catalyst Molar Ratio Yield Time [eqv] [%] [min] Acetyl chloride; - 1,5 : 1,2 : 1 31 1440 But-3-en-1-ol; CeCl 3 .7H 2 O/NaI 3 1,5 : 1,2 : 1 : 0,05 84 420 Benzaldehyde CeCl 3 .7H 2 O/NaI supported on resin 1,5 : 1,2 : 1 : 0,05 86 360 CeCl 3 .7H 2 O/NaI supported on silica gel 1,5 : 1,2 : 1 : 0,05 82 450 Acetyl chloride; - 1,5 : 1,2 : 1 45 1440 But-3-en-1-ol; CeCl 3 .7H 2 O/NaI 3 1,5 : 1,2 : 1 : 0,05 93 360 4-CH 3 O- Benzaldehyde CeCl 3 .7H 2 O/NaI supported on resin 1,5 : 1,2 : 1 : 0,05 93 220 CeCl 3 .7H 2 O/NaI supported on silica gel 1,5 : 1,2 : 1 : 0,05 89 360 *At room temperature; acetonitrile as a solvent.

  10. Preparation of 4-amidotetrahydropyranes – table of results Reactants Catalyst Molar Ratio Yield Time [eqv] [%] [min] Acetyl chloride; - 1,5 : 1,2 : 1 38 1440 But-3-en-1-ol; CeCl 3 .7H 2 O/NaI 3 1,5 : 1,2 : 1 : 0,05 82 450 4-NO 2 - Benzaldehyde CeCl 3 .7H 2 O/NaI supported on resin 1,5 : 1,2 : 1 : 0,05 84 340 CeCl 3 .7H 2 O/NaI supported on silica gel 1,5 : 1,2 : 1 : 0,05 80 480 Acetyl chloride; - 1,5 : 1,2 : 1 35 1440 But-3-en-1-ol; CeCl 3 .7H 2 O/NaI 3 1,5 : 1,2 : 1 : 0,05 90 480 Cyclohexanone CeCl 3 .7H 2 O/NaI supported on resin 1,5 : 1,2 : 1 : 0,05 91 400 CeCl 3 .7H 2 O/NaI supported on silica gel 1,5 : 1,2 : 1 : 0,05 88 500 *At room temperature; acetonitrile as a solvent.

  11. Conclusion It was discovered that cation Ce(III) supported on a weak acid macroporous cation-exchanger shown in the studied reactions at least the same or better catalytic activity as salt CeCl 3 .7H 2 O, eventually doped by NaI. In conclusion, we developed a novel and environmentally friendly catalyst, which can be used in a wide range of reactions of carbonyl and other compounds. The catalyst can be used repeatedly. The used organic resin has not abrasive effect on surface of reaction vessels, in contradistinction to silica gel carrier. The advantages of the present protocol are mild, heterogeneous conditions, shorter reaction times, easy work-up, and low toxicity, inexpensive, ready availability, recoverability, recyclability of the catalyst that make the procedure an attractive alternative to the existing methods for the synthesis of α -aminophosphonates, and 4- amidotetrahydropyran derivatives.

  12. References 1. Pazdera, P.; Zberovská, B.; Němečková , D.; Datinská, V. : CZ 2011/0799 (A3). 2. Jafari, A. A.; Nazarpour, M., Abdollahi-Alibeik, M.; Heteroatom Chemistry, 2010 , 21, 397-403. 3. Yadav, J. S.; Subba Reddy, B. V.; Narayana Kumar, G. G. K. S.; Madhusudhan Reddy, G.; Tetrahedron Letters, 2007 , 48, 4903-4906. 4. Bartoli, G.; Bartolacci, M.; Bosco, M.; et al. : J. Org. Chem., 2003 , 68 (11), 4595-4597.

Download Presentation
Download Policy: The content available on the website is offered to you 'AS IS' for your personal information and use only. It cannot be commercialized, licensed, or distributed on other websites without prior consent from the author. To download a presentation, simply click this link. If you encounter any difficulties during the download process, it's possible that the publisher has removed the file from their server.

Recommend

INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION

INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION

TRAINING COURSE ON SOCIAL PROTECTION & FORMALIZATION TRINIDAD AND TOBAGO MARCH 15, 2017 INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION Design of the NIS Assistance from the

547 views • 23 slides
INTRODUCTION Introduction 2/42 INTRODUCTION Alternations I am giving bread to the

INTRODUCTION Introduction 2/42 INTRODUCTION Alternations I am giving bread to the

Patterns of variation in the expression of case and agreement Andrs Brny Leiden University Centre for Linguistics 9 November 2019, BaSIS Workshop a.barany@hum.leidenuniv.nl INTRODUCTION Introduction 2/42 INTRODUCTION

1.37k views • 42 slides
Introduction Introduction Introduction Introduction Outline Motivation Failures

Introduction Introduction Introduction Introduction Outline Motivation Failures

Introduction Introduction Introduction Introduction Outline Motivation Failures Definition and concepts Process and product properties Principles SE Approaches Motivation Software and the economy The economies of

1.03k views • 49 slides
Introduction Introduction Introduction Nationwide Cause for Concern 1

Introduction Introduction Introduction Nationwide Cause for Concern 1

Introduction Introduction Introduction Nationwide Cause for Concern 1 https://www.cdc.gov/std/stats17/infographic.htm Introduction Epidemiology in Western Colorado CPHE Surveillance Data Report, May 2018 Chlamydia Epidemiology in Western

977 views • 39 slides
DAQ introduction Purpose of this talk : (1) Introduction for those who have not been in every

DAQ introduction Purpose of this talk : (1) Introduction for those who have not been in every

DAQ introduction Purpose of this talk : (1) Introduction for those who have not been in every meeting (2) Some ideas of diagrams for section 7.1 (Introduction) of TP. Giles Barr 25 Jan 2018, Pembroke College On DUNE, the reality is there is a

474 views • 10 slides
INTRODUCTION cf. Schneider, Chapter 1 INTRODUCTION THEY ARE OUT TO GET YOU INTRODUCTION WHAT

INTRODUCTION cf. Schneider, Chapter 1 INTRODUCTION THEY ARE OUT TO GET YOU INTRODUCTION WHAT

ADVANCED COMPUTER SECURITY INTRODUCTION cf. Schneider, Chapter 1 INTRODUCTION THEY ARE OUT TO GET YOU INTRODUCTION WHAT IS SECURITY? A systems security policies describe What the system is supposed to do Store and provide access

479 views • 16 slides
Overview Introduction to SMIL Introduction to W3C and XML Introduction to SMIL

Overview Introduction to SMIL Introduction to W3C and XML Introduction to SMIL

Overview Introduction to SMIL Introduction to W3C and XML Introduction to SMIL Writing a SMIL file Adding Media Objects Martin Halvey Clipping media files January 2008 Timing and Synchronising Layout World Wide

387 views • 14 slides
14 Introduction Introduction Bad guys can put malware into Example: hosts

14 Introduction Introduction Bad guys can put malware into Example: hosts

Introduction Introduction source Encapsulation ISO/OSI reference model message M application segment H t H t M transport network datagram H n H n H t M presentation: allow applications to frame link H l H n H t M interpret

583 views • 4 slides
Previous Lecture Introduction to SMIL 2 Introduction to W3C and XML Introduction to SMIL

Previous Lecture Introduction to SMIL 2 Introduction to W3C and XML Introduction to SMIL

Previous Lecture Introduction to SMIL 2 Introduction to W3C and XML Introduction to SMIL Writing a SMIL file Adding Media Objects Martin Halvey Clipping media files January 2008 Timing and Synchronising Layout

322 views • 8 slides
Lecture 1 Andreas Habegger Introduction Zynq Introduction Zynq Introduction Zynq PS vs. PL

Lecture 1 Andreas Habegger Introduction Zynq Introduction Zynq Introduction Zynq PS vs. PL

Introduction Zynq Lecture 1 Andreas Habegger Introduction Zynq Introduction Zynq Introduction Zynq PS vs. PL Processing System Processor Peripherals Data Buses AXI Bus Conclusion BTE5380 - Embedded Systems Octobre 2014 Andreas Habegger

1.81k views • 30 slides
2018.06 01 SMILE5 Introduction S E 5 02 Alpha Cloud M I L 03 Company Introduction 04

2018.06 01 SMILE5 Introduction S E 5 02 Alpha Cloud M I L 03 Company Introduction 04

2018.06 01 SMILE5 Introduction S E 5 02 Alpha Cloud M I L 03 Company Introduction 04 Project References S E 5 PART.1 SMILE5 Introduction M I L Introduction STORION-SMILE5 Residential Energy Storage System Inverter 5kW Output Input

1.06k views • 25 slides
Introduction to CICS Course introduction Course introduction What is CICS? What is an

Introduction to CICS Course introduction Course introduction What is CICS? What is an

Introduction to CICS Course introduction Course introduction What is CICS? What is an application server? Why use an application server? Course introduction Services provided by CICS How CICS applications are defined Scaling CICS to meet

1.84k views • 146 slides
Network Visualization Introduction Presented by Shahed Introduction Introduction Basic

Network Visualization Introduction Presented by Shahed Introduction Introduction Basic

Network Visualization Introduction Presented by Shahed Introduction Introduction Basic building blocks Node Links (relationship between nodes) Spatial information Network data

584 views • 9 slides
Introduction Introduction (1) Main argument of the paper: universities are not only

Introduction Introduction (1) Main argument of the paper: universities are not only

Le jugement des pairs comme outil de management des universits Peer-review as a management tool Christine Musselin (CSO, Sciences Po et CNRS) Avril 2013, Lirrsistible ascension du capitalisme acadmique Introduction Introduction (1)

590 views • 28 slides
Introduction Introduction to storage and to storage and filesystems filesystems Introduction

Introduction Introduction to storage and to storage and filesystems filesystems Introduction

Moreno Baricevic Gilberto Daz Axel Kohlmeyer Stefano Cozzini ULA ICTP CNR-IOM DEMOCRITOS Merida, VENEZUELA Trieste, ITALY Trieste, ITALY Introduction Introduction to storage and to storage and filesystems filesystems Introduction

1.19k views • 51 slides
JABLOTRON JA-100 introduction November 2011 Introduction Todays goals First introduction of

JABLOTRON JA-100 introduction November 2011 Introduction Todays goals First introduction of

JABLOTRON JA-100 introduction November 2011 Introduction Todays goals First introduction of the brand new JA-100 alarm system Visions Basic architecture System components Setting Help us with final validations You are the FIRST ones

1.69k views • 111 slides
SOFTWARE 2.0 Software Engineer - Microsoft SPRING 2019 CSD 439 Big Data Application

SOFTWARE 2.0 Software Engineer - Microsoft SPRING 2019 CSD 439 Big Data Application

David Parker SOFTWARE 2.0 Software Engineer - Microsoft SPRING 2019 CSD 439 Big Data Application Development Basically learn how solve cool problems at scale ABOUT THE SPEAKER SKYNET Source: [19] AMAZON GO Source: [21]

1.21k views • 48 slides
Previous sorting algorithms g g Insertion Sort O(n 2 ) time Heapsort Heapsort Merge

Previous sorting algorithms g g Insertion Sort O(n 2 ) time Heapsort Heapsort Merge

Previous sorting algorithms g g Insertion Sort O(n 2 ) time Heapsort Heapsort Merge Sort Based off slides by: David Matuszek Based off slides by: David Matuszek http://www.cis.upenn.edu/~matuszek/cit594-2008/ O(n) space P

916 views • 7 slides
Estimation of Localization Uncertainty for Scale Invariant Feature Points Scale Invariant Feature

Estimation of Localization Uncertainty for Scale Invariant Feature Points Scale Invariant Feature

Estimation of Localization Uncertainty for Scale Invariant Feature Points Scale Invariant Feature Points BMVC 2009 8 9 2009 8.9.2009 Bernhard Zeisl 1 Pierre Fite Georgel 1 Florian Schweiger 2 b bernhard.zeisl@mytum.de h d i l@ d

527 views • 14 slides
B i n a r y h e a p s ( c h a p t e r s 2 0 . 3 2 0 . 5 ) L e f

B i n a r y h e a p s ( c h a p t e r s 2 0 . 3 2 0 . 5 ) L e f

B i n a r y h e a p s ( c h a p t e r s 2 0 . 3 2 0 . 5 ) L e f t i s t h e a p s B i n a r y h e a p s a r e a r r a y s ! A b i n a r y h e a p i s r e a l l y i

936 views • 74 slides
Oxidative degradation of a steroidal isoxazoline: 1-formyl-7-methoxy-2-methylphenanthrene from

Oxidative degradation of a steroidal isoxazoline: 1-formyl-7-methoxy-2-methylphenanthrene from

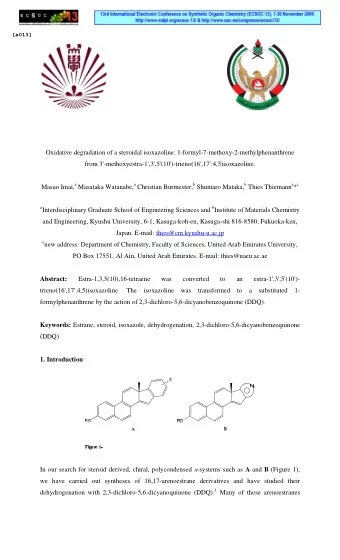

[a013] Oxidative degradation of a steroidal isoxazoline: 1-formyl-7-methoxy-2-methylphenanthrene from 3'-methoxyestra-1',3',5'(10')-trieno(16',17':4,5)isoxazoline. Masao Imai, a Masataka Watanabe, a Christian Burmester, b Shuntaro Mataka, b Thies
