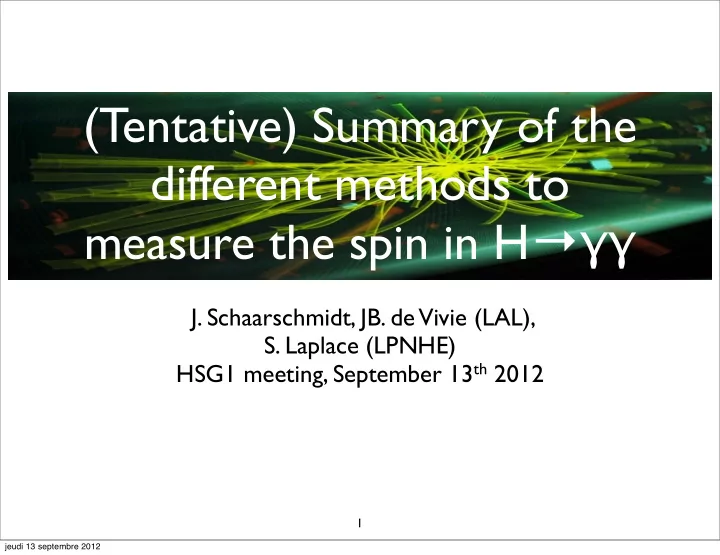

SLIDE 1

(Tentative) Summary of the different methods to measure the spin in H→γγ

J. Schaarschmidt, JB. de

Vivie (LAL),

S. Laplace (LPNHE)

HSG1 meeting, September 13th 2012

1

jeudi 13 septembre 2012

SLIDE 2

Introduction

2

Steps to measure spin in H→γγ:
Variable to disentangle the background: diphoton mass. Different methods

to exploit it:

1D fit on mass:
either to obtain S and B yields, for all events or in cosθ* bins
r to compute sWeights for cosθ* sPlots
2D fit on mass + cosθ*
Angular variable to measure the spin: cosθ*
3 possible definitions: boost axis, Collins Soper (used here), beam axis
test spin0/spin2 hypotheses using likelihood ratios:
«Tevatron style» L0/L2: test spin0 versus spin2 hypotheses - what has been

investigated so far and in this talk

«LHC style» L2/Lmin (see HSG7 meeting on Sept. 12): fit the fraction of spin0/spin2

components - not yet investigated

correlations between mass and cosθ* need to be known for some of the methods

jeudi 13 septembre 2012

SLIDE 3

Samples and technical points

3

Samples:
Signal (dN/dcosθ*∼const): official HSG1 D3PDs
Background: Wisconsin fast sim (thanks to them !)
Spin 2: unofficial D3PDs from J. Albert/F. Bernlochner of Pythia6 Graviton-

like mH=125 GeV (thanks to him !)

production modes available : gg (dN/dcosθ*∼1+6cos2θ*+cos4θ*) and qq

(dN/dcosθ*∼1-cos4θ*) (VBF not treated here)

note: J. Albert and JB de

Vivie noticed some weird differences for spin2 between Pythia6 and Pythia8. Anyway, official samples will be made with JHU generator...

Technical points:
workspace similar to official one, but with 2D pdf of mass and cosθ* (so

far non-correlated)

here, use Collins-Soper definition of cosθ* (note: this definition does

not «suffer» from the asymmetric kinematic cutoffs present in the Boost Axis definition mentionned by Wisconsin in HSG1 Sept. 6)

jeudi 13 septembre 2012

SLIDE 4

cosθ* distributions

background

4

*)|

|Cos(

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.005 0.01 0.015 0.02 0.025 0.03 0.035 0.04

Collins-Soper Frame Boost Axis Beam Axis Background

*)

Cos(
1
0.8 -0.6 -0.4 -0.2

0.2 0.4 0.6 0.8 1 0.01 0.02 0.03 0.04 0.05 0.06

Collins-Soper Frame Boost Axis Leading Boost Axis Subleading Beam Axis Background

(plots: M. Kuna)

jeudi 13 septembre 2012

SLIDE 5

*)|

|Cos(

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.005 0.01 0.015 0.02 0.025 0.03 0.035 0.04

Collins-Soper Frame Boost Axis Beam Axis Spin 0 Signal

cosθ* distributions

spin0/spin2

5

*)|

|Cos(

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.005 0.01 0.015 0.02 0.025 0.03 0.035 0.04

Collins-Soper Frame Boost Axis Beam Axis Spin 2 qq

*)|

|Cos(

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.005 0.01 0.015 0.02 0.025 0.03 0.035 0.04

Collins-Soper Frame Boost Axis Beam Axis Spin 2 gg

(plots: M. Kuna)

jeudi 13 septembre 2012

SLIDE 6

cosθ* distributions

6

(plots: M. Kuna)

*)|

|Cos(

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.005 0.01 0.015 0.02 0.025 0.03 0.035 0.04

Background Spin 0 Signal Spin 2 gg Spin 2 qq Collins-Soper

*)|

|Cos(

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.005 0.01 0.015 0.02 0.025 0.03 0.035 0.04 0.045 0.05

Background Spin 0 Signal Spin 2 gg Spin 2 qq Beam Axis

*)|

|Cos(

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.005 0.01 0.015 0.02 0.025 0.03 0.035 0.04

Background Spin 0 Signal Spin 2 gg Spin 2 qq Boost Axis

jeudi 13 septembre 2012

SLIDE 7

Likelihood ratios definition

7

f S

c (cos θ∗ e|0, 2gg) = 0f S 0 (cos θ∗ e) + S 2gg(cos θ∗ e) + (1 − 0 − 2gg)f S 2qq(cos θ∗ e)

cosθ* pdf for signal: sum of spin0, spin2 (gg and qq - vbf not included yet) pdfs with

fractions ε0, ε2gg and ε2qq=(1-ε0-ε2gg) - so far, used ε2gg =1 for spin2 hypothesis

the likelihood is given by:

−lnLS[+B]

c,[m] (0, 2gg) = (ˆ

nS+ˆ nB)−

e

ln

ˆ

nSf S

c (cos θ∗ e|0, 2gg)

f S

m(me|mH)

+ˆ nBf B

c (cos θ∗ e)

f B

m(me)

where one includes the background component or not, and the correlations or not

(here, without... )

the likelihood ratios are defined by:

−2lnΛ = −2lnL0 L2 = −2lnL(1, 0) L(0, 1)

«Tevatron way»: fixed fractions «LHC way»: floating fractions (χ2 behavior) not investigated yet (Gaussian behavior)

−2lnΛ = −2ln L2 Lmin = −2ln L(0, 1) L (ˆ 0, ˆ 2gg)

jeudi 13 septembre 2012

SLIDE 8

Methods

No Events used Signal extraction Mass-cos correlation LR for Hypo

r Hypothesis testing

No Events used extraction correlation needed ? binned ? content 1 S+B small mass window 1D fit on mass no(*) no 1D(c)[x1D(m)] S+B 2 S+B full mass window 2D fit on mass,cos yes no 2D(m,c) S+B 3 S 1D fit on mass in cos bins no(*) yes 1D(c) S 4 S sPlots yes yes 1D(c) S

8

J. Albert,
F. Bernlochner

(a bit different) Wisconsin

M. Fanti,

Wisconsin

S. Laplace, N. Rhone,

JB de Vivie

(*): remaining correlations within a mass or cosθ* bin is a systematic uncertainty → Goal of this presentation: comparison of statistical power of all these methods using inclusive toys

Previous work

jeudi 13 septembre 2012

SLIDE 9

Statistical interpretation

9

asymmetric: usual type II error β symmetric: at q(α=β) Expected significance of spin0 hypothesis («N(σ)»): Probability to exclude spin 2 hypothesis if spin 0 is true («Pexcl»)

P(95%CL) = q(α2=0.05)

−∞

fS0(q)dq

without any a priori belief in spin0/spin2 with prejudice that spin0 is favored

Find q for spin2 excl. @ 95%CL (α2=0.05) «How often will we find a value of q that allows to exclude spin 2?»:

drawings: courtesy Jana

jeudi 13 septembre 2012

SLIDE 10

Method #1

10

studies performed by M. Fanti (HSG1 Aug. 9 and Sep. 6) and Wisconsin (Sep. 6) + this study
1D fit of mass to get S and B, use LR(S+B)(c,m)
advantage:
events outside the signal mass window do not contribute to the spin0/spin2 separation:

the LR is effective only in a small mass window, and thus background correlations can be mostly ignored (still need to assess residual effect)

background pdf either from MC (Wisconsin, this study) or data (Fanti: narrow sideband)

L=10.7 fb-1, μ= 1.85, N(toys) = 10k spin2 L μ N(σ)

asym

Pexcl this study pythia6, 125 GeV 10.7 32.1 1.85 1.8 2.9 57 % 94 % Fanti pythia6, 300 GeV 5.9 30 ∼1.53

17 %

39 % Wisconsin JHU, 126.5 GeV 5.9 30 1.41 0.52 1.14

hard to compare results given the different L/

μ/spin2 samples used and the different ways of quoting results: should agree on benchmark values/stat. interpretation...

still: our result looks way too good ! More

checks needed

(1D fit on mass)

almost Gaussian behavior (not exactly so cannot rely on analytical formulae to derive significances)

jeudi 13 septembre 2012

SLIDE 11

Method #2

11

studies performed by J. Albert, F. Bernlochner (HSG1 Apr. 12) + this study
advantage:
make use of full satistical power (cosθ* in fit: improved significance)
drawbacks:
need to correctly modelize mass-cosθ* correlations
hard to fit a 2D pdf in the data directly...

L=10.7 fb-1, μ= 1.85, N(toys) = 2k

L μ N(σ)

asym

Pexcl this study 10.7 1.85 1.9 61 %

J. Albert, F.

Bernlochner «up to with up to 90% CL with 15-25 CL exclus 15-25 fb-1» exclusion fb-1» (2D fit on mass-cosθ*) 5% «only» improvement over 1D fit in this ideal case without correlations: not worth the complication of a 2D fit ! here, without correlations

jeudi 13 septembre 2012

SLIDE 12

Method #3

12

studies performed by Wisconsin (HSG1 Jun. 21) + this study (Jana)
advantages:
obtain the cosθ* distribution of signal events without a priori knowledge
do not need the background cosθ* pdf (only the signal pdf enters the LR)
correlations are less an issue in each cosθ* bins (residual effect to be quantified)

(1D mass fit in bins of cosθ*)

S+B fit in the data in each cosθ* bin toys :

bkg pdfs are obtained from B-only fit of

the data (different than slides 7, 8 where MC is used for bkg pdf)

obtain S per cosθ* bin → 10-bins histo
build binned likelihood ratio from histo

More details in Jana’s slides on the sharepoint:

https://espace.cern.ch/atlas-phys-higgs-htogamgam/Lists/ 2012%20HCP/Attachments/6/spin_from_signalyield.pdf

jeudi 13 septembre 2012

SLIDE 13

Method #3

13

Results:

L μ N(σ)

asym

Pexcl 10.7 1.3 41 % this study 21.4 1.85 1.7 58 % 32.1 2.1 66 %

jeudi 13 septembre 2012

SLIDE 14

Method #4

14

(sPlots)

Study put on sharepoint in june, based on a simple inclusive toy not using the

workspace of the other studies in this talk - no precise significance computation yet

Advantages:
obtain the cosθ* distribution of signal events without a priori knowledge using

ALL events (in principle, more powerfull than method #3)

do not need the background cosθ* pdf (only the signal pdf enters the LR)
Drawback: basic sPlots assume no correlations. Extensions exist to handle them,

though...

Reminders on sPlots technique:
Likelihood fit on a control variable (mγγ)
Get covariance matrix from likelihood:
Compute sweights:
Apply sweight to each event to obtain SPlot of test variable (cosθ*) to obtain,
n average, the «true» signal distribution...

jeudi 13 septembre 2012

SLIDE 15

15

(sPlots)

Warning: spin2 distribution is from 300 GeV graviton here

more realistic case: L=20 fb-1, S/B=0.1

hSPlotSignal

Entries 13522

! cos 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Weighted signal events 50 100 150 200

hSPlotSignal

Entries 13522

sPlot spin 0, p=0.99 spin 2, p=0.00 background, p=0.99 250 ± = 1296

s

N 301 ± = 12078

bg

N

s-plot for signal

hSPlotSignal

Entries 13403

! cos 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Weighted signal events

100
50

50 100 150 200 250 300

hSPlotSignal

Entries 13403

sPlot spin 0, p=0.00 spin 2, p=0.00 background, p=0.00 106 ± = 1282

s

N 321 ± = 12106

bg

N

s-plot for signal

hSPlotSignal

Entries 190284

! cos 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Weighted signal events 2000 4000 6000 8000 10000

hSPlotSignal

Entries 190284

sPlot spin 0, p=0.00 spin 2, p=0.00 background, p=0.00 429 ± = 128834

s

N 737 ± = 60555

bg

N

s-plot for signal

hSPlotSignal

Entries 189465

! cos 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Weighted signal events 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000

hSPlotSignal

Entries 189465

sPlot spin 0, p=0.96 spin 2, p=0.00 background, p=0.00 899 ± = 128837

s

N 738 ± = 60705

bg

N

s-plot for signal

ideal case: L=100 fb-1, S/B=2

no correlations with correlations: much wider spread

f sdata !

example toys

jeudi 13 septembre 2012

SLIDE 16

Method #4:

Dealing with correlations

16

(sPlots)

hSPlotSignal Entries 165

! cos 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Weighted signal events 20 40 60 80 100 120 140 160 180

hSPlotSignal Entries 165

sPlot spin 0, p=0.68 spin 2, p=0.00 background, p=0.32 106 ± = 1285

s

N 295 ± = 12097

bg

N

s-plot for signal

hSPlotSignal

Entries 13403

! cos 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Weighted signal events

100
50

50 100 150 200 250 300

hSPlotSignal

Entries 13403

sPlot spin 0, p=0.00 spin 2, p=0.00 background, p=0.00 106 ± = 1282

s

N 321 ± = 12106

bg

N

s-plot for signal

Can compute the sweights using the knowledge of correlations taken from MC or

(better..) data sidebands:

Here: use another dataset generated with the same model as «MC»

neglecting correlations in SPlot SPlot including background correlations from «MC» modified sweight without cross-terms between signal and bkg data background sample (includes correlations) with

jeudi 13 septembre 2012

SLIDE 17

Statistical Power of the different methods

17

No Events used Fit LR N(σ) spi σ) spin0

Prob. excl

spin2 @ No used Fit LR asym. sym. spin2 @ 95%CL 1 S+B (range) 1D(m) 1D(c) x1D(m) 1.84 0.93 57.1 % 2 S+B 2D (m,c) 2D(m,c) 1.9 0.98 61.1 % 3 S 1D(m) in cos bins 1D(c) 1.3 0.6 41 % 4 S sPlots 1D(c)

ngoing...

ng... mH = 126.5 GeV, L=10.7 fb-1, μ=1.85, N(toys) = 1000 no correlations spin2: gg only, mH=125 GeV

these numbers should not be taken litteraly for the moment

jeudi 13 septembre 2012

SLIDE 18

Systematics to be investigated

(not exhaustive)

18

Background cosθ* pdf:
Wisconsin fast sim MC ?
Interpolation from sidebands in data ?
correlations with mass
Spin 2 model: common systematics for all channels
pT is not well predicted at all: hard to go beyond inclusive

analysis...

fractions of production modes (gg, qq, vbf) is not known: this

enters the model definition

...

jeudi 13 septembre 2012

SLIDE 19

Conclusions

19

Several methods available to measure the spin in H→γγ:
common points: input variables (m and cosθ*)
differences:
some require the knowledge of the background cosθ* distribution,
thers do not
some require the knowledge of correlations
some allow to *see* the signal cosθ*, which might be more convincing

eventually than only relying on the result of a statistical test (people like to actually see the bumps !)

f course, more knowledge given in input means more statistical power, but

larger systematics

ther methods could also be investigated (see e.g. hep-ph/1209.1037: use

center-edge asymmetrie instead of LR, claimed to be less sensitive to systematics)

bvious: need to define benchmark lumi/mu/spin2 models and agree on way of

quoting results (=quote both significances and exclusions)

jeudi 13 septembre 2012

SLIDE 20

Backup

20

jeudi 13 septembre 2012

SLIDE 21

Method #3: more results

21

jeudi 13 septembre 2012

SLIDE 22

costhetastar distributions

22

*)

Cos(
1
0.8 -0.6 -0.4 -0.2

0.2 0.4 0.6 0.8 1 0.01 0.02 0.03 0.04 0.05 0.06

Background Spin 0 Signal Spin 2 gg Spin 2 qq Collins-Soper

*)

Cos(
1
0.8 -0.6 -0.4 -0.2

0.2 0.4 0.6 0.8 1 0.005 0.01 0.015 0.02 0.025 0.03 0.035 0.04 0.045 0.05

Background Spin 0 Signal Spin 2 gg Spin 2 qq Beam Axis

*)

Cos(
1
0.8 -0.6 -0.4 -0.2

0.2 0.4 0.6 0.8 1 0.005 0.01 0.015 0.02 0.025 0.03 0.035 0.04 0.045 0.05

Background Spin 0 Signal Spin 2 gg Spin 2 qq Boost Axis

jeudi 13 septembre 2012
