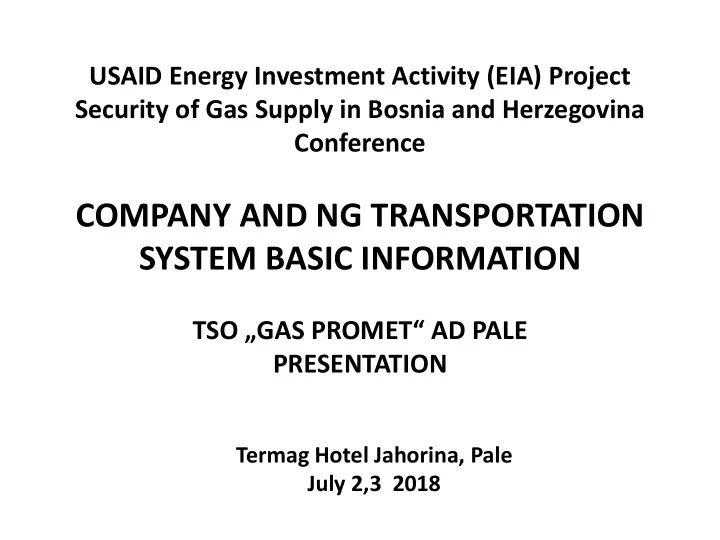

USAID Energy Investment Activity (EIA) Project Security of Gas Supply in Bosnia and Herzegovina Conference

COMPANY AND NG TRANSPORTATION SYSTEM BASIC INFORMATION

TSO „GAS PROMET“ AD PALE PRESENTATION

Termag Hotel Jahorina, Pale July 2,3 2018

Company: GAS PROMET AD, Srpskih ratnika 17, 71340 Pale, BiH Core business: Natural gas transportation (TSO) Total transported quantity: 241 million cm (2017, 100% of gas entering BiH) To other TSOs: 176 million cm (2017, for 2 TSOs: BH Gas & Sarajevogas AD) Established: 1998 www.gaspromet.com

Republic od Srpska NG Transportation System

Year of construction: 1979 DOP: 50 bar WP : 45 bar (max) Q = 0.7 bcm/year P = 750 MW Length: 60 km (20 + 40) D = 16’’ (406.4 mm) Δ = 6.35 mm One directional flow from SRB CS : Batajnica, Belgrade, SRB Entry points: 1, Exit points: 0 CTP : State border, Drina river CMP : MS Karakaj, Zvornik UGS: none , LNG: none Guaranteed delivery parameters at CMP Karakaj, Zvornik: WP : ≥ 30 bar Q : 1 860 000 cm/day ( at distance from CS :of 136 km) System Users (during last 3 years): 3 from abroad, 3 from BiH Exits: Sarajevo, CNG, distributions

БС „Шепак“ МС „Кладањ“ Улаз из Србије L=19.700 m NO 400 (Ø16“) ППС „Каракај“ Qmax=110.302 Sm3/h p=20(50) bar ГМРС „Бирач“ Qmax=26.000 Sm3/h pulaz=20(50) bar pizlaz=3 bar МС „Каракај“ Qmax=12.000 Sm3/h p=16(50) bar МС „Инд. зона“ Qmax=1.000 Sm3/h p=3 bar МС „Сарајево“ Qmax=100.000 Sm3/h p=20(50) bar МС „КПГ станица“ Qmax=20.000 Sm3/h P=20(50) bar БС „Шековићи L=40.000 m NO 400 (Ø16“) Ентитетска линија Излаз за Сарајево и Зеницу L=3.073 m NO 150 (Ø6“) L=1.687 m NO 100 (Ø4“) Одвојак за Братунац Излаз за Алумина д.о.о. Излаз за Индустријску зону Излаз за компресорску станицу ГМРС „Зворник“ Qmax=10.000 Sm3/h pulaz=16(50) bar pizlaz=3 bar за Мали Зворник pizlaz=3 bar за Зворник (топлане) pizlaz=0,2 bar за Зворник (домаћинства)

Легенда

БС – блок станица ППС – примо-предајна станица ГМРС – главна мјерно-регулациона станица МС – мјерна станица

Natural gas Transportation system in BiH

Year of construction: 1979 DOP: 50 bar WP : 45 bar (max) Q : 700 million cm/year (η ≈ 1/3) P : 750 MW Length: 195 km (20 + 40 + 135) D : 16’’ (406.4 mm) Δ : 6.35 mm (5 XL52, API) One directional flow from SRB CS : Batajnica, Belgrade, SRB Entry points: 1 (one) Exit points: 0 (none) CTP : State border, Drina river CMP : MS Karakaj, Zvornik UGS: none LNG: none Guaranteed delivery parameters at CMP Karakaj, Zvornik: WP : ≥ 30 bar Q : 1 860 000 cm/day ( at distance from CS :of 136 km)

Energy consumption in Bosnia and Herzegovina Total energy consumption by fuel (upper figure) Total energy consumption by fuel, kilotonne of oil equivalent (ktoe) Imported fuels: Oil and Natural Gas Natural gas (≈3%) (heating & industry) 241 million cm (2017)

Ugalj

Coal

Nafta

Oil

Plin

Gas

Obnovljivi izvori energije

Renewable Energy Sources

Električna energija

Electricity

Ukupno

Total

2008 . 3.860 1.331 351 575

• 142

5.975 2009 . 3.880 1.502 190 719

• 257

6.034 2010 . 4.026 1.635 199 874

• 329

6.405 2011 . 4.747 1.689 227 560

• 128

7.095 2012 . 4.373 1.549 209 543

• 4

6.670

65 64 63 67 66 6 3 3 3 3 7 8 9 8 8 22 25 28 24 23

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% 2008 2009 2010 2011 2012

Nafta/ Oil Obnovljivi izvori energije/ RES Plin/ Gas Ugalj/ Coal

Natural gas consumption in BiH & Republic of Srpska (1996-2017, million cm)

ПОТРОШЊА ПРИРОДНОГ ГАСА У БОСНИ И ХЕРЦЕГОВИНИ И РЕПУБЛИЦИ СРПСКОЈ

50 100 150 200 250 300 350 400 450 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017

Босна и Херцеговина Република Српска

The structure og natural gas consumption in Republic of Srpska (1996-2009) (predominant industry Al2O3 plant in Zvornik)

Republic of Srpska NG consumption by sectors (period 2008-2017, in cm)

10,000,000 20,000,000 30,000,000 40,000,000 50,000,000 60,000,000 70,000,000 80,000,000 90,000,000 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 Industrija Distribucija

Yearly variation of NG consumption in Republic of Srpska (based on last 10 years monthly average, in cm)

500,000 1,000,000 1,500,000 2,000,000 2,500,000 3,000,000 3,500,000 4,000,000 4,500,000 5,000,000 I II III IV V VI VII VIII IX X XI XII Industrija Distribucija

Future development of NG Transpotrtation system in Republic of Srpska Demand forecast in 2030 0.9-1.0 bcm/year First priority: ’’horizontal connection’’ (Sava, South stream, ...) Second priority: ’’vertical connections’’ Zenica-Doboj (gas ring) Under construction: Sepak-Bijeljina (25km)

Future Natural gas Consumption in Republic of Srpska (2005-2030)

Growth of BDP (S1-high, S2-moderate, S3 –low), in million cm/year Source: Republic of Srpska Strategy of energy sector (2005-2030)

HYDRAULIC CALCULATION OF EXPANDING GAS FLOW

( for TSO GPP TRANSPORTATION SYSTEM )

Structure: single pipeline, no rings, no UGS, 1 KS, one direction of flow Total Length = 176 km * (136 + 20 + 40) Diameter = 16“ (DN 400) DP = 50 bar OP = 45 bar (max. at KS Batajnica, Belgrade) No of CS = 1 Batajnica KS, Belgrade, Serbia (at beginning of transportation route) Max flow = 100% load = 77.500 m3/h (at MS Zvornik) Delivery pressure = 30 bar (min, at MS Zvornik, i.e. at 136 km from KS) Z factor according to AGA NX-19 (corrected) λ factor (hydraulic friction) calculation based on Re Number Simulated as expanding flow of compressible fluid Simulated for set of 8 input pressures, with 100%,75%,66% and 33% load Results: diagrams of p, v, Z and ρ

Q1: Current vs. designed pipeline capacity

• NG Entry point for B&H: PPS ZV (Zvornik, Karakaj)

Guaranteed delivery parameters at PPS ZV:

• flow: Qmax = 1.940.000 cm/day (≈ 80k cm/h)
• pressure: pmin = 30 b, pmax = 45 b (g), (Δp ≈ 13b/136 km)
• Transportation capacity: Q ≈ 710 m cm/year

(ƞ ≈ 0.34)

• Year of last pigging: 2011.
• 241 mcm in 2017: (RS: 68.7 FBiH: 172, SRB: 0.4)
• at (2.4 mcm/d, 50b): Qy ≈ 880 m cm/year (Δp ≈ 18b/136 km)

10 20 30 40 50 1 182 363 544 725 906 1087 1268 1449 1630 1811 1992 2173 2354 2535 2716 2897 3078 3259 3440 3621 3802 3983 4164 4345 4526 4707 4888 5069 5250 5431 5612 5793 5974 6155 6336 6517 6698 6879 7060 7241 7422 7603 7784 7965 8146 8327 8508 8689

NG Pressure at B&H entry point PPS Zvornik, Januar 2017, (bar, g)

Series1 Series2

Q2: Is Current pipeline Capacity sufficient for B&H ?

• Yes, for reasonable demand, (in 2017: ƞTR = 242/710 ≈ 0.34), but
• It barely covers winter daily maximum: (Jan 2017: 1.87 mcm/day)
• Daily average consumption (2017): 241/365 = .66 mcm/day
• Daily capacity booking (2018): (ƞBK = 0.927)

1.8 of 1.94 mcm/day

• Capacity booking (2018): 5/6 FBiH, 1/6 RS (is this unfair?)
• Age of pipeline 39, (1979) (2/3 of average expected lifetime)

Technical measures to mitigate this (booking) situation:

• shaving winter consumption peaks (using auxiliary fuel)
• pipeline weak point reconstruction (up to DP = 50 b)
• construction of Compressor station(s) (Δp ≈ 1/3 at CMP Zvornik)
• construction of UGS in B&H (if feasible/needed)
• creating “gas rings” for better network use (whenever feasible)
• building new natural gas infrastructure. (next 10-15 years)

Q3: Are the pipeline reconstruction & repair necessary ?

• Regular maintenance is conducted, pigging is due.
• Depending on future solutions, (previous slide):
• intelligent pigging (pipeline inspection) should be done
• based on results, remaining lifetime to be estimated
• additional reconstruction and repair works might be needed
• Feasibility Study should be done, including each proposal:
• building new Compressor station(s)
• construction of UGS in B&H (Tuzla salt mine)
• creating “gas rings” structure where possible
• building new infrastructure.
• Could this (Feasibility Study) be focal point of this USAID EIA

Project in Natural Gas Sector (?)

Q4: Are You planning new pipeline construction ?

• Pipeline Shepak-Bijeljina (L = 25 km) is under construction
• Under consideration: Batajnica-Bijeljina pipeline, 20’‘ 102km
• 3 pipelines would eventually create (Δ) ring structure with:
• existing pipeline Batajnica-Zvornik,
• Shepak-Bijeljina pipeline (under construction) and
• Batajnica-Bijeljina pipeline (under consideration).
• Ring structure (Batajnica-Bijeljina-Shepak) would relax

transportation strain on existing pipeline Batajnica-Zvornik

• This might be the way to avoid CS construction and provide

second entry point (near Bijeljina) for B&H/RS, as well.

• This entry point is for “RS horizontal connection” (slide 10)

BG-BN-ZV Ring (Δ) pipeline structure, simulation

PROGRAM ZA PRORAČUN GASNE PETLJE BEOGRAD-BIJELJINA-ŠEPAK-BEOGRAD PRVI PRORAČUN ZATVORENE GASNE PETLJE N-ti PRORAČUN ZATVORENE GASNE PETLJE

ULAZI IZLAZI PROTOCI [m3/dan] PRITISCI [bar] [m3/dan] PRITISCI [bar] 1) ULAZI: BATAJNICA Q1= 2.000.000,000000 p1= 40,000000 Q1= 2.000.000,000000 p1= 40,00000000 2) IZLAZ: BIJELJINA Q2= 0,000000 p2= 40,000000 Q2= 0,000000 p2= 37,19656454 3) IZLAZ: ŠEPAK Q3= 2.000.000,000000 p3= 21,607448 Q3= 2.000.000,000000 p3= 36,47475045 4) PROTOK: BAT-ŠEPAK Q13= 2.000.000,000000 Δp13= 18,392552 Q13= 982.807,000000 Δp13= 3,52524955 5) PROTOK: BAT-BN Q12= 0,000000 Δp12= 0,000000 Q12= 1.017.193,000000 Δp12=

• 2,80343546

6) PROTOK: BN-ŠEPAK Q23= 0,000000 Δp23= 0,000000 Q23= 1.017.193,000000 Δp23=

• 0,72296041

UKUPAN ΔP (TREBA TEŽITI NULA U ČVORU ŠEPAK) = Δpij= 18,39255176 Δpij=

• 0,00114632

Pipeline CAPEX and OPEX as function of Capacity

• Small Diameter pipeline (DN400) with relatively low CAPEX
• Capacity increase requires higher OPEX (Compressor St.)
• More maintenance (ageing pipeline , 39 years), with ƞTR ≈ 1/3
• Fixed costs regardless on ƞTR , impacting transportation tariffs

Existing Pipeline Technical issues - Reminder

• Pipeline is Underused, but overbooked (ƞ ≈ 34%)
• Older Pipeline (39 y), needs more maintenance
• No UGS in B&H, line pack is limited (L, D, p)
• Huge seasonal variations (1:10 ≥ 1:15)
• Pressure drop is result of hydraulics (L,D,Q,OP)
• A FEW Compressor Stations are missing (min. 1)
• OP limit with no serious impact so far (pmax=45 b)
• No reverse flows, no gas rings inside B&H
• No additional Entry Points (for (n-1), SOS)

NG ON B&H ENERGY MARKET

• (90+) % Fossil Fuels based B&H Energy Sector

(66% Coal, 25% Oil, 3% Natural Gas) (slide 5)

(13% Coal, 43% Oil, 24% Natural Gas, 14% NE, 6% R) (EU 2003)

• Unfavorable price relation (electricity vs NG):

(it should be ≈ 3:1 per kWh, ƞTE ≈ 1/3)

• Limited growth potential of NG Market

(no real development without TEP & Industry) (source: Rambǿl, NERA, WB, EBRD Studies)

• Uncertainty on gas Supply Routs for EU&SEE
• Geopolitics, Economy, EU Gas Market (Reg1%)

TSO GAS PROMET – FUTURE ACCTIVITES

• Improving mettering system (state entry point Zvornik), USM
• Introducing quality metering (state entry point Zvornik), PGC
• Balansing, allocation and line pack issues w/upstream TSO
• Gasification of Bijeljina (pipeline DN 400 under construction)
• CNG & LNG as way to increase gasification and consumption
• Coordinating TSOs system (with regional grid) development
• Building new infrastructure w/new entry points

(next 10 y)

• Improving technical SOS , (n-1), (2nd entry point, BN),
• Implementation of new Republic of Srpska Gas Law
• Implementation of EU/EZ 3rd Energy Package

Questions? Thanks for Your attention.

• Mr. G. Asonja,

TSO Gas Promet AD Srpskih ratnika 17, 71340 Pale Republic of Srpska, Bosnia and Herzegovina direkcija@gaspromet.com

• ts@gaspromet.com

www.gaspromet.com
