SLIDE 1

Problem statement Definitions Methods Experiments Conclusion

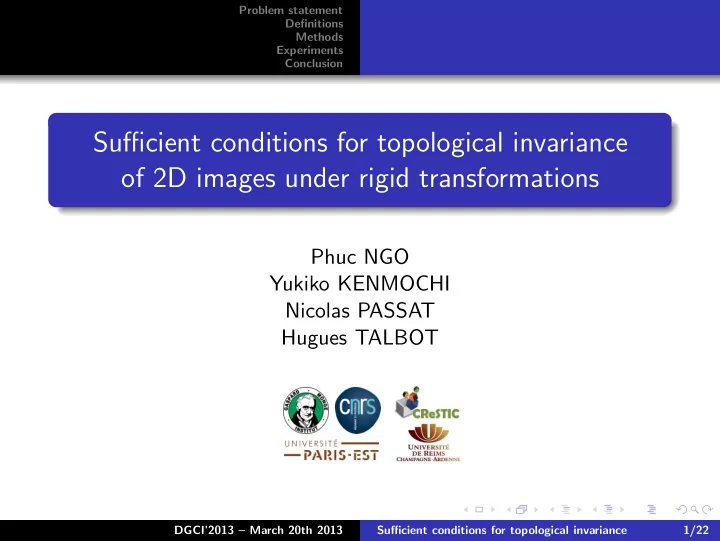

Sufficient conditions for topological invariance

f 2D images under rigid transformations

Phuc NGO Yukiko KENMOCHI Nicolas PASSAT Hugues TALBOT

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 1/22

SLIDE 2

Problem statement Definitions Methods Experiments Conclusion (Digital) Rigid Transformations Geometrical and Topological Issues

Rigid transformation

Rigid transformation is a function Tabθ : R2 → R2, such that p′ q′

=

p cos θ − q sin θ + a p sin θ + q cos θ + b

where a, b ∈ R, θ ∈ [0, 2π[ and (p, q), (p′, q′) ∈ R2.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 2/22

SLIDE 3

Problem statement Definitions Methods Experiments Conclusion (Digital) Rigid Transformations Geometrical and Topological Issues

Topology issues

Problem statement Topology is not preserved due to digitization process from R2 to Z2.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 3/22

SLIDE 4

Problem statement Definitions Methods Experiments Conclusion (Digital) Rigid Transformations Geometrical and Topological Issues

Digital rigid transformation

Digital rigid transformation is a function Tabθ : Z2 → Z2 such that p′ q′

=

[p cos θ − q sin θ + a] [p sin θ + q cos θ + b]

where a, b ∈ R, θ ∈ [0, 2π[ and (p, q), (p′, q′) ∈ Z2.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 4/22

SLIDE 5

Problem statement Definitions Methods Experiments Conclusion (Digital) Rigid Transformations Geometrical and Topological Issues

Geometrical alteration: Distance and angle

Distance Before After 1 √ 2 Angle Before After 90◦ 135◦

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 5/22

SLIDE 6

Problem statement Definitions Methods Experiments Conclusion (Digital) Rigid Transformations Geometrical and Topological Issues

Geometrical alteration: Distance and angle

Distance Before After 1 √ 2 √ 2 2 Angle Before After 90◦ 135◦ 90◦ 90◦

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 5/22

SLIDE 7

Problem statement Definitions Methods Experiments Conclusion (Digital) Rigid Transformations Geometrical and Topological Issues

Topological alteration

The following configurations (up to symmetries) can generate a 2 × 2 sample under digital rigid transformations. a a a b b b c c c d d d a c a c b d d b e a b c d

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 6/22

SLIDE 8

Problem statement Definitions Methods Experiments Conclusion (Digital) Rigid Transformations Geometrical and Topological Issues

Topological alteration

The following configurations (up to symmetries) can generate a 2 × 2 sample under digital rigid transformations. a a a b b b c c c d d d a c a c b d d b e a b c d

a b c d a b c d

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 6/22

SLIDE 9

Problem statement Definitions Methods Experiments Conclusion (Digital) Rigid Transformations Geometrical and Topological Issues

Topological alteration

The following configurations (up to symmetries) can generate a 2 × 2 sample under digital rigid transformations. a a a b b b c c c d d d a c a c b d d b e a b c d

a b c d a b c d

a c b d e a b c d

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 6/22

SLIDE 10

Problem statement Definitions Methods Experiments Conclusion (Digital) Rigid Transformations Geometrical and Topological Issues

Topological alteration

The following configurations (up to symmetries) can generate a 2 × 2 sample under digital rigid transformations. a a a b b b c c c d d d a c a c b d d b e a b c d

a b c d a b c d a b c d a b c d a b c d a b c d

a c b d e a b c d

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 6/22

SLIDE 11

Problem statement Definitions Methods Experiments Conclusion (Digital) Rigid Transformations Geometrical and Topological Issues

Motivations

Our questions Do binary images exist that preserve their topology under any rigid transformations?

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 7/22

SLIDE 12

Problem statement Definitions Methods Experiments Conclusion (Digital) Rigid Transformations Geometrical and Topological Issues

Motivations

Our questions Do binary images exist that preserve their topology under any rigid transformations? Can we verify topological preservation for a given image?

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 7/22

SLIDE 13

Problem statement Definitions Methods Experiments Conclusion (Digital) Rigid Transformations Geometrical and Topological Issues

Motivations

Our questions Do binary images exist that preserve their topology under any rigid transformations? Can we verify topological preservation for a given image? What the conditions for images to preserve their topology?

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 7/22

SLIDE 14

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Topological invariance

Definition An image I is topologically invariant if its transformed images under any rigid transformations have the same homotopy-type as I.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 8/22

SLIDE 15

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Topological invariance

Definition An image I is topologically invariant if its transformed images under any rigid transformations have the same homotopy-type as I.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 8/22

SLIDE 16

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Topological invariance

Definition An image I is topologically invariant if its transformed images under any rigid transformations have the same homotopy-type as I.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 8/22

SLIDE 17

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Tools for topological invariance verification

Methodological tools DRT graph, and

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 9/22

SLIDE 18

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Tools for topological invariance verification

Methodological tools DRT graph, and simple points.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 9/22

SLIDE 19

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Critical transformation

Digital rigid transformation Tabθ : Z2 → Z2 p′ q′

=

[p cos θ − q sin θ + a] [p sin θ + q cos θ + b]

Definition

A critical rigid transformation moves at least one integer point into either a vertical or a horizontal half-grid point.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 10/22

SLIDE 20

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Critical transformation

Digital rigid transformation Tabθ : Z2 → Z2 p′ q′

=

[p cos θ − q sin θ + a] [p sin θ + q cos θ + b]

Definition

A critical rigid transformation moves at least one integer point into either a vertical or a horizontal half-grid point.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 10/22

SLIDE 21

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Critical transformation

Digital rigid transformation Tabθ : Z2 → Z2 p′ q′

=

[p cos θ − q sin θ + a] [p sin θ + q cos θ + b]

Definition

A critical rigid transformation moves at least one integer point into either a vertical or a horizontal half-grid point.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 10/22

SLIDE 22

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Critical transformation

Digital rigid transformation Tabθ : Z2 → Z2 p′ q′

=

[p cos θ − q sin θ + a] [p sin θ + q cos θ + b]

Definition

A critical rigid transformation moves at least one integer point into either a vertical or a horizontal half-grid point.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 10/22

SLIDE 23

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Critical transformation

Digital rigid transformation Tabθ : Z2 → Z2 p′ q′

=

[p cos θ − q sin θ + a] [p sin θ + q cos θ + b]

Definition

A critical rigid transformation moves at least one integer point into either a vertical or a horizontal half-grid point.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 10/22

SLIDE 24

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Critical transformation

Digital rigid transformation Tabθ : Z2 → Z2 p′ q′

=

[p cos θ − q sin θ + a] [p sin θ + q cos θ + b]

Definition

A critical rigid transformation moves at least one integer point into either a vertical or a horizontal half-grid point.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 10/22

SLIDE 25

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Critical transformation

Digital rigid transformation Tabθ : Z2 → Z2 p′ q′

=

[p cos θ − q sin θ + a] [p sin θ + q cos θ + b]

Definition

A critical rigid transformation moves at least one integer point into either a vertical or a horizontal half-grid point.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 10/22

SLIDE 26

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Critical transformation

Digital rigid transformation Tabθ : Z2 → Z2 p′ q′

=

[p cos θ − q sin θ + a] [p sin θ + q cos θ + b]

Definition

A critical rigid transformation moves at least one integer point into either a vertical or a horizontal half-grid point.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 10/22

SLIDE 27

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Critical transformation

Digital rigid transformation Tabθ : Z2 → Z2 p′ q′

=

[p cos θ − q sin θ + a] [p sin θ + q cos θ + b]

Definition

Tipping surfaces are the surfaces associated to the critical transformations in the parameter space (a, b, θ).

Φpqk :

R2 − → R (b, θ) − → a = k + 1

2 + q sin θ − p cos θ

(vertical)

Ψpql :

R2 − → R (a, θ) − → b = l + 1

2 − p sin θ − q cos θ

(horizontal) for p, q, k, l ∈ Z.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 10/22

SLIDE 28

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Example of tipping surfaces

(a) Tipping surfaces (b) Orthogonal sections All tipping surfaces Φpqk and Ψpql with p, q ∈ [0, 4] and k, l ∈ [0, 5].

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 11/22

SLIDE 29

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

DRT graph

Definition A discrete rigid transformation graph (DRT graph) is a graph G = (V , E) such that each vertex in V corresponds to a DRT, each edge in E connects two vertices sharing a tipping surface.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 12/22

SLIDE 30

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Simple point

Definition A simple point is a pixel whose value can be modified without changing the digital topology of the associated image.

x y t z

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 13/22

SLIDE 31

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Simple point

Definition A simple point is a pixel whose value can be modified without changing the digital topology of the associated image.

x y t z

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 13/22

SLIDE 32

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Simple point

Definition A simple point is a pixel whose value can be modified without changing the digital topology of the associated image.

x y t z

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 13/22

SLIDE 33

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Simple point

Definition A simple point is a pixel whose value can be modified without changing the digital topology of the associated image.

x y t z

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 13/22

SLIDE 34

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Simple point

Definition A simple point is a pixel whose value can be modified without changing the digital topology of the associated image.

x y t z

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 13/22

SLIDE 35

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Simple point

Definition A simple point is a pixel whose value can be modified without changing the digital topology of the associated image.

x y t z

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 13/22

SLIDE 36

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Simple point

Definition A simple point is a pixel whose value can be modified without changing the digital topology of the associated image.

x y t z

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 13/22

SLIDE 37

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Simple point

Definition A simple point is a pixel whose value can be modified without changing the digital topology of the associated image.

x y t z

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 13/22

SLIDE 38

Problem statement Definitions Methods Experiments Conclusion Topological Invariance DRT Graph Simple Point

Simple point

Definition A simple point is a pixel whose value can be modified without changing the digital topology of the associated image.

x y t z The simplicity can be tested locally in constant time using 3× 3 neighbourhood.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 13/22

SLIDE 39

Problem statement Definitions Methods Experiments Conclusion DRT Graph Approach LUT Approach

Principles of the naive method

We use DRT graph to generate incrementally all transformed images,

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 14/22

SLIDE 40

Problem statement Definitions Methods Experiments Conclusion DRT Graph Approach LUT Approach

Principles of the naive method

We use DRT graph to generate incrementally all transformed images, simplicity test to verify the topological invariance.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 14/22

SLIDE 41

Problem statement Definitions Methods Experiments Conclusion DRT Graph Approach LUT Approach

Principles of the naive method

We use DRT graph to generate incrementally all transformed images, simplicity test to verify the topological invariance.

The DRT graph has a high complexity of O(N9), for N × N is the image size.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 14/22

SLIDE 42

Problem statement Definitions Methods Experiments Conclusion DRT Graph Approach LUT Approach

Local property

Property Let p ∈ Z2 be a pixel and q ∈ N8(p), we have T −1(q) ∈ N20(T −1(p)), N8(p) N20(T −1(p))

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 15/22

SLIDE 43

Problem statement Definitions Methods Experiments Conclusion DRT Graph Approach LUT Approach

Local property

Property Let p ∈ Z2 be a pixel and q ∈ N8(p), we have T −1(q) ∈ N20(T −1(p)), N8(p) N20(T −1(p))

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 15/22

SLIDE 44

Problem statement Definitions Methods Experiments Conclusion DRT Graph Approach LUT Approach

Local property

Property Let p ∈ Z2 be a pixel and q ∈ N8(p), we have T −1(q) ∈ N20(T −1(p)), N8(p) N20(T −1(p))

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 15/22

SLIDE 45

Problem statement Definitions Methods Experiments Conclusion DRT Graph Approach LUT Approach

Local property

Property Let p ∈ Z2 be a pixel and q ∈ N8(p), we have T −1(q) ∈ N20(T −1(p)), N8(p) N20(T −1(p))

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 15/22

SLIDE 46

Problem statement Definitions Methods Experiments Conclusion DRT Graph Approach LUT Approach

Local property

Property Let p ∈ Z2 be a pixel and q ∈ N8(p), we have T −1(q) ∈ N20(T −1(p)), N8(p) N20(T −1(p))

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 15/22

SLIDE 47

Problem statement Definitions Methods Experiments Conclusion DRT Graph Approach LUT Approach

Local property

Property Let p ∈ Z2 be a pixel and q ∈ N8(p), we have T −1(q) ∈ N20(T −1(p)), N8(p) N20(T −1(p))

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 15/22

SLIDE 48

Problem statement Definitions Methods Experiments Conclusion DRT Graph Approach LUT Approach

Method using local configurations

Algorithm generate all 20-neighborhood samples;

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 16/22

SLIDE 49

Problem statement Definitions Methods Experiments Conclusion DRT Graph Approach LUT Approach

Method using local configurations

Algorithm generate all 20-neighborhood samples; generate the set P of the samples whose center point is topologically invariant;

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 16/22

SLIDE 50

Problem statement Definitions Methods Experiments Conclusion DRT Graph Approach LUT Approach

Method using local configurations

Algorithm generate all 20-neighborhood samples; generate the set P of the samples whose center point is topologically invariant; verify the topological invariance for each pixel of the given image using P.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 16/22

SLIDE 51

Problem statement Definitions Methods Experiments Conclusion DRT Graph Approach LUT Approach

Method using local configurations

Algorithm generate all 20-neighborhood samples; generate the set P of the samples whose center point is topologically invariant; verify the topological invariance for each pixel of the given image using P.

The verification is in linear time with respect to the image size.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 16/22

SLIDE 52

Problem statement Definitions Methods Experiments Conclusion DRT Graph Approach LUT Approach

Samples in the Look-Up-Tables

Among 124 260 binary configurations up to symmetries, there are 10 644 samples in P4 for (4, 8)-adjacency.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 17/22

SLIDE 53

Problem statement Definitions Methods Experiments Conclusion DRT Graph Approach LUT Approach

Samples in the Look-Up-Tables

Among 124 260 binary configurations up to symmetries, there are 10 644 samples in P4 for (4, 8)-adjacency. 10 752 samples in P8 for (8, 4)-adjacency.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 17/22

SLIDE 54

Problem statement Definitions Methods Experiments Conclusion DRT Graph Approach LUT Approach

Samples in the Look-Up-Tables

Among 124 260 binary configurations up to symmetries, there are 10 644 samples in P4 for (4, 8)-adjacency. 10 752 samples in P8 for (8, 4)-adjacency.

Sufficient conditions of topologically invariant images.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 17/22

SLIDE 55

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for half-planes

All centered half-planes generated in images of size 21 × 21.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 18/22

SLIDE 56

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for disks

Digitized disks of radius 11 whose center is anywhere inside the center pixel.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 19/22

SLIDE 57

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for disks

Digitized disks of radius 11 whose center is anywhere inside the center pixel.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 19/22

SLIDE 58

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for disks

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 19/22

SLIDE 59

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for disks

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 19/22

SLIDE 60

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for disks

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 19/22

SLIDE 61

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for disks

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 19/22

SLIDE 62

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for letters: Topological invariance

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 20/22

SLIDE 63

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for letters: Topological invariance

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 20/22

SLIDE 64

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for letters: Topological invariance

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 20/22

SLIDE 65

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for letters: Topological invariance

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 20/22

SLIDE 66

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for letters: Topological variance

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 20/22

SLIDE 67

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for letters: Topological variance

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 20/22

SLIDE 68

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for letters: Topological variance

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 20/22

SLIDE 69

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for letters: Topological variance

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 20/22

SLIDE 70

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for letters: Topological variance

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 20/22

SLIDE 71

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for letters: Topological variance

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 20/22

SLIDE 72

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for letters: Topological variance

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 20/22

SLIDE 73

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for letters: Topological variance

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 20/22

SLIDE 74

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for letters: Topological variance

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 20/22

SLIDE 75

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for letters: Topological variance

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 20/22

SLIDE 76

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for letters: Topological variance

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 20/22

SLIDE 77

Problem statement Definitions Methods Experiments Conclusion Half-planes Disks Letters

Experiment for letters: Topological variance

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 20/22

SLIDE 78

Problem statement Definitions Methods Experiments Conclusion

Conclusion

Results: study on the relationships between geometry and topology in the framework of computer imagery, proposition of sufficient conditions and a linear algorithm to evaluate the topological invariance of digital images, classification of points in binary images.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 21/22

SLIDE 79

Problem statement Definitions Methods Experiments Conclusion

Conclusion

Perspectives: repairing images to be topologically invariant, proving the necessary conditions, finding topologically invariant conditions, similarly to regularity for digitization, extending to well-composed sets, labelled images, etc.

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 21/22

SLIDE 80

Problem statement Definitions Methods Experiments Conclusion

Thank you for your attention

We welcome your questions, suggestions and comments! I’m looking for a post-doc position

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 22/22

SLIDE 81

Problem statement Definitions Methods Experiments Conclusion

Annexes

5
4
3
2
1

1 2 3 4 5

5
4
3
2
1

1 2 3 4 5

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 22/22

SLIDE 82

Problem statement Definitions Methods Experiments Conclusion

Annexes

DGCI’2013 – March 20th 2013 Sufficient conditions for topological invariance 22/22
