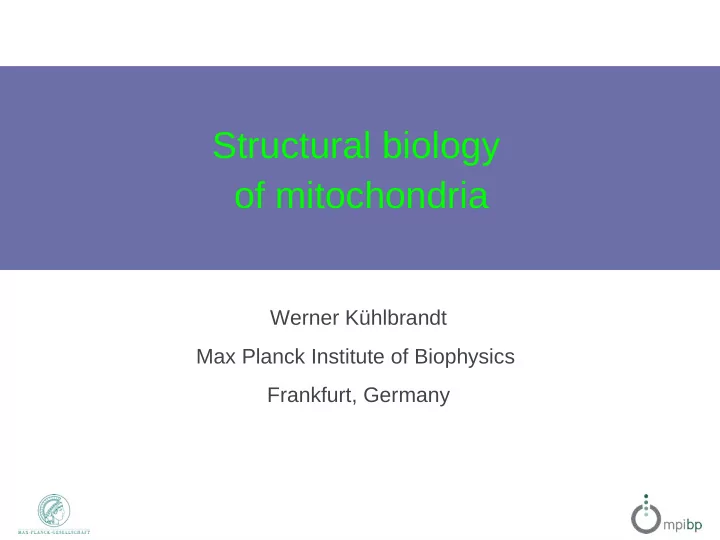

Structural biology of mitochondria Werner Khlbrandt Max Planck Institute of Biophysics Frankfurt, Germany The mitochondrion Powerhouse of the eukaryotic cell Produces almost all ATP to drive cellular reactions Semi-autonomous

slide-1
SLIDE 1

Werner Kühlbrandt Max Planck Institute of Biophysics Frankfurt, Germany

Structural biology

  • f mitochondria
slide-2
SLIDE 2

The mitochondrion

  • Powerhouse of the eukaryotic cell
  • Produces almost all ATP to drive cellular reactions
  • Semi-autonomous cell organelle (division, fusion,
  • wn genetic system)
  • Imports > 99% of proteins from cytoplasm
  • Outer membrane is permeable to small molecules
  • Inner membrane is site of respiration

and ATP synthesis

  • Major role in ageing and apoptosis
slide-3
SLIDE 3
  • uter membrane

~ 2000 different proteins > 99% produced outside cristae matrix pH 7.9 inter- membrane space pH 7.35 ~500 nm inner membrane

  • uter membrane

Schematic drawing of mitochondrion

slide-4
SLIDE 4

QuickTime™ and a decompressor are needed to see this picture.

Jürgen Bereiter-Hahn, Frankfurt University

Mitochondria in a human endothelial cell

~10 µm

slide-5
SLIDE 5

Bertram Daum

Podospora anserina has smaller mitochondria with fewer cristae

cristae ridges cristae junctions

slide-6
SLIDE 6

Arrangement of the mitochondrial ATP synthase

slide-7
SLIDE 7

matrix cristae space

UQ UQ

NADH NAD+ O2 2H2O H+ H+ H+ H+ H+ H+

succinate

H+ H+ H+ H+ H+ H+ H+ H+ H+ ADP + Pi ATP H+ H+ H+ H+ H+ H+ H+ Complex I

NADH dehydrogenase

Complex III

cytochrome c reductase

Complex II

succinate dehydrogenase

Complex IV

cytochrome c oxidase

Complex V

ATP synthase

cytochrome c

H+ H+

The mitochondrial respiratory chain

drawn by Karen Davies

slide-8
SLIDE 8

Deep-etched Paramecium mitochondrion

R.D.Allen et al, J.Cell Biol. 1989

200 nm

slide-9
SLIDE 9

20 nm

rat liver: tubular cristae bovine heart: lamellar cristae

Dimer ribbons in mammalian mitochondria

Strauss et al, EMBO J 2008

slide-10
SLIDE 10

subtomogram averages

Karen Davies

Dimer rows are ubiquitous

lipolytica Polytomella

slide-11
SLIDE 11

QuickTime™ and a decompressor are needed to see this picture.

ATP synthase dimers ribosomes inner membrane Davies et al, PNAS 2011

Cryo-ET of Podospora mitochondrion

slide-12
SLIDE 12

Sub-tomogram average of yeast dimer

Davies et al, PNAS 2012

slide-13
SLIDE 13

Resolution estimate

3.7 nm average of 121 sub-tomograms

Davies et al, PNAS 2012

slide-14
SLIDE 14

Sub-tomogram average of ATP synthase dimer

F1 head rotor ring central stalk peripheral stalk

Davies et al, PNAS 2012

slide-15
SLIDE 15

Sub-tomogram average of ATP synthase dimer

beta subunits peripheral stalk

F1 head

Davies et al, PNAS 2012

slide-16
SLIDE 16

Fit of peripheral stalk

bovine F1/peripheral stalk (2WSS; Rees et al, PNAS 2009) yeast F1/Fo+bovine peripheral stalk (2CLY; Dickson et al, EMBO J 2006)

Davies et al, PNAS 2012

slide-17
SLIDE 17

ATP synthase dimers self-organize into rows

coarse-grained MD simulation by José Faraldo-Gomez, Claudio Anselmi, MPI of Biophysics

Davies et al, PNAS 2012

slide-18
SLIDE 18

Energy of elastic membrane deformation is > 6 kT per dimer For comparison: Free energy of protein-protein interaction (glycophorin A dimer) ~15 kT

Free energy of dimer association

José Faraldo-Gomez, Claudio Anselmi, MPI of Biophysics

Davies et al, PNAS 2012

slide-19
SLIDE 19

inner membrane

  • uter membrane

ATP synthase monomers stroma ~ pH 8 thylakoid lumen ~ pH 5 thylakoid membrane

Chloropla

H+ H+ H+ H+

slide-20
SLIDE 20

maximal rate ~400 ATP per synthase per second 2.5

Junesch and Gräber, FEBS Lett 1991

at a delta pH of 2.5 and a membrane potential of 55 mV

ATP synthesis in chloroplasts

slide-21
SLIDE 21

2.5

Förster, Turina, Drepper, Hähnel, Fischer, Gräber, Petersen, BBA 2010

maximal rate ~80 ATP per synthase per second at a delta pH of 2.9 and a membrane potential of 133 mV

ATP synthesis in mitochondria

matrix pH 7.9 cristae pH 5.0 ??

slide-22
SLIDE 22

ATP synthase dimers inner membrane

  • uter membrane

matrix: pH 7.9 respiratory chain proton pumps (complex I, III, IV) subunits e, g, 4 pH intermembrane space = pH cytoplasm: 7.35 H+ H+

Mitochond

H+ H+ H+ H+

slide-23
SLIDE 23

Respiratory chain supercomplex

slide-24
SLIDE 24

matrix cristae space

UQ UQ

NADH NAD+ O2 2H2O H+ H+ H+ H+ H+ H+

succinate

H+ H+ H+ H+ H+ H+ H+ H+ H+ ADP + Pi ATP H+ H+ H+ H+ H+ H+ H+ Complex I

NADH dehydrogenase

Complex III

cytochrome c reductase

Complex II

succinate dehydrogenase

Complex IV

cytochrome c oxidase

Complex V

ATP synthase

cytochrome c

H+ H+

The mitochondrial respiratory chain

drawn by Karen Davies

slide-25
SLIDE 25

QuickTime™ and a decompressor are needed to see this picture.

ATP synthase dimer row 1 ATP synthase dimer row 2 respiratory chain complexes crista membrane

Davies et al, PNAS 2011

Podospora cristae vesicle

slide-26
SLIDE 26

quantum-dot labelled complex I supercomplex next to dimer row

Supercomplex in cristae membranes

Davies et al, PNAS 2011

slide-27
SLIDE 27

class averages reprojections

  • f final volume

random conical tilt

  • n thin C film

Althoff et al, EMBO J 2011

Respiratory chain supercomplex I1II2IV1

slide-28
SLIDE 28

amphipol ring

3D cryo-EM map

Althoff et al, EMBO J 2011

slide-29
SLIDE 29

complex I (NADH UQ oxidoreductase) complex III2 (cytochrome c reductase) complex IV (cytochrome c oxidase) cytochrome c Rieske FeS

membrane

50 Å

Hunte, Zickermann et al, 2010 Hunte et al, 2000 Tsukihara et al, 1996

Respiratory chain supercomplex I1II2IV1

Althoff et al, EMBO J 2011

slide-30
SLIDE 30

10 nm

slide-31
SLIDE 31

complex I to complex III: UQ complex III to complex IV: cyt c

Electron transfer pathways

Althoff et al, EMBO J 2011

slide-32
SLIDE 32

Sites of oxygen radical production

slide-33
SLIDE 33

Protein import

slide-34
SLIDE 34

a b d e f c

Cryo-ET of chloroplast protein translocase

15 nm 15 nm

Bertram Daum with Enrico Schleiff, Frankfurt; Sommer et al, PNAS 2011

slide-35
SLIDE 35

Quantum dot labelling of TOC subunits

a b

α-75P

α-34G α-75P

15 nm 15 nm

cytoplasmic location of TOC receptor GTPase cytoplasmic location of TOC75 POTRA domain

Bertram Daum with Enrico Schleiff, Frankfurt; Sommer et al, PNAS 2011

slide-36
SLIDE 36

Ageing

slide-37
SLIDE 37

filamentous, multicellular fungus fixed lifespan of ~20 days long-lived and immortal mutants

from Scheckhuber et al, 2006

hyphae culture mitochondria

18 days (senescent) 9 days 6 days (juvenile) 18 days (senescent)

Podospora anserina: filamentous fungus with a fixed lifespan

slide-38
SLIDE 38

young (6 days)

  • ld (18 days)

Bertram Daum with Heinz Osiewacz, Frankfurt

  • P. anserina

Age-dependent change of mitochondria

slide-39
SLIDE 39

subunit g knockout wild type yeast cristae morphology ATP synthase arrangement randomly distributed monomers dimer rows along edges

Dimer-specific subunit knockouts

Davies et al, PNAS 2012

slide-40
SLIDE 40

Deryck Mills

Single-particle team

Janet Vonck Thorsten Althoff Doreen Mathies

slide-41
SLIDE 41

X-ray structure of CaiT

Bertram Daum Deryck Mills Karen Davies

Electron tomography team

Thorsten Blum

slide-42
SLIDE 42

How to fix it if it gets broken by Deryck - First & last edition Open V13? close V12? close V8? make a coffee ? fill with LN2? have breakfast? turn up HT? water plants? turn on dryer? EM? (check notes) go home?

slide-43
