Monroe Street Project November 16, 2016 Focus Area #3 Dalton Ave November 17, 2016 September 22, 2016 Grace Ave #2 Montgomery Ave #1 Standard Same throughout corridor 2 Pedestrian Lights per intersection with Street Lights

slide-1
SLIDE 1

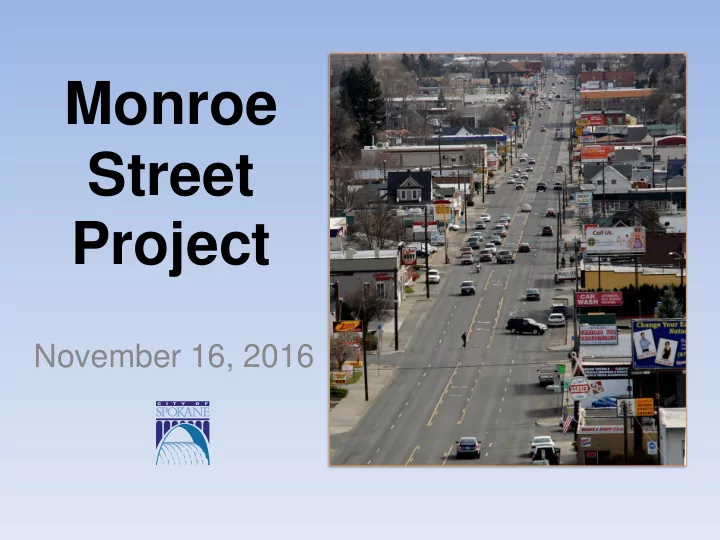

Monroe Street Project

November 16, 2016

slide-2
SLIDE 2

Dalton Ave Grace Ave

Montgomery Ave

Focus Area

September 22, 2016

#1 #2 #3

November 17, 2016

slide-3
SLIDE 3

Standard

  • Same throughout corridor
  • 2 Pedestrian Lights per

intersection with Street Lights

  • Minimum Street Trees
  • No furniture

Street Lights Trees Bus Stop

slide-4
SLIDE 4

Focus Area Options

  • Pedestrian Lights Each

Corner

  • More Intense Tree and Ground

Planting

  • Color/Texture Sidewalk
  • Street furniture

Street Lights Trees Bus Stop Pedestrian Lights

slide-5
SLIDE 5

Pedestrian Light Options

slide-6
SLIDE 6

Street Furniture Options

slide-7
SLIDE 7

Sidewalk Options

Stamped Concrete Colored Concrete

slide-8
SLIDE 8

Enhanced Pedestrian Crossings

Dalton Ave Grace Ave

Montgomery Ave Other locations?

slide-9
SLIDE 9

Safety through Conflict Reduction

Safety comes through Reducing Conflicts

  • 5-lane to 3-lane reduces:
  • Multi-lane weave
  • Blinding of pedestrians/vehicles
  • Number of lanes to cross
  • Enhanced Crosswalks through:
  • Rectangular Rapid Flash Beacon
  • Pedestrian Refuge (limits LH turns for one dir.)
  • HAWK Signal (limits ALL left-hand turns)
slide-10
SLIDE 10

Raised Medians

slide-11
SLIDE 11

Beacon

slide-12
SLIDE 12

Montgomery Intersection with Hawk Light

slide-13
SLIDE 13

Montgomery Intersection with Beacon

slide-14
SLIDE 14

Grace Intersection Standard

slide-15
SLIDE 15

Grace Intersection with Focus Area Options

slide-16
SLIDE 16

Transit Curb Height

slide-17
SLIDE 17

Dalton Intersection

slide-18
SLIDE 18

Lane Transition

slide-19
SLIDE 19

Glass Hill Stormwater Swales

slide-20
SLIDE 20

Existing Condition

Proposed Swaleland

Glass Hill Swale

slide-21
SLIDE 21

North Hill & Emerson Garfield Sign Design

Option 1 Option 2

slide-22
SLIDE 22

Next Steps

  • Feedback on options from Advisory Board
  • Meet in 2 weeks to review updated visuals
  • Online Open House, December 2016
  • Public Meeting, January 2016
