SLIDE 1

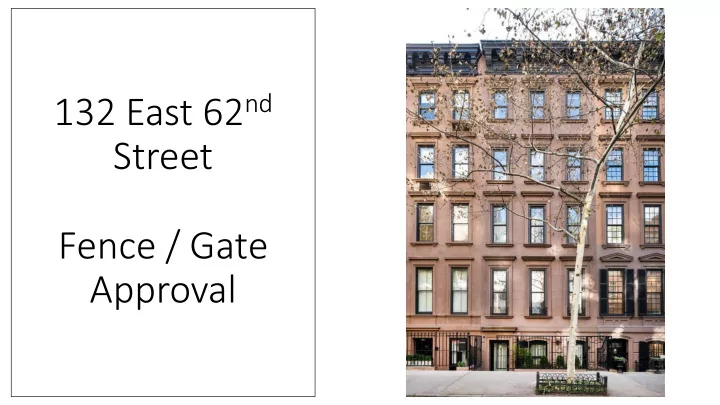

132 East 62nd Street Fence / Gate Approval

SLIDE 2

132 E 62nd St – Designation Photos

c. 1980
c. 1940

SLIDE 3

132 E 62nd St – Current Condition

Removal of second security camera Fence height: 60” Planters Removed from behind gate

SLIDE 4

(134 E 62nd St) Neighbor fence height: 63 ¼”

134 E 62nd Street

SLIDE 5

(124 E 62nd St) fence Height >65”

SLIDE 6

(133 E 62nd St) Fence height > 65”

SLIDE 7

128-130 E 62nd St

Existing Railing (128-130 E 62nd St) 42”

SLIDE 8

Walk Up Entrance (126 E 62nd St)

SLIDE 9

(123-129 E 62nd St) Various Walk ups

SLIDE 10

BUILDING PERMIT

PHOTO 1: FRONT ELEVATION FROM SIDEWALK PHOTO 2: FRONT ELEVATION FROM SIDEWALK PHOTO 3: EXISTING RAILING -NEIGHBOR TO EAST: 134 EAST 62 STREET, 10065, Manhattan (Borough 1) | Block 1396 | Lot 59 PHOTO 4: EXISTING RAILING - NEIGHBOR TO WEST 130 EAST 62 STREET, 10065, Manhattan (Borough 1) | Block 1396 | Lot 160 PHOTO 5: NEW RAILING - EAST SIDE 132 EAST 62 STREET, 10065, Manhattan (Borough 1) | Block 1396 | Lot 60 PHOTO 6: NEW RAILING - WEST SIDE 132 EAST 62 STREET, 10065, Manhattan (Borough 1) | Block 1396 | Lot 60

New Fenceline New Railing Existing Railing Existing Railing Existing Railing New Railing New Railing with Mailbox Existing Railing with Mailbox

13'-8" G a t e W i d t h 3 '

/ 2 " 5 '

1 / 4 " 2'-8" 10'-4" Gate Width 3'-0" 6 '

1 / 2 " 1'-7" 1 2 " 5'-3 1/4" G a t e W i d t h 3 '

/ 2 "

SLIDE 11 3'-41 2" 4" 5'-0" 7" 7" 7" Hinge Hinge Hinge Hinge Hinge Hinge 15" WIDE BY 12" TALL MAILBOX EXISTING RAILING TO NEIGHBOUR'S PROPERTY EXISTING RAILING TO NEIGHBOUR'S PROPERTY 2 NO. 3' WIDE BY 5' TALL ENTRANCE GATES 5'-0" 1/2" X 1/2" RHS AS MAIN RAIL BARS AT

APPROX. 4 7/8" CTRS

1" X 1" RHS AS MAIN STEEL FRAME OF FENCE AND GATES 19'-111 2" 1/2" X 1/2" RHS AS DECORATIVE DETAIL 1/2" X 1/2" RHS FORMING 10" DIA. CIRCLE DETAIL 1/2" X 1/2" RHS FORMING 5" SQUARE DETAIL FRONT ELEVATION FROM SIDEWALK 7" EXISTING STEPS TO BASEMENT ACCESS EXISTING STEPS TO BASEMENT ACCESS EXISTING 4" HIGH KERB 2'-11" EXISTING SIDEWALK SIDE ELEVATION FROM NEIGHBOUR'S BASEMENT 5'-4" EXISTING SIDEWALK EXISTING FACADE OF #132 EXISTING STEPS TO BASEMENT EXISTING DIVIDING BASEMENT WALL 1'-5" 1'-111 2" 2'-9" 2'-6" 5'-4" 1/2" X 1/2" RHS AS DECORATIVE DETAIL 1/2" X 1/2" RHS FORMING 5" SQUARE DETAIL 1/2" X 1/2" RHS FORMING 10" DIA. CIRCLE DETAIL 1/2" X 1/2" RHS AS MAIN RAIL BARS AT

APPROX. 4 7/8" CTRS

5'-0" 3'-41 2" 4" 4'-83 4" 5'-0" 7" 7" 7" 3'-0" Hinge Hinge Hinge Hinge Hinge Hinge 1'-0" 15" WIDE BY 12" TALL MAILBOX 1'-3" 31 2" 1'-101 2" EXISTING RAILING TO NEIGHBOUR'S PROPERTY EXISTING RAILING TO NEIGHBOUR'S PROPERTY 2 NO. 3' WIDE BY 5' TALL ENTRANCE GATES 3'-0" 3'-0" 5'-0" 1/2" X 1/2" RHS AS MAIN RAIL BARS AT

APPROX. 4 7/8" CTRS

1" X 1" RHS AS MAIN STEEL FRAME OF FENCE AND GATES 19'-111 2" 1/2" X 1/2" RHS AS DECORATIVE DETAIL 1/2" X 1/2" RHS FORMING 10" DIA. CIRCLE DETAIL 1/2" X 1/2" RHS FORMING 5" SQUARE DETAIL 7" EXISTING STEPS TO BASEMENT ACCESS EXISTING STEPS TO BASEMENT ACCESS EXISTING BASEMENT WALL EXISTING SIDEWALK 3'-0" 3'-0" 10'-0" 1'-101 2" 31 2" 1'-0" 1'-3" 5'-0" 3'-0" EXISTING BOUNDARY WALL TO BASEMENT 12'-8" 3'-41 2" FRONT ELEVATION FROM BASEMENT 5'-4" 2'-11" SIDE ELEVATION FROM BASEMENT EXISTING SIDEWALK EXISTING FACADE OF #132 EXISTING STEPS TO BASEMENT EXISTING DIVIDING BASEMENT WALL 1'-5" 1'-111 2" 2'-9" 2'-6" 5'-4" 1/2" X 1/2" RHS AS DECORATIVE DETAIL 1/2" X 1/2" RHS FORMING 5" SQUARE DETAIL 1/2" X 1/2" RHS FORMING 10" DIA. CIRCLE DETAIL 1/2" X 1/2" RHS AS MAIN RAIL BARS AT

APPROX. 4 7/8" CTRS

EXISTING STEEL HANDRAIL WITH RHS 1/2" X 1/2" RAILING AND 1" X 1" RHS FRAMING MEMBERS 6'-8" 6'-8" SCALE: 1/2" : 1'-0" NOTE: ALL NEW RAILING PAINTED BLACK TO MATCH ADJACENT EXISTING RAILING NOTE: ALL NEW RAILING PAINTED BLACK TO MATCH ADJACENT EXISTING RAILING NOTE: ALL NEW RAILING PAINTED BLACK TO MATCH ADJACENT EXISTING RAILING NOTE: ALL NEW RAILING PAINTED BLACK TO MATCH ADJACENT EXISTING RAILING

BUILDING PERMIT

SLIDE 12

BUILDING PERMIT

SITE LOCATION FOR NEW RAILING 132 EAST 62 STREET, 10065, Manhattan (Borough 1) | Block 1396 | Lot 60 BLOCK AND PARCEL FOR NEW RAILING 132 EAST 62 STREET, 10065, Manhattan (Borough 1) | Block 1396 | Lot 60
