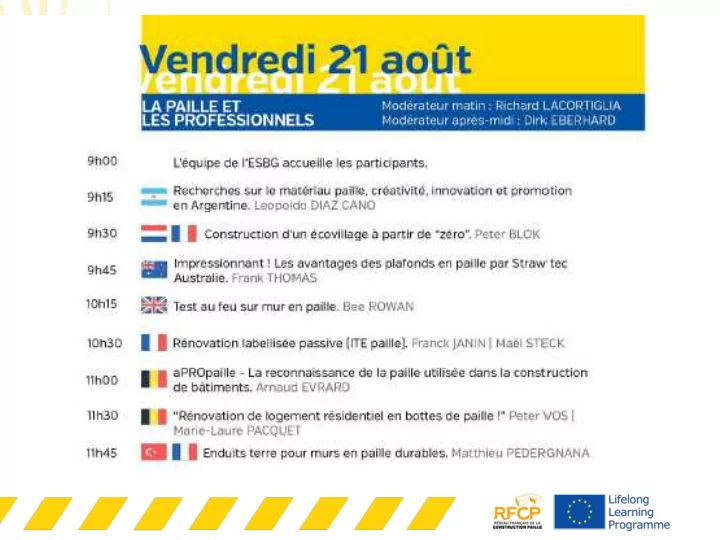

STRAW RESEARCH, CREATIVITY, INNOVATION AND PROMOTION IN ARGENTINA Leopoldo DIAZ CANO ESBG Strawbale Event RACP Topics 1.Argentine straw building network. 2.The research project. 3.Raw material alternatives and crop areas in Argentina.

slide-1
SLIDE 1
slide-2
SLIDE 2

STRAW RESEARCH, CREATIVITY, INNOVATION AND PROMOTION IN ARGENTINA Leopoldo DIAZ CANO

slide-3
SLIDE 3

ESBG Strawbale Event RACP

1.Argentine straw building network. 2.The research project. 3.Raw material alternatives and crop areas in Argentina. 4.Goals of the Argentine straw building network.

Topics

slide-4
SLIDE 4

ESBG Strawbale Event RACP

Argentina: 4 MILLION Has. Wheat

slide-5
SLIDE 5

ESBG Strawbale Event Adriana, Pto. Madryn, Chubut, 2014

slide-6
SLIDE 6

ESBG Strawbale Event RACP Thank You very much, Merci Beacoup, Muchas gracias

slide-7
SLIDE 7

Peter BLOK

slide-8
SLIDE 8
slide-9
SLIDE 9
slide-10
SLIDE 10
slide-11
SLIDE 11

Frank THOMAS (Australie)

slide-12
SLIDE 12
slide-13
SLIDE 13
slide-14
SLIDE 14

Straw wall Fire Test Strawbuild Bee ROWEN BSEN 1365-1: 2012

slide-15
SLIDE 15

High straw content in the trial plaster mixes did not crack after

  • ne hour

1 : 3 : 3 1 : 3 : 2 1 : 3 : 1 Trial mixes with clay and sand only, cracked after 10 minutes 1 : 3 1 : 4

slide-16
SLIDE 16

TEST WALL : 3m wide by just over 2.6m high,

loaded throughout to 84kN to simulate the loading of a two storey timber framed house 7 courses of bales - compressed by about 15mm per course of bales. 4 posts of 95mm x 95mm at 1000mm centres within the wall, set 175mm back from the exposed face.

slide-17
SLIDE 17
slide-18
SLIDE 18

Passive refurbishment of a one family house Mael STECK Franck JANIN

The project

refurbishment of a 96 m² house (built in 1978). Having the

  • pportunity to buy

at reasonable price this well-located house

18

slide-19
SLIDE 19

Passive refurbishment of a one family house

19 Watertightness

slide-20
SLIDE 20

Passive refurbishment of a one family house

Exterior insulation 20

slide-21
SLIDE 21

aPROpaille

Recognition of straw-bales use in buildings

Arnaud Evrard – UCL / Architecture et Climat

slide-22
SLIDE 22

aPROpaille - Recognition of straw-bales use in buildings

Research partners

  • Dr Ir Arch Arnaud Evrard and Prof André De Herde

Architecture et Climat / LOCI / SST / UCL, Louvain-la-Neuve

  • Ir Gauthier Keutgen and Arch Benjamin Biot

Institut de conseil et d’étude en développement durable – ICEDD, Namur

  • Prof Frédéric Lebeau and Ir Arnaud Louis

Biose / ULg, Gembloux

  • Prof Luc Courard and Ir Arnaud Louis

GeMMe / ULg, Liège

  • Arch Antoine Bonnert

Paille-Tech, Franière

  • Laurence Polain

DGO4 / SPW, Jambes

  • Olivier Dierckx

DGO6 / SPW, Jambes

slide-23
SLIDE 23

aPROpaille - Recognition of straw-bales use in buildings

Measuring thermal conductivity and other hygrothermal parameters

slide-24
SLIDE 24

aPROpaille - Recognition of straw-bales use in buildings

Life Cycle Analysis

slide-25
SLIDE 25

aPROpaille - Recognition of straw-bales use in buildings

Internet platform

www.apropaille.be

slide-26
SLIDE 26

Rénovation d’une maison individuelle Peter VOS Marie-Laure PACQUET Belgique

slide-27
SLIDE 27
slide-28
SLIDE 28
slide-29
SLIDE 29
slide-30
SLIDE 30
slide-31
SLIDE 31
slide-32
SLIDE 32
slide-33
SLIDE 33
slide-34
SLIDE 34
slide-35
SLIDE 35
slide-36
SLIDE 36
slide-37
SLIDE 37
slide-38
SLIDE 38
slide-39
SLIDE 39

STRAW, THERMAL CONCEPTION and PASSIVE HOUSE Franck JANIN, HELIASOL, France

slide-40
SLIDE 40

Introduction

  • My experience in thermal engineering
  • Building passive with straw bales
  • Summer comfort : monitoring of 2 houses during this

really hot summer, this year

  • Heating with wood stove
  • These results and experiences are valid in Lyon/France

area

  • Climate : “semi continental, medium cold 70 kKh (kilo

Kelvin hour / year), 1100 hours equivalent fully sunny per year

Plan

slide-41
SLIDE 41

Thermal engineering

  • Passive house definition
  • Well insulated house with so low heat demand that you

can fulfil it by heating the air supplied by ventilation (hygienic ventilation rate)

  • A passive house of 100 m² will need per year (for

heating)

  • 150 liter of fuel
  • 1500 kWh of electricity
  • 1 stere of wood
  • 1 m3 of stacked wood (length 1 m)
  • 0.6 m3 stacked wood (length 33 cm)

Passive house

slide-42
SLIDE 42

Thermal engineering

  • 38 cm of straw : U = 0.052/0.38

= 0.13 W/m².K

  • With integrated thermal bridge

(up to 10%) (wood skeleton), U < 0.15 W/m².K

  • Passive House recommendation

U < 0.15 W/m².K

  • Straw bale Ok for passive house

in France and most Europe

Straw insulation

38 cm

slide-43
SLIDE 43

Thermal engineering

  • Orientation
  • Bioclimatic
  • Compactness (of the

heated area)

  • Windows triple glazing

welcome with solar factor > 0.6

  • No thermal bridges
  • And …

hd2 Low consumption 50 kWh / m² year (Heating demand) Passive House 15 kWh / m² year (Heating demand)

slide-44
SLIDE 44

Thermal engineering

  • Double flow ventilation

with heat recovery

  • Air tightness
  • n50 < 0.6 volume / hour
  • 4 x better than french

regulation RT 2012

hd2 Low consumption 50 kWh / m² year (Heating demand) Passive House 15 kWh / m² year (Heating demand)

slide-45
SLIDE 45

Thermal engineering

  • Is air tightness mandatory ?
  • Heating demand kWh / m² per year

Ventilation / air tightness 5 10 15 20 25 30 35 40 45 5 10 Simple flow DF + heat recovery N50 volume/hour Example based on values of the passive refurbishment in Valence / France

slide-46
SLIDE 46

Thermal engineering

  • It’s difficult to do something really bad with straw bale

insulation and wood, but take care of basement :

Some details Psi = 0.25 W/m.K Heating demand : 11 kWh/m² New passive house Psi = 0 W/m.K Heating demand : 8 kWh/m² Bad thermal bridge Psi = 0.6 W/m.K Heating demand : 18 kWh/m²

slide-47
SLIDE 47

Summer comfort

  • 2 straw passive houses and a standard house

(1990)

Monitoring

  • Passive refurbishment
  • Location 100 km south Lyon
  • Elevation 164 m
  • One floor
  • Flat roof (straw)
  • Usage : family 4 person
  • No window shutter
  • New Passive
  • 100 km north Lyon
  • Elevation 403 m
  • One floor
  • Attic (ventilated)
  • Not used in July
  • Wood shutter (70%)
  • Standard
  • Lyon suburb
  • Elevation 210 m
  • Two floors
  • Attic
  • Family 4 p
  • Wood shutters
slide-48
SLIDE 48

Summer comfort

  • July temperatures

Results Blue = outside, Black : standard house bedroom Lyon Red : Passive refurb bedroom (South Lyon) Green : new passive bedroom (North Lyon)

slide-49
SLIDE 49

Summer comfort

  • Passive houses, straw insulated are providing a

good level of comfort, even during heatvawes in this region

  • Needed
  • Protect windows from solar radiations
  • Open windows at night when outside temperature is lower
  • Take care of internal heat sources : PC’s light, owen, …
  • Some inertia may help

Conclusion

slide-50
SLIDE 50

zero carbon building element

intelligent design – smart construction!

Thomas Dimov Swisse

, Dipl. Arch. ETH, Zürich

slide-51
SLIDE 51

the product

core layers: light clay filling 50 mm > heat/ moisture buffer/ fire protection tj i timber frame 450 mm > bearing structure straw bales 350 mm > heat insulation light clay filling 50 mm > fire protection cover layers: clay plaster 10 mm > inside surface flax fleece 2 mm > vapour barrier flax fleece 2 mm > wind paper h=250 cm

t=45 cm

  • 1. basic module (wall element , solar)

inside u<0,15 w/ m2k

  • utsid

e building services: heat exchanger > wall heating heat exchanger > solar collector glass cladding > photovoltaic panel

21.8.2015 thomas dimov/ch esbg 2015 montargis/paris - zero carbon building

slide-52
SLIDE 52

THE RESULT OF MONITORING IN FRANCE

slide-53
SLIDE 53

Sensors from Behrens & Krause

The concept

2 instrumented walls 8 sensors by wall an internet connection to recover data 2 instrumented building

slide-54
SLIDE 54

Sensors from Behrens & Krause

House in Morancé (69) near Lyon

2011

Architect : Stéphane Peignier Straw compagny : Batinature

slide-55
SLIDE 55

Sensors from Behrens & Krause

A nursery in Muel (Bretagne)

Architect : Stéphane Peignier Straw compagny : Batinature

slide-56
SLIDE 56

Sensors from Behrens & Krause

Results

slide-57
SLIDE 57

Sensors from Behrens & Krause

Analysis - Outputs

Start date Duration … … … …

Potential mould growth

slide-58
SLIDE 58

Le GABION MONITORING

ESBG 2015

Two monitoring experiences :

1) drying and rain influence of 4 different coatings on straw bales

฀
