Status of update of G4LEND Koi, Tatsumi (SLAC) Beck, Bret (LLNL) Hiller, Larry (LLNL) Caleb, Mattoon (LLNL) Wright, Douglas (LLNL) GND, GIDI and G4LEND GND: Generalized Nuclear Data New, modern structure to replace legacy nuclear data

slide-1
SLIDE 1

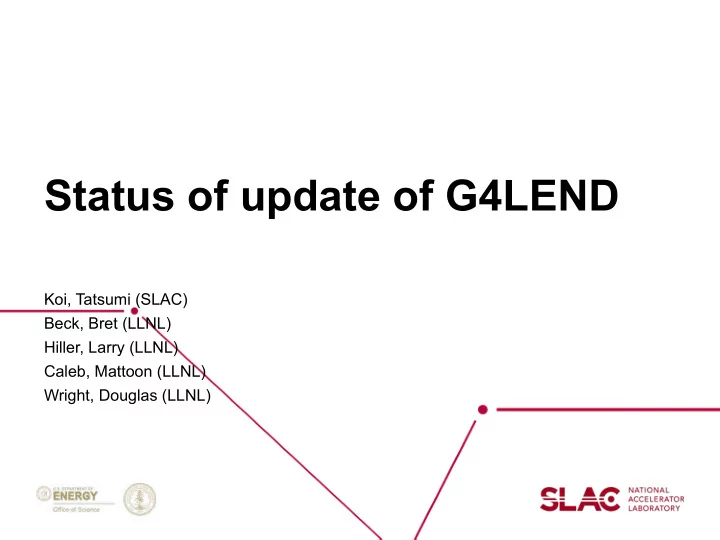

Status of update of G4LEND

Koi, Tatsumi (SLAC) Beck, Bret (LLNL) Hiller, Larry (LLNL) Caleb, Mattoon (LLNL) Wright, Douglas (LLNL)

slide-2
SLIDE 2

2

GND, GIDI and G4LEND GND: Generalized Nuclear Data New, modern structure to replace legacy nuclear data formats (e.g., ENDF-6) GIDI: General Interaction Data Interface G4LEND: Geant4 Low Energy Nuclear Data G4LEND is a package of low energy nuclear interaction model of Geant4. It is a data driven and uses data written in GND format thorugh GIDI interface. G4LEND has been in release of Geant4 since v9.5 (2011).

slide-3
SLIDE 3

3

GND becomes a widely accepted prototype of new international nuclear data standard

International collaboration (WPEC SG38) has been formed to design a new format for storing nuclear data, and to

  • versee the transition from

ENDF-6 to the new format.

  • LLNL proposed this

collaboration in order to promote GND (or something based on it) as the new standard

  • Entitled ‘Beyond the ENDF

format: a modern nuclear database structure.’

Goal: complete specifications by December 2015

slide-4
SLIDE 4

4

How to get ENDF data in GND format

http://www.nndc.bnl.gov/exfor/endf00.jsp Click GND Retrieval 1-H-1

slide-5
SLIDE 5

5

How to get ENDF data in GND format

Click gnd.xml ENDFBVII.1 1-H-1 data in GND format

slide-6
SLIDE 6

6

Update of G4LEND Migrate recent update of GND and GIDI Introduce gamma (and other particles) as projectile New data translated from ENDF/BVII.1 has been prepared Neutrons projectile 421 nuclides, from H to Es Gamma projectile 162 nuclides, from H to Pt

slide-7
SLIDE 7

7

An example of data file of this version

Data file for 1-H-1

slide-8
SLIDE 8

8

Validation of gamma incidence reaction

C12(g,3a)

0.0001 ¡ 0.001 ¡ 0.01 ¡ 0.1 ¡ 0 ¡ 5 ¡ 10 ¡ 15 ¡ 20 ¡ 25 ¡ 30 ¡ 35 ¡ 40 ¡ 45 ¡ 50 ¡ cross ¡sec'on ¡[barn] ¡ energy ¡[MeV] ¡

gamma ¡on ¡C12 ¡

gamma ¡ neutron ¡ proton ¡ alpha ¡ ENDF ¡C12(G,non) ¡ ENDF ¡C12(G,N) ¡ ENDF ¡C12(G,P) ¡

slide-9
SLIDE 9

9

Validation of gamma incidence reaction

0.0001 ¡ 0.001 ¡ 0.01 ¡ 0.1 ¡ 0 ¡ 5 ¡ 10 ¡ 15 ¡ 20 ¡ 25 ¡ 30 ¡ 35 ¡ 40 ¡ 45 ¡ 50 ¡ cross ¡sec'on ¡[barn] ¡ energy ¡[MeV] ¡

gamma ¡on ¡C13 ¡

gamma ¡ neutron ¡ proton ¡ alpha ¡ ENDF ¡C12(G,X) ¡

slide-10
SLIDE 10

10

Validation gamma on U235 (photonNuclear and photoFission)

0 ¡ 0.2 ¡ 0.4 ¡ 0.6 ¡ 0.8 ¡ 1 ¡ 1.2 ¡ 1.4 ¡ 1.6 ¡ 0 ¡ 2.5 ¡ 5 ¡ 7.5 ¡ 10 ¡ 12.5 ¡ 15 ¡ 17.5 ¡ 20 ¡ cross ¡sec'on ¡[barn] ¡ energy ¡[MeV] ¡

neutron ¡produc'on ¡cross ¡sec'on ¡

n ¡from ¡photonNuclear ¡ n ¡from ¡photonFission ¡

slide-11
SLIDE 11

11

Summary

  • GND is considered as a prototype of new international

nuclear data standard

  • Being designed by an international committee
  • OECD/NEA/WPEC sub-group 38
  • Many ENDF data have been translated to GND
  • You can download them from web page
  • Update of G4LEND on going
  • Migrate to update of GND and GIDI
  • Validate working proto type for neutron and gamma
  • Hope to include coming release
slide-12
SLIDE 12

Backup slides

12

slide-13
SLIDE 13

13

Example of data file in current version.

Data file for 1-H-1

slide-14
SLIDE 14

14

Validation Particle production cross section gamma on C12

************************************************************ ********************************************* * G4Track Information: Particle = gamma, Track ID = 1, Parent ID = 0 ************************************************************ ********************************************* Step# X Y Z KineE dEStep StepLeng TrakLeng Volume Process 0 0 fm 0 fm -1.88 m 15 MeV 0 eV 0 fm 0 fm World initStep 1 0 fm 0 fm -50 cm 15 MeV 0 eV 1.38 m 1.38 m World Transportation 2 0 fm 0 fm -12.7 cm 0 eV 0 eV 37.3 cm 1.75 m PM_Target photonNuclear :----- List of secondaries ---------------- alpha: energy = 168 keV time = 5.831 ns alpha: energy = 195.2 keV time = 5.831 ns alpha: energy = 67.68 keV time = 5.831 ns :------------------------------------------

*********************************************************************** ********************************** * G4Track Information: Particle = gamma, Track ID = 1, Parent ID = 0 *********************************************************************** ********************************** Step# X Y Z KineE dEStep StepLeng TrakLeng Volume Process 0 0 fm 0 fm -1.88 m 15 MeV 0 eV 0 fm 0 fm World initStep 1 0 fm 0 fm -50 cm 15 MeV 0 eV 1.38 m 1.38 m World Transportation 2 0 fm 0 fm -17.8 cm 0 eV 0 eV 32.2 cm 1.7 m PM_Target photonNuclear :----- List of secondaries ---------------- gamma: energy = 1.363 MeV time = 5.66 ns gamma: energy = 871 keV time = 5.66 ns gamma: energy = 511.9 keV time = 5.66 ns alpha: energy = 3.177 MeV time = 5.66 ns Be8: energy = 1.696 MeV time = 5.66 ns :------------------------------------------

slide-15
SLIDE 15

15

Example of reactions gamma on 92U235

********************************************************************************************************* * G4Track Information: Particle = gamma, Track ID = 1, Parent ID = 0 ********************************************************************************************************* Step# X Y Z KineE dEStep StepLeng TrakLeng Volume Process 0 0 fm 0 fm -1.88 m 15 MeV 0 eV 0 fm 0 fm World initStep 1 0 fm 0 fm -50 cm 15 MeV 0 eV 1.38 m 1.38 m World Transportation 2 0 fm 0 fm -49.5 cm 0 eV 0 eV 4.54 mm 1.38 m PM_Target photonNuclear :----- List of secondaries ---------------- gamma: energy = 10.54 MeV time = 4.602 ns gamma: energy = 2.045 MeV time = 4.602 ns gamma: energy = 1.738 MeV time = 4.602 ns gamma: energy = 598.8 keV time = 4.602 ns U235: energy = 1.493 keV time = 4.602 ns :------------------------------------------ ********************************************************************************************************* * G4Track Information: Particle = gamma, Track ID = 1, Parent ID = 0 ********************************************************************************************************* Step# X Y Z KineE dEStep StepLeng TrakLeng Volume Process 0 0 fm 0 fm -1.88 m 15 MeV 0 eV 0 fm 0 fm World initStep 1 0 fm 0 fm -50 cm 15 MeV 0 eV 1.38 m 1.38 m World Transportation 2 0 fm 0 fm -50 cm 0 eV 0 eV 424 um 1.38 m PM_Target photoFission :----- List of secondaries ---------------- neutron: energy = 1.482 MeV time = 4.588 ns neutron: energy = 6.336 MeV time = 4.588 ns neutron: energy = 2.084 MeV time = 4.588 ns neutron: energy = 1.639 MeV time = 4.588 ns :------------------------------------------

photonNucler photoFission
