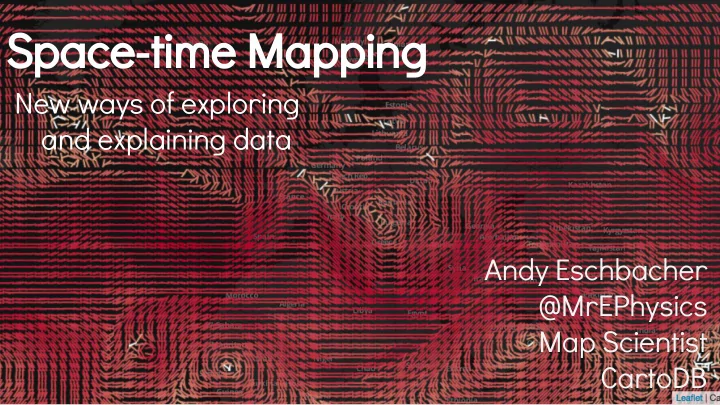

Space-time Mapping New ways of exploring and explaining data Andy - - PowerPoint PPT Presentation
Space-time Mapping New ways of exploring and explaining data Andy - - PowerPoint PPT Presentation
Space-time Mapping New ways of exploring and explaining data Andy Eschbacher @MrEPhysics Map Scientist CartoDB Visualizing Escape Scenarios From the Washington Post Map by siggyf #sunrise map See map here See map here Map by
SLIDE 2
SLIDE 3
Map by siggyf
SLIDE 4
#sunrise map
See map here
SLIDE 5
See map here Map by Anti-Eviction Mapping Project
SLIDE 6
Map by Lifewatch INBO
Bird Migration Mapping
SLIDE 7
Maps by EuroBirdPortal
Bird Migration Mapping
SLIDE 8
global forest watch, http://www.globalforestwatch.org/
SLIDE 9
Animated Web Maps are hard … traditional data downloads lead to big
bottlenecks What’s the minimal data dicing we can do?
SLIDE 10
Platform Data services Your data Platform Data services Your data Platform Data services Your data Torque DataCube slices of data on the client flux capacitor for maps tiling data, data3
THINGS x PLACES y TIME z
slide by Aurelia Moser
SLIDE 11
Slow for a lot of data C C O O N N Fast Light Cached Lossy P P R R O O
slide by Aurelia Moser
SLIDE 12
floor(({column_conv} - {start})/{step}) (curr_time - min_time) / number_steps aka Torque Timing
TIME z
slide by Aurelia Moser
SLIDE 13
Platform Data services Your data Editor Platform Data services Your data Editor Platform Data services Your data Editor delta encoding Torque Encoding
gzip compression binning by step
1.3M tweets 800K points slide by Aurelia Moser, graphics Javi Santana
SLIDE 14
Windshaft, Torque Renderer.js: https://github.com/CartoDB/Windshaft/
SLIDE 15
Aggregation happens here
SLIDE 16
SLIDE 17
BROWSER
CartoDB.js Odyssey.js Torque.js Leaflet/GMaps/OLayers
EDITOR
Varnish Stuff PostgreSQL PostGIS Maps API SQL API Mapnik Torque Redis CartoDB Server API AWS Elastics ImportsAPI RESTAPI PostgreSQL/PostGIS AWS Elastics
slide by Aurelia Moser
SLIDE 18
See Torque’s render code
Experiments with Torque’s renderer
SLIDE 19
Torque with Labels
Map by Stuart Lynn
SLIDE 20
Torque with Vectors
Map by Stuart Lynn
SLIDE 21
Multivariate Torque
Map by Stuart Lynn
SLIDE 22
Isoline Tests
work by Francisco Dans
SLIDE 23
Isoline Tests
work by Francisco Dans
SLIDE 24
Isoband Tests
work by Francisco Dans
SLIDE 25
Torque with D3
work by Javi Santana
SLIDE 26
Fork Torque today and make a renderer
https://github.com/CartoDB/torque
