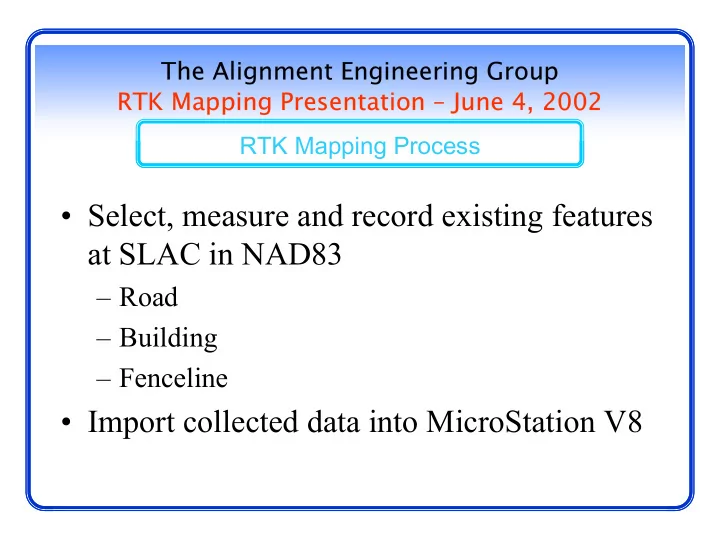

RTK Mapping Process

  • Select, measure and record existing features

at SLAC in NAD83

– Road – Building – Fenceline

  • Import collected data into MicroStation V8

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002 RTK Mapping Process

slide-2
SLIDE 2

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002

  • Base Station

– M40

  • Rover Unit (x2)

– With DISTO Pro A

  • Software

– Leica GPS Software (Ski-Pro, GIS DataPro) – MicroStation V8

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002 What is needed?

slide-3
SLIDE 3

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002

Base Station

  • CA Zone 0403

– N 603088.715 m – E 1849150.780 m – h 64.4232 m above Ellipsoid – H 96.9352 m based on Geoid99

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002 Base Station

slide-4
SLIDE 4

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002

Rover Unit

  • Radio Link

– 416.425 MHz – 2 watt

  • DISTO Pro A

– 300 ft – +/- 2mm

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002 Rover Unit

slide-5
SLIDE 5

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002

Mapping Expertise, Road

  • Loop Road

– Edge of Pavement – Centerline

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002 Mapping Expertise, Road

slide-6
SLIDE 6
slide-7
SLIDE 7

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002

Mapping Expertise, Road

  • Loop Road

– Edge of Pavement – Centerline

  • Misc. Roads

– Edge of Pavement – Centerline

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002 Mapping Expertise, Road

slide-8
SLIDE 8
slide-9
SLIDE 9

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002

Mapping Expertise, Road

  • Data Collection Method

– Line Feature –1 node every second – Node Selection –Pause, Resume

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002 Mapping Expertise, Road

slide-10
SLIDE 10
slide-11
SLIDE 11

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002

Mapping Expertise, Building

  • Building 006 – Cyrogenics

– Footprint (I-beam corner)

  • LINAC

– Footprint (Concrete Pad)

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002 Mapping Expertise, Building

slide-12
SLIDE 12

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002

Mapping Expertise, Building

  • Data Collection Method(s)

– RTK Rover + TC2002 –Create Control via RTK, measure corner using TC2002 –Occupancy Time = 1 minute –Repeatability ~2cm –Center TC2002 over Control using Optical Plummet

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002 Mapping Expertise, Building

slide-13
SLIDE 13
slide-14
SLIDE 14

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002

Mapping Expertise, Building

  • Data Collection Methods

– RTK Rover + TC2002 –Create Control via RTK, measure corner using TC2002 – RTK Rover + DISTO Pro A –Create corner by measuring 2 points plus distance to corner

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002 Mapping Expertise, Building

slide-15
SLIDE 15
slide-16
SLIDE 16

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002

Time Estimate Example

  • Loop Road (3x 4.6km)

– Setup - 1 hr – Field Work – 12 hrs – Office Work – 4 hrs

The Alignment Engineering Group The Alignment Engineering Group RTK Mapping Presentation – RTK Mapping Presentation – June 4, 2002 une 4, 2002 Time Estimate Example
