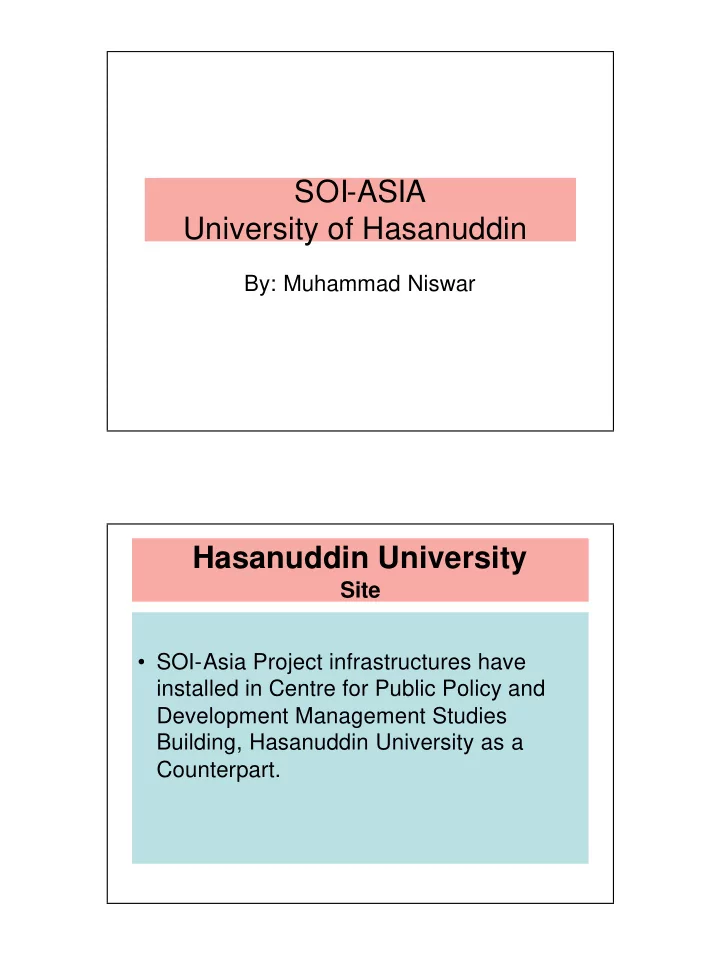

SOI-ASIA University of Hasanuddin

By: Muhammad Niswar

Hasanuddin University

Site

• SOI-Asia Project infrastructures have

installed in Centre for Public Policy and Development Management Studies Building, Hasanuddin University as a Counterpart.

Environment

• Semi-interactive site.
• On campus LAN is partially connected .
• The center has 15 PCs for self-education.
• External connectivity is dial-up connection.
• Classroom capacity is available up to 30

persons.

Environment

Equipment Setup

Server 202.249.26.50 Modem Multiplexer Satellite dish Satellite Video Screen WMT 202.249.26.51 RPT 202.249.26.52 Staf Communication (ChatRoom) 202.249.26.53 UDL Router Defaullt GW : 202.249.26.49 Netmask : 255.255.255.248 DNS :202.249.26.50 Hub Satellite dish

6 M b p s 6 M b p s

Internet 64 Kbps (dial-up connection) Sony Box Receiver

PSKMP-PC Room

Default GW : 192.168.10.1 Netmask : 255.255.255.0 DNS : 192.168.10.2 Web Proxy : 192.168.10.2 Port : 3128 Screen

Last Condition of UNHAS site

Problem:

• No connection is established between

Sony Box and UDL Receive Router, which is indicated by LED indicator of ‘LAN/act’

• n Sony Box is turn off.
• We can upload limited real time source:

Video and Audio because of insufficient BW

Last Condition of UNHAS site

The problems occurred due to:

• Lightening strikes harm the Sony Box,

Router and Modem.

• External connectivity is dial-up connection

using modem that provide 56 Kbps. This is considered as insufficient.

Solution

• Install the good grounding system (Done)
• providing sufficient BW for the external

connectivity (in progress)

SOI-Staff

• Mr.Samuel Poli
• Mr.Baso Siswadarma
• Mr.A.Amrullah
• Mr.Muhammad Niswar
