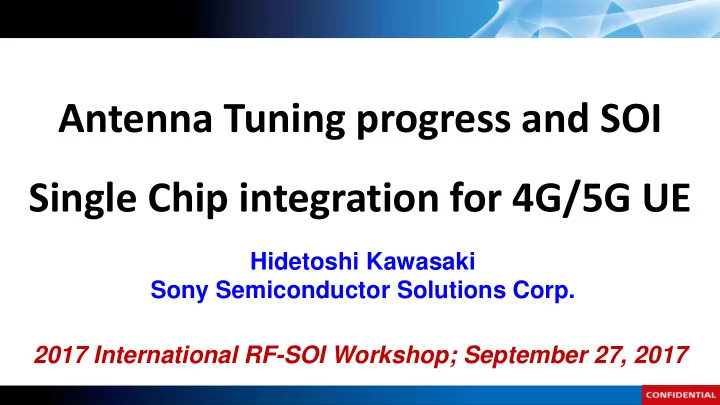

Antenna Tuning progress and SOI Single Chip integration for 4G/5G UE Hidetoshi Kawasaki Sony Semiconductor Solutions Corp. 2017 International RF-SOI Workshop; September 27, 2017 4G/5G(Sub-6GHz) UE Antenna configuration for Carrier Aggregation
SLIDE 2
SLIDE 3
Antenna Tuning Device
LB/MB/HB
ANT1 ANT2
ANT3~6
3.5GHz
Configuration 1
Dedicated Antenna for 3.5GHz 4x4MIMO
700MHz~2.7GHz
LB/MB/HB/3.5GHz
ANT1 ANT2
ANT3/4
3.5GHz
Configuration 2
Partially marge for 3.5GHz 4x4 MIMO LB/MB/HB/3.5GHz/5.8GHz
ANT1 ANT2 ANT3 ANT4
Configuration 3
Support 3.5GHz 4x4 MIMO + 5G(Sub-6GHz) 4G/5G Sub-6GHz Antenna Configuration for CA and MIMO
SLIDE 4
Antenna Tuning Device
Cases, Band combination of Carrier Aggregation
BTS Mobile
Down Link Up Link
Wide-Rang Antenna are necessary
Return loss Frequency
LB MB HB
Carrier aggregation will come, need simultaneous TRx and to apply multi band.
Carrier Aggregation Features
Band-A
Freq. LB 700-960M MB 1.5-2.1G HB 2.3-2.7G 3~5GHz Band e.g. 3CC
1) Intra-band, contiguous 2) Intra-band, non-contiguous 3) Inter-band, non-contiguous
SLIDE 5
Aperture + Impedance Tuning to Inverted-F Antenna for CA
Antenna Tuning Device
★ ★
1.7G 2.2G
1.9GHz band 2.6GHz band
VSWR <3
700M 960M 2.7G
MB LB HB
Feed * Z-Tuner: Impedance tuner
VSWR=1.5 @1.9GHz [dB] VSWR=4.0 @2.6GHz [dB]
Feed VSWR
Frequency 3
700M 1G 2G 3G
4
★ ★
2 VSWR=1.3 @1.9GHz [dB] VSWR=2.7 @2.6GHz [dB]
Actual Multi-band active-IFA
(Aperture tuning applied)
VSWR
Frequency 3
700M 1G 2G 3G
4
★ ★
2
Improved
★ ★
MB HB LB
1.9GHz band 2.6GHz band
VSWR <3
Multi-band active-IFA for CA
(Aperture & Impedance Tuning applied)
SLIDE 6
Sony’s Antenna Tuning Device
For realizing wide-band antenna for CA, it is also a proposal to supplementary use Impedance tuning together with Aperture tuning. Antenna Tuning Idea for Carrier Aggregation
SLIDE 7
Sony’s 5G Idea
Multiband Support MIMO Carrier Aggregation WiFi LTE-U/LAA
4G/4.5G/5G
High Linearity ・Harmonics ・Inter Modulated Distortion Higher Frequency ・up to 3.8GHz/5.85GHz Wide Band Antenna Efficiency ・Antenna Swapping ・Antenna Tuning Smaller Antenna Design ・Multi Port IC ・Antenna Tuning
SLIDE 8
Sony’s 5G Idea
4G/5G Sub-6GHz LNA with Bypass SW 4G/5G Sub-6GHz LNA + Multi ports SW
ANT Rx
LNA SPST Switch
D-D Con Bias/Control D-D Con Bias/MIPI
SPnT Rx
LNA SPST Switch
High Performance & Small Size
Rx ANT SPDT Switch
D-D Con Bias/Control
Band Pass Filter LNA SPST Switch Tx
SOI MMIC
4G/5G Sub-6GHz LNA+SW+Filter FEM 5G Millimeter wave LNA+SW+Filter+PS(+ANT)
SPDT Switc h D-D Con Bias/Control Band Pass Filter LNA PA
SOI MMIC
Φ
ANT
Φ
ANT
Φ
ANT
Φ
ANT
・・・
Rx Tx
SOI MMIC SOI MMIC
SOI Single chip technology
SLIDE 9
Conclusion
- Antenna Tuning usage increase
- Integration vertically and horizontally
MIMO / CA makes Antenna configuration complex and its covering frequency
- wide. Both aperture and impedance Antenna Tuning devices are required.
Combining RF-FE function blocks into SOI single chip technology, Sony will be able to support future 5G requirement.
- Unique RF-SOI technology
With Sony’s in-house high power handling SOI, antenna tuning devices can reach superior performance and small size.
SLIDE 10
