SMK 920/980/990 series Acme Portable Computer GmbH - - PowerPoint PPT Presentation

Mar 18, 2023 368 likes •505 views

SMK 920/980/990 series Acme Portable Computer GmbH www.acmeportable.de - info@acmeportable.de Marketing Dept. Benzstrae 15 76185 Karlsruhe, Germany Nov. 2012 +49(0)721 5704530 SMK920/980/990 series Specification Meets EIA310c &

slide-1

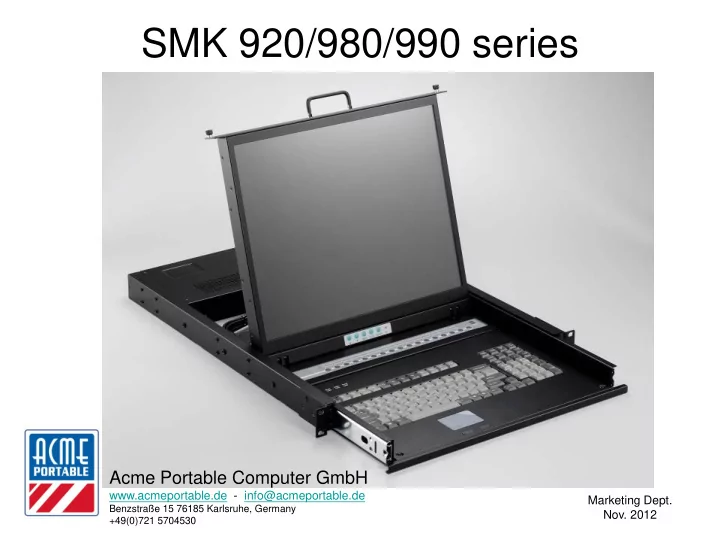

SLIDE 1

SMK 920/980/990 series

Acme Portable Computer GmbH

www.acmeportable.de - info@acmeportable.de

Benzstraße 15 76185 Karlsruhe, Germany +49(0)721 5704530

Marketing Dept.

  • Nov. 2012
slide-2
SLIDE 2

SMK920/980/990 series

Marketing Dept.

  • Nov. 2012

Specification

Meets EIA310c & IEC-3 specifications Built-in keyboard, touchpad and LCD 115-key Cherry SW keyboard Built-in self-locking rails Compatible with PS/2 and USB interfaces Available in 17” and 19” display Tempered glass for LCD protection Remote Console option Auto Switch AC input 110/220V High brightness 300nits display High contrast ration at 500:1 1.75 x 17.42 x 23.63 (HxWxD) CE, FCC UL

slide-3
SLIDE 3

SMK920/980/990 series

Marketing Dept.

  • Nov. 2012

SMK920/980/990 series is fully compatible with PS/2 and USB systems.

USB PS/2

slide-4
SLIDE 4

SMK920/980/990 series

Marketing Dept.

  • Nov. 2012

Wide range of language available US, UK, Spanish, German, French, Italian, and Russian Russian German French

slide-5
SLIDE 5

Marketing Dept.

  • Nov. 2012
  • Please when ordering, indicate your required keyboard layout and cable type(USB,PS2)

Display KVM port Price

SMK920-A17 17” 1280 x 1024

  • On inquiry

SMK920-A19 19” 1280 x 1024

  • On inquiry

SMK980-A17 17” 1280 x 1024 8-Port On inquiry SMK980-A19 19” 1280 x 1024 8-Port On inquiry SMK990-A17 17” 1280 x 1024 16-Port On inquiry SMK990-A19 19” 1280 x 1024 16-Port On inquiry

SMK920/980/990 series Acme Portable Computer GmbH

www.acmeportable.de - info@acmeportable.de

Benzstraße 15 76185 Karlsruhe, Germany +49(0)721 5704530

slide-6
SLIDE 6
slide-7
SLIDE 7
slide-8
SLIDE 8

Meets EIA310c & IEC-3 specifications Built-in keyboard, touchpad & monitor with high brightness 17” or 19” LCD panel Multi-Language keyboard available 8-port switch with remote console option Compatible with Wintel and SUN systems Supports both USB and/or PS/2 interfaces

     

Features

LCD Keyboard Drawer

Self-locking rails D-Sub 15 pin 8 ports with console The integration of data, video and voice communication in computers and the subsequent technological advances have spawn many sophisti- cated CTI applications that have become accessible and affordable to the small and mid-sized business. The increasing CTI applications coupled with the growing demand for corresponding hardware and systems have created a dilemma: How does one pack the growing number

  • f equipment into existing space?

Acme's 1U slim industrial monitor keyboard, the SMK, is the solution for compacting more computing power into limited space. This revolutionary monitor keyboard combines a spectacular display coupled with a keyboard with built-in pointing device in a compact unit that measures only 1U in height. Occupying a fraction of the space of traditional monitor and keyboard units, the installation of the SMK leaves ample space for other critical components. With built-in analog-to-digital conversion board, the SMK can be connected to any standard VGA graphics card for immedi- ate On Screen Display. The monitor key-board unit has a built-in slide rail and mounts easily onto any 19" rackmount cabinet.

Introduction

ACME PORTABLE MACHINES INC.

117-Key SUN keyboard with 3-button touchpad

SMK 980/980S

105-Key keyboard with 2-button touchpad

slide-9
SLIDE 9

Specifications

Display

SMK 980 8x D-Sub 15 pins KVM ports Heavy-Duty Steel 105-Key Cherry Keyboard with 2-button touchpad 17” or 19“ / 1280 x 1024 300 nits 50K Hrs PS2 or Combo PS2 & USB 17.42”W x 1.75”H x 23.63”D / 31LBs 60W, 100-240VAC, 50/60Hz CE, FCC, RoHS 0-50C (32-122F)

LCD Keyboard Drawer

Model KVM Port Construction Keyboard LCD Size / Resolution Brightness Backlight MTBF Keyboard / Mouse Inteface Dimension / Weight Power Supply Compliance Operating Temperature

SMK 980/980S

60Hz 16.2M colors 500:1 Tempered glass Touchscreen Refresh Rate Display Color Contrast Ratio Protection SMK 980S 8x D-Sub 15 pins KVM ports Heavy-Duty Steel 117-Key Cherry Keyboard with 3-button touchpad 17” or 19“ / 1280 x 1024 300 nits 50K Hrs USB, Compatible with Sun Micro System 17.42”W x 1.75”H x 23.63”D / 31LBs 60W, 100-240VAC, 50/60Hz CE, FCC, RoHS 0-50C (32-122F)

17.42 23.63 1.75

China:

Shenzhen Acme Portable Co., LTD. Acme Bldg. No. 3 Industrial Zone Xinqiao Shajing Baoan Shenzhen, China 518125 Tel: 86.755.2746.0590 Fax: 86.755.2993.9900 www.acmeportable.com.cn

Corporate Offices

ACME Headquarters-U.S.A.

ACME Portable Machines, Inc. 1330 Mountain View Circle, Azusa, CA 91702 Tel: 1.626.610.1888 Fax: 1.626.610.1881 www.acmeportable.com

Taiwan:

Acme Portable Corp. 5F, No. 25, Wu Chuan 3rd Road, Wu-Ku Ind. Park, Taipei Hsien Taiwan Tel: 886.2.2298.3636 Fax: 886.2.2298.3737 www.acmeportable.com.tw

Germany:

ACME Portable Computer GmbH Kutschenweg 2 76287 Rheinstetten, Germany Tel: 49 (0)721.570.453.0 Fax: 49 (0)721.570.453.29 www.acmeportable.de

China:

Beijing Acme Portable Co., LTD. 1002 Xuezhixuan No.16 Xueqing Road Haidian District Beijing, China 100083 Tel: 86.10.8275.5703 Fax: 86.10.8275.5704 www.acmeportable.com.cn All data is for information only and subject to change without notice. Rev.B

China:

Shanghai ACME 68, Lane 1500, KongJiang Road YangPu District, ShangHai TEL:86.21.5595.2616 FAX: 86.21.5595.2516 www.acmeportable.com.cn

slide-10
SLIDE 10

Meets EIA310c & IEC-3 specifications Built-in keyboard, touchpad & monitor with high brightness 17” or 19” LCD panel Multi-Language keyboard available 16-port switch with remote console option Compatible with Wintel and SUN systems Supports both USB and/or PS2 interfaces

     

Features

LCD Keyboard Drawer

Self-locking rails D-Sub 15 pin 16 ports with console The integration of data, video and voice communication in computers and the subsequent technological advances have spawn many sophisti- cated CTI applications that have become accessible and affordable to the small and mid-sized business. The increasing CTI applications coupled with the growing demand for corresponding hardware and systems have created a dilemma: How does one pack the growing number

  • f equipment into existing space?

Acme's 1U slim industrial monitor keyboard, the SMK, is the solution for compacting more computing power into limited space. This revolutionary monitor keyboard combines a spectacular display coupled with a keyboard with built-in pointing device in a compact unit that measures only 1U in height. Occupying a fraction of the space of traditional monitor and keyboard units, the installation of the SMK leaves ample space for other critical components. With built-in analog-to-digital conversion board, the SMK can be connected to any standard VGA graphics card for immedi- ate On Screen Display. The monitor key-board unit has a built-in slide rail and mounts easily onto any 19" rackmount cabinet.

Introduction

ACME PORTABLE MACHINES INC.

117-Key SUN Keyboard with 3-buttons touchpad

SMK 990/990S

105-Key Cherry Keyboard with 2 buttons touchpad

slide-11
SLIDE 11

Specifications

Display

SMK 990 16x D-Sub 15 pins KVM ports Heavy-Duty Steel 105-Key Cherry Keyboard with 2 buttons touchpad 17” or 19“ / 1280 x 1024 300 nits 50K Hrs PS2 or Combo PS2 & USB 1.75”H x 17.42”W x 23.63”D / 31LBs 60W, 100-240VAC, 50/60Hz CE, FCC, RoHS 0-50C (32-122F)

LCD Keyboard Drawer

Model KVM Port Construction Keyboard LCD Size / Resolution Brightness Backlight MTBF Keyboard / Mouse Inteface Dimension / Weight Power Supply Compliance Operating Temperature

SMK 990/990S

60Hz 16.2M colors 500:1 Tempered glass Refresh Rate Display Color Contrast Ratio Protection SMK 990S 16x D-Sub 15 pins KVM ports Heavy-Duty Steel 117-Key Cherry Keyboard with 3 buttons touchpad 17” or 19“ / 1280 x 1024 300 nits 50K Hrs USB, Compatible with Sun Micro System 1.75”H x 17.42”W x 23.63”D / 31LBs 60W, 100-240VAC, 50/60Hz CE, FCC, RoHS 0-50C (32-122F)

China:

Shenzhen Acme Portable Co., LTD. Acme Bldg. No. 3 Industrial Zone Xinqiao Shajing Baoan Shenzhen, China 518125 Tel: 86.755.2746.0590 Fax: 86.755.2993.9900 www.acmeportable.com.cn

Corporate Offices

ACME Headquarters-U.S.A.

ACME Portable Machines, Inc. 1330 Mountain View Circle, Azusa, CA 91702 Tel: 1.626.610.1888 Fax: 1.626.610.1881 www.acmeportable.com

Taiwan:

Acme Portable Corp. 5F, No. 25, Wu Chuan 3rd Road, Wu-Ku Ind. Park, Taipei Hsien Taiwan Tel: 886.2.2298.3636 Fax: 886.2.2298.3737 www.acmeportable.com.tw

Germany:

ACME Portable Computer GmbH Kutschenweg 2 76287 Rheinstetten, Germany Tel: 49 (0)721.570.453.0 Fax: 49 (0)721.570.453.29 www.acmeportable.de

China:

Beijing Acme Portable Co., LTD. 1002 Xuezhixuan No.16 Xueqing Road Haidian District Beijing, China 100083 Tel: 86.10.8275.5703 Fax: 86.10.8275.5704 www.acmeportable.com.cn All data is for information only and subject to change without notice. Rev.C

China:

Shanghai ACME 68, Lane 1500, KongJiang Road YangPu District, ShangHai TEL:86.21.5595.2616 FAX: 86.21.5595.2516 www.acmeportable.com.cn

1.75 17.42 23.63

1.75
