Smart City- Sewer System Monitoring for Better Characterization and Management O. ABBAS, Y. ABOU RJEILY, I. SHAHROUR Laboratory of Civil Engineering and geo-Environment (LGCgE) Lille 1 University, France 13th IWA Specialized Conference on Small

slide-1

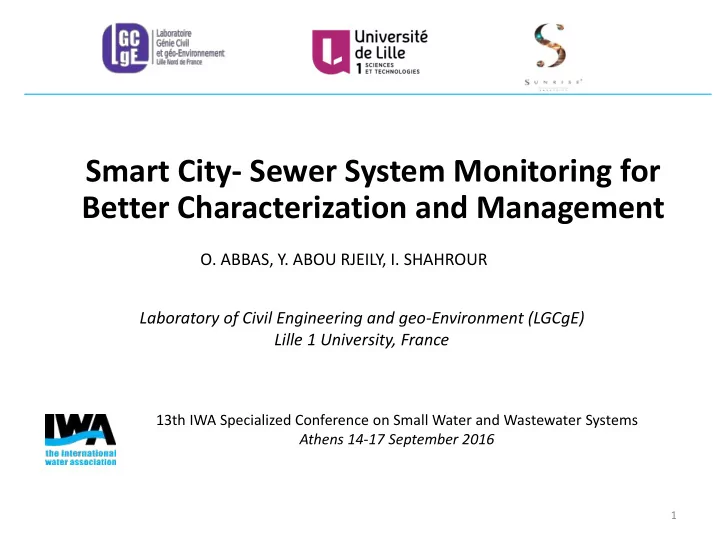

SLIDE 1

1

Smart City- Sewer System Monitoring for Better Characterization and Management

  • O. ABBAS, Y. ABOU RJEILY, I. SHAHROUR

Laboratory of Civil Engineering and geo-Environment (LGCgE) Lille 1 University, France

13th IWA Specialized Conference on Small Water and Wastewater Systems Athens 14-17 September 2016

slide-2
SLIDE 2

2

Smart Sewage Concept Large scale-Demonstrator Smart monitoring Data Analysis & anomaly detection Numerical modelling Conclusion

1 2 5 4 3 6

slide-3
SLIDE 3

Smart sewage Concept

  • GIS construction
  • Smart monitoring
  • Numerical modeling

Storage Analysis Control

Security Optimization

slide-4
SLIDE 4
  • 110 Hectares
  • 25 000 usagers

Large-scale demonstrator of smart city

4

Small City Campus of Lille 1 University / VILLENEUVE D’ASCQ, LILLE

  • 110 hectares
  • 25000 users
  • 140 buildings
  • 100 km urban networks

Variety

  • Usage
  • Quality
slide-5
SLIDE 5
  • Patrimoine
  • Maintenance

5

Construction of GIS system

slide-6
SLIDE 6

GIS Data Base

6

140 Buildings

 Administration  Activities  Teaching and research 66 % built before 1975

slide-7
SLIDE 7

 4 Km primary network  12 Km Secondary network Diameter =100 to 250 mm

Sewage Network

7

slide-8
SLIDE 8

Sewage Network

8

slide-9
SLIDE 9

9

Sewage Network-Maintenance

slide-10
SLIDE 10

Sewage Network-Maintenance

  • video Inspection
  • Type of failures
  • Degree de gravity
  • Localize vulnerable areas
  • Evaluation on long term

10

slide-11
SLIDE 11

11

Monitoring system

  • Site instrumentation
slide-12
SLIDE 12

12

Instrumentation of studied site

  • Surface 30 Hec
  • Real time monitoring
  • Hydraulic Parameter
  • Quality Parameter
slide-13
SLIDE 13

13

Sonde Flowmeter

Transmetteur Pack Battery

Instrumentation of studied site

slide-14
SLIDE 14

14

Data analyses

  • Normal Function
  • Anomaly detection
slide-15
SLIDE 15

Wastewater flow pattern

15 0,00 5,00 10,00 15,00 20,00 25,00 12:00:00 πμ 2:24:00 πμ 4:48:00 πμ 7:12:00 πμ 9:36:00 πμ 12:00:00 μμ 2:24:00 μμ 4:48:00 μμ 7:12:00 μμ 9:36:00 μμ 12:00:00 πμ FLOW m3/h Saturday 5 Sep 2015 Sunday 6 Sep 2015

Average flow 2.7 m3/h (Weekend) Maximum Flow 7.5 m3/h (Weekend)

slide-16
SLIDE 16

16 0,00 5,00 10,00 15,00 20,00 25,00 12:00:00 πμ 2:24:00 πμ 4:48:00 πμ 7:12:00 πμ 9:36:00 πμ 12:00:00 μμ 2:24:00 μμ 4:48:00 μμ 7:12:00 μμ 9:36:00 μμ 12:00:00 πμ FLOW m3/h Friday 4 Sep 2015 Saturday 5 Sep 2015 Sunday 6 Sep 2015 Monday 7 Sep 2015

Average Flow 2.7 m3/h (Weekend) 6.3 m3/h (Jour ouvrable) Maximum Flow 7.5 m3/h (Weekend) 20 m3/h (Working day)

Wastewater flow pattern

slide-17
SLIDE 17

0,00 5,00 10,00 15,00 20,00 25,00 30,00 35,00 40,00 18:00:00 12:00:00 6:00:00 0:00:00 18:00:00 12:00:00 6:00:00 0:00:00 18:00:00 12:00:00 Flow m 3/h Time

Daily Flow-Dry weather

17

Semaine du 3 au 10 Septembre 2015 Semaine du 24 Septembre au 1 Octobre 2015 Débit moyen 5,78 m3/h 6,98 m3/h J V S D L M Me J

slide-18
SLIDE 18

10 20 30 40 50 60 70 80 90 2000 4000 6000 8000 10000 Flow m3/h Time 3 Sep. to 10 Sep. 2015 10 Sep. to 17 Sep. 2015

Detection of abnormal events

18 Th Fr Sa Su M Tu Wed Th

slide-19
SLIDE 19

10 20 30 40 50 60 70 80 90 2000 4000 6000 8000 10000 Flow m3/h Time 3 Sep. to 10 Sep. 2015 10 Sep. to 17 Sep. 2015 19

13 September

Detection of abnormal events

Th Fr Sa Su M Tu Wed Th

slide-20
SLIDE 20

Detection of abnormal events

20

Station météo

10 20 30 40 50 60 70 80 90 100 10 20 30 40 50 60 70 80 90 100 200 400 600 800 1000 1200 1400

Flow m3/h

Time Flow of 13 Sep. 2015 Rain of 13 Sep. 2015

Rain mm/h

96 mm/h

slide-21
SLIDE 21

2 4 6 8 10 12 14 16 20 40 60 80 500 1000 1500 2000 2500

Flow m3/h

Time

Rain mm/h

Flow of 5 and 6 Oct. 2015 Rain of 5 and 6 Oct. 2015 7.8 mm/h

Detection of abnormal events

21 10 20 30 40 50 60 70 80 2000 4000 6000 8000 10000 Flow m3/h Time 3 Sep. to 10 Sep. 2015 1 Oct. to 8 Oct. 2015

slide-22
SLIDE 22

Wastewater flow modelling

22

Code EPA-SWMM

slide-23
SLIDE 23

Dry periode

23

Q max > 3 l/s Du 15-30 septembre

Q=3 l/s

slide-24
SLIDE 24

24

(13 September, In (Max) = 96 mm/h)

Period with a significant rainfall event

Q= 15 l/s

slide-25
SLIDE 25

25

Period with a significant rainfall event

slide-26
SLIDE 26

26

Period with a significant rainfall event

slide-27
SLIDE 27

Difficulties

Access

27

slide-28
SLIDE 28

Conclusion

28

  • Numerical Data base
  • Real time monitoring system
  • Hydraulic model
  • Feedback experience
slide-29
SLIDE 29

Thank you!

29
