Large-scale Higher Order Ambisonic Sound Reinforcement Systems or: SIZE DOES MATTER Jrn Nettingsmeier <nettings@stackingdwarves.net> David Dohrmann <david@adamsonsystems.com> Ambisonics Symposium 2011 June 2-3, Lexington, KY

slide-1
SLIDE 1

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

1/36

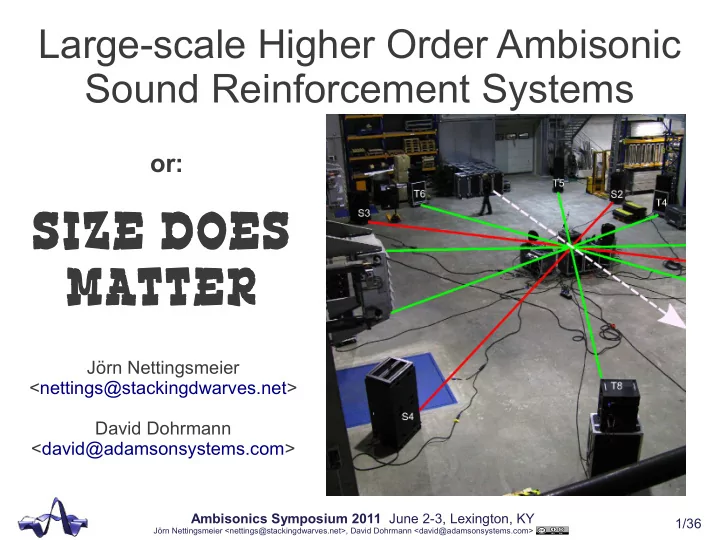

Large-scale Higher Order Ambisonic Sound Reinforcement Systems

  • r:

SIZE DOES MATTER

Jörn Nettingsmeier <nettings@stackingdwarves.net> David Dohrmann <david@adamsonsystems.com>

slide-2
SLIDE 2

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

2/36

Large-scale Higher Order Ambisonic Sound Reinforcement Systems

SIZE MATTERS FOR

* large dance clubs * open-air dance events * rock opera shows

slide-3
SLIDE 3

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

3/36

Large-scale Higher Order Ambisonic Sound Reinforcement Systems Introduction:

  • Modern line arrays can be designed to deliver

almost constant SPL over a wide area. Therefore, the only limiting constraint for large systems is run-time.

  • Can we scale HOA systems to hundreds or

thousands of listeners?

  • What happens very far outside the sweet spot?
slide-4
SLIDE 4

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

4/36

Large-scale Higher Order Ambisonic Sound Reinforcement Systems Overview:

  • Previous large-scale Ambi implementations
  • Test system configuration
  • Listening impressions
  • Theoretical analysis
  • Conclusion
slide-5
SLIDE 5

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

5/36

Previous implementations:

Malham et al. 1990, “Mediamix 90”, York, UK: 8 horizontal speakers 4 elevated speakers first-order decoder

  • max. radius: ca. 5m

Malham et al. 1992, “York Mystery Plays”: quasi-spherical: 1-4-6-4-1 first-order in-phase decode audience outside the sphere!

  • max. radius: ca. 7m
slide-6
SLIDE 6

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

6/36

Previous implementations:

Wiggins/Funktion One 2006-2010, Glastonbury Festival, UK: six horizontal horn arrays second-order decode

  • max. radius:

~20m

slide-7
SLIDE 7

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

7/36

Configuration of the test system:

8 mid-hi stacks: 3x Adamson Metrix 8.5” LF, 3”->1.4” HF 4 sub stacks: 2x Metrix Sub 2x15” X-over 100Hz, 24dB/Oct Linkwitz- Riley

slide-8
SLIDE 8

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

8/36

Configuration of the test system:

slightly oblong layout due to space constraints compensated with delay, effective radius 10.25m nominal coverage angles mid-hi: 120° subs: omni

slide-9
SLIDE 9

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

9/36

Configuration of the test system:

slightly oblong layout due to space constraints compensated with delay, effective radius 10.25m nominal coverage angles mid-hi: 120° subs: omni coverage issues!

slide-10
SLIDE 10

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

10/36

Configuration of the test system:

Mid-hi decoder: 3rd order, max rV/max rE (x/o 500 Hz) Sub decoder: 1st order, max rV, later sub-cardioid

Decoder: AmbDec (Fons Adriaensen), delay and near-field compensation switched on. Gain calibration w/ pink noise using A-weighted SPL meter at sweet spot, to +/- 0.1 dB

slide-11
SLIDE 11

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

11/36

Listening impressions:

NB: Two subjects only (the authors)!

slide-12
SLIDE 12

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

12/36

Listening impressions:

NB: Two subjects only (the authors)! Yeah, that's unscientific. But try to get people to attend a listening session two days before Christmas, with three days' notice, in a cozy warehouse heated to 12°, from 20-24:00h.

slide-13
SLIDE 13

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

13/36

Listening impressions:

NB: Two subjects only (the authors)! Yeah, that's unscientific. But try to get people to attend a listening session two days before Christmas, with three days' notice, in a cozy warehouse heated to 12°, from 20-24:00h.

slide-14
SLIDE 14

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

14/36

Listening impressions:

First-order material:

  • k'ish for background music, not focused enough

to draw attention to stage or performers Third-order material: stable and focused over a wide area; tested with single sources and hybrid HOA recordings very large perceived source size - irritating with nature recordings, but kind of nice for rock shows ← not specific to Ambisonics

slide-15
SLIDE 15

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

15/36

Listening impressions:

A/B comparison: native Stereo vs. virtual speakers Base angle 45° Stacks T7 and T6 with S4 and S3 used for symmetry reasons. Virtual speakers panned to be congruent with physical stacks.

slide-16
SLIDE 16

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

16/36

Listening impressions:

A/B comparison: native Stereo vs. virtual speakers slight loss of presence and dryness with virtual speakers in direct comparison; still very enjoyable

slide-17
SLIDE 17

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

17/36

Listening impressions:

A/B comparison: native Stereo vs. virtual speakers wider virtual stereo (90-120°) prefered by both testers over native stereo; very immersive, no “hole- in-the-middle” effect, stereo localization remains stable → an improvement even for standard stereo material

slide-18
SLIDE 18

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

18/36

Listening impressions:

Sub decode: Max rV means out-of-phase components: → loss of “punch”, less efficient → no perceptible gain in localization Sub-cardioid or even mono decode is better suited to rock'n'roll settings, unless → the crossover frequency is very high, or → the system is installed in a small room (less excitation of room modes with hypercard decode).

slide-19
SLIDE 19

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

19/36

Listening impressions:

* very good localization over a wide area * no evident coloration * only very subtle phasing artifacts * no collapse until within 1-1.5m of the opposite speaker even with hypercardioid decode * confirmed usable area: 180m² → 360 tickets for dance floor, easily more if you provide lounge area around the listening zone. We are confident that 600 people will have a satisfactory listening experience with adequate localisation.

possibly masked by room reverberation!

slide-20
SLIDE 20

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

20/36

Listening impressions:

* very good localization over a wide area * no evident coloration * only very subtle phasing artifacts * no collapse until within 1-1.5m of the opposite speaker even with hypercardioid decode * confirmed usable area: 180m² → 360 tickets for dance floor, easily more if you provide lounge area around the listening zone. We are confident that 500 people will have a satisfactory listening experience with adequate localisation.

possibly masked by room reverberation!

Slight problem: Slight problem: This is This is too good too good to be true. to be true.

slide-21
SLIDE 21

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

21/36

Theoretical considerations:

Almost everybody is outside the sweet spot. Therefore, the ITD cues will be incorrect. As the listener moves away from the center, the ITDs will shift out of phase. It seems those inconsistent cues are being discarded by the brain and do not cause noticeable confusion, as long as robust ILD cues are available.

slide-22
SLIDE 22

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

22/36

Theoretical considerations:

Our best metric is therefore rE. Consequently, it might be best to use a max rE decode throughout the spectrum, perhaps excluding the subs (not tested).

slide-23
SLIDE 23

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

23/36

Theoretical considerations:

Worst-case scenario: a source from 0°, listener at 180°, 7m away from center

slide-24
SLIDE 24

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

24/36

Theoretical considerations:

relative levels and timings at listening position (assuming constant SPL, normalized to first incoming wave front)

slide-25
SLIDE 25

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

25/36

Theoretical considerations:

Applying stereophonic theory (summing localization, precedence effect, echo threshold):

slide-26
SLIDE 26

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

26/36

Theoretical considerations:

1st phantom source at 180°

slide-27
SLIDE 27

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

27/36

Theoretical considerations:

1st phantom source at 180° 2nd p.s. at 0°, +3dB, +16ms

slide-28
SLIDE 28

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

28/36

Theoretical considerations:

1st phantom source at 180° 2nd p.s. at 0°, +3dB, +16ms 3rd p.s. at 0°, +8dB, +29ms

slide-29
SLIDE 29

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

29/36

Theoretical considerations:

1st phantom source at 180° 2nd p.s. at 0°, +3dB, +16ms 3rd p.s. at 0°, +8dB, +29ms 4th p.s. at 0°, +18dB, +36ms

slide-30
SLIDE 30

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

30/36

Theoretical considerations:

1st phantom source at 180° 2nd p.s. at 0°, +3dB, +16ms 3rd p.s. at 0°, +8dB, +29ms 4th p.s. at 0°, +18dB, +36ms

slide-31
SLIDE 31

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

31/36

Theoretical considerations:

1st phantom source at 180° 2nd p.s. at 0°, +3dB, +16ms 3rd p.s. at 0°, +8dB, +29ms 4th p.s. at 0°, +18dB, +36ms ! ECHO threshold !

slide-32
SLIDE 32

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

32/36

Theoretical considerations:

We did not perceive any echoes. The sonic events were fused into one auditory event (→ listening expect- ation on large system is totally different from studio monitoring).

! ECHO threshold !

slide-33
SLIDE 33

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

33/36

Conclusion:

It works very well, although we don't quite understand why. Backward masking? Reduced precedence effect when confounded by multiple sonic events with rising level? Trading effect of echo threshold vs. number of sonic events? Further rigorous listening tests are necessary.

slide-34
SLIDE 34

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

34/36

Conclusion:

It works very well, although we don't quite understand why. Backward masking? Reduced precedence effect when confounded by multiple sonic events with rising level? Trading effect of echo threshold vs. number of sonic events? Further rigorous listening tests are necessary.

In practice, we feel In practice, we feel confident that a 3rd-order confident that a 3rd-order Ambisonic system will Ambisonic system will deliver good results for at deliver good results for at least 600 people least 600 people (300m² or r~10m). (300m² or r~10m).

slide-35
SLIDE 35

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

35/36

Acknowledgements:

Thanks to: Adamson Europe for the speaker systems

http://adamsonsystems.com

Cobra Sound Hamburg for the space

http://cobrasound.de

The Linux Audio community for the software.

slide-36
SLIDE 36

Ambisonics Symposium 2011 June 2-3, Lexington, KY

Jörn Nettingsmeier <nettings@stackingdwarves.net>, David Dohrmann <david@adamsonsystems.com>

36/36

Thank you.

I'm looking forward to your questions.

The paper is available at http://stackingdwarves.net/public_stuff/linux_audio/ambisonic_symposium_2011/AmbiSym2011-Nettingsmeier-Dohrmann_Large-scale_HOA_Systems.pdf
