Matter and Energy Notes.notebook Matter and Energy Chapter 1: Introduction to Matter Matter Volume Mass Weight Atom Molecule Element Compound Mixture States of Matter Solid Liquid Gas 1 Matter and Energy Notes.notebook Matter and

slide-1
SLIDE 1

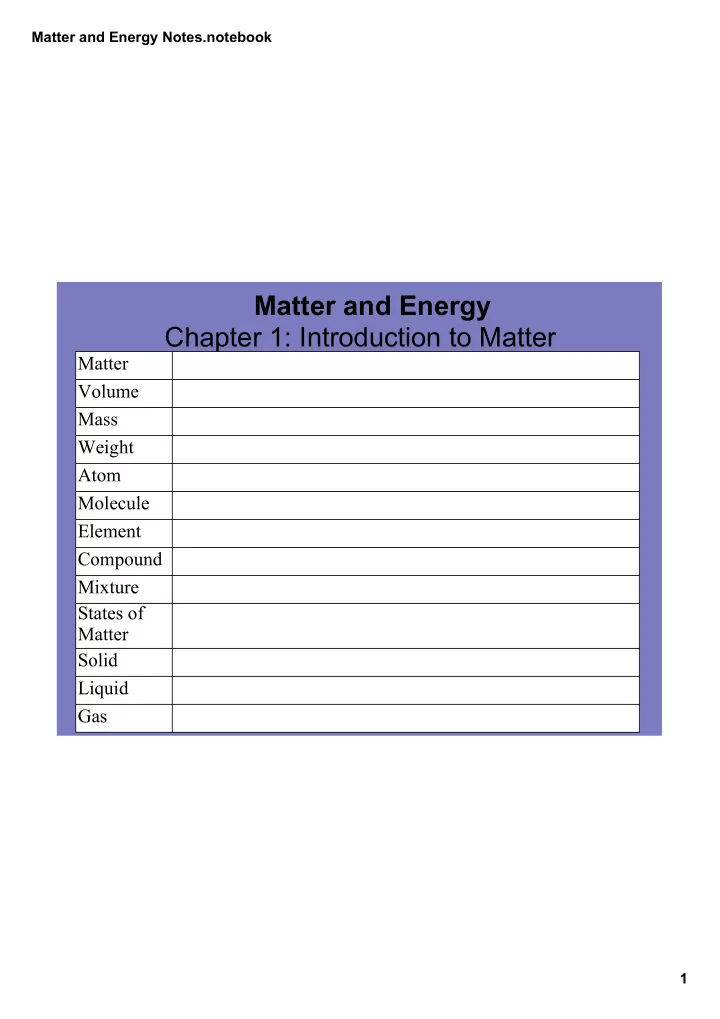

Matter and Energy Notes.notebook 1

Matter and Energy Chapter 1: Introduction to Matter

Matter Volume Mass Weight Atom Molecule Element Compound Mixture States of Matter Solid Liquid Gas

slide-2
SLIDE 2

Matter and Energy Notes.notebook 2

Matter and Energy Chapter 1: Introduction to Matter

I.Matter has MASS and VOLUME

  • a. Matter is anything that has

mass and takes up space (volume)

slide-3
SLIDE 3

Matter and Energy Notes.notebook 3

Matter and Energy Chapter 1: Introduction to Matter

Matter is made of up of tiny particles called ATOMS

slide-4
SLIDE 4

Matter and Energy Notes.notebook 4

Matter and Energy Chapter 1: Introduction to Matter

Everything in the universe is either MATTER OR ENERGY For example light does not have MASS or take up space (VOLUME) Therefore light is energy!

slide-5
SLIDE 5

Matter and Energy Notes.notebook 5

Matter and Energy Chapter 1: Introduction to Matter

Matter comes in 4 major forms: SOLIDS, LIQUIDS, GASSES, and PLASMAS

slide-6
SLIDE 6

Matter and Energy Notes.notebook 6

Matter and Energy Chapter 1: Introduction to Matter

MASS is a measure of the amount of matter a substance contains.

slide-7
SLIDE 7

Matter and Energy Notes.notebook 7

Matter and Energy Chapter 1: Introduction to Matter

The standard unit for mass is the Kilogram (Kg). You would use a TRIPLE BEAM BALANCE to measure mass WEIGHT IS NOT mass!!!!!!!

slide-8
SLIDE 8

Matter and Energy Notes.notebook 8

Matter and Energy Chapter 1: Introduction to Matter

Weight is the force of gravity on an object. Gravity is the force that pulls 2

  • bjects toward each other.
slide-9
SLIDE 9

Matter and Energy Notes.notebook 9

Matter and Energy Chapter 1: Introduction to Matter

The standard unit for weight for is NEWTONS (N) A common unit for weight is POUNDS (lbs). You use a SCALE to measure weight

slide-10
SLIDE 10

Matter and Energy Notes.notebook 10

Matter and Energy Chapter 1: Introduction to Matter

Volume is THE AMOUNT OF SPACE AN OBJECT TAKES UP

slide-11
SLIDE 11

Matter and Energy Notes.notebook 11

Matter and Energy Chapter 1: Introduction to Matter

Calculating the Volume of an object: Formula: Volume of a rectangle Volume = Length X Width X Height Volume = cm X cm X cm = cm 3

slide-12
SLIDE 12

Matter and Energy Notes.notebook 12

slide-13
SLIDE 13

Matter and Energy Notes.notebook 13

slide-14
SLIDE 14

Matter and Energy Notes.notebook 14

Matter and Energy Chapter 1: Introduction to Matter

Example: What is the volume of a pizza box that is 8cm high, 38 cm wide and 38 cm long?

slide-15
SLIDE 15

Matter and Energy Notes.notebook 15

Matter and Energy Chapter 1: Introduction to Matter

Look at the box in the picture below and determine its volume:

SHOW ALL WORK

slide-16
SLIDE 16

Matter and Energy Notes.notebook 16

Matter and Energy Chapter 1: Introduction to Matter

Measuring Volume by Displacement: Often objects are not a regular shape where volume can be easily calculated using a formula. Instead you can use the displacement method

slide-17
SLIDE 17

Matter and Energy Notes.notebook 17

slide-18
SLIDE 18

Matter and Energy Notes.notebook 18

Matter and Energy Chapter 1: Introduction to Matter Step 1: Put water into a graduated cylinder and write down the volume: Step 2: Slow and carefully slide the object you want to measure into the graduated cylinder. Step 3: Read the new volume on the graduated cylinder. Step 4: Subtract the volume of the water before from the volume of the water after you added the object.

slide-19
SLIDE 19

Matter and Energy Notes.notebook 19

slide-20
SLIDE 20

Matter and Energy Notes.notebook 20

slide-21
SLIDE 21

Matter and Energy Notes.notebook 21

slide-22
SLIDE 22

Matter and Energy Notes.notebook 22

slide-23
SLIDE 23

Matter and Energy Notes.notebook 23

Matter and Energy Chapter 1: Introduction to Matter

What is the Volume of the Blue Man?

show work

slide-24
SLIDE 24

Matter and Energy Notes.notebook 24

Matter and Energy Chapter 1: Introduction to Matter

What is the Density of the Blue Man?

show work

Mass: 2grams

slide-25
SLIDE 25

Matter and Energy Notes.notebook 25

Matter and Energy Chapter 1: Introduction to Matter

What is the Density of the Dinosaur?

show work

slide-26
SLIDE 26

Matter and Energy Notes.notebook 26

Matter and Energy Chapter 1: Introduction to Matter

What is the Density of the Dinosaur?

show work

slide-27
SLIDE 27

Matter and Energy Notes.notebook 27

slide-28
SLIDE 28

Matter and Energy Notes.notebook 28

slide-29
SLIDE 29

Matter and Energy Notes.notebook 29

slide-30
SLIDE 30

Matter and Energy Notes.notebook 30

slide-31
SLIDE 31

Matter and Energy Notes.notebook 31

A cork and a pebble are each placed in 100mL of water, and each displaces 10mL of water. The cork floats, but the pebble sinks. How do the volumes of the cork and the pebble compare?

  • a. They have same volume

b.The cork’s volume is greater c.The pebbles volume is greater d.The volumes cannot be compared using this method

slide-32
SLIDE 32

Matter and Energy Notes.notebook 32

MATTER IS MADE OF ATOMS

  • a. An atom is the basic unit of

all matter.

slide-33
SLIDE 33

Matter and Energy Notes.notebook 33

b.Example: Humans are a collection of atoms; a chair is a collection of atoms.

  • c. Atoms are so small that a single

teaspoon of water contains approximately 500,000,000,000,000,000,000,000 atoms.

slide-34
SLIDE 34

Matter and Energy Notes.notebook 34

  • d. Atoms may be small but they do have

MASS and are in constant MOTION.

slide-35
SLIDE 35

Matter and Energy Notes.notebook 35

  • e. Atoms are made of 3 even smaller particles

called:

  • i. PROTONS ­ (+) positive charge, and located

in the nucleus.

  • ii. NUETRONS ­ (no) neutral charge, located

in the nucleus.

  • iii. Electrons ­ (e­) negative charge, no mass,

fly around nucleus.

slide-36
SLIDE 36

Matter and Energy Notes.notebook 36

  • f. A

molecule is formed when 2 or more atoms are bonded together.

  • i. molecules can be made of

atoms that are alike of different

  • ii. Different types of atoms make

up ELEMENTS

slide-37
SLIDE 37

Matter and Energy Notes.notebook 37

  • iii. WATER

for examples is made up of different kinds of atoms.

  • 1. H2O = 2 Hydrogen atoms and

1 Oxygen atom

slide-38
SLIDE 38

Matter and Energy Notes.notebook 38

Different molecules can be made up of different amounts of atoms creating different substances (we call these compounds)............

slide-39
SLIDE 39

Matter and Energy Notes.notebook 39

CO2 = Carbon Dioxide SUBSCRIPTS:The small number in the bottom right corner tells you the number

  • f atoms of the element

before it. When there is no number it means there is

  • nly 1 atom.
slide-40
SLIDE 40

Matter and Energy Notes.notebook 40

  • 1. CO2 = Carbon Dioxide

a._____ atom(s) of ______________________ _____ atom(s) of _______________________ b.Total number of atoms = ____________

slide-41
SLIDE 41

Matter and Energy Notes.notebook 41

  • 1. CO2 = Carbon Dioxide

a.1 atom(s) of Carbon 2 atom(s) of Oxygen b.Total number of atoms = 3

slide-42
SLIDE 42

Matter and Energy Notes.notebook 42

  • 2. CO = Carbon Monoxide

a._____ atom(s) of ______________________ _____ atom(s) of _______________________ b.Total number of atoms = ____________

slide-43
SLIDE 43

Matter and Energy Notes.notebook 43

  • 2. CO = Carbon Monoxide
  • a. 1 atom(s) of Carbon

1 atom(s) of Oxygen b.Total number of atoms = 2

slide-44
SLIDE 44

Matter and Energy Notes.notebook 44

  • 3. C6H12O6 = Glucose (Sugar)

a._____ atom(s) of ______________________ _____ atom(s) of _______________________ _____ atom(s) of ______________________ b.Total number of atoms = ____________ ++++

slide-45
SLIDE 45

Matter and Energy Notes.notebook 45

  • 3. C6H12O6 = Glucose (Sugar)
  • a. 6 atom(s) of Carbon

12 atom(s) of Hydrogen 6 atom(s) of Oxygen b.Total number of atoms = 24

slide-46
SLIDE 46

Matter and Energy Notes.notebook 46

  • 4. O3 = OZONE!

a._____ atom(s) of ______________

  • b. Total number of atoms = ____________
slide-47
SLIDE 47

Matter and Energy Notes.notebook 47

  • 4. O3 = OZONE!

a.3 atom(s) of Oxygen

  • b. Total number of atoms =

3

slide-48
SLIDE 48

Matter and Energy Notes.notebook 48

  • 5. H2SO4

a._____ atom(s) of ______________________ _____ atom(s) of _______________________ _____ atom(s) of ______________________ b.Total number of atoms = ____________

slide-49
SLIDE 49

Matter and Energy Notes.notebook 49

  • 5. H2SO4

a.2 atom(s) of Hydrogen 1 atom(s) of Sulfur 4 atom(s) of Oxygen b.Total number of atoms = 7

slide-50
SLIDE 50

Matter and Energy Notes.notebook 50

  • 6. HCl ‐ Hydrochloric Acid

a._____ atom(s) of ______________________ _____ atom(s) of _______________________ b.Total number of atoms = ____________

slide-51
SLIDE 51

Matter and Energy Notes.notebook 51

  • 6. HCl ‐ Hydrochloric Acid

a.1 atom(s) of Hydrogen 1 atom(s) of Chlorine b.Total number of atoms = 2

slide-52
SLIDE 52

Matter and Energy Notes.notebook 52

1.3: MATTER COMBINES TO FORM DIFFERENT SUBSTANCES

PURE SUBSTANCE: has only one

  • component. Elements or Compounds only!

Ex: pure water - only water, no minerals or other chemicals

MIXTURES: more than one substance in the same place at the same time but not bonded

  • together. Can be separated easily
slide-53
SLIDE 53

Matter and Energy Notes.notebook 53

Pure Substances are Atoms, Elements, and Compounds Examples: C = Carbon (element 1 atom) CO2 = Carbon Dioxide: Compound

(2 or more atoms bonded together)

slide-54
SLIDE 54

Matter and Energy Notes.notebook 54

ATOMS determine the type of substance

Ex - a bar of pure gold, is made up of identical "gold" atoms

ELEMENTS: a type of pure substance that contains only one type of atoms

All the elements are organized on the periodic table on the last page of the chemical interactions text book

PURE SUBSTANCES ARE.........

slide-55
SLIDE 55

Matter and Energy Notes.notebook 55

COMPOUND: substance that consists of 2 or more different types of atoms (elements) bonded together.

EXAMPLES: H20, HCl, H2SO4, NaCl, H2O2

slide-56
SLIDE 56

Matter and Energy Notes.notebook 56

MIXTURE: combination of different substances that remain the same individual substances and can be separated physically. Substances are not Bonded!!!

slide-57
SLIDE 57

Matter and Energy Notes.notebook 57

MIXTURES

slide-58
SLIDE 58

Matter and Energy Notes.notebook 58

COMPOUNDS vs. MIXTURES

  • 1. Atoms are Bonded

together

  • 2. Can not be

separated physically

  • 3. The properties of a

compound are the same throughout the compound

  • 4. The type and

number of atoms is always the same

  • 1. Materials not

bonded

  • 2. Can be separate

physically

  • 3. Properties change

based on substance.

slide-59
SLIDE 59

Matter and Energy Notes.notebook 59

Mixtures Heterogenous vs. Homogenous

Can see the individual parts

Cannot see the

  • parts. Looks the

same throughout.

SALT WATER

slide-60
SLIDE 60

Matter and Energy Notes.notebook 60

Matter Exists in Different Physical States (PHASES)

slide-61
SLIDE 61

Matter and Energy Notes.notebook 61

Matter Exists in different physical states

  • a. Particle movement and distance

determine the state of matter.....

  • i. When a substance changes from
  • ne form to another, the

arrangement of its molecules changes, the distance between molecules and the attraction between molecules changes.

slide-62
SLIDE 62

Matter and Energy Notes.notebook 62

slide-63
SLIDE 63

Matter and Energy Notes.notebook 63

Matter Exists in different physical states

SOLID: ­ Fixed (doesn't change) volume ­ Fixed shape ­ Rigid: particles are close together and stay in one place.

slide-64
SLIDE 64

Matter and Energy Notes.notebook 64

Matter Exists in different physical states

LIQUID: ­ Fixed volume ­ No fixed shaped: takes shape

  • f container

­ Particles not fixed: particles are close together but are free to move around

slide-65
SLIDE 65

Matter and Energy Notes.notebook 65

Matter Exists in different physical states GAS: ­ NO FIXED VOLUME ­ NO FIXED SHAPE take shape

  • f container

­ Particles are very far apart.

slide-66
SLIDE 66

Matter and Energy Notes.notebook 66

Matter Exists in different physical states

GAS LIQUID

Evaporation Condensation Freezing

Melting

SOLID

increase in energy(heat) decrease in (energy) heat

slide-67
SLIDE 67

Matter and Energy Notes.notebook 67

GAS BEHAVIOR:

slide-68
SLIDE 68

Matter and Energy Notes.notebook 68

GAS BEHAVIOR! Pressure and Volume

When you increase the pressure on a gas, the volume decreases When you decrease the pressure on a gas, the volume increase.

P P

V

V

(inverse proportion)

slide-69
SLIDE 69

Matter and Energy Notes.notebook 69

GAS BEHAVIOR:

slide-70
SLIDE 70

Matter and Energy Notes.notebook 70

GAS BEHAVIOR:

slide-71
SLIDE 71

Matter and Energy Notes.notebook 71

GAS BEHAVIOR: Temperature and Volume:

As the temperature of a gas increases, the volume of the gas increases. As the temperature of the gas decreases, the volume of the gas decreases.

T V T V

(direct proportion)

slide-72
SLIDE 72

Matter and Energy Notes.notebook 72

GAS BEHAVIOR:

Temperature and Volume:

slide-73
SLIDE 73

Matter and Energy Notes.notebook 73

GAS BEHAVIOR:
