Detection of extracellular vesicles: size does matter Edwin van der Pol November 16 th , 2018 Outline PhD research Extracellular vesicles Size does matter Flow cytometry Outlook Standardisation Clinical studies Small and fast 2 200 nm

slide-1
SLIDE 1

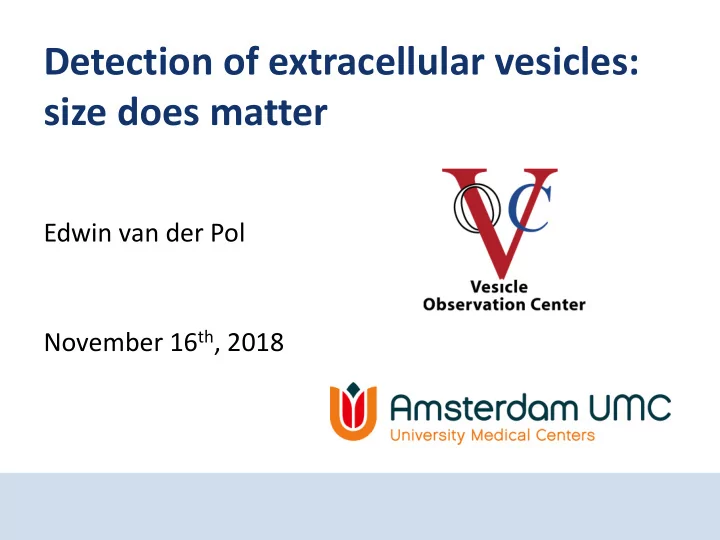

Edwin van der Pol November 16th, 2018

Detection of extracellular vesicles: size does matter

slide-2
SLIDE 2

Outline

PhD research

Extracellular vesicles Size does matter Flow cytometry

Outlook

Standardisation Clinical studies Small and fast

2

slide-3
SLIDE 3

200 nm

slide-4
SLIDE 4

Extracellular vesicles

Cells release EVs: biological nanoparticles with receptors, DNA, RNA Specialized functions Clinically relevant

van der Pol et al. Pharmacol Rev 2012 4

slide-5
SLIDE 5

Vesicle‐based “liquid biopsy”

5 rare EVs all EVs

slide-6
SLIDE 6

Problem: counting vesicles is difficult

Gasecka et al. Platelets 2016 6

Reported concentrations of blood vesicles differ >106‐fold Clinical data cannot be compared

“Gąsecka’s law”

slide-7
SLIDE 7

Outline

PhD research

Extracellular vesicles Size does matter Flow cytometry

Outlook

Standardisation Clinical studies Small and fast

7

slide-8
SLIDE 8

Size distribution of extracellular vesicles?

8 Extracellular vesicles Reference particles

slide-9
SLIDE 9

Size distribution of extracellular vesicles

9

slide-10
SLIDE 10

Size distribution of extracellular vesicles

10

slide-11
SLIDE 11

Size distribution of extracellular vesicles

11

slide-12
SLIDE 12

Size distribution of extracellular vesicles

van der Pol et al. J Thromb Haemost (2014) 12

slide-13
SLIDE 13

Size distribution of extracellular vesicles

van der Pol et al. J Thromb Haemost (2014) 13 smaller more vesicles 3‐fold 12‐fold

slide-14
SLIDE 14

Outline

PhD research

Extracellular vesicles Size does matter Flow cytometry

Outlook

Standardisation Clinical studies Small and fast

14

slide-15
SLIDE 15

Problem: count the black grains

15

slide-16
SLIDE 16

Solution: flow cytometry

image: semrock.com 16

laser electronics and computer fluorescence channels side scatter detector forward scatter detector

slide-17
SLIDE 17

Problem: which size of vesicles do I measure?

17 ? Flow cytometry:

slide-18
SLIDE 18

Flow cytometry calibration before 2012

18 ? Flow cytometry: 500 nm polystyrene particles 900 nm polystyrene particles

slide-19
SLIDE 19

Relate scatter to diameter of beads

Side scatter (a.u.)

19

slide-20
SLIDE 20

Relate scatter to diameter of beads

Side scatter (a.u.)

20

slide-21
SLIDE 21

Relate scatter to diameter of beads

Side scatter (a.u.)

21

slide-22
SLIDE 22

Relate scatter to diameter of vesicles

10 nm Side scatter (a.u.)

22

slide-23
SLIDE 23

Particles that are too small to be detected generate a signal!

89 nm silica beads urine EVs <220 nm

Side scatter (a.u.) Side scatter (a.u.)

23

slide-24
SLIDE 24

Flow cytometry

image: semrock.com 24

laser electronics and computer fluorescence channels side scatter detector forward scatter detector

slide-25
SLIDE 25
slide-26
SLIDE 26
slide-27
SLIDE 27
slide-28
SLIDE 28

beam volume ≈ 54 pl At a concentration of 1010 vesicles ml‐1, >800 vesicles are simultaneously present in the beam.

slide-29
SLIDE 29

Invisible vesicles swarm within the iceberg Harrison & Gardiner J Thromb Haemost (2012)

slide-30
SLIDE 30

Outline

PhD research

Extracellular vesicles Size does matter Flow cytometry

Outlook

Standardisation Clinical studies Small and fast

30

slide-31
SLIDE 31

How to calibrate flow cytometers?

image: semrock.com 31

laser fluorescence (MESF) ? side scatter (nm2) ? forward scatter (nm2) ? flow rate (µL/min) ?

slide-32
SLIDE 32

Solution

One reference material to calibrate them all Properties similar to extracellular vesicles

scatter (size + refractive index) fluorescence concentration

Tolkien (1954) 32

500 nm

slide-33
SLIDE 33

Outline

PhD research

Extracellular vesicles Size does matter Flow cytometry

Outlook

Standardisation Clinical studies Small and fast

33

slide-34
SLIDE 34

Clinical studies on extracellular vesicles

Myocardial infarction

Therapy monitoring

Stroke

Differentiate between ischemic stroke and hemorrhage stroke in acute phase

Prostate cancer

Diagnoses

34

slide-35
SLIDE 35

Outline

PhD research

Extracellular vesicles Size does matter Flow cytometry

Outlook

Standardisation Clinical studies Small and fast

35

slide-36
SLIDE 36

Problem: small or fast

36

vesicles diameter (nm) Measurement time >150 15 minutes >30 24 hours

slide-37
SLIDE 37

vesicles diameter (nm) Measurement time >150 15 minutes >30 24 hours

Solution: EV‐Radar, small and fast

37

slide-38
SLIDE 38

Conclusion

Body fluids contain extracellular vesicles with clinical information The size of extracellular vesicle matters!

38

slide-39
SLIDE 39

39

slide-40
SLIDE 40

Acknowledgements

My parents My wife Vesicle Observation Center Amsterdam University Medical Centers

Ton van Leeuwen Rienk Nieuwland Guus Sturk Frank Coumans

More info about extracellular vesicles: edwinvanderpol.com 40
