Detection of extracellular vesicles by flow cytometry: size does matter Edwin van der Pol November 6th, 2018 2 images: R. Hooke Micrographia 1665 3 image: A. van Leeuwenhoek Royal society 1675 4 image: A. van Leeuwenhoek Opera Omnia 1719 5

slide-1
SLIDE 1

Edwin van der Pol November 6th, 2018

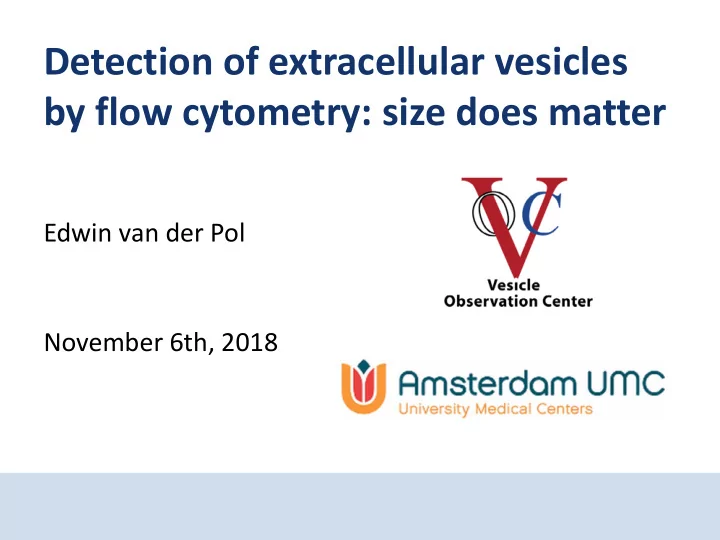

Detection of extracellular vesicles by flow cytometry: size does matter

slide-2
SLIDE 2

2

slide-3
SLIDE 3

images: R. Hooke Micrographia 1665 3

slide-4
SLIDE 4

image: A. van Leeuwenhoek Royal society 1675 4

slide-5
SLIDE 5

image: A. van Leeuwenhoek Opera Omnia 1719 5

slide-6
SLIDE 6

image: Österreichische Nationalbibliothek (Vienna) 6

slide-7
SLIDE 7

image: Deutsches Museum 7

slide-8
SLIDE 8

summary: Wolf Brit.J.Haemat. 1967 8

slide-9
SLIDE 9

9

slide-10
SLIDE 10

10

slide-11
SLIDE 11

11

slide-12
SLIDE 12

12

slide-13
SLIDE 13

13

slide-14
SLIDE 14

14

Brazil ISAC Flow Cytometry Workshop

slide-15
SLIDE 15

Outline

image: semrock.com 15

  • 1. Extracellular vesicles (EVs)
  • 2. Light scatter
  • 3. Fluorescence
  • 4. Flow rate
slide-16
SLIDE 16

200 nm

slide-17
SLIDE 17

Extracellular vesicles

Cells release EVs: biological nanoparticles with receptors, DNA, RNA Specialized functions Clinically relevant

van der Pol et al. Pharmacol Rev 2012 17

slide-18
SLIDE 18

EV‐based “liquid biopsy”

18 rare EVs all EVs

slide-19
SLIDE 19

EV research using flow cytometry

Gardiner et al. J Extracell Vesicles 2016 19

slide-20
SLIDE 20

Motivation to detect EVs by flow cytometry

EVs are heterogeneous

Flow cytometry can differentiate EV types

Study all (also rare) EVs

Flow cytometry is fast (>10,000 events s‐1)

20

slide-21
SLIDE 21

Problem: EV flow cytometry is difficult

Gasecka et al. Platelets 2016 21

Reported concentrations of plasma EVs differ >106‐fold Clinical data cannot be compared “Gąsecka’s law”

slide-22
SLIDE 22

Detection of EVs: size does matter

30‐fold 2‐fold power‐law relation*

*van der Pol et al. J Thromb Haemost 2014 22

slide-23
SLIDE 23

What is this and what is wrong?

23

slide-24
SLIDE 24

Summary extracellular vesicles (EVs)

Body fluids contain EVs with clinical information Flow cytometers can identify EV populations Size distribution and detection limit determine measured concentration: apply statistics carefully!

24

slide-25
SLIDE 25

Outline

image: semrock.com 25

  • 1. Extracellular vesicles (EVs)
  • 2. Light scatter
  • 3. Fluorescence
  • 4. Flow rate
slide-26
SLIDE 26

Outline light scatter

Flow cytometry detection of EVs with

  • ne scatter detector

two scatter detectors

Standardization

image: Feynman lectures on physics 26

slide-27
SLIDE 27

Goal: use scatter to interpret EV flow cytometry data

van der Pol Nanomedicine 2018 27 ?

slide-28
SLIDE 28

Is a “bead size gate” a good idea?

image adopted: Robert et al. J Thromb Haemost 2008 28

slide-29
SLIDE 29

Relate scatter to diameter of beads

Side scatter (a.u.)

29

slide-30
SLIDE 30

Relate scatter to diameter of beads

Side scatter (a.u.)

Mie based on scripts Mätzler (Bohren and Huffman) 30

slide-31
SLIDE 31

Relate scatter to diameter of beads

Side scatter (a.u.)

31

slide-32
SLIDE 32

Relate scatter to diameter of vesicles

10 nm Side scatter (a.u.)

32

slide-33
SLIDE 33

detected concentration 7∙106 particles ml‐1

Particles that are too small to be detected generate a signal!

89 nm silica beads at concentration 1010 particles ml‐1 urine EVs <220 nm at concentration ≥ 1010 EVs ml‐1

Side scatter (a.u.) detected concentration 9∙105 EVs ml‐1 Side scatter (a.u.)

33

slide-34
SLIDE 34
slide-35
SLIDE 35
slide-36
SLIDE 36
slide-37
SLIDE 37

beam volume ≈ 54 pl At a concentration of 1010 vesicles ml‐1, >800 vesicles are simultaneously present in the beam.

slide-38
SLIDE 38

Invisible vesicles swarm within the iceberg Harrison & Gardiner J Thromb Haemost (2012)

slide-39
SLIDE 39

Summary EV detection with 1 scatter detector

Single event signal attributed to scattering from multiple EVs (“Swarm detection”) Conventional flow cytometry detects <1% of all EVs

van der Pol et al. J Thromb Haemost 2012 39

lower detection limit conventional flow cytometry Side scatter (a.u.)

slide-40
SLIDE 40

Outline light scatter

Flow cytometry detection of EVs with

  • ne scatter detector

two scatter detectors

Standardization

image: Feynman lectures on physics 40

slide-41
SLIDE 41

Goal

Obtain physical properties of particles from flow cytometry scatter signals

41 particle

  • diameter
  • refractive index

laser

slide-42
SLIDE 42

Approach

Calibrate instrument (Apogee A50‐micro)

calibrate FSC and SSC derive size from Flow Scatter Ratio (Flow‐SR = SSC/FSC) derive refractive index from size and FSC

Validate Flow‐SR

beads mixture

  • il emulsion

Apply Flow‐SR

EV and lipoprotein particles from blood

42

slide-43
SLIDE 43

Calibrate forward scatter and side scatter

43 ?

Flow‐SR = side scatter forward scatter

slide-44
SLIDE 44

Derive size from Flow‐SR

van der Pol Nanomedicine 2018 44

Flow‐SR = side scatter forward scatter

slide-45
SLIDE 45

Derive refractive index from size and FSC

45

slide-46
SLIDE 46

Approach

calibrate instrument (Apogee A50‐micro)

calibrate FSC and SSC derive size from Flow Scatter Ratio (Flow‐SR = SSC/FSC) derive refractive index from size and FSC

validate Flow‐SR

beads mixture

  • il emulsion

apply Flow‐SR

EV and lipoprotein particles from blood

46

slide-47
SLIDE 47

Validate Flow‐SR with a beads mixture

47 Flow‐SR

slide-48
SLIDE 48

Validate Flow‐SR with a beads mixture

48 measurement error < 8% CV < 8% CV < 2%

slide-49
SLIDE 49

Validate Flow‐SR with oil emulsions

49

slide-50
SLIDE 50

Approach

calibrate instrument (Apogee A50‐micro)

calibrate FSC and SSC derive size from Flow Scatter Ratio (Flow‐SR = SSC/FSC) derive refractive index from size and FSC

validate Flow‐SR

beads mixture

  • il emulsion

apply Flow‐SR

EV and lipoprotein particles from blood

50

slide-51
SLIDE 51

Supernatant of outdated platelet concentrate

centrifuged 3‐fold, 1550 × g, 20 min 51 Flow‐SR No gate

lipoprotein particles? EV? 77% 23%

slide-52
SLIDE 52

Supernatant of outdated platelet concentrate

52 No gate CD61+ gate

97% 3% 77% 23%

Median refractive index platelet EVs >200 nm = 1.37

slide-53
SLIDE 53

Summary EV detection with 2 scatter detectors

Flow‐SR enables size and refractive index determination of nanoparticles by flow cytometry

data interpretation and comparison differentiate EVs and lipoprotein particles

van der Pol Nanomedicine 2018 53

lipoprotein particles EVs

slide-54
SLIDE 54

Outline light scatter

Flow cytometry detection of EVs with

  • ne scatter detector

two scatter detectors

Standardization

image: Feynman lectures on physics 54

slide-55
SLIDE 55

Standardization is boring (biologists, clinicians)

55

slide-56
SLIDE 56

Standardisation is exciting (metrologists, physicists)

0.31 nm X‐rays to size EV* (flow cytometers typically use 488 nm light) BESSYII *Varga et al. J Extracell Vesicles 2014 56

slide-57
SLIDE 57

Standardization is important (everybody)

57

slide-58
SLIDE 58

58

Goal

  • btain reproducible measurements of the EV

concentration using different flow cytometers

slide-59
SLIDE 59

Study comprises 33 sites (64 instruments) worldwide

59

slide-60
SLIDE 60

Approach scatter‐based standardization

Measure EV reference sample and controls Scatter (a.u.)  diameter (nm)

Measure Rosetta calibration* beads Rosetta calibration* software relates scatter to diameter and defines EV size gates

Apply EV size gate to software (e.g. FlowJo) and report concentrations

*Exometry.com 60

slide-61
SLIDE 61

EV reference sample

Platelet (CD61‐PE+) EVs from cell‐free platelet concentrates Trigger on most sensitive scatter channel Exclude EVs similar to isotype

61

slide-62
SLIDE 62

62

slide-63
SLIDE 63

63

slide-64
SLIDE 64

64

slide-65
SLIDE 65

65

slide-66
SLIDE 66

66

slide-67
SLIDE 67

67

slide-68
SLIDE 68

Exclusion of flow cytometers (FCM)

68

slide-69
SLIDE 69

Sensitivity of 46 flow cytometers in the field

69 = unable to detect 400 nm polystyrene beads

slide-70
SLIDE 70

400 nm polystyrene beads scatter more than 1,000 nm EV

70

slide-71
SLIDE 71

Sensitivity of 46 flow cytometers in the field

71 = unable to detect EV < 1000 nm

slide-72
SLIDE 72

Results

van der Pol et al. J Thromb Haemost 2018 72

Method CV* concentration (%) No scatter gate 144 Traditional bead size gate 139 1,200‐3,000 nm EV size gate 81 600‐1,200 nm EV size gate 82 300‐600 nm EV size gate 115

*CV: coefficient of variation (standard deviation / mean)

slide-73
SLIDE 73

Conclusions standardization by sizing

24% of flow cytometers in study are unable to detect EVs by scatter‐based triggering EV diameter gates by Mie theory improve reproducibility compared to no gate or bead diameter gate

73

slide-74
SLIDE 74

Outline

image: semrock.com 74

  • 1. Extracellular vesicles (EVs)
  • 2. Light scatter
  • 3. Fluorescence
  • 4. Flow rate
slide-75
SLIDE 75

Fluorescence

Please ask Dr. Zosia Maciorowski Label EVs

Antibodies Membrane dyes?

De Rond et al. Clin Chem 2018 75

slide-76
SLIDE 76

How specific do generic dyes label EVs?

blood contains ~1,000 lipoprotein particles (LPs) for each EV*

*Dragovic et al. Nanomedicine 2011 76

slide-77
SLIDE 77

Outline

image: semrock.com 77

  • 1. Extracellular vesicles (EVs)
  • 2. Light scatter
  • 3. Fluorescence
  • 4. Flow rate
slide-78
SLIDE 78

Determine flow rate

78

concentration # of EV flow rate measurement time

slide-79
SLIDE 79

Conclusions

Detection of extracellular vesicles by flow cytometry: size does matter! Consider each flow cytometry aspect

Scatter Fluorescence Flow rate

79

slide-80
SLIDE 80

Acknowledgements

Vesicle Observation Center Amsterdam University Medical Centers

Ton van Leeuwen Rienk Nieuwland Frank Coumans Leonie de Rond

Software and beads by exometry.com More info: edwinvanderpol.com 80
