SH 358 RAMP REVERSAL PROJECT Martin C. Horst, PE CC Area Engineer April 13, 2017 SH0358 Ramp Reversal April 13, 2017 SH0358 (S. Padre Island Dr.) Project Overview FROM: East of Airline Rd. SH0358 Ramp Reversal April 13, 2017 TO: West

slide-1
SLIDE 1

SH0358 Ramp Reversal April 13, 2017

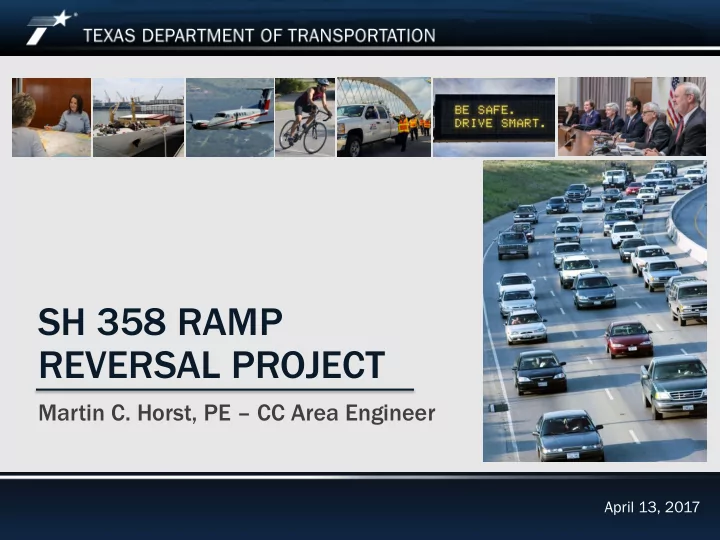

SH 358 RAMP REVERSAL PROJECT

Martin C. Horst, PE – CC Area Engineer

April 13, 2017

slide-2
SLIDE 2

SH0358 Ramp Reversal April 13, 2017

SH0358 (S. Padre Island Dr.) Project Overview

2

FROM: East of Airline Rd. TO: West of Richter St

slide-3
SLIDE 3

SH0358 Ramp Reversal April 13, 2017

SH 358 Ramp Reversal Project Overview

  • Converting SH 358 from a diamond <> interchange to an X interchange
  • Work consists of “reversing the existing ramps” and EB SH 358 bridge

widening.

  • Estimated Cost: $38,717,762
  • Project Goals

– Manage congestion along SH 358 by adding capacity – Eliminate congestion at ramps SCOPE OF WORK…

3

slide-4
SLIDE 4

SH0358 Ramp Reversal April 13, 2017

4

SH 358 Project Scope

Widen existing EB mainlanes from 3 to 4 lanes

  • Widening will require demo and reconstruction of overpass edges
  • Widening will require demo of slope riprap and construction of retaining walls

Shift EB frontage road to construct 3rd frontage road accel/decel lane

slide-5
SLIDE 5

SH0358 Ramp Reversal April 13, 2017

  • Reverse Ramp layouts

– Existing Exit Ramps will become Entrance Ramps – Existing Entrance Ramps will become Exit Ramps

5

SH 358 Project Scope

slide-6
SLIDE 6

SH0358 Ramp Reversal April 13, 2017

Other items included on the project:

  • Improve Median Barrier
  • Add Safety Lighting
  • Improve Traffic Signals
  • Replace Small and Large Signs
  • Improve ADA curb ramps and sidewalk
  • Removal of drainage inlets & pipe
  • Guardrail removal & installation
  • Boring / trenching conduit installation
  • Removal of Concrete Items such as:

– C&G, riprap, sidewalk, driveways

6

SH 358 Project Scope

ADA Sidewalk & Ramp Improvements

slide-7
SLIDE 7

SH0358 Ramp Reversal April 13, 2017

  • 30,000 cy of excavation
  • 38,000 cy of embankment
  • 40,000 tons of HMAC
  • 8,000 tons of UTBWC (Novachip)
  • 9,000 lf of SSTR (rail)
  • 80,000 sf of retaining walls
  • 7,000 lf of drainage pipe
  • 200 ea of drainage inlets, manholes, junction boxes
  • 12,000 cy of riprap concrete
  • 2,700 lf of concrete curb & gutter

7

SH 358 Ramp Reversal Project Overview

slide-8
SLIDE 8

SH0358 Ramp Reversal April 13, 2017

Questions?

8

SH 358 Ramp Reversal Conclusion
