SEWEGE TREATMENT SYSTEM Sewage treatment system with WC Sewage - PDF document

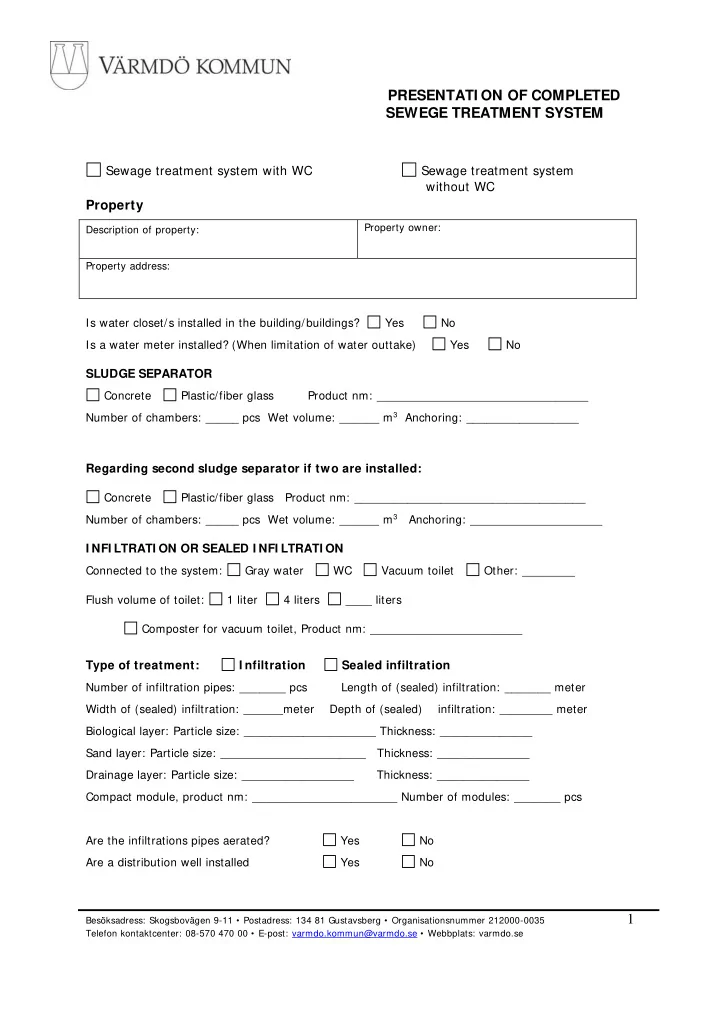

PRESENTATI ON OF COMPLETED SEWEGE TREATMENT SYSTEM Sewage treatment system with WC Sewage treatment system without WC Property Property owner: Description of property: Property address: Is water closet/s installed in the building/buildings?


  1. PRESENTATI ON OF COMPLETED SEWEGE TREATMENT SYSTEM Sewage treatment system with WC Sewage treatment system without WC Property Property owner: Description of property: Property address: Is water closet/s installed in the building/buildings? Yes No Is a water meter installed? (When limitation of water outtake) Yes No SLUDGE SEPARATOR Concrete Plastic/fiber glass Product nm: ________________________________ Number of chambers: _____ pcs Wet volume: ______ m 3 Anchoring: _________________ Regarding second sludge separator if two are installed: Concrete Plastic/fiber glass Product nm: ___________________________________ Number of chambers: _____ pcs Wet volume: ______ m 3 Anchoring: ____________________ I NFI LTRATI ON OR SEALED I NFI LTRATI ON Connected to the system: Gray water WC Vacuum toilet Other: ________ Flush volume of toilet: 1 liter 4 liters ____ liters Composter for vacuum toilet, Product nm: _______________________ Type of treatment: I nfiltration Sealed infiltration Number of infiltration pipes: _______ pcs Length of (sealed) infiltration: _______ meter Width of (sealed) infiltration: ______meter Depth of (sealed) infiltration: ________ meter Biological layer: Particle size: ____________________ Thickness: ______________ Sand layer: Particle size: ______________________ Thickness: ______________ Drainage layer: Particle size: _________________ Thickness: ______________ Compact module, product nm: ______________________ Number of modules: _______ pcs Are the infiltrations pipes aerated? Yes No Are a distribution well installed Yes No 1 Besöksadress: Skogsbovägen 9-11 • Postadress: 134 81 Gustavsberg • Organisationsnummer 212000-0035 Telefon kontaktcenter: 08-570 470 00 • E-post: varmdo.kommun@varmdo.se • Webbplats: varmdo.se

  2. Sealed infiltration: Are the pipes aerated? Yes No Are finishing treatment installed after the sewage system? Yes No Are a sampling well installed? Yes No Type of finishing treatment: Phosphorus/polonite trap, Product nm: _____________ _________ kg Soak away, particle size: _____________ Area: ___________ Other: _____________________________________________ Type of sealing material_______________________________________________________ Recipient (release point):______________________________________________________ SEPTI C TANK FOR WC ___liters WC Vacuum toilet, flush volume of toilet: 1 liter 4 liters Product nm: ______________________________ Volume: _____ m 3 Is an overfill protection alarm installed? Yes No Is an inspection tube installed next to the tank? Yes No Explanation: _______________________________________________________________ SI NGLE HOUSEHOLD TREATMENT PLANT Product nm and model: ______________________________ Size (pe):__________ Type of finishing treatment: Phosphorus/polonite trap, product nm: _________________ Amount: _______ kg UV-light Soak away, particle size: ______________ area: __________ m² Other: ____________________________________________ Recipient (release point):______________________________________________________ Is there a service agreement with the producer? Yes No Flush volume of toilet? 1 liter 4 liters ___ liters GRAY WATER FI LTER Product name and model: ______________________________________________________ Finishing treatment: Soak away, particle size: _________________ Area: _____________m 2 2 Besöksadress: Skogsbovägen 9-11 • Postadress: 134 81 Gustavsberg • Organisationsnummer 212000-0035 Telefon kontaktcenter: 08-570 470 00 • E-post: varmdo.kommun@varmdo.se • Webbplats: varmdo.se

  3. OTHER I NFORMATI ON Have the instruction from the producer been followed? Yes No, deviation: _____________________________________________________ Have the sewage system been placed according to the site plan/map? Yes No, deviation: _____________________________________________________ Have the permission with terms followed correctly? Yes No, deviations: ____________________________________________________ Photos to attach (see information in annex 1 for requested photos): Shaft bottom Spreading pipes Anchoring Overview of Sealing layer Fiber cloth Phosphorus trap the property Drainage layer Aerating tubes Sampling well Sand layer Distribution well Soak away Biological layer Sludge separator Water meter Date of completion: ___________________________________________ I hereby verify that all above information is correct: Property owner: Signature Date and city __________________________________________ Clarification of signature Contractor: Signature Date and City __________________________________________________________________________ Clarification of signature Company 3 Besöksadress: Skogsbovägen 9-11 • Postadress: 134 81 Gustavsberg • Organisationsnummer 212000-0035 Telefon kontaktcenter: 08-570 470 00 • E-post: varmdo.kommun@varmdo.se • Webbplats: varmdo.se

  4. Please send the complete application form to: • varmdo.kommun@varmdo.se or, • Värmdö kommun Bygg- och miljöavdelningen 134 81 Gustavsberg The Presentation of completed sewage system must be completely filled and all requested photos must be attached to be able to receive a final proof that the sewage treatment system is completed. Processing of personal data The personal data you provide will be processed in accordance with the General Data Protection Regulation (GDPR). Due to legal requirements, we are obligated to store your data (GDPR, art. 6:1c). You have the right to, on request, access your personal data and to request rectification, transmission to another controller, and/or restriction of processing. You also have the right to lodge a complaint with Datainspektionen. If you wish to exercise these rights, or have questions regarding the processing of your personal information, please contact the data protection officer of Värmdö municipality at dataskyddsombud@varmdo.se . You can find more information at varmdo.se/personuppgifter . Controller of your data is Bygg-, miljö- och hälsoskyddsnämnden (Planning permition, environment and public health committee, regulatory authority), Värmdö kommun. 4 Besöksadress: Skogsbovägen 9-11 • Postadress: 134 81 Gustavsberg • Organisationsnummer 212000-0035 Telefon kontaktcenter: 08-570 470 00 • E-post: varmdo.kommun@varmdo.se • Webbplats: varmdo.se

  5. Appendix1: information on requested photos I nfiltration, please attach these photos: ◦ Shaft bottom ◦ Biological layer/compact modules ◦ Distribution well (when used) ◦ Aeration tubes ◦ Sludge separator ◦ Infiltrations pipes ◦ Anchoring ◦ Fiber cloth ◦ Overview of the location of the sewage treatment system on the property Septic tank, please attach these photos: ◦ Toilet ◦ Septic tank ◦ Anchoring ◦ Inspection tube ◦ Overfill protection alarm ◦ Overview of the location of the sewage treatment system on the property Sealed infiltration, please attach these photos: ◦ Shaft bottom ◦ Sealing layer ◦ Drainage layer ◦ Sand layer ◦ Biological layer/ compact modules ◦ infiltration pipes ◦ Fiber cloth ◦ Distribution well (when used) ◦ Aeration tubes ◦ Anchoring ◦ Sludge separator ◦ Phosphorus trap (when used) ◦ Sampling well ◦ Soak away layer ◦ Water meter (when water limitation) ◦ Overview of the location of the sewage treatment system on the property Single house hold treatment plant, please attach these photos: ◦ Shaft bottom ◦ Treatment plant ◦ Anchoring ◦ Phosphorus trap (when used) ◦ Sampling well ◦ Infiltration/sealed infiltration (when used) ◦ Soak away layer ◦ Water meter (when water limitation) ◦ Overview of the location of the sewage treatment system on the property Grey water filter, please attach these photos: ◦ Placing ◦ Piping ◦ Soak away layer 5 Besöksadress: Skogsbovägen 9-11 • Postadress: 134 81 Gustavsberg • Organisationsnummer 212000-0035 Telefon kontaktcenter: 08-570 470 00 • E-post: varmdo.kommun@varmdo.se • Webbplats: varmdo.se
