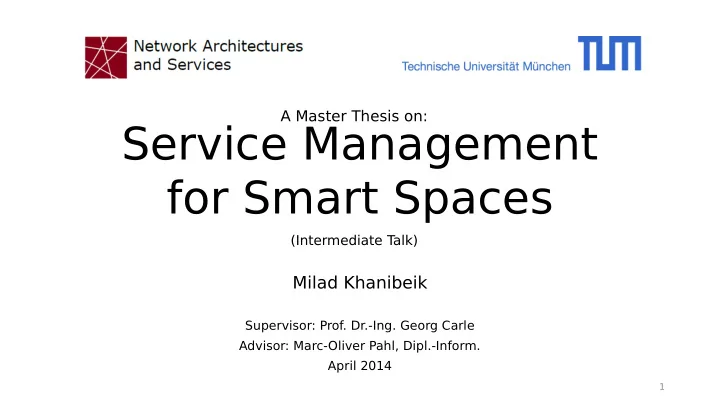

Service Management for Smart Spaces

Milad Khanibeik

Supervisor: Prof. Dr.-Ing. Georg Carle Advisor: Marc-Oliver Pahl, Dipl.-Inform. April 2014

1

A Master Thesis on:

(Intermediate T alk)

Structure of the Presentation

• Smart Space Challenges
• Requirements
• Related Approaches and T

echnologies

• System Architecture
• Evaluation Criteria
• Timetable

2

Smart Space Challenges

• Heterogeneity
• Dynamicity
• Complexity of application

development

• Some requirements of smart

space services:

• Portability
• Reliability
• Optimized resource usage
• Energy saving

3

DS2OS

Virtual State Layer:

• A middleware to store and provide the states used by

services

• Interface portability
• Fixed set of API between services (get/set, notify/subscribe, search,

add/remove Sub-tree, register/unregister)

• Location transparency
• Service discovery

4

Requirements

• Services need to be installed and updated in or

removed from a smart space dynamically at runtime

• Services should be distributed optimally among all the

computing nodes to balance the load and reduce unnecessary network communications among computing nodes

• The system should provide high level of resilience and

reliability

5

Steps to Implement the Requirements

The requirements can be implemented using these steps:

• 1. Service Portability: smart space services should be

portable and dynamically deployable. (portability)

• 2. Service Control & Management: a module is needed to

start/stop services at runtime, update them if any available, and rollback to an older version if any failure happened. (dynamicity)

• 3. Service Distribution: system’s load is measured and

service instances should be distributed among computing nodes based on that. (reliability)

• 4. Service Monitoring: services execution is monitored to

make sure they are still alive and working properly. (reliability)

6

Related T echnologies and Researches

• Virtual Machines:
• Migration of VMs among physical

machines (portability)

• VMs can be dynamically started, stopped

and migrated to another physical machine (dynamicity)

• Using middleware approaches to

partition hardware into difgerent VMs

• Universal Plug and Play
• Networked devices can join and leave

the network easily and discover each

• ther and establish a network service to

communicate and share data (portability and dynamicity)

• Using DHCP and SSDP to handle

dynamicity

7

• Aura
• Aura aims to create an environment that adapts

itself based on the users’ context and needs (dynamicity).

• It acts as a proxy for users: when a user enters a

new environment, his or her Aura marshals the appropriate resources to support the user’s task.

• Aura Components: Task Manager, Context

Observer, Environment Manager, and Service Suppliers

• Gaia:
• Homes, offjces, and meeting rooms capable of

sensing user actions and equipped with a large variety of devices will assist users with difgerent tasks.

• Other smart space solutions (HomeOS, H-

Omega)

Portability: Isolating VMs Dynamicity: Middleware approach to partition HW Portability: Assign IP address Dynamicity: Registrar nodes to manage communication Portability: Isolating User T asks Dynamicity: Environment and task managers to adopt the task based on the current device and available applications

Components Hierarchy

8

Service Containers

• We need to add dynamicity to the Java environment to make jar fjles

(smart space services) dynamically deployable:

• Wrap services in OSGi bundles.
• OSGi:
• OSGi is a standard and secure component-oriented environment for the Java programming

language that controls the life cycle of components and networked services anywhere in the network, something that does not exist in standalone Java environments.

• iPOJO:
• iPOJO is based on OSGi (facilitates the development)
• Separates the non-functional parts from the core business logic
• Manages the component instance lifecycle and the environment dynamics as never before

possible

• Service Hosting Environment:
• iPOJO framework factory to deploy/remove iPOJO bundles

9

Managing Components

• We

introduced a hyper (half distributed, half centralized) managing service to control and monitor the smart space services.

• Node-Local Service Manager (the distributed part) is running
• n all the computing nodes inside the network and monitors

the execution of the services

• Site-Local Service Manager (the central part) is running on one

computing nodes and monitors the NLSMs, assigns services to them to execute, and manages the communication between the smart space and the global application store.

10

Node-local Service Manager (NLSM)

• Running on each computing node of the smart space
• Starts and stops services on its computing node
• Monitors services to make sure they are alive and work

properly

• Sends feedback about service problems to the site-local

service manager

• Updates services if any update is available
• Rolls back service if the updated one didn’t work and

send feedback about this problem to the site-local service manager

11

Site-local Service Manager (SLSM)

• Distributes services among computing nodes
• Communicates with the Global Application Store to

download and update services

• Monitors NLSMs to make sure they are still alive and

work properly

• Restarts dead NLSMs and reassign services back to

them

• Checks for service dependencies on deploy time of

services

• Sends all the received feedbacks from all NLSMs to the

application store

12

Global Application Store

• A central place for:
• developers to put their services
• smart space users to download needed services
• Rating mechanisms:
• Explicitly by users
• Implicitly by feedbacks of service executions from SLSMs

13

UI Service

A place for Interactions between users and the system

14

System Architecture

15

Evaluation Criteria

• User can install/remove services at runtime.
• Services should be updated automatically if any is

available.

• Service dependencies should be considered at the

deployment time.

• Services execution will be monitored and feedback

messages will be sent

• Load is balanced among all computing nodes
• Down services should be detected and restarted ASAP

16

How to test the system?

• T

est the system with 40 computing nodes and install 50 services at runtime on each

• Services should be distributed optimally (not necessarily

normal distribution)

• Down services should be detected and restarted in less than a

threshold time

• Important services will be deployed n times (n is defjned by

the system administrators)

17

Timetable

18

Implementation Phase

 Service Containers (~100 Line of Code)  Service Hosting Environment (~300 LOC)  Node-Local Service Manager (~500 LOC)  Site-Local Service Manager (~700 LOC)  Feedback Mechanism (~200 LOC)  Global Application Store (~180 LOC)  GUI service (~150 LOC)  Deploy important services n times

19

Summary

• Add features and new functionalities to the DS2OS to:
• Add/Update/Remove services dynamically at runtime
• Control life cycle of services
• Balance the load among computing nodes
• Monitor services
• Send feedback about service execution to the GAP
• Increase reliability of the smart space

20

References

• [Harp03] Richard Harper. Inside the Smart House. Springer. 2003
• [RCKZ13] Vaskar Raychoudhury, Jiannong Cao, Mohan Kumar and Daqiang Zhang.

Middleware for pervasive computing: A survey. Pervasive and Mobile Computing 9(2), 2013, P . 177-200.

• [PaCa13c] Marc-Oliver Pahl and Georg Carle. The Missing Layer - Virtualizing Smart
• Spaces. In 10th IEEE International Workshop on Managing Ubiquitous

Communications and Services 2013 (MUCS 2013), San Diego, USA, 2013. P . 139-144.

• [Alli07] OSGi Alliance. About the OSGi Service Platform.

http://www.osgi.org/wiki/uploads/Links/OSGiT echnicalWhitePaper.pdf, Jun 2007.

• [EsHL07] Clement Escoer, Richard S. Hall and Philippe Lalanda. iPOJ: an Extensible

Service-Oriented Component Framework. In IEEE Service Computing Conference 2007, Hawaii, USA, July 2007.

• [Felib] Apache Felix iPOJO.

http://felix.apache.org/documentation/subprojects/apachefelix-ipojo.html.

21

Thank You!
