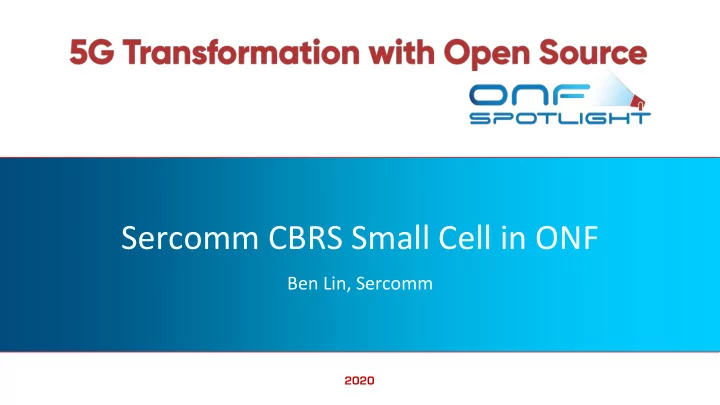

Sercomm CBRS Small Cell in ONF

Ben Lin, Sercomm

Sercomm in ONF Projects



Sercomm provided CBRS test kits to Aether project team for integration - Jan, 2020



Aether project team confirmed the integration work successfully - Feb, 2020



Sercomm signed up for CCP Founding Member for Aether/SEBA projects - April, 2020



Sercomm joined SD-RAN project – Aug, 2020

The Benefits of Aether Project Brings

Note: it is cited from the slides of Aether Webinar

Citizens Broadband Radio Service Overview

• CBRS = 3.5GHz band
• Defined by 3GPP as B48/N48
• Spectrum is Shared
• Incumbents
• Priority Access (PAL)
• General Authorized Access (GAL)
• Spectrum is Controlled
• Minimize Interference
• Maximize Reuse
• Security
• Spectrum is Available
• GAL approved by FCC in 2019
• PAL auction completed by FCC in

Aug, 2020

• Cellular grade security & QoS
• WiFi level economic scale
• Create Seamless Experience
• Connect Automatically
• No SSID or Login
• Roaming between licensed

band

• Speed Time to Market
• Enterprise
• Factory Automation
• Smart City
• In-Home

Features Benefits

CBRS Test Kits in Aether

CBRS PoE CBRS Small Cell (Englewood) Cloud EPC Apps CBRS Video Bridge (RP131CBRS) CBRS CBRS Dongle (Wingle) IP Camera (OC452) Laptop Display Cloud EPC Apps Aether Networks

Internet of Things (IoT) Gateway

Cloud Ather Edge Cloud

Device Layer Service Layer Managers Events Devices Services

Partner Services Internet Services IoT Gateway Property Manager Devices Cloud RF Based IP Camera Local Area Wireless Devices Sercomm Solutions CBRS Small Cell

CBRS Test Kits in Aether

Cloud

CBRS Turn-Key Solutions for Private and Neutral Host Network Networks

Sercomm CBRS Enterprise Small Cell ONF Aether Edge Cloud-as-a-Service Sercomm CBRS IoT Gateway

Private CBRS-LTE Networks Venue Operated Neutral Host LTE Networks Edge Computing and LTE Management for Enterprises LTE Traffic Offload to Corporate LTE Network Enhanced Signal Quality, Security, Control and QoS

ONF/SERCOMM Enterprise CBRS Solutions WISP Communications Data Network and Managed Services

Sercomm CBRS Video Bridge Sercomm CBRS USB Dongle

CBRS Small Cell-Englewood



1 Watt RF Tx Output Power Totally



Support LTE CBRS Band



Support LTE Band 48 CA



Up to 128 Users



Support PoE+



Support Standalone and Split Option 2 modes



Got FCC, and “OnGo” certificates



CE certificate is on the way

CBRS Small Cell-Englewood (detailed spec)

LTE Qualcomm FSM9955

Band 42/43/48 Capacity 128 Active Users Maximum Transmit Power 250 mW per path, total 1W, 2x2 DL MIMO Carrier Bandwidth Two carriers, 10/20MHz Carrier Aggregation 2CC CA, 48_48 Modulation UL up to 64 QAM; DL up to 256 QAM

OAM

Remote TR069 HeMS Local WebGUI

Device

Interface 2 x Gigabit ports, WAN port with PoE+ 1 x GPS port (optional) 1 x SFP (optional) Dimension 10.4x8.3x3.1 in / 265x210x80 mm Power Supply 12V/2A DC (21 Watts) or PoE+ Antenna Internal antennas, 4 for LTE External antenna, 1 for GPS. Antenna Gain 6dBi, total EiRP 36dBm (30dBm per 10MHz) LED 5 LEDs: LTE/SYNC/ALARM/POWER/WAN

CBRS Dongle-Wingle

• Support LTE Cat 6
• Support LTE CBRS Band
• Support 1T2R, 21 dBm
• Support 2CC CA
• 802.11n 1x1 WiFi
• USB 2.0 for data access
• Support NAT Mode

CBRS Video Bridge-RP131CBRS

• Support LTE Cat 4
• Support LTE CBRS Band
• Support 1T2R, 23 dBm
• Support Bridge Mode

Future Product-BridgeStone

Hardware Baseband/RF Qualcomm FSM10056 + SDR9000 NPU Intel C3758 Band n77 / n78 / n48 Ethernet 2.5G + 1G Output Power Max 36dBm (EiRP) / Antenna Port 27dBm Synchronization GPS, 1PPS Output Software Core Architecture NSA Option 3x / SA Option 2 Split Option Full Stack / Split Option 2 3GPP Standard Release 15 Active User 64 (upgrade to 128) Bandwidth 100 MHz

Model Name SCE5161 Device Type Indoor 5G Sub-6G Small Cell Mounting Ceiling Mount

Timeline Estimation

2021/Feb: Prototype & Demo 2021/Jun: ES

Sercomm Future Work Tasks



Sercomm will keep work with Aether project team for CCP test.



Sercomm will open E2(E2-en/E2-du) interface on Small Cell.



Sercomm will migrate some near-real-time functions from RAN equipments into xApps.

Deployed millions of SmallCells over worldwide

60+ patents regarding to SmallCell

10+ years experience in Small Cell domain

Split Option 2 DU for Enterprise
