Seismic Data from the Black Forest Underground Station and Experience from Kamioka Hartmut Grote Hartmut Grote AEI Hannover AEI Hannover ET-WP1 meeting, Gran Sasso, 8.Feb 2009 Berger (et al.) Low Noise Model 2004 Berger et al. (2004),

slide-1
SLIDE 1

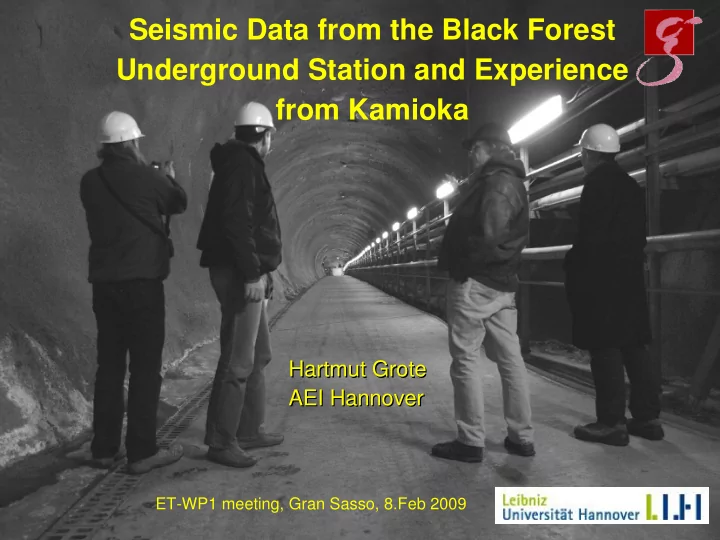

Seismic Data from the Black Forest Underground Station and Experience from Kamioka

Hartmut Grote Hartmut Grote AEI Hannover AEI Hannover

ET-WP1 meeting, Gran Sasso, 8.Feb 2009

slide-2
SLIDE 2

2

Berger (et al.) “Low Noise Model“ 2004

Berger et al.(2004), Ambient Earth Noise: A survey of the Global Seismographic Network, JGR 109, B11307

H.Grote, AEI

slide-3
SLIDE 3

3

Berger (et al.) “Low Noise Model“ 2004

Translated for Interferometry people...

H.Grote, AEI

slide-4
SLIDE 4

4

SZGRF – Stations (BGR)

BFO: 162m bs, Granite BRG: 36m bs, aban. mine Hornblendeslates GRFO: Borehole, KS36000, 116m bs, Chalk and dolomite BUG: drift of coal mine, Clastic sediments

H.Grote, AEI

slide-5
SLIDE 5

5

Black Forest Observatory

Geophysical Obsorvatory since 1972, operated by Universities of Karlsruhe and Stuttgart Granite base-rock, covered by sediments

  • Approx. 150m below surface level

H.Grote, AEI

slide-6
SLIDE 6

6

Anthropogenic Noise at BFO (STS2 vertical)

H.Grote, AEI

slide-7
SLIDE 7

7

Black Forest Observatory

H.Grote, AEI

slide-8
SLIDE 8

8

Comparison of 4 sites

  • 162m,

Granite

  • 36m,

Hornblendeslates

  • 116m,

Chalk and Dolomite Clastic Sediments

slide-9
SLIDE 9

9

...and More sites...

H.Grote, AEI

slide-10
SLIDE 10

10

Magmatic Rock in Europe

H.Grote, AEI

slide-11
SLIDE 11

11

Station map of the virtual European Broadband Seismograph Network (VEBSN)

H.Grote, AEI

slide-12
SLIDE 12

12

slide-13
SLIDE 13

13

slide-14
SLIDE 14

14

slide-15
SLIDE 15

15

slide-16
SLIDE 16

16

slide-17
SLIDE 17

17

slide-18
SLIDE 18

18

Experience from Kamioka I

Humidity ~100% in the mine Mold growth (Hard to see on green painted walls...) Air de-humifiers in place, but too noisy (vibration) For LCGT: Plan to supply dried air from separate chamber Cryo-cooler: Pulse tube refrigerators make ~1Hz vibration + high-frequency sound (need protection) Heat problem of control room: needed ventilation system Dust in (access) tunnels: E.g. laser power quickly degrading, would need separate air lock for main chamber access Horizontal access very convenient, also safety relevant Working time 8am-5pm, just recently later shifts on request

  • Dr. Shinji Miyoki, University of Tokyo
slide-19
SLIDE 19

19

Experience from Kamioka II

What should be accounted for in general: Clean, dry, and cool air generation far away from the interferometer Air lock room between tunnel and Lab areas Wall between dusty arms and clean Lab area

H.Grote, AEI
