RP95 Segment routing in container networks Ben de Graaff Supervisor: Marijke Kaat (SURFnet/UvA) Best path Background A B Arbitrary paths Background 1 1 2 A 3 B 4 4 5 A > 1 > 4 > B Pure IPv6 (SRv6) Background 2000:1::

SLIDE 1

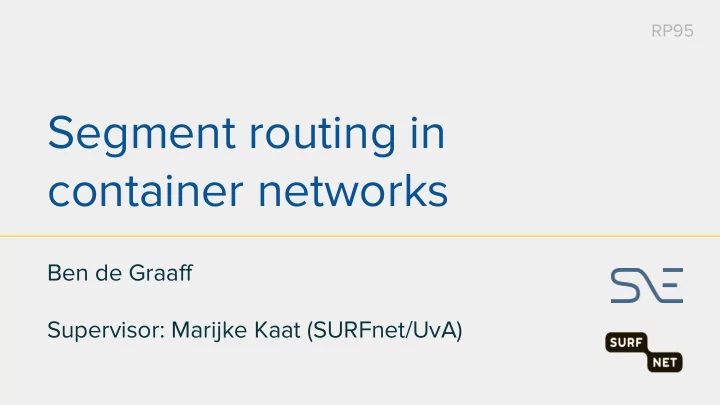

Segment routing in container networks

Ben de Graaff Supervisor: Marijke Kaat (SURFnet/UvA)

RP95

SLIDE 2

Best path

A B

Background

SLIDE 3

3 Arbitrary paths

1 2 4 5 A B

A > 1 > 4 > B

Background

1 4

SLIDE 4

3 Pure IPv6 (SRv6) Background

1 2 4 5 A B

2000:1:: 2000:2:: 2000:B:: 2000:4:: 2000:3:: 2000:5:: 2000:A:: 2000:1::2 2000:1::3 2000:1::A

SLIDE 5

Container networks Background

Internet

SLIDE 6

Platform independent Background

LXC Internet

SLIDE 7

Multi-tenancy Background

Internet

SLIDE 8

Example: load balancer Background

Internet

Transit policy

SLIDE 9

Research

State of segment routing in IPv6 Proof of concept: Container networking Network functions

SLIDE 10

dst 1 3

Network programming

1 2 4 5 A B

src > 1 > 4 > dst

1 4 dst 4 dst src

SLIDE 11

Segment routing header

Extensions Segment N Segment 0

. . .

Header

Segments left

SLIDE 12

Proof of concept

Validate policy Apply policy

SLIDE 13

Multi-tenancy

Internet

Segment ID

2000:A::1000:1 2000:B::1000:2 2000:C::1000:3 2000:B::1000:1 2000:B::1000:2 2000:B::1000:3 2000:C::1000:1 2000:C::1000:3

Results

SLIDE 14

Container discovery/mobility

Routing opaque addresses

Results

::1:2:3:4 ::a:b:c:d

Topology 1: Inject SRH 3: Deliver

NF

2: Compute final hop

SLIDE 15

Implementation

Hardware/software

Results

SLIDE 16

Linux kernel 4.10+

Basic routing/policy Limited extension support Implementation quirks…

Results

SLIDE 17

Hardware

NCS 5500

Software

Vector Packet Processing

The Fast Data Project

SRv6 availability Results

SLIDE 18

Technical stuff

Technical implementation

http://www.story-stick.net/event/here-be-dragons

SLIDE 19

Network function

Container Container

Virtual topology Results

VPP VPP

Container

VPP

SLIDE 20

eBPF

Latest & greatest Process directly in kernel Fast, powerful

Results

myprog.c + LLVM = bytecode ⇓ bpf() syscall ⇓ Kernel network stack

SLIDE 21

eBPF

eth0 tc filter bpf bpf_redirect

Ingress eBPF Egress eBPF

veth Container

Control app

Validate policy Apply policy

✗ ✗

Results

SLIDE 22

Linux do-it-yourself

Tun/tap AF_PACKET ip rule iptables fwmark PF_RING ...

Results

SLIDE 23

Linux do-it-yourself Results

tun AF_PACKET Raw socket

Ingress app Egress app

ip rule Validate policy Apply policy eth0 veth Container

SLIDE 24

Summary Results

Validate policy Apply policy

SLIDE 25

Ingress policy enforcement? Discussion

Internet

eth0

Ingress Egress

veth Container

SLIDE 26

Future work

Ingress path control Linux segment routing Netlink API Develop useful extensions

SLIDE 27

Conclusion

Proof of concept: works SDN easy, at cost of overhead Hardware not strictly required

SLIDE 28

Related work

Cisco, Bell Canada, Comcast, et al, technical workshops @ www.segment-routing.net NFV with SRv6, with SRH unaware hosts (NetSoft 2017, presented today)

SLIDE 29

Segment routing in container networks

Segment routing is effective at enabling SDN and network functions between containers However, it is not yet widely supported in hardware, software

RP95

Check out the report for a full list of references http://rp.delaat.net/2016-2017/p95/report.pdf

SLIDE 30

Backup slides

SLIDE 31

Security/RH0

Enforce policy at network edges SIDs must be explicitly enabled HMAC: check at ingress

SLIDE 32

Remove protocols Remove state

https://xkcd.com/927/

Simplify the network Discussion

SLIDE 33

3 MPLS Background

1 2 4 5 A B

101 102 111 104 103 105 110 202 203 210

No LDP, RSVP required
