Security+ Guide to Network Security Fundamentals, Third Edition - - PDF document

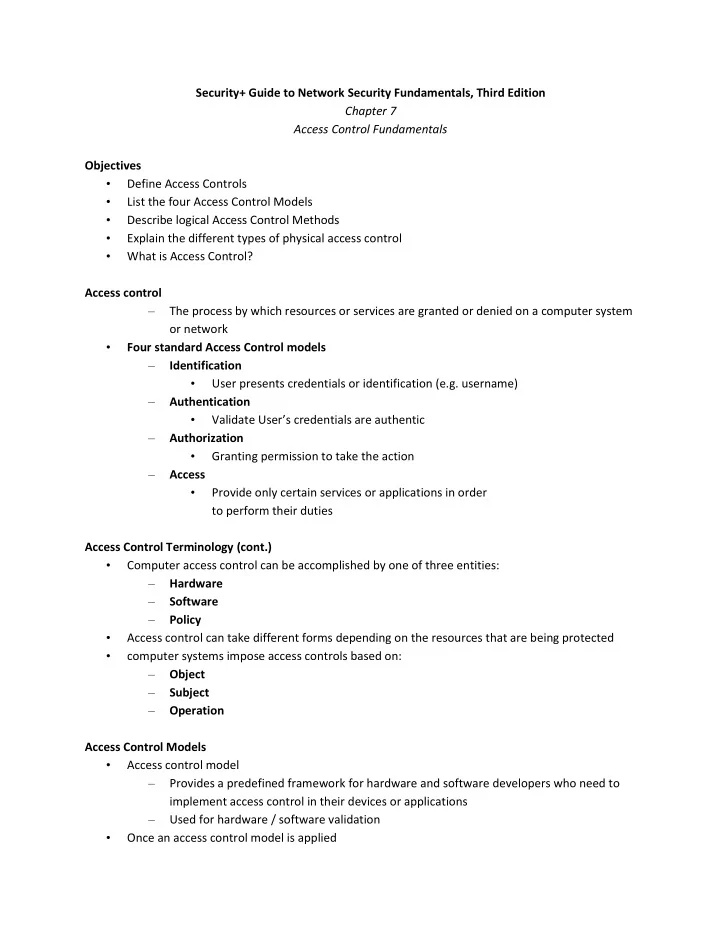

Security+ Guide to Network Security Fundamentals, Third Edition Chapter 7 Access Control Fundamentals Objectives

• Define Access Controls
• List the four Access Control Models
• Describe logical Access Control Methods
• Explain the different types of physical access control
• What is Access Control?

Access control – The process by which resources or services are granted or denied on a computer system

• r network
• Four standard Access Control models

– Identification

• User presents credentials or identification (e.g. username)

– Authentication

• Validate User’s credentials are authentic

– Authorization

• Granting permission to take the action

– Access

• Provide only certain services or applications in order

to perform their duties Access Control Terminology (cont.)

• Computer access control can be accomplished by one of three entities:

– Hardware – Software – Policy

• Access control can take different forms depending on the resources that are being protected
• computer systems impose access controls based on:

– Object – Subject – Operation Access Control Models

• Access control model

– Provides a predefined framework for hardware and software developers who need to implement access control in their devices or applications – Used for hardware / software validation

• Once an access control model is applied

– Custodians can configure security based on the requirements set by the owner

• So that end users can perform

their job functions Access Control Models (cont.)

• Mandatory Access Control (MAC) model

– Users cannot implement, modify, or transfer any controls – Owner & Custodian responsible for managing access – Most restrictive model because all controls are fixed – In original MAC model, all objects and subjects were assigned a numeric access level

• The access level of the subject had to be higher than that of the object in order

for access to be granted Access Control Models (cont.)

• Discretionary Access Control (DAC) model

– The least restrictive – subject has total control over any objects that he or she owns

• Includes programs associated with those objects
• Subject can also change the permissions for other subjects over objects
• Two significant weaknesses

– Relies on subject to set the proper level of security – Subject’s permissions are “inherited” by programs that the subject executes Access Control Models (cont.)

• User Account Control (UAC)

– Operating systems prompt the user for permission whenever software is installed

• Access Control Models (cont.)
• Three primary security restrictions implemented by UAC:

– Run with limited privileges by default – Applications run in standard user accounts – Standard users perform common tasks

• Another way of controlling DAC inheritance is to automatically reduce the user’s permissions
• Enforces the Principal of least Privilege

Access Control Models (cont.)

• Role Based Access Control (RBAC) model

– Sometimes called Non-Discretionary Access Control – Considered a more “real world” approach than the other models – Assigns permissions to particular roles in the organization, and then assigns users to that role – Objects are set to be a certain type, to which subjects with that particular role have access

Access Control Models (cont.)

• Rule Based Access Control (RBAC) model

– Also called the Rule-Based Role-Based Access Control (RB-RBAC) model or automated provisioning – Can dynamically assign roles to subjects based on a set of rules defined by a custodian – Each resource object contains a set of access properties based on the rules

• Rule Based Access Control is often used for managing user access to one or more systems

Practices for Access Control

• Separation of duties

– Requires that if the fraudulent application of a process could potentially result in a breach of security

• Then the process should be divided between two or more individuals
• Job rotation

– Instead of one person having sole responsibility for a function, individuals are periodically moved from one job responsibility to another – Common use is to enforce mandatory vacations; allows a different user to access how security is implemented to prevent collusion Practices for Access Control (cont.)

• Least privilege

– Each user should be given only the minimal amount of privileges necessary to perform his or her job function

• Implicit deny

– If a condition is not explicitly met, then it is to be rejected

• Implementing Access Controls

– Two broad categories

• Physical access control
• Logical access control

Logical Access Control Methods

• Logical access control includes:

– Access control lists (ACLs) – Group policies – Account restrictions – Passwords

• Access Control Lists (ACLs)

Access control list (ACL) – Permissions assigned to an object – Specifies subjects that are allowed specified access the object

• Most often viewed in content of the OS
• Structure behind ACL tables is complex

• Access control entry (ACE)

– Each entry in the ACL table in the Microsoft Windows, Linux, and Mac OS X operating systems Access Control Lists (ACLs) (cont.)

• In Windows, the ACE includes four items of information:

– A security identifier (SID) for the user account, group account, or logon session – An access mask that specifies the access rights controlled by the ACE – A flag that indicates the type of ACE – A set of flags that determine if

• bjects can inherit permissions

Group Policies

• Group Policy

– Feature within Microsoft Windows Active Directory (AD) – Provides centralized management and configuration of computers and remote users – Primarily used in enterprise environments to restrict user actions that pose a security risk – Group Policy settings are stored in Group Policy Objects (GPOs) Account Restrictions

• Time of day restrictions

– Limit when a user can log on to a system – These restrictions can be set through a Group Policy – Can also be set on individual systems

• Account expiration

– The process of setting a user’s account to expire based on a date – Orphaned accounts are user accounts that remain active after an employee has left an

• rganization
• Can be controlled using account expiration

Passwords

• Password

– The most common logical access control – Sometimes referred to as a logical token – A secret combination of letters and numbers and possible characters that only the user knows

• A password should never be written down

– Must also be of a sufficient length and complexity so that an attacker cannot easily guess it (password paradox) Passwords (cont.)

• Password Attacks:

– Brute force attack

• Guess a password through combining random characters
• Passwords typically are stored as a “hash”

– Attackers try to steal the file of hashed passwords and break the hash

• ffline

– Dictionary attack

• Attacker obtains hashes of common dictionary words

– Compares hashed dictionary words against stolen password file – Rainbow tables

• Large tables of pre-generated hash values

– Passwords (cont.) Rainbow Tables (Cont.) – Generating a rainbow table requires a significant amount of time – Rainbow table advantages:

• Can be used repeatedly
• Faster than dictionary attacks
• Memory needed on the attacking machine is reduced

– Success of rainbow tables tied to older Windows OS password hashing algorithms

• A defense against breaking encrypted passwords with rainbow tables

– Add complexity to hash by including a random sequence of bits as input along with the user-created password

• These random bits are known as a salt

– Make brute force, dictionary, and rainbow table attacks much more difficult Passwords (cont.)

• Password policy

– A strong policy can provide defenses against attacks – First policy: Create and use strong passwords

• Best defenses against rainbow tables: Prevent attacker from capturing password hashes
• Use 3rd party applications to track passwords complexity and life
• Domain Password Policies
• Domain password policy

– Restrictions set through Domain password policy – There are six common Windows domain password policy settings, called password setting objects

• Used to build a domain password policy

– Physical Access Control Physical access control primarily protects computer equipment – Designed to prevent unauthorized users from gaining physical access to equipment in

• rder to use, steal, or vandalize it
• Physical access control includes:

– Computer security – Door security – Mantraps – Video surveillance – Physical access logs Computer Security

• The most fundamental step in physical security is to secure the system itself
• Securing network servers in an organization is important
• Rack-mounted servers

– 4.45 centimeters (1.75 inches) tall – Can be stacked with up to 50 other servers in a closely confined area Door Security

• Hardware locks

– Preset lock

• Also known as the key-in-knob lock
• The easiest to use because it requires only a key for unlocking the door from the
• utside
• Automatically locks behind the person, unless it has been set to remain

unlocked

• Security provided by a preset lock is minimal

Hardware locks (continued) – Deadbolt lock

• Extends a solid metal bar into the door frame for extra security
• Is much more difficult to defeat than preset locks
• Requires key be used to both open and lock the door

Door Security (cont.)

• Most organizations observe the following practices:

– Change locks immediately upon loss or theft of keys – Inspect all locks on a regular basis – Issue keys only to authorized persons – Keep records of who uses and turns in keys – Keep track of keys issued, with their number and identification – Master keys should not have any marks identifying them

– Secure unused keys in a locked safe – Set up a procedure to monitor the use of all locks and keys Instructors Note: You should rekey locks annually to reduce likelihood of duplicate key use Door Security (cont.)

• Door access systems

– Cipher lock

• Combination locks that use buttons pushed in the proper sequence to open the

door

• Programmable – By individual, time, date
• keep record of when door was opened by which code
• Cipher locks typically networked to a computer system
• Can be monitored and controlled from one

central location – Cipher lock Disadvantages

• Basic models cost several hundred dollars
• Advanced models can be thousands
• Users must be careful to conceal buttons when using

to prevent exposing their code

• Door Security (cont.)

Door access systems (continued) – Tailgate sensor

• Multiple infrared beams aimed across a doorway and positioned so that as a

person walks through the doorway – Some beams are activated and then other beams are activated a short time later

• Can detect if a second person walks through the beam array immediately

behind (“tailgates”) the first person without presenting credentials Door Security (cont.)

• Physical tokens

– Objects to identify users

• ID badge

– The most common types of physical tokens – ID badges originally were visually screened by security guards – Today, ID badges can be fitted with tiny radio frequency identification (RFID) tags

• Can be read by an RFID transceiver as the

user walks through the door with the badge in her pocket

Mantraps

• Mantrap

– A security device that monitors and controls two interlocking doors to a small room (a vestibule) that separates a non-secured area from a secured area

• Mantraps are used at high-security areas where only authorized persons are allowed to enter

– Such as sensitive data processing areas, cash handling areas, critical research labs, security control rooms, and automated airline passenger entry portals

• Video Surveillance

Closed circuit television (CCTV) – Video cameras used to signal to a specific and limited set of receivers

• Cameras can be fixed in a single position or movable using a Pan-Tilt-Zoom (PTZ) device
• Physical Access Log

Physical access log – Record of individuals who entered a secure area including time date or entry and exit – Can also identify if unauthorized personnel have accessed a secure area

• Physical access logs originally were paper documents

– Today, door access systems and physical tokens can generate electronic log documents Summary

• Access control is the process by which resources or services are denied or granted
• Best practices for implementing access control include separation of duties, job rotation, using

the principle of least privilege, and using implicit deny

• Logical access control methods include using access control lists (ACLs), which are provisions

attached to an object

• Passwords, sometimes known as logical tokens, are a secret combination of letters and numbers

that only the user should know

• Physical access control attempts to limit access to computer equipment by unauthorized users
