Sciamano Concept Study R. Adm (ret.) Fernando Cerutti Consultant c/o Fincantieri Naval Vessel Division #UDT2019 Risk Loss of Naval Asset Loss of Personnel Decreased Forces Operational Effectiveness Media highlight

slide-1
SLIDE 1 #UDT2019

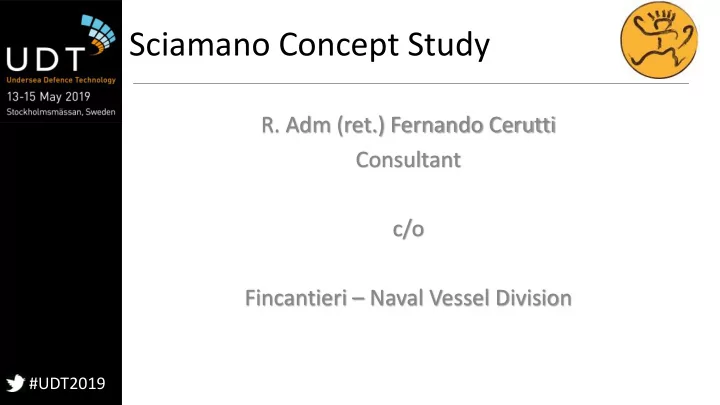

Sciamano Concept Study

  • R. Adm (ret.) Fernando Cerutti

Consultant c/o Fincantieri – Naval Vessel Division

slide-2
SLIDE 2 #UDT2019

Risk

  • Loss of Naval Asset
  • Loss of Personnel
  • Decreased Force’s Operational Effectiveness
  • Media highlight  Political Impact
slide-3
SLIDE 3 #UDT2019

Aim

slide-4
SLIDE 4 #UDT2019

Aim (possibly…)

Area Coverage

slide-5
SLIDE 5 #UDT2019

Current Anti-Torpedo Options

  • Avoid detection
  • Acoustic Signature
  • Away from PROBAREAs
  • Detect the submarine
  • Stand-off detection and localization
  • Adequate classification
  • Torpedo Defense
  • Soft-kill
  • Hard-kill

Mix / Selection

slide-6
SLIDE 6 #UDT2019

Current Mine Countermeasures Options

  • Avoid detection/activation
  • Acoustic/Magnetic/Pressure Signature
  • Avoid the mine
  • Away from MDAs
  • Mine Avoidance Systems
  • Detect the mine
  • MCMVs
  • AUVs

Mix / Selection

slide-7
SLIDE 7 #UDT2019

Concept

slide-8
SLIDE 8 #UDT2019

Swarm

Drone Carrier

slide-9
SLIDE 9 #UDT2019

Sciamano

English Swarm They swarm Shaman Italian Sciame Sciàmano Sciamàno

slide-10
SLIDE 10 #UDT2019

Area Coverage - Alternatives

slide-11
SLIDE 11 #UDT2019

Study Approach

  • 1. Estimate concept effectiveness, based on

performances of unmanned vehicles currently on the market, or being developed

Indicate if the concept is likely to be mature/effective in the near term, or the current gap with traditional solutions

  • 2. Estimate unmanned vehicles' characteristics

required to make the concept worth to be pursued in medium / long term

Drive unmanned vehicles producers' R&T to the development of future systems

slide-12
SLIDE 12 #UDT2019

Timeline and Highlights

Start: September 2018 Foreseen Duration: 6 to 9 months Main Focus: Undersea Domain ASW MW Additional Focus: Other Warfare Areas Peacetime Operations

slide-13
SLIDE 13 #UDT2019

Whole Warship Approach - Details

Tasks Requirements Combat System Analysis Missions Platform Technology Estimate

slide-14
SLIDE 14 #UDT2019

Ship’s Tasks and Missions

slide-15
SLIDE 15 #UDT2019

Operational Requirements

slide-16
SLIDE 16 #UDT2019

Combat System & Platform Solutions

slide-17
SLIDE 17 #UDT2019

Estimate, Forecast & Analysis

slide-18
SLIDE 18 #UDT2019

Missions

AUV/UUV/USV Carrier (A/UXV)

slide-19
SLIDE 19 #UDT2019

Escort Main Body

Destination
slide-20
SLIDE 20 #UDT2019

Sanitize OPAREA

AOA
slide-21
SLIDE 21 #UDT2019

Defend OPAREA

AOA
slide-22
SLIDE 22 #UDT2019

Support CATAF/CLF

AOA LOA
slide-23
SLIDE 23 #UDT2019

Support Land Forces

LOA AOA
slide-24
SLIDE 24 #UDT2019

Protect Port/Anchorage

Port Anchorage
slide-25
SLIDE 25 #UDT2019

Embargo

slide-26
SLIDE 26 #UDT2019

Incident / Disaster Relief

slide-27
SLIDE 27 #UDT2019

Search & Rescue

slide-28
SLIDE 28 #UDT2019

Unmanned Vehicles Customization

slide-29
SLIDE 29 #UDT2019

Unmanned Vehicles Customization

slide-30
SLIDE 30 #UDT2019

Initial Set of Unmanned Vehicles

slide-31
SLIDE 31 #UDT2019

MOP / MOE

  • Combat System
  • By Warfare Area
  • Platform
  • Speed
  • Endurance
  • Environment
  • Payload (drones)
  • Transversal
  • Signatures
  • Interferences
  • Traditional Combatant
  • Sciamano
slide-32
SLIDE 32 #UDT2019

MOP – Traditional Combatant

slide-33
SLIDE 33 #UDT2019

MOP – Sciamano

slide-34
SLIDE 34 #UDT2019

MOP – Traditional Combatant

slide-35
SLIDE 35 #UDT2019

MOP – Sciamano

slide-36
SLIDE 36 #UDT2019

MOP – Traditional Combatant

slide-37
SLIDE 37 #UDT2019

MOP – Sciamano

slide-38
SLIDE 38 #UDT2019

Status - Conditions

Mission UAV (S/B) USV (DS) USV (VDS/TAS) AUV (HFAS)

Sciamano

Sanitation (t = 6 hrs) 4 2 1 6 Escort (t = 24 hrs) Not considered 1.5 1.5 Not Considered ASW Frigate Equipment (t = 6/24 hrs) HMS (MF) VDS/TAS (LFAS) Helicopter (DS) Helicopter (SB)
slide-39
SLIDE 39 #UDT2019

Status - Conditions

Mission Propagation
  • Sc. Dipping
  • Sc. VDS/TAS
ASW Frigate Sanitation Sound Channel Bottom Bounce Convergence Zone Not Available Escort Sound Channel Bottom Bounce Convergence Zone
slide-40
SLIDE 40 #UDT2019

Status - Results

Mission Propagation Sciamano ASW Frigate Sanitation Sound Channel Best Good Bottom Bounce Best Good Convergence Zone None Escort Sound Channel Good Good Bottom Bounce Fair Good Convergence Zone Negligible Best
slide-41
SLIDE 41 #UDT2019

Way Ahead

  • Self-Defense
  • Obvious?
  • Measurable?
  • Engagement
  • Torpedo
  • ASW Spoof?
  • Depth Charges?
slide-42
SLIDE 42 #UDT2019

Way Ahead

Hull Configuraton Traditional Catamaran SWATH Hybrid
slide-43
SLIDE 43 #UDT2019

Way Ahead

Platform Behavior
slide-44
SLIDE 44 #UDT2019

Way Ahead

Network Configuration

  • Control the vehicles
  • Receive vehicles

navigational data

  • Receive/download

information collected by vehicles’ sensors

  • Emergency shot-down
  • Relay of information/
  • rders.
slide-45
SLIDE 45 #UDT2019

Sciamano Concept Study

Q&A
