SATA Series y Introduction w w w .easyRAID.com - 1 - Innovative Innovative SMART Correction SMART Correction Functions Functions Disk Self Test Disk Scrubbing SMART/Disk clone w w w .easyRAID.com - 2 - SMARTCor. Functions -1


slide-1

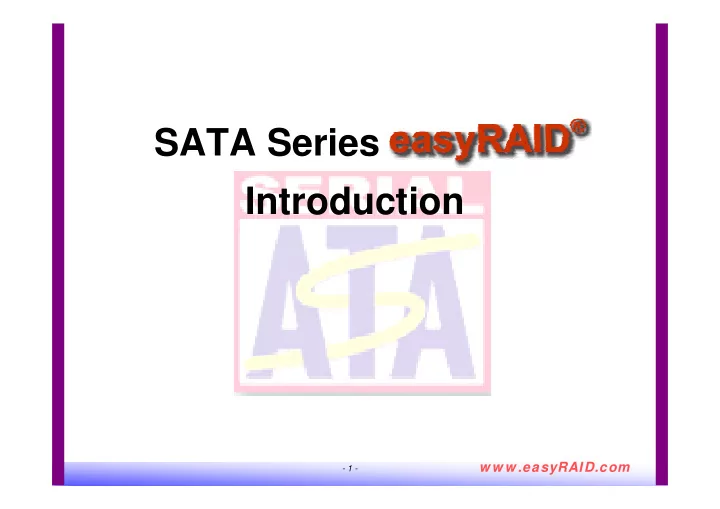

SLIDE 1

w w w .easyRAID.com

  • 1 -

SATA Series y Introduction

slide-2
SLIDE 2

w w w .easyRAID.com

  • 2 -

Innovative

SMART Correction

Functions Innovative

SMART Correction

Functions

Disk Self Test Disk Scrubbing SMART/Disk clone

slide-3
SLIDE 3

w w w .easyRAID.com

  • 3 -
  • SMARTCor. Functions -1
  • SMARTCor. Functions -1

DST (Disk Self Test)

Judge the healthy situation of the HDDs in easyRAID RAID directly

LCD Hyper Terminal

Before configuring easyRAID RAID

slide-4
SLIDE 4

w w w .easyRAID.com

  • 4 -
  • SMARTCor. Functions -2
  • SMARTCor. Functions -2

Disk Scrubbing (DS)

Run-time data parity checking Run-time data re-generate and white-back when parity error (WR back to the same address,

HDD do the remap)

Bad blocks remapped in advance Largely reduce the frequency of “bad block remap” message from RAID controller

slide-5
SLIDE 5

w w w .easyRAID.com

  • 5 -
  • SMARTCor. Functions -3
  • SMARTCor. Functions -3

Smart / Disk cloning

SMART for HDD health monitoring 1 spare HDD to clone “un-healthy” HDD reported Switch to this cloned HDD when this un-healthy HDD fails. Use 2 HDDs – 1 for parity, 1 for cloning, for data fault

  • tolerant. Same number as R6

Better performance than R6, no performance penalty

slide-6
SLIDE 6

w w w .easyRAID.com

  • 6 -

BBM Function BBM Function

BBM (Battery Backup Module)

Keep the power to the cache on RAID when power outage

Output voltage : 3.3V +/- 2%

512MB SDRAM/DDR = 100hrs 1 GB SDRAM/DDR = 72hrs

slide-7
SLIDE 7

w w w .easyRAID.com

  • 7 -

S8-U4TT Disk Array System S8-U4TT Disk Array System

CPU :Intel i80321 RISC (600MHz) RAM :256MB ~ 1GB DDR RAM RAID Level :0, 1, 0+1, 3, 5, 30, 50, NRAID, JBOD Host Interface :Ultra320 LVD SCSI / 2Gb FC Disk Interface :Serial ATA x 8 Power Supply :300W x 2 Hot Swappable:HDD tray, Power Supply, Fan SMARTCor. :DST, Disk Scrubbing, Disk Cloning Other Features:Background Initialization, BBM

  • ption
slide-8
SLIDE 8

w w w .easyRAID.com

  • 8 -

CPU :Intel i80321 RISC (600MHz) RAM :256MB ~ 1GB DDR RAM RAID Level :0, 1, 0+1, 3, 5, 30, 50, NRAID, JBOD Host Interface :Ultra320 LVD SCSI / 2Gb FC Disk Interface :Serial ATA x 8 Power Supply :300W x 2 Hot Swappable:HDD tray, Power Supply, Fan SMARTCor. :DST, Disk Scrubbing, Disk Cloning Other Features:Background Initialization, BBM option

S8-U4R2 Disk Array System S8-U4R2 Disk Array System

slide-9
SLIDE 9

w w w .easyRAID.com

  • 9 -

CPU :Intel i80321 RISC (600MHz) RAM :256MB ~ 1GB DDR RAM RAID Level :0, 1, 0+1, 3, 5, 30, 50, NRAID, JBOD Host Interface :Ultra320 LVD SCSI / 2Gb FC Disk Interface :Serial ATA x 16 Power Supply :300W x 3 Hot Swappable:HDD tray, Power Supply, Fan SMARTCor. :DST, Disk Scrubbing, Disk Cloning Other Features:Background Initialization, BBM option

S16-U4R4 Disk Array System S16-U4R4 Disk Array System

slide-10
SLIDE 10

w w w .easyRAID.com

  • 10 -

System Performance System Performance

332.53 274 274

Rebuild Rate (MB/Sec)

589 292 292

Initial Rate (MB/Sec)

6 4.5 4.5

Scrub Time (Hr.)

3.13 1.65 1.65

Rebuild Time (Hr.)

1.41 1.2 1.2

Clone Time (Hr.)

1.77 1.55 1.55

Initial Time (Hr.)

3750 1750 1750

Total Capacity (GB)

ERS16-U4R4/ ERS16-F2R4 ERS8-U4R2/ ERS8-F2R2 ERS8-U4TT/ ERS8-F2TT *REMARK:One RAID set, RAID level 5, Total Capacity = (N-1) * 250
