slide-1
SLIDE 1

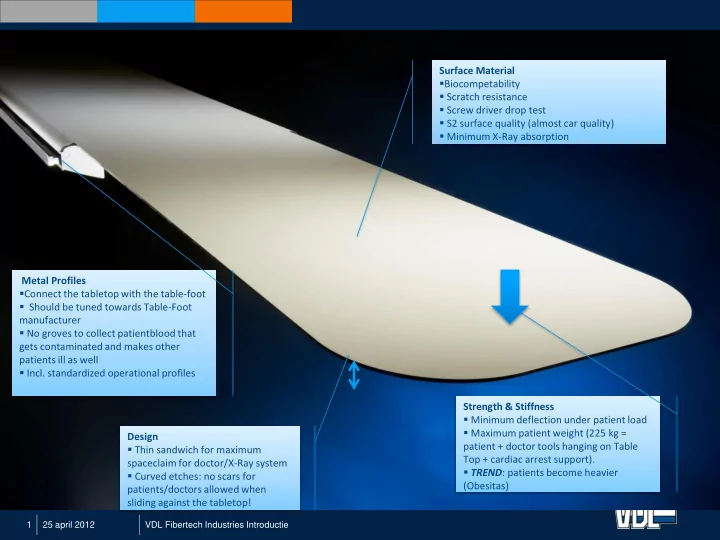

25 april 2012 VDL Fibertech Industries Introductie 1

Surface Material

  • Biocompetability
  • Scratch resistance
  • Screw driver drop test
  • S2 surface quality (almost car quality)
  • Minimum X-Ray absorption

Metal Profiles

  • Connect the tabletop with the table-foot
  • Should be tuned towards Table-Foot

manufacturer

  • No groves to collect patientblood that

gets contaminated and makes other patients ill as well

  • Incl. standardized operational profiles

Design

  • Thin sandwich for maximum

spaceclaim for doctor/X-Ray system

  • Curved etches: no scars for

patients/doctors allowed when sliding against the tabletop! Strength & Stiffness

  • Minimum deflection under patient load
  • Maximum patient weight (225 kg =

patient + doctor tools hanging on Table Top + cardiac arrest support).

  • TREND: patients become heavier

(Obesitas)

slide-2
SLIDE 2

25 april 2012 Algemene presetatie VDL Groep 2

VDL FIBERTECH INDUSTRIES

X-Ray Photo of Competitor Table Top X-Ray Photo of VDL Fibertech Table Top

X-Ray X-Ray

slide-3
SLIDE 3

X-Ray Requirements & Tests

 VDL Fibertech Industries complies with IEC 60601  For Absorption, especially clause 203.10 of IEC 60601-2-43 and 2-54 apply  Due to more than 30 years of experience in the global market and though various contacts and studies with doctors in hospitals, we established our X-ray inspection as follows: ■ 100% check of all Table Tops and X-ray accessories ■ All meet IEC 60601 absorption requirements ■ All are judged on ‘homogeneity’:

  • no artifacts such as included heavy elements (sand, metal, ..)
  • No ‘cloudiness’ either dark or white
  • No dark / white lines or bars of spots
  • No air bubbles or air inclusions allowed

25 april 2012 Algemene presetatie VDL Groep 3

slide-4
SLIDE 4

How a table top can influence clinical judgement,

4

Competition VDL FIBERTECH INDUSTRIES B.V.

Area’s of potential false judgement

Measured @ 40kV, 10mA

Introduction Application Technology In Practice Products

autoclave RTM

slide-5
SLIDE 5

25 april 2012 Algemene presetatie VDL Groep 5

MDF Based Sandwich

  • Modern detectors see more and finer details. They demand more homogeneous tabletops. MDF is not homogeneous.
  • Low X-ray absorption (under the legal requirements) is a unique selling point for tabletops. MDF performs poorly here as well.
slide-6
SLIDE 6

25 april 2012 Algemene presetatie VDL Groep 6

VDL Fibertech Sandwich

  • Modern detectors see more and finer details. They demand more homogeneous tabletops. MDF is not homogeneous.

Low X-ray absorption (under the legal requirements) is a unique selling point for tabletops. MDF performs poorly here as well.

  • Modern detectors see more and finer details. They demand more homogeneous tabletops. MDF is not homogeneous.
  • Low X-ray absorption (under the legal requirements) is a unique selling point for tabletops. MDF performs poorly here as well.
slide-7
SLIDE 7

Tabletops

AD7 tabletop for Philips Allura Xper

  • Carbon Fiber
  • Extreme stiff & strong, 225 [kg]
  • max patient weight
  • Integrated profiles
  • Excellent X-ray properties
  • Scratch & Impact resistant coating

VDL Fibertech Industries Introductie

slide-8
SLIDE 8

THS Tabletop for Philips X-ray Digital Diagnost

Tabletops

  • Carbon / Rohacell sandwhich design
  • Single Side suspended
  • Including integrated insert
  • Patientweight max 225 [kg]!
  • S2 quality lacquer

VDL Fibertech Industries Introductie

slide-9
SLIDE 9

Trolley Table Top For Philips Digital Diagnost

Tabletops

  • Carbon / Rohacell sandwhich design
  • Single Side suspended
  • Including integrated insert
  • Patientweight max 225 [kg]!
  • S2 quality lacquer

VDL Fibertech Industries Introductie

slide-10
SLIDE 10

Tabletops

Table Top for Mainstream RAD systems

  • Cost effective sandwhich design
  • Dual Side Suspended
  • Minimized X-ray absorption
  • Patient weight max 210 [kg]!
  • scratch & impact resistant, bio compatible
  • Smooth rolling characteristics

VDL Fibertech Industries Introductie

slide-11
SLIDE 11

25 april 2012 11

Table Top for value end RAD

VDL Fibertech Industries Introductie

slide-12
SLIDE 12

25 april 2012 12

CT Table Top

VDL Fibertech Industries Introductie

slide-13
SLIDE 13

Extended Operation Profile for Philips Allura Xper

  • 70% weight reduction (compared to metal

assessory)

  • Fully X-Ray translucent!
  • No X-Ray scatter during imaging

Healthcare Accessories

VDL Fibertech Industries Introductie

slide-14
SLIDE 14

25 april 2012 14

Extended OP Rail

VDL Fibertech Industries Introductie

slide-15
SLIDE 15

25 april 2012 15

Arm Support

  • Strong
  • X-ray translucent
  • Biocompatible
  • All ‘till the edge

VDL Fibertech Industries Introductie

slide-16
SLIDE 16

25 april 2012 16

Arm Rest

  • Strong
  • X-ray translucent
  • Biocompatible
  • All ‘till the edge

VDL Fibertech Industries Introductie

slide-17
SLIDE 17

25 april 2012 17

Arm Board

  • Strong
  • X-ray translucent
  • Biocompatible
  • All ‘till the edge

Leg Filter

  • Absorbs X-ray
  • Enhance contrast

VDL Fibertech Industries Introductie

slide-18
SLIDE 18

25 april 2012 18

Carbon Plates

  • 0.2 mm up
  • highest X-ray translucency
  • highest surface quality
  • Optional: protective foil
  • Optional: aluminimum layer

Sandwich

  • PUR foam
  • X-Ray translucent
  • Medical grade

Milled

  • 0.1 [mm] tolerance

VDL Fibertech Industries Introductie

slide-19
SLIDE 19

Grid carbon plate specification (in Dutch)

25 april 2012 Algemene presetatie VDL Groep 19
