1/21/2019 ROOM AIR DISTRIBUTION MSYS4480 1 Why Air Distribution? Provide Occupant Thermal Comfort Provide sufficient ventilation to meet codes Control Latent loads (Humidity) Satwinder Singh / www.tagengineering.ca 2 2 1

slide-1
SLIDE 1

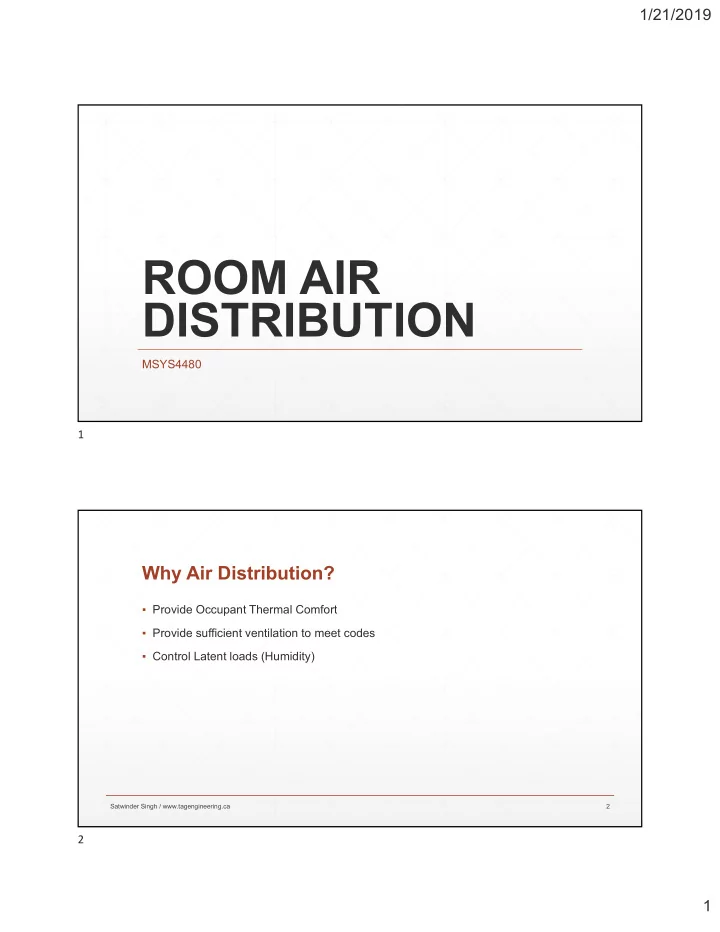

1/21/2019 1

ROOM AIR DISTRIBUTION

MSYS4480

Why Air Distribution?

▪ Provide Occupant Thermal Comfort ▪ Provide sufficient ventilation to meet codes ▪ Control Latent loads (Humidity)

Satwinder Singh / www.tagengineering.ca 2

1 2

slide-2
SLIDE 2

1/21/2019 2

Comfort Criteria

For Occupied zone: ▪ Air temp maintained between 70-76°F ▪ RH maintained between 25-60% ▪ Maximum air motion in the occupied zone

▪ 50 fpm cooling ▪ 25 fpm heating ▪ 1-4 CFM per square foot

▪ Maximum temperature gradient

▪ 1-2° cooling ▪ 4° heating

Satwinder Singh / www.tagengineering.ca 3

What distributes the air?

▪ Rooftop units, Fan Coil Units ▪ Mixing Boxes, VAV terminals, Water Source Heat Pumps etc ▪ Ductwork ▪ Grilles, Diffusers and other air distribution devices

Satwinder Singh / www.tagengineering.ca 4

3 4

slide-3
SLIDE 3

1/21/2019 3

Air Diffusion / Distribution Methods

▪ Mixing Systems ▪ Displacement Ventilation ▪ Localized Ventilation (Make-Up Air)

Satwinder Singh / www.tagengineering.ca 5

Mixed Ventilation

▪ Most Common

Satwinder Singh / www.tagengineering.ca 6

5 6

slide-4
SLIDE 4

1/21/2019 4

Types of Air

▪ Primary Air:

▪ The conditioned air discharged by the supply outlet. This air provides the motive force for room air motion.

▪ Total Air:

▪ The mixture of primary air and entrained room air which is under the influence of supply

  • utlet conditions.

▪ This is commonly considered to be the air within an envelope of 50 fpm [0.25 m/s] (or greater) velocity. The temperature difference between the total air and the room air creates buoyant effects which cause cold supply air to drop and warm air to rise.

Satwinder Singh / www.tagengineering.ca 7

Why Air Distribution?

Satwinder Singh / www.tagengineering.ca 8

7 8

slide-5
SLIDE 5

1/21/2019 5

Why Air Distribution?

Satwinder Singh / www.tagengineering.ca 9

Room Air Diffusion - Heating

Satwinder Singh / www.tagengineering.ca 10

9 10

slide-6
SLIDE 6

1/21/2019 6

Space Air Distribution - THROW

THROW

  • Mass flow
  • Outlet velocity

Satwinder Singh / www.tagengineering.ca 11

DROP

DROP

  • Mass flow rate
  • Bouyancy

Satwinder Singh / www.tagengineering.ca 12

11 12

slide-7
SLIDE 7

1/21/2019 7

Terminal Velocity

Most catalog throw data is presented for isothermal conditions (i.e., supply air temperature equals room temperature). During cooling the denser supply air will shorten the horizontal throw to approximately 75% of tabulated values (multiply by 0.75), assuming a temperature differential of approximately 15 °F [7.5 °C].

Referring to the catalog page we determine the 50 fpm throw to be :

  • 0° deflection - 22 ft isothermal or (22 x .75) = 17 ft cooling
  • 22° deflection - 18 ft isothermal or (18 x .75) = 14 ft cooling
  • 45° deflection - 11 ft isothermal or (11 x .75) = 8 ft cooling

The 22° deflection provides the best coverage and would be the optimum selection.

Satwinder Singh / www.tagengineering.ca 13

Terminal Velocity

Throw is the distance from the center of the

  • utlet face to a point where the velocity of the air

stream is reduced to a specified velocity. Usually ▪ 150 fpm [0.75 m/s] ▪ 100 fpm [0.50 m/s] ▪ 50 fpm [0.25 m/s] T150 [T0.75], T100 [T0.50], T50 [T0.25]

Satwinder Singh / www.tagengineering.ca 14

13 14

slide-8
SLIDE 8

1/21/2019 8

SPREAD

Satwinder Singh / www.tagengineering.ca 15

Coanda Effect

Satwinder Singh / www.tagengineering.ca 16

15 16

slide-9
SLIDE 9

1/21/2019 9

Occupied Zone

6ft [1.8m]

Satwinder Singh / www.tagengineering.ca 17

Air Distribution – Performance Factors

▪ Air Pattern ▪ Throw ▪ Drop ▪ Spread ▪ Pressure Drop ▪ Noise Level

Satwinder Singh / www.tagengineering.ca 18

17 18

slide-10
SLIDE 10

1/21/2019 10

Air Distribution – Performance Factors – Air Patterns

Satwinder Singh / www.tagengineering.ca 19

Air Distribution – Performance Factors – Air Patterns

Satwinder Singh / www.tagengineering.ca 20

19 20

slide-11
SLIDE 11

1/21/2019 11

Outlet Classification

Group A. Outlets mounted in or near the ceiling that discharge air horizontally. Group B. Outlets mounted in or near the floor that discharge air vertically in a non-spreading jet. Group C. Outlets mounted in or near the floor that discharge air vertically in a spreading jet. Group D. Outlets mounted in or near the floor that discharge air horizontally. Group E. Outlets mounted in or near the ceiling that project primary air vertically.

Satwinder Singh / www.tagengineering.ca 21

Air Distribution – Performance Factors – Diffusers (Group A)

Satwinder Singh / www.tagengineering.ca 22

21 22

slide-12
SLIDE 12

1/21/2019 12

Air Distribution – Performance Factors – Pressure Drop

Satwinder Singh / www.tagengineering.ca 23

Air Distribution – Performance Factors – Noise Criteria

Satwinder Singh / www.tagengineering.ca 24

23 24

slide-13
SLIDE 13

1/21/2019 13

Air Distribution – Performance Factors – Noise Criteria

Satwinder Singh / www.tagengineering.ca 25

Air Distribution – Performance Factors – Noise Criteria

Decibel(dB) is measured against a frequency and averaged into octave bands

Both tones are equally loud

Satwinder Singh / www.tagengineering.ca 26

25 26

slide-14
SLIDE 14

1/21/2019 14

Air Distribution – Performance Factors – Noise Criteria

For HIGH Frequencies

  • 1 dB not noticeable
  • 3 dB just perceptible
  • 5 dB noticeable
  • 10 dB twice as loud
  • 20 dB four times as loud

For LOW Frequencies

  • 3 dB noticeable
  • 5 dB twice as loud
  • 10 dB four times as loud

Satwinder Singh / www.tagengineering.ca 27

Air Distribution – Performance Factors – Noise Criteria

Calculating NC Level

Satwinder Singh / www.tagengineering.ca 28

27 28

slide-15
SLIDE 15

1/21/2019 15

Air Distribution – Performance Factors – Noise Criteria

Calculating NC Level

Satwinder Singh / www.tagengineering.ca 29

Air Distribution – Performance Factors – Noise Criteria

Can we add decibels? 80 dB + 76 dB 156 dB To add decibels, calculate the difference 80 dB ‐ 76 dB 6 dB

From Chart: Add 1.0 dB to higher Value

80 dB +1 dB = 81 dB

Satwinder Singh / www.tagengineering.ca 30

29 30

slide-16
SLIDE 16

1/21/2019 16

Air Distribution – Performance Factors – Noise Criteria

Hmmmmm…….??

  • Proximity to the source sources is vital
  • Properly selected diffusers shouldn’t

be heard from more than 10 feet away

  • There might be more than one

diffusers in a room, not more than 1 or 2 will be within 10 feet from an

  • ccupant

Diffuser NC values are based on a 10 dB room effect deduction in each octave band

  • Typical medium office with 8‐10 ft

high lay‐in ceiling, commercial carpet, sheetrock walls, and some

  • ffice furniture
  • 10 dB is a reasonable room effect

deduction for the critical octave bands

  • Critical octave bands are 4th (500 Hz),

5th (1000 Hz), and 6th (2000 Hz)

Satwinder Singh / www.tagengineering.ca 31

Air Distribution – Performance Factors – Noise Criteria

  • Diffuser NC values are based on a 10 dB room effect deduction

in each octave band

  • Typical medium office with 8‐10 ft high lay‐in ceiling,

commercial carpet, sheetrock walls, and some office furniture

  • 10 dB is a reasonable room effect deduction for the critical
  • ctave bands
  • Critical octave bands are 4th (500 Hz), 5th (1000 Hz), and 6th

(2000 Hz)

Satwinder Singh / www.tagengineering.ca 32

31 32

slide-17
SLIDE 17

1/21/2019 17

Air Distribution – Noise Criteria - Choosing Diffusers

Satwinder Singh / www.tagengineering.ca 33

Air Distribution – Noise Criteria - EXAMPLE

A Model 520 size 6 in. x 5 in. supply grille operating at 150 cfm has been selected to supply a 10 ft x 15 ft room as shown. What is the best deflection setting of the diffuser blades if conditioned cool air is supplied? For 50 fpm throw: 0° deflection: 22 x .75= 17’ 22° deflection: 18 x .75= 14’ 45° deflection: 11 x .75= 8’ 22° deflection provides the best coverage and would be the optimum selection.

Satwinder Singh / www.tagengineering.ca 34

33 34

slide-18
SLIDE 18

1/21/2019 18

Air Distribution – ADPI

  • ADPI: Air Diffusion Performance Index
  • Statistically related the space conditions of local or

transverse temperatures and velocities to occupants’ thermal comfort

  • ADPI >= 80 is considered acceptable
  • Effective draft temperature
  • = (tx-tc) – 0.07(Vx-30)
  • % of points where -3<= ฀฀<= +2 = ADPI
  • Velocity below 70 fpm

1. Generally, the higher the room load, the more high ADPI. 2. A value of T/L = 1.0 generally will produce an 3. Some air outlets are better than others at ach For example, a sidewall grille has a maximum the circular ceiling diffuser can achieve an AD 4. A wide T/L range allows the designer more fle air outlet for optimum ADPI. 5. Outlets with a wide T/L range are more applic they can maintain a high ADPI even when tur volume. At 20 Btu/h/ft2 [63 W/m2] a ceiling slot diffuse

  • f 20% while maintaining an ADPI of greater

condition the high sidewall grille has a turn-do approximately 50%. Light troffer diffusers hav

  • f all outlets, making them an excellent choic

Satwinder Singh / www.tagengineering.ca 35

Pressure Losses

Supply air outlets produce:

  • Static pressure loss
  • Velocity pressure loss.

▪ Static pressure loss is equal to the difference between the inlet static pressure (SPi) and the room pressure (usually atmospheric). ▪ The static pressure loss is dependent on outlet geometry and/or free area and must be derived by test. ▪ Static pressure loss is directly proportional to the volume of air supplied through the outlet.

Velocity pressure loss is equal to the velocity pressure at the inlet (VPi) and the room velocity pressure (zero).

Satwinder Singh / www.tagengineering.ca 36

35 36

slide-19
SLIDE 19

1/21/2019 19

Pressure Losses

Satwinder Singh / www.tagengineering.ca 37

DEDUCTIONS

1. The square plaque and square cone diffuser are an excellent choice for acoustically sensitive applications or when high air volumes per outlet are desired. This is due to the aerodynamic cones and high free area. 2. Perforated diffusers tend to be noisier than other available models at the same air volume. This is due to the restricted free area of the perforated face and pattern deflectors in the air stream. 3. There is a fairly large variation in generated noise levels, even between various perforated diffuser types. The curved pattern controllers of the perforated curved diffuser generates less sound than the less aerodynamic neck deflectors of the perforated neck deflector diffuser. 4. Selecting outlets based on neck velocity is a poor indication of acoustic performance. 5. To ensure predictable sound levels it is essential to reference the manufacturers’ cataloged sound levels for the specified product.

Satwinder Singh / www.tagengineering.ca 38

37 38

slide-20
SLIDE 20

1/21/2019 20

Displacement Ventilation

Supply air is introduced to the room at low level (typically via under floor plenums through diffusers) and collected at high level. The cool air disperses throughout the room until coming in contact with a hot object. It will then form a “thermal plume” which naturally rises upward in the space create convection in the occupied zone.

Satwinder Singh / www.tagengineering.ca 39

Displacement Ventilation Cont…

Advantages ▪ Very good air distribution ▪ Effective in rooms with high ceilings ▪ Low energy consumption Disadvantages ▪ Expensive to install sub floors in earthquake zones such as Vancouver ▪ Effectiveness is greatly reduced when diffusers are placed improperly or too much furniture is present.

Satwinder Singh / www.tagengineering.ca 40

39 40

slide-21
SLIDE 21

1/21/2019 21

Localized Ventilation (Make-Up Air)

Used in areas where contaminated air must be exhausted and replaced immediately Typical Applications ▪ Kitchen Hoods ▪ Commercial Dishwashers ▪ Paint Shops ▪ Wood Shops ▪ Large Locker/Change Rooms

Satwinder Singh / www.tagengineering.ca 41
