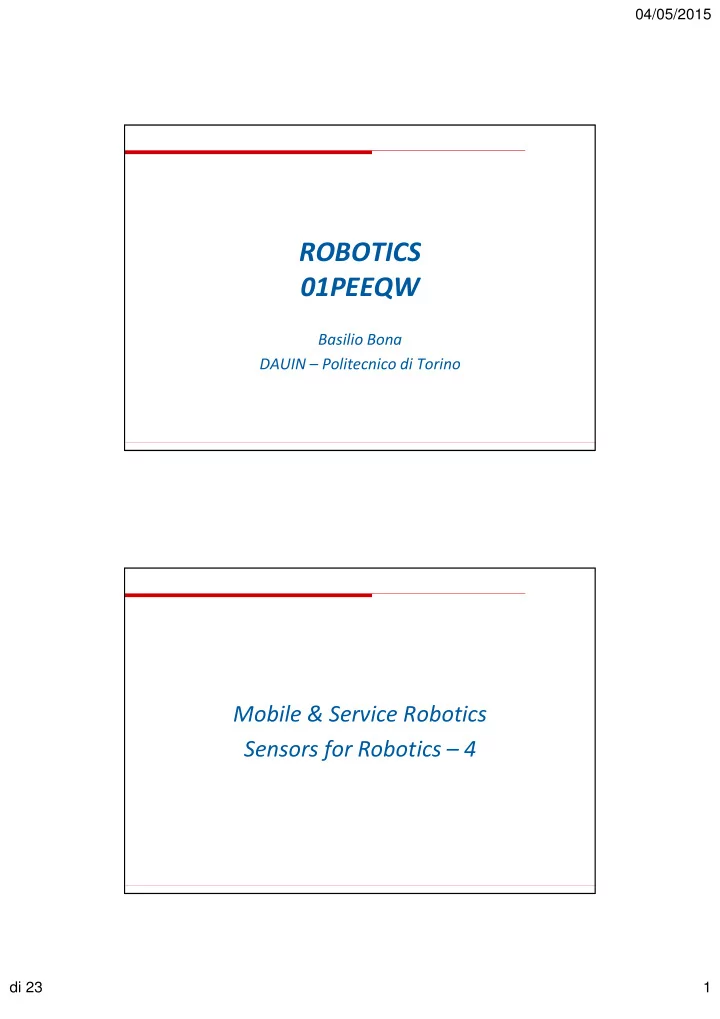

[PDF] - ROBOTICS 01PEEQW Basilio Bona DAUIN Politecnico di Torino Mobile PDF Document

SLIDE 1

04/05/2015 di 23 1

ROBOTICS 01PEEQW

Basilio Bona DAUIN – Politecnico di Torino

Mobile & Service Robotics Sensors for Robotics – 4

SLIDE 2

04/05/2015 di 23 2

Vision

Vision is the most important sense in humans and is becoming important also in robotics

not expensive rich of information

Vision includes three steps

Data recording and transformation in the retina Data transmission through the

ptical nerves

Data elaboration by the brain

3 ROBOTICS 01PEEQW - 2014/2015

CMOS (Complementary Metal Oxide Semiconductor technology)

Vision sensors: hardware

4

CCD (Coupled Charge Device, light-sensitive, discharging capacitors of 5 to 25 micron)

ROBOTICS 01PEEQW - 2014/2015

SLIDE 3

04/05/2015 di 23 3

Parallel lines Converging lines

Artificial vision issues

Projection from a 3D world on a 2D plane: perspective projection (transformation matrices) Discretization effects due to pixels (CCD or CMOS) Misalignment errors (hardware)

5

Pixel discretization

ROBOTICS 01PEEQW - 2014/2015

Camera models

Pinhole camera (aka perspective camera)

6 ROBOTICS 01PEEQW - 2014/2015

SLIDE 4

04/05/2015 di 23 4

Pinhole camera

7 ROBOTICS 01PEEQW - 2014/2015

A B image planes

Decreasing the image plane distance or the hole diameter makes the point images sharper Increasing the hole diameter makes the point images brighter Infinite depth-of-field Infinite depth-of-focus

point images point images

hole diameter

the image is reversed

Camera models

Thin lens camera: the lens has a thickness d that is negligible compared to the radii of curvature of the lens surfaces R1, R2 Rays are refracted as they go through the lens (refraction index n)

8 ROBOTICS 01PEEQW - 2014/2015

1 2

1 1 1 ( 1) ; 0 if convex

i

n R f R R     ≈ − − >    

Thin lens equation

SLIDE 5

04/05/2015 di 23 5

Thin lens camera

Thin lens camera is reversible Rays parallel to the optical axis pass through the focus and viceversa Rays through the lens center are not refracted There are two symmetrical foci True lens shows aberration phenomena

9 ROBOTICS 01PEEQW - 2014/2015

f f

ptical axis

lens center

Aberration

10 ROBOTICS 01PEEQW - 2014/2015

Spherical

SLIDE 6

04/05/2015 di 23 6

Image formation

11 ROBOTICS 01PEEQW - 2014/2015

Optical axis Principal image plane Focal Plane Reversed image plane

π π′

F

π

3D object

Thin lens approximation ≈ Pinhole camera

Image formation and equations

12 ROBOTICS 01PEEQW - 2014/2015

image plane real object

p

image distance

bject distance

q f

focal distance focal plane

( ) 1 1 1 ( ) ( ) p f f pq f p q f q f p q f − = ⇒ = + ⇒ + = − ( ) pf q p f = − if then p f q f ≈ ≫

the image plane is approx in the focal plane Lens equation

f

field of view angle

SLIDE 7

04/05/2015 di 23 7

Image formation

13 ROBOTICS 01PEEQW - 2014/2015

f

c

C

c

k

c

i

z

p

x

p

i

x π

F

π

i

P

i i i i

x P y     ⇒ =       p P

x y z

p P p p       ⇒ =         p

Transformations

Coordinate transformation between the world frame and the camera frame Projection of 3D point coordinates onto 2D image plane coordinates Coordinate transformation between possible choices of image coordinate frame

14 ROBOTICS 01PEEQW - 2014/2015

SLIDE 8

04/05/2015 di 23 8

Transformations

15

R

c

R

i

R

pix

R

π′

ROBOTICS 01PEEQW - 2014/2015

Image plane World frame Camera frame

1

c c c

    =       R t T 0 T

i pix

T 1 1 1

c i

f         =           T

Rescaling Optical correction

Reference frames

16

R

c

p

c

C

c

R

f

Optical axis Focal plane Image plane

i

R

i

j

pix

R

i

O π v u

F

π

ROBOTICS 01PEEQW - 2014/2015

c

k

c

i

c

j

World frame

P

i

P

c

′ p

pix

p

i

p

c i pix

  →  → ←  ← 

translation translation+scale

R R R p

SLIDE 9

04/05/2015 di 23 9

Vector notation

17 ROBOTICS 01PEEQW - 2014/2015

i i i i pix pix

x y u v   ⇔ =       ⇔ =     p p

T T

R R

in pixel units

in 3D in 2D

c c c c c c c c c c

x y x x y x x y x   ⇔ =       ⇔ =       ′ ′ ′ ′ ⇔ =     p p p

T T T

R R R

Perspective projection

18

f

i

P

c

C

c

k

c

i

z

p

x

p

i

x π′

F

π π

i

C

i

P

x i x z z i

p x p p f p f x = ⇒ = − −

ROBOTICS 01PEEQW - 2014/2015

Usually the negative sign is avoided considering the reversed image plane

All points give the same image P’

f

SLIDE 10

04/05/2015 di 23 10

Camera projections Perspective projection Orthographic projection

19 ROBOTICS 01PEEQW - 2014/2015

x i x i z z

p x p x f p f p = → =

z i x

p x p α ≈ ⇒ = if const

large compared to the distance from the camera small compared to the distance from the camera

The pixel height of similar subject is different if the distance from the camera varies a lot. On the left the persons have different pixel height while on the right they have approximately similar heights, since their distance from the camera is high and does not vary much

Perspective projection

20 ROBOTICS 01PEEQW - 2014/2015

x c y z

p P p p       ⇒ =         p 1 1

i i c z i c c c z

f f p f p         = ⇒ = =             p p p p P p

x z y z

p p i p c i p z z

f x f P f y p p f             ′ ′   ⇒ = =                 p

i

p

perspective projection

0 1 1

i i c c c c

f f f f λ             = = =                   p p p P p

arbitrary positive constant

SLIDE 11

04/05/2015 di 23 11

Perspective projection

21 ROBOTICS 01PEEQW - 2014/2015

Homogeneous coordinates

1

c x y z

p p p   =     p ɶ

T

1

i i i

x y   =     p ɶ

T

1 1 1

i i i z i i i z x i y i i c z i z i c c c z i c i c

x x f p f y y p p x f p p p y f p λ         = ⇒ =             ⇓                     = = = =                           ⇓ = p p p p T p p T p ɶ ɶ ɶ ɶ Π Π Π

Homogeneous perspective/projection matrix

Perspective projection

22 ROBOTICS 01PEEQW - 2014/2015

0 1 0 0 1 1 1 0 1

c c i c c

f f                 =                       R t T 0 T Π

Canonical projection matrix

this is the ideal case

SLIDE 12

04/05/2015 di 23 12

Perspective projection

PP is studied by projective geometry PP preserves linearity; lines in 3D correspond to lines in 2D and viceversa PP does not preserve parallelism The intersection points in 2D of parallel lines in 3D define vanishing points (points infinitely far away)

23 ROBOTICS 01PEEQW - 2014/2015

Camera parameters

Intrinsic parameters: the parameters that link the pixel coordinates of an image point to the corresponding (metric) coordinates in the camera reference frames Extrinsic parameters: the parameter that define the location and

rientation of the camera reference frame with respect to a

known world reference frame Camera calibration: the procedure to estimate these parameters

24 ROBOTICS 01PEEQW - 2014/2015

1

W W c c W c

    = ⇒       R t T 0 T 6 parameters

SLIDE 13

04/05/2015 di 23 13

Camera intrinsic parameters

25 ROBOTICS 01PEEQW - 2014/2015

n columns m rows

x

s

x y

s s

i

R

pix

R

pix

i

j

pix

j u v 6 8 u v = = ( , )

aspect ratio

u v ,

x pix y



   =     c

in pixel units camera center in pixel units

x y

s s pix , in m

y

s

pix

c

Camera intrinsic parameters

Focal length f Transformation between pixel coordinates and camera coordinates Geometric distortion introduced by the optical lens systems

26 ROBOTICS 01PEEQW - 2014/2015

SLIDE 14

04/05/2015 di 23 14

Camera intrinsic parameters

Transformation between pixel coordinates and camera coordinates (scaling + translation) in homogeneous coordinates

27 ROBOTICS 01PEEQW - 2014/2015

x i x y i y

u s x

v

s y



= +     = +   1 1 1

i x x px pi i y y py pi i

x s s o x y s s o y       −             = −                   ⇓ p ɶ

Lens distorsion

28

Types

Barrel distortion Pincushion distortion

Radial distortion is modelled by a function D(r) that affects each point v in the projected plane relative to the principal point p, where D(r) is normally a non-linear scalar function and p is close to the midpoint

f the projected image.

Barrel projections are characterized by a positive gradient of the distortion function, whereas pincushion by a negative gradient

( )

d

v D v p v p = − +

Radial distortion Non radial distortion (tangential)

ROBOTICS 01PEEQW - 2014/2015

SLIDE 15

04/05/2015 di 23 15

Lens distortion

29 ROBOTICS 01PEEQW - 2014/2015

( ) ( )

2 4 6 1 2 3 2 4 6 1 2 3

1 1

i id i id

x x k r k r k r y y k r k r k r = + + + = + + +

where

id id

x y ,

are the coordinates of the distorted image points

2 2 2 id id

r x y = +

is the square of the distance from the camera image center

1 2 3

k k k , ,

are intrinsic parameters Radial distortion is approximated by

Other image sensor errors

30

Errors are due to the imperfect orthogonality of pixel elements in CCD or CMOS sensors

ROBOTICS 01PEEQW - 2014/2015

SLIDE 16

04/05/2015 di 23 16

Optical sensors

Optical distance sensors

Depth from focus
Stereo vision
ToF cameras

Motion and optical flow

31 ROBOTICS 01PEEQW - 2014/2015

Depth from focus

32

The method consists in measuring the distance of an object evaluating the focal length adjustment necessary to bring it in focus Short distance focus Medium distance focus Far distance focus

ROBOTICS 01PEEQW - 2014/2015

SLIDE 17

04/05/2015 di 23 17

Depth from focus

1 1 1 f D e = +

D f e δ focal plane image plane ( , , ) x y z ( , )

i i

x y

D

L ( ) 1 1 1 ( ) 2 ( ) ( )

D

L d e b x f d e s x + = − − + blur radius shape

33 ROBOTICS 01PEEQW - 2014/2015

Depth from focus

Near focusing Far focusing

34 ROBOTICS 01PEEQW - 2014/2015

SLIDE 18

04/05/2015 di 23 18

Stereo disparity

35

x z

( )

,

r r

x y

( )

, x y

ℓ ℓ

( )

, , x y z f b

left lens image plane right lens baseline (known)

ROBOTICS 01PEEQW - 2014/2015

Stereo disparity

36

( ) ( )

/ 2 / 2 , / 2 / 2

r r r r r r r

x x x b x b f z f z x x b f z x x x b x x y y y b y y f z b x x + − = = − = + = − + = − = −

ℓ ℓ ℓ ℓ ℓ ℓ ℓ

Idealized camera geometry for stereo vision

Disparity between two images → Depth computation

ROBOTICS 01PEEQW - 2014/2015

SLIDE 19

04/05/2015 di 23 19

Stereo vision

Distance is inversely proportional to disparity

closer objects can be measured more accurately

Disparity is proportional to baseline

For a given disparity error, the accuracy of the depth estimate increases with increasing baseline b However, as b is increased, some objects may appear in one camera, but not in the other

A point visible from both cameras produces a conjugate pair

Conjugate pairs lie on epipolar line (parallel to the x-axis for the arrangement in the figure above)

37 ROBOTICS 01PEEQW - 2014/2015

These two points are corresponding: how do you find them in the two images?

Stereo points correspondence

38

Left image Right image Disparity Right Left

ROBOTICS 01PEEQW - 2014/2015

SLIDE 20

04/05/2015 di 23 20

Epipolar lines

39

P

1

C

2

C π

1

q

2

q

1

e

2

e , R t

1

τ

2

τ

1

ℓ

2

ℓ

corresponding points stay on the epipolar lines epipolar lines these two points are known and fixed (they are called epipoles)

ROBOTICS 01PEEQW - 2014/2015

Stereo vision

Depth calculation

The key problem in stereo vision is how to optimally solve the correspondence problem Corresponding points lie on the epipolar lines

Gray-Level Matching

Match gray-level features on corresponding epipolar lines Zero-crossing of Laplacian of Gaussians is a widely used approach for identifying the same feature in the left and right images “Brightness” = image irradiance or intensity I(x,y) is computed and used as shown below

40 ROBOTICS 01PEEQW - 2014/2015

SLIDE 21

04/05/2015 di 23 21

Stereo vision

L R VERTICAL FILTERED IMAGES Confidence image Depth image

41 ROBOTICS 01PEEQW - 2014/2015

Time of Flight (ToF) Cameras – 1

Range imaging systems based on the known speed of light They measure the time-of-flight, i.e., the time from the emission to the return of the signal The measurement is performed for each point of the image (different from Lidars) The distance resolution is 1 cm (larger than Lidars’) The simplest version of a time-of-flight camera uses light pulses

42 ROBOTICS 01PEEQW - 2014/2015

SLIDE 22

04/05/2015 di 23 22

Time of Flight (ToF) Cameras – 2

The illumination is switched on for a very short time, the light pulse illuminates the scene and is reflected by the objects The camera lens gathers the reflected light and images it onto the sensor plane Depending on the distance, the incoming light experiences a delay The pulse width of the illumination determines the maximum range of the camera can handle Only with some special LEDs or lasers is it possible to generate such short pulses

43 ROBOTICS 01PEEQW - 2014/2015

Time of Flight (ToF) Cameras – 3

The single pixel consists of a photo diode that converts the incoming light into a current In analog solutions fast switches are connected to the photo diode, which sends the current to one of two memory elements (capacitors) that act as summation elements In digital solutions a time counter, running at several gigahertz, is connected to each pixel and stops counting when light is sensed

44 ROBOTICS 01PEEQW - 2014/2015

SLIDE 23

04/05/2015 di 23 23

Time of Flight (ToF) Cameras – 4

The pixel uses two switches G1 and G2 and two memory elements S1 and S2 The switches are controlled by a pulse with the same length as the light pulse, where the control signal of switch G2 is delayed by exactly the pulse width Depending on the delay, only part of the light pulse is sampled through G1 in S1, the other part is stored in S2 Depending on the distance, the ratio between S1 and S2 changes as depicted in the drawing Because only small amounts of light hit the sensor within 50 ns, not only one but several thousand pulses are sent out (repetition rate tR) and gathered, thus increasing the signal to noise ratio

45 ROBOTICS 01PEEQW - 2014/2015

Analog solution

Time of Flight (ToF) Cameras – 5

After the exposure, the pixel is read out and the signals S1 and S2 are measured. The length of the light pulse is known, and the distance can be calculated as In the presence of background light, the memory elements receive an additional part of the signal that disturbs the distance measurement To eliminate the background part of the signal, the whole measurement can be performed a second time with the illumination switched off

46 ROBOTICS 01PEEQW - 2014/2015

1 2 2 1 2 S D ct S S = +

SLIDE 24

04/05/2015 di 23 24

Time of Flight (ToF) Cameras – 6

47 ROBOTICS 01PEEQW - 2014/2015

Time of Flight (ToF) Cameras – 5

Pros

Simplicity

In contrast to stereo vision or triangulation systems, the whole system is very compact: the illumination is placed just next to the lens, whereas the other systems need a certain minimum base line. In contrast to laser scanning systems, no mechanical moving parts are needed

Efficient distance algorithm

It is very easy to extract the distance information out of the output signals of the TOF sensor, therefore this task uses only a small amount of processing power, again in contrast to stereo vision, where complex correlation algorithms have to be

implemented. After the distance data has been extracted, object detection, for

example, is also easy to carry out because the algorithms are not disturbed by patterns on the object

Speed

Time-of-flight cameras are able to measure the distances within a complete scene with one shot. As the cameras reach up to 160 frames per second, they are ideally suited to be used in real-time applications

48 ROBOTICS 01PEEQW - 2014/2015

SLIDE 25

04/05/2015 di 23 25

Time of Flight (ToF) Cameras – 6

Cons

Background light

When using CMOS or other integrating detectors or sensors that use visible or near visible light (400 nm - 700 nm), although most of the background light coming from artificial lighting or the sun is suppressed, the pixel still has to provide a high dynamic

range. The background light also generates electrons, which have to be stored. For

example, the illumination units in many of today's TOF cameras can provide an illumination level of about 1 watt. The Sun has an illumination power of about 50 watts per square meter after the optical band-pass filter. Therefore, if the illuminated scene has a size of 1 square meter, the light from the sun is 50 times stronger than the modulated signal. For non-integrating TOF sensors that do not integrate light over time and are using near-infrared detectors (InGaAs) to capture the short laser pulse, direct viewing of the sun is a non-issue. Such TOF sensors are used in space applications and in consideration for automotive applications

49 ROBOTICS 01PEEQW - 2014/2015

Time of Flight (ToF) Cameras – 7

Cons

Interference

In certain types of TOF devices, if several time-of-flight cameras are running at the same time, the TOF cameras may disturb each other's measurements.

Multiple reflections

In contrast to laser scanning systems, where only a single point is illuminated at

nce, the time-of-flight cameras illuminate a whole scene. On a phase difference

device, due to multiple reflections, the light may reach the objects along several paths and therefore, the measured distance may be greater than the true

distance. Direct TOF imagers are vulnerable if the light is reflecting from a specular
surface. There are published papers that outline the strengths and weaknesses of

the various TOF devices and approaches

50 ROBOTICS 01PEEQW - 2014/2015

SLIDE 26

04/05/2015 di 23 26

Optical flow

51

Optical flow is the pattern of apparent motion of objects, surfaces, and edges in successive scenes caused by the relative motion between the camera and the scene Optical flow techniques

motion detection

bject segmentation

time-to-collision motion compensated encoding stereo disparity measurement

ROBOTICS 01PEEQW - 2014/2015

Optical flow

52

The optical flow methods try to calculate the motion between two image frames which are taken at times t and t + δt at every voxel position. These methods are called differential since they are based on local Taylor series approximations of the image signal, i.e., they use partial derivatives with respect to the spatial and temporal coordinates

A voxel (volumetric + pixel) is a volume element representing a value on a regular grid in 3D space ( , , ) ( , , ) ( , , ) ... I x y t I x x y y t t I I I I x y t x y t x y t δ δ δ δ δ δ = + + + ∂ ∂ ∂ = + + + + ∂ ∂ ∂ I I I x y t x y t δ δ δ ∂ ∂ ∂ + + = ∂ ∂ ∂

ROBOTICS 01PEEQW - 2014/2015

SLIDE 27

04/05/2015 di 23 27

Optical flow

53

T t x y

V V V I I I x y t I I ∂ ∂ ∂ + + = ∂ ∂ ∂ ∇ ⋅ = −

This problem is known as the aperture problem of the

ptical flow algorithms

There is only one equation in two unknowns and therefore cannot be solved To find the optical flow another set of equations is needed, given by some additional constraint. All optical flow methods introduce additional conditions for estimating the actual flow.

ROBOTICS 01PEEQW - 2014/2015

Optical flow

Lucas–Kanade Optical Flow Method

A two-frame differential methods for motion estimation

1 1 2 2

1 1 1 1 2 2 2 2 1

( )

n n

x x y y t t x y x x y y t t x y x y xn yn xn x yn y t t T T

I V I V I I I I I V I V I I I I V V I I I V I V I I

−

      + = −              + = −         ⇒ = −                        + = −            = ⇒ = Ax b x A A A b ⋯ ⋯ ⋯ ⋯

The additional constraints needed for the estimation of the flow are introduced in this method by assuming that the flow is constant in a small window of size with which is centered at pixel Numbering the pixels as a set of equations can be found

54

,

x y

V V 1 m > ( , ) x y

2

1, ,n m = …

ROBOTICS 01PEEQW - 2014/2015

SLIDE 28

04/05/2015 di 23 28

Laplacian

The Laplacian is a 2D isotropic measure of the 2-nd spatial derivative of an image The Laplacian of an image highlights regions of rapid intensity change and is often used for edge detection The Laplacian is often applied to an image that has first been smoothed with something approximating a Gaussian smoothing filter, in order to reduce its sensitivity to noise The operator normally takes a single gray level image as input and produces another gray level image as output

55 ROBOTICS 01PEEQW - 2014/2015

Laplacian

The Laplacian L(x,y) of an image with pixel intensity values I(x,y) is given by:

2 2 2 2

( , ) I I L x y x y L P I ∂ ∂ = + ∂ ∂ = ⊗

1

1 1 4 1 1 P       = −         1 2 1 1 2 4 2 16 1 2 1 G       =        

2

1 1 1 1 8 1 1 1 1 P   − − −     = − −     − − −    

56

Convolution

perator

ROBOTICS 01PEEQW - 2014/2015

SLIDE 29

04/05/2015 di 23 29

Convolution

Convolution is a simple mathematical operation which is fundamental to many image processing operators Convolution “multiplies together” two arrays of numbers, generally of different sizes, but of the same dimensionality, to produce a third array of numbers of the same dimensionality This can be used in image processing to implement operators whose output pixel values are simple linear combinations of certain input pixel values In an image processing, one of the input arrays is normally just the gray level image. The second array is usually much smaller, and is also two-dimensional (although it may be just a single pixel thick), and is known as the kernel

57 ROBOTICS 01PEEQW - 2014/2015

Convolution

58 ROBOTICS 01PEEQW - 2014/2015

SLIDE 30

04/05/2015 di 23 30

Convolution matrix

11 12 13 14 15 16 17 18 19 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 38 39 41 42 43 44 45 46 47 48 49 51 52 53 54 55 56 57 58 59 61 62 63 64 65 66 67 68 69 11 12 13 21 22 23

( , ) I i j ( , ) K i j

IMAGE KERNEL If the image has M rows and N columns, and the kernel has m rows and n columns, then the size of the output image will have

M - m + 1 rows, and N - n + 1 columns

(6 2 1) (9 3 1) 5 7 − + × − + = ×

59 ROBOTICS 01PEEQW - 2014/2015

Convolution product

k11 k12 k13 k21 k22 k23 k11 k12 k13 k21 k22 k23

1 1

( , ) ( 1, 1) ( , ) 1, ,( 1); 1, ,( 1)

m n k l

O i j I i k j l K k l i M m j N n

= =

= + − + − = − + = − +

∑∑

… …

( , ) O i j

60 ROBOTICS 01PEEQW - 2014/2015

SLIDE 31

04/05/2015 di 23 31

Stereo vision

Zero crossing of Laplacian of Gaussian Identification of features that are stable and match well Laplacian of intensity image Step/edge detection of noisy image: filter through Gaussian smoothing

61 ROBOTICS 01PEEQW - 2014/2015

Edge detection

62 ROBOTICS 01PEEQW - 2014/2015

SLIDE 32

04/05/2015 di 23 32

Natural vision

63

Retina

ROBOTICS 01PEEQW - 2014/2015

Natural vision

64

fMRI shows the brain areas interested by neural activity associated to vision Optic chiasm

ROBOTICS 01PEEQW - 2014/2015
