Windows Operating System Internals - by David A. Solomon and Mark E. Russinovich with Andreas Polze

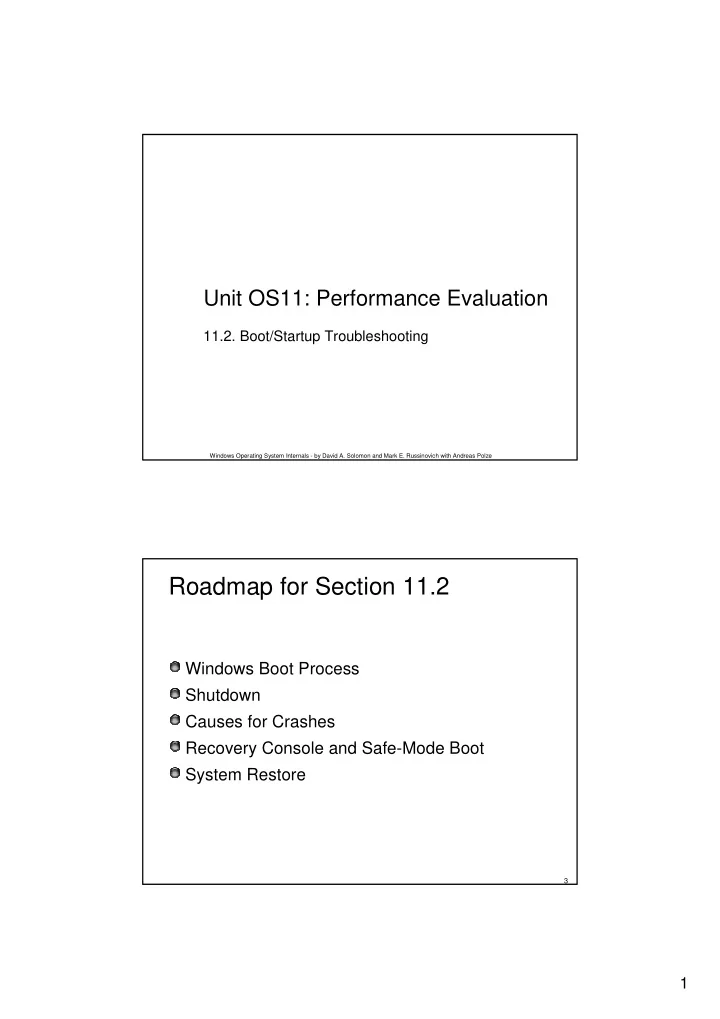

Unit OS11: Performance Evaluation

11.2. Boot/Startup Troubleshooting

3

Roadmap for Section 11.2

Windows Boot Process Shutdown Causes for Crashes Recovery Console and Safe-Mode Boot System Restore

2

4

x86 and x64 Boot Process

Boot begins during installation when Setup writes various things to disk System volume:

Master Boot Record (MBR) Boot sector NTLDR – NT Boot Loader NTDETECT.COM BOOT.INI SCSI driver – Ntbootdd.sys (not present on all systems)

Boot volume:

System files – %SystemRoot%: Ntoskrnl.exe, Hal.dll, etc.

5

The Boot Process

1.

BIOS Reads MBR from boot device

2.

MBR

Contains small amount of code that scans partition table

4 entries First partition marked active is selected as the system volume

Loads boot sector of system volume

3.

Boot sector (NT-specific code)

Reads root directory of volume and loads NTLDR

C:

3

7

x86 and x64 Boot Process

4. NTLDR

Moves system from 16-bit to 32-bit mode and enables paging Reads and uses Ntbootdd.sys to perform disk I/O if the boot volume is on a SCSI disk different than the system volume

This is a copy of the SCSI miniport driver used when the OS is booted

Reads Boot.ini

Boot.ini selections point to boot drive Specifies OS boot selections and optional switches (most for debugging/troubleshooting) that passed to kernel during boot

If more than one selection, NTLDR displays boot menu (with timeout) If you select a 64-bit installation, NTLDR moves the CPU into 64-bit mode

8

Boot Process

4. NTLDR (continued)

Once boot selection made, user can type F8 to get to special boot menu Last Known Good, Safe modes, hardware profile, Debugging mode NTLDR loads and executes Ntdetect.com to perform BIOS hardware detection (x86 and x64 only) Later saved into HKLM\Hardware\Description NTLDR loads: Ntoskrnl.exe, Hal.dll, and Bootvid.dll (and Kdcom.dll for XP and later) The registry SYSTEM hive (\Windows\System32\Config\System) Later this becomes HKLM\System Based on the SYSTEM hive, the boot drivers are loaded Boot driver: critical to boot process (e.g. boot file system driver) Transfers control to main entry point of Ntoskrnl.exe

4

9

The Boot Process (cont)

• 5. Ntoskrnl.exe (splash screen appears)

Initializes kernel subsystems in two phases:

First phase is object definition (process, thread, driver, etc) Second builds on the base that the objects provide This is done in the context of a kernel-mode system thread that becomes the idle thread

I/O Manager starts boot-start drivers and then loads and starts system-start drivers

10

Driver Load Order

Every driver has a key in HKLM\System\CurrentControlSet\Services Type: 1 for driver, 2 for file system driver, others are Win32 services Start: 0 = boot, 1 = system, 2 = auto, 3 = manual, 4 = disabled Some drivers need fine-grained control over load order to satisfy dependencies with

• ther drivers

A driver’s optional Group value controls load order within a start phase (boot, system, auto) HKLM\System\CurrentControlSet\Control\ServiceGroupOrder A driver’s optional Tag value control’s startup within its group Note: Plug-and-play (discussed in the I/O section) controls load order of PnP drivers Special case: the file system driver for the boot volume is always loaded and started, regardless of what its start type is Lab: run LoadOrd from Sysinternals to see driver ordering

5

11

Boot Process

5.

Ntoskrnl.exe (continued) Creates the Session Manager process (\Windows\System32\Smss.exe),

the first user-mode process

6.

Smss.exe:

Runs programs specified in BootExecute e.g. autochk, the native API version of chkdsk Processes “Delayed move/rename” commands

Used to replace in-use system files by hotfixes, service packs, etc.

Initializes the paging files and rest of Registry (hives or files) Loads and initializes kernel-mode part of Win32 subsystem (Win32k.sys) Starts Csrss.exe (user-mode part of Win32 subsystem) Starts Winlogon.exe

12

Boot Process

7. Winlogon.exe:

Starts Lsass.exe (Local Security Authority) Loads GINA DLL (Graphical Identification and Authentication)

Default is Msgina.dll Displays logon dialog

Starts Services.exe (the service controller)

8. Services.exe starts Win32 services marked as “automatic” start

Also includes any drivers marked Automatic start Service startup continues asynchronous to logons

End of normal boot process

6

13

Logon Process

Winlogon sends username/password to Lsass

Either on local system for local logon, or to Netlogon service on a domain

Creates processes for executables listed in HKLM\Software\Microsoft\Windows NT \CurrentVersion\WinLogon\Userinit

By default: Userinit.exe Runs logon script, restores drive-letter mappings, starts shell

Userinit creates a process to run HKLM\Software\Microsoft\Windows NT \CurrentVersion\WinLogon\Shell

By default: Explorer.exe

There are other places in the Registry that control programs that start at logon

14

Logon Process

Use Autoruns (Sysinternals) or Msconfig (new in Windows XP) to see

• rder of process startup at logon time

To run Msconfig, click on Start->Help, then “Use Tools…”, then System Configuration Utility Msconfig shows what’s defined to start vs Autoruns which shows all places things CAN be defined to start

Autoruns (Sysinternals) Msconfig (in \Windows\PCHEALTH \HELPCTR\Binaries

7

15

Normal vs. Abnormal Shutdown

Normal shutdown

Required reboots (e.g. installing a service pack replaces critical system files) Hardware maintenance But normally don’t need to shutdown—just hibernate!

Abnormal shutdown

System crash - something wrong in kernel mode Hardware error

16

System Shutdown Procedure

What happens when Windows performs a normal shutdown?

ExitWindowsEx function sent to Csrss Start menu->shutdown: Explorer calls it CTRL+ALT+DEL->shutdown: Winlogon calls it If not a forced shutdown, Csrss sends query message to all threads owning top- level windows Processes can cancel shutdown if not a “forced” shutdown Interactive shutdowns are not forced If all answer ok, Csrss sends shutdown message Csrss waits for time defined by HKCU\Control Panel\Desktop\HungAppTimeout If timeout expires, shows popup:

8

17

Shutdown Procedure (contd).

Csrss tells Service Control Manager (Services.exe) to exit, which tells all Win32 services to exit Csrss.exe waits for HKLM\System\CurrentControlSet\Control\WaitToKillServiceTimeout After the timeout, Services.exe is terminated (even though service processes may still be shutting down) Example: IIS, Exchange Some sites lengthen the value to accommodate long shutdowns Finally, calls NtShutdownSystem, which calls the Plug and Play manager’s NtSetSystemPowerState orchestrates final system shutdown Drivers are called to shut down (e.g. flush data to disk) Finally, the HAL is called, which then tells the hardware either to reboot or power off Systems without power management end with the dialog “it is safe to power off your system now”

18

Hibernate & Resume

Hibernation was introduced with Windows 2000 power management

System memory saved to hiberfil.sys on system volume On power-on NTLDR reads hiberfil.sys and continues where the system left off

No boot.ini or boot option menu if hiberfil.sys has valid data

Not supported on x86 Server systems (works on x64 Server 2003 systems)

XP has some hibernate/resume enhancements

Hibernation file is better compressed I/O overlapped on IDE drives Resume is faster because reads are larger Device parallelization during power up improved

Power up done asynchronously in the background by drivers (specifically power-pageable devices without children)

9

19

What triggers a Windows Crash?

Something’s wrong in kernel-mode:

Unhandled exception (e.g. executing invalid instruction) OS or driver detects severe inconsistency Referencing paged out memory at interrupt level (famous “IRQL_NOT_LESS_EQUAL” crash) A reschedule is attempted at dispatch level IRQL or higher Hardware error

20

Why Does Windows Crash?

Top 100 Reported Crashing Issues (reported at WinHEC 2004 conference)

~70% caused by 3rd party driver code ~15% caused by unknown (memory is too corrupted to tell) ~10% caused by hardware issues ~5% caused by Microsoft code

There are lots of third party drivers!

From online crash analysis database:

55,000 unique drivers - 24 new / day (28,000 in 2004) 220,000 total drivers - 98 revised / day (130,000 in 2004)

Many Devices

Over 1,263,300 distinct Plug and Play (PnP) IDs (680,000 in2004) 1,600 PnP IDs added every day

10

21

What Happens At The Crash

When a condition is detected that requires a crash, KeBugCheckEx is called

Takes five arguments:

Stop code (also called bugcheck code) 4 stop-code defined parameters

KeBugCheckEx:

Turns off interrupts Tells other CPUs to stop Paints the blue screen Notifies registered drivers of the crash If a dump is configured (and it is safe to do so), writes dump to disk

22

After the Crash - Causes for Boot Problems

Boot may be failing because of… Master Boot Record (MBR) corruption Boot.ini problems System hive corruption Crash at boot System file corruption

11

23

Boot Failure - MBR Corruption

Symptoms:

Hang at a black screen after BIOS executes “Invalid Partition Table”, “Error loading operating system” or “Missing operating system” message on black screen

Cause:

MBR is corrupt

Resolution:

Boot into Recovery Console Execute the RC’s “fixmbr” command

Only writes MBR code, not partition table If the partition table is corrupt you have to rely on restoring a backup MBR or use 3rd-party disk repair tools

24

The Recovery Console

Description:

Simple repair-oriented command-line environment Built on a minimal NT kernel Bootable from Win2000/XP/Server 2003 Setup CD Type “r” to repair and then select the installation Installable onto hard disk (winnt32.exe /cmdcons) Winnt32.exe must match service pack you are running Can also network boot using PXE boot from a RIS server

12

25

The Recovery Console

Capabilities:

File commands: rename, move, delete, copy Service/Driver commands: listsvc, enable, disable MBR/Boot sector commands: fixmbr, fixboot

Limitations:

Must “log into” the system with the Administrator password Limits on what you can access:

Only access \Windows, \System Volume Information, and root of non-removable media Can only copy files onto system, not off You can override these in the Local Security Policy editor (secpol.msc) on the installation when its running

No networking, file editing, or registry editing

26

Boot Sector Corruption

Symptoms:

Black screen hang “A disk read error occurred”, “NTLDR is missing” or “NTLDR is compressed” error message on black screen

Cause:

Boot sector corruption

Troubleshooting:

Boot into RC Execute “fixboot” command

13

27

Boot.ini Problems

Symptom:

NTLDR complains that Boot.ini is missing or corrupt NTOSKRNL complains that boot device is inaccessible

Cause:

Boot.ini is missing or corrupt Boot.ini is out-of-date because a partition has been added

28

Boot.ini Problems

Troubleshooting:

Boot into RC Run Bootcfg /rebuild

14

29

SYSTEM Hive Corruption

Symptom:

NTLDR reports that System hive is corrupt

Causes:

Disk is corrupt System hive is corrupted or deleted

30

SYSTEM Hive Corruption

Troubleshooting:

Boot into RC Run Chkdsk and reboot If still fails, need to restore a good copy of System hive:

If System Restore enabled, copy backup copy from latest Restore Point folder (covered later) to \Windows\System32\Config Otherwise, copy backup copy of System hive from \Windows\Repair to \Windows\System32\Config

These registry hives are created by Setup Backing up “System State” (ASR backup) with Windows Backup updates these files

15

31

Automated System Recovery (ASR)

Description:

Backup of all system state and user data on system volume

Includes registry, system files, boot sector, MBR

Made by Windows Backup (Ntbackup.exe)

Windows XP Professional and higher

To restore:

Boot into ASR from Windows setup (press F2 when prompted) and insert the ASR floppy Will restore entire system state, including boot sector, MBR, system files, and registry

Limitations:

You have to keep the backup up-to-date No control over granularity of restore (all-or-nothing) Not included with Windows XP Home Edition

32

System File Corruption

Symptom:

Boot sector complains that NTLDR is missing NTLDR complains that NTOSKRNL.EXE, HAL.DLL or other system file is missing or corrupt NTOSKRNL complains (blue screen) that a system file is corrupt

16

33

System File Corruption

Causes:

Disk is corrupt File is missing or corrupt

Troubleshooting:

Boot into RC Run Chkdsk If no Chkdsk errors, obtain clean copy of file and replace file Check in \Windows\System32\DLLCache for backup Replacement must be identical match i.e. from same hotfix

• r service pack

If there’s more than one corrupt file, use Setup Repair Install If can’t find replacement use Automated System Recovery (ASR)

34

Post-Splash Screen Crash or Hang

Symptoms:

System blue screens on boot Hang before logon prompt appears NOTE: If system auto-reboots on crash you won’t see the blue screen!

Causes:

Buggy driver Registry corruption of non-System hive

Troubleshooting:

Last Known Good

• r

Safe Mode

• r

RC

17

35

Accessing Last Known Good

Enable it by pressing F8 and selecting it in the Advanced Options boot menu

36

LKG Description

Last Known Good (LKG) Uses backup of registry control set last used to boot successfully A Control Set is core startup configuration

HKLM\System\Control00n Control set only includes core OS and driver configuration Control set does not include Software, SAM, Security, or Users HKLM\System\Select\Current points at active Control Set

18

37

LKG Description

Boot control makes a copy of the control set that booted the system

Copy is ControlSet00n, where 00n is the next available number

After a successful boot:

• 1. LastKnownGood is set to the copy

2.The previous LastKnownGood is deleted

By default, “Successful boot” is determined when

All the auto-start services have started successfully A successful interactive log in

Can be overridden programmatically

38

LKG Capabilities and Limitations

Restores bootable configuration when:

A new driver was installed since the last successful boot A driver’s settings were modified since the last successful boot System settings were modified since the last successful boot

Doesn’t work if:

An existing driver was updated A latent driver bug for some reason becomes active Files or registry hives are missing or corrupt

19

39

Leveraging the Failed Control Set

When you use LKG the control set you avoid is saved as the Failed control set

• 1. Look at the Failed value in the Select key –

this is the control set that you aborted

• 2. Export the current control set and failed

control set to .reg files

• 3. Massage the text so that there are no

differences in the control set name

• 4. Windiff or Fc to see what’s different

40

Safe Mode Description

Try Safe Mode if LKG doesn’t work

Accessible from same boot menu as LKG

Idea is to only include core set of drivers/services

Modeled after Safe Mode in Windows 95 Avoids third-party and unnecessary drivers, which hopefully are what’s causing the boot problem

20

41

Safe Mode Description

HKLM\System\CurrentControlSet\Control\Safeboot guides safe mode by specifying names and groups

• f drivers

Normal, Network, Command-Prompt

No networking in Normal Networking includes networking services Command-Prompt is same as Normal except launches Command Prompt instead of Explorer as shell for when Explorer shell extensions cause logon problems

Directory Services Restore Mode: not for boot troubleshooting (for repairing or restoring Active Directory database from backup)

42

Safe Mode Internals

Registry keys guide what’s in safe modes:

HKLM\System\CurrentControlSet\Control\SafeBoot\Minimal is for Normal and Command-Prompt

HKLM\System\CurrentControlSet\Control\SafeBoot\AlternateSh ell specifies shell for Command-Prompt boot

HKLM\System\CurrentControlSet\Control\SafeBoot\Network is for Network Drivers and services must be listed by name or by group to be loaded

Exception: all enabled boot-start drivers load regardless!

System assumes they are necessary to boot Can disable a boot-start driver with RC DISABLE command

But might be needed to boot the system

21

43

Using Safe Mode

If Safe Mode works determine what’s wrong:

Compare boot logs Analyze a crash dump

Boot logging:

Select it from advanced boot options (F8) menu and boot to the failure

Saves log in \Windows\Ntbtlog.txt

Reboot in Safe Mode

Safe Mode appends to the boot log

Extract failed boot and Safe Mode entries to separate files, strip “Did not load driver” lines and compare e.g. Windiff, fc

44

Analyzing a Crash Dump

Boot into Safe Mode Download and install the Microsoft Debugging Tools for Windows Run Windbg and select File|Open Crash Dump

Open \Windows\Memory.dmp if available, otherwise most recent file in \Windows\Minidump

Type !analyze –v to see if debugger identifies faulty driver

22

45

Resolving the Faulty Driver Issue

If you can determine what driver is causing the problem:

Roll back to a previous version if one is available and known to be stable

• r

Disable it with Device Manager

Note: can’t do this for non-PnP drivers: use the registry editor

46

Using Driver Rollback

Access the rollback

• ption on the Driver tab
• f a device’s properties

Backup drivers are stored in \Windows\System32\R einstallbackups

23

47

Disabling Drivers

Open the Device Manager on the Hardware page of the System applet

Change usage to Disabled

Or use the SC command to change the start type of a specific driver

48

Finding the Faulty Driver

There are three approaches when you can’t determine what driver is causing the boot to fail:

Use the Driver Verifier to catch the faulty driver Disable drivers that don’t load in Safe Mode

• ne by one until the system boots normally

Use System Restore (Windows XP only) as a last resort

24

49

The Driver Verifier

The Driver Verifier catches drivers performing illegal

• perations:

Buffer overflow Invalid memory access Invalid I/O commands

Launch it with Start->Run->Verifier Enable the Driver Verifier on all drivers from within Safe Mode

Choose “custom settings” and then “select individual settings”

Check all settings except “low resource simulation”

Boot normally and you’ll hopefully get a crash that is easy to analyze

Note: the Driver Verifier is disabled in Safe Mode

50

System Restore Description

Rollback system to previous state (registry, COM+ registration database, user profiles, other files not protected by WFP)

New to XP (not included with Server 2003) Enabled by default

Replacement of certain file types causes original version to be stored in a restore point folder

569 file types monitored—see Platform SDK for list Restore operation replaces these files

Implemented as a service and a filter driver Access the System Restore Wizard from Start->Help and Support->System Restore

Safe Mode asks when you log in if you want to run the wizard

25

51

System Restore Creation

Restore Points are created:

Every 24 hours When installing an unsigned driver When explicitly requested by user or an install program (via an API or script)

Start->Help and Support -> System Restore

52

System Restore Internals

File System Driver (NTFS/FAT) System Restore Filter Applications

File system request

Change.log1 A0009653.exe A0009654.ini

\System Volume Information\ _restore{XX-XXX-XXX }\ RP5 User mode Kernel mode

26

53

Using System Restore

Note that you can also use restore points to obtain backup registry hives Remember RC disallows access to this folder unless local policies permit it

54

When Safe Mode Fails

Symptom:

Safe mode crashes the same as a normal boot

Causes:

The driver causing the crash also loads in safe mode

Troubleshooting:

Determine the problematic driver:

Boot into RC and look at the last line in the boot log Boot into debugging mode (to be described in next section)

Disable it with the RC’s “disable” command

27

55

Third-Party Tools

NTFSDOS Professional (Winternals)

Access NTFS from DOS Can run DOS virus scanners and other DOS applications

ERD Commander 2003 (Winternals)

Windows-like recovery environment booted from CD Full GUI interface (previous version was command line) Based on WinPE

Special subset of XP that replaces having to use DOS boot disks Only available to hardware & software vendors Since it’s XP, plug and play configures the system

Offers more functionality than Recovery Console: Reset any password Full registry editor Text editor System compare wizard System Restore No security restrictions

56

The Bluescreen Screen Saver

Scare your enemies and fool your friends with the Sysinternals Bluescreen Screen Saver Remotely execute it (requires admin privilege on remote system):

psexec –i –d –c “sysInternals bluescreen.scr” /s Be careful, your job may be on the line!

28

57

Further Reading

Mark E. Russinovich and David A. Solomon, Microsoft Windows Internals, 4th Edition, Microsoft Press, 2004. Chapter 1 - Concepts and Tools Performance Tool, Support Tools, Resource Kits, pp.25-34 Chapter 14 - Crash Dump Analysis Crash Dump Analysis, Error Reporting, pp. 845-870

58

Source Code References

Windows Research Kernel (WRK) sources

\base\ntos\init – system initialization \base\ntos\*\*init*.* - subsystem-specific initialization (e.g. \base\ntos\io\ioinit.c, etc) \base\ntos\config – Registry mechanism
