RID-DoS: Real-time Inter-network Defense Against Denial of Service Attacks Kathleen M. Moriarty MIT Lincoln Laboratory 22 October 2002 This work was sponsored by the Air Force Contract number F19628-00-C-002. Opinions, interpretations,

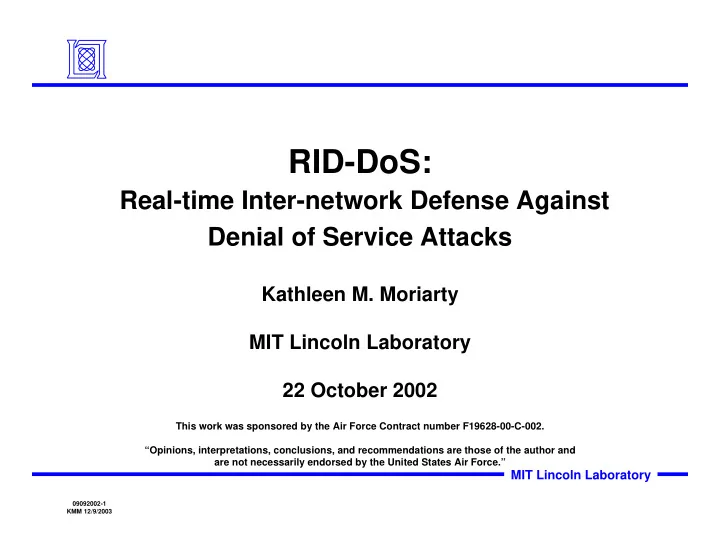

SLIDE 1

09092002-1 KMM 12/9/2003

MIT Lincoln Laboratory

RID-DoS:

Real-time Inter-network Defense Against Denial of Service Attacks

Kathleen M. Moriarty MIT Lincoln Laboratory 22 October 2002

This work was sponsored by the Air Force Contract number F19628-00-C-002. “Opinions, interpretations, conclusions, and recommendations are those of the author and are not necessarily endorsed by the United States Air Force.”

SLIDE 2

MIT Lincoln Laboratory

09092002-2 KMM 12/9/2003

RID Goals

Real time method to mitigate effects of network attacks
Establish communication mechanism for network peers

– ISPs, Education, Government, etc.

Capability to continue traces through upstream networks

– Addresses inter-Network communication issues – Respect network boundaries

– Integrate existing trace implementations

– Ability to trace attack back to valid/spoofed source address

Use existing infrastructure for attack detection and trace

– Network statistics used to detect variations in traffic types – Compensate for network events to reduce false positives – Backbone outage or network event – Flexible - Integrate new detection and single network trace methods

SLIDE 3

MIT Lincoln Laboratory

09092002-3 KMM 12/9/2003

Communication via RID

Target of Attack Client ofPink Network ISP Network of Attack Target ISP Network of Attack Source Source of Attack Client on Blue Network

RID-DoS RID-DoS Intermediate Network RID-DoS RID-DoS Trace takes place across the network Trace takes place across the network

SLIDE 4

MIT Lincoln Laboratory

09092002-4 KMM 12/9/2003

Parameters for Trace Approaches

Many solutions require IP header information as parameters to

trace request

Time range of attack
RID-DoS would need to incorporate the following parameters for

Flow analysis or filter approaches

– Non-changing fields of IP header – IP protocol – IP source address and port – IP destination address and port – TCP flags – Packet size – Start and stop time traffic detected

Hash based IP Traceback also requires 1st 8 bytes of the packet

payload

PATH information for each hop (network) in the trace

– AS Number, IP of NMS

Action Taken

– Additional fields required

SLIDE 5

MIT Lincoln Laboratory

09092002-5 KMM 12/9/2003

RID Notification / Attack Mitigation

Proposal provides Inter-ISP communication to support continued

trace to attack source

RID messages are text

– Parsed at receiving host – Trace continuance must be authorized – Trace continuance may be automated based on confidence rating

Four Message Types

– Request, Status, Source Found, Relay

Notification of the status of the trace is sent back to the originator
f the trace as it traverses multiple networks

– Must be passed through each NMS in path

Notification sent to trace originator upon completion

– Source of attack found – Action taken included in communication

Blocked at source assists in mitigating or stopping the DoS or DDoS attack Notify client and other traffic blocking mechanisms included in options

SLIDE 6

MIT Lincoln Laboratory

09092002-6 KMM 12/9/2003

Message Type 1 – Trace Request

Message Type 1 Time Stamp Incident Identifier = ASN + Incident number + Instance Confidence rating of detected Denial of Service attack (0-100)

Level Meaning 1 Low probability detected attack occurred 100 Attack detected with 100 percent confidence rating

Filter used to trace incident across meters in the network – IP Header Information Number of NMS in the path listed in message Path information of Network Management Systems used in the trace

Autonomous System Number and NMS IP address of Next Network Autonomous System Number and NMS IP address Current Network ... Autonomous System Number and NMS IP address of Originating Network

SLIDE 7

MIT Lincoln Laboratory

09092002-7 KMM 12/9/2003

Summary

Uses existing network infrastructure

– NMS to relay RID Messages to request trace continuance

RID messaging incorporates a communication mechanism

in order to trace traffic across network boundaries

Expand entries in several fields
Extension to accommodate additional parameters
http://www.ietf.org/internet-drafts/draft-moriarty-ddos-rid-05.txt
