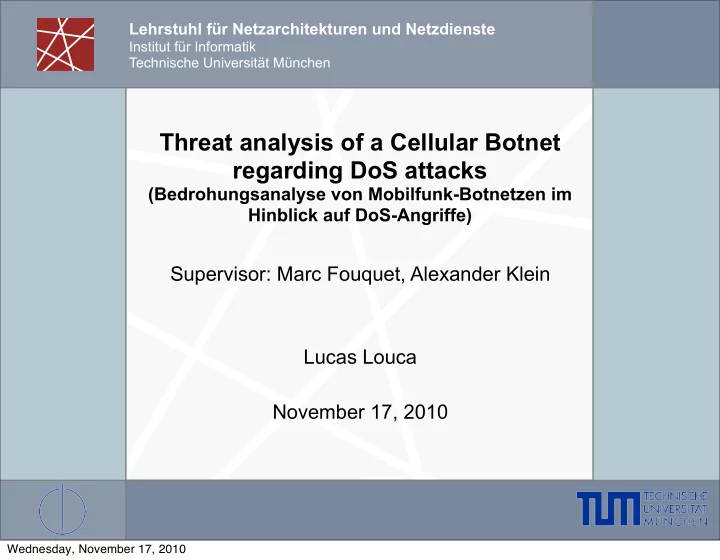

Lehrstuhl fr Netzarchitekturen und Netzdienste Institut fr Informatik Technische Universitt Mnchen Threat analysis of a Cellular Botnet regarding DoS attacks (Bedrohungsanalyse von Mobilfunk-Botnetzen im Hinblick auf DoS-Angriffe)
SLIDE 2
SLIDE 3
Threat analysis of a Cellular Botnet regarding DoS attacks 3
Introduction and Motivation
Cell Cell
Botmaster
More powerful and intelligent cell phones Number of smartphone users increases Cell phones have a constantly assigned IP Address Cell phones allow short range communication with the use of Bluetooth Increased risk of malware distribution through unauthorized drive by
downloads
DoS attacks on cellular networks become possible through cellular
botnets
Wednesday, November 17, 2010
SLIDE 4
Threat analysis of a Cellular Botnet regarding DoS attacks 4
Introduction and Motivation
Make services unavailable by saturating bandwidth just for fun The adversary may be an unsatisfied employee Financial reasons Political reasons
What motivates a potential adversary?
Wednesday, November 17, 2010
SLIDE 5
Threat analysis of a Cellular Botnet regarding DoS attacks 5
Introduction and Motivation
Some considerations about the scenarios
- Infected mobile devices should not produce constant control traffic in order
to stay undetectable and save battery life
- Attacks on the cells are launched through voice calls and only when a cell
exhaustion is guaranteed in order to avoid unnecessary traffic
Create scenarios where nodes act totally autonomously
- Decisions are made within ad-hoc like networks
Create scenarios where the botnet is controlled by a botmaster
- Partially controlled by the botmaster
- Fully controlled by the botmaster
Wednesday, November 17, 2010
SLIDE 6
Threat analysis of a Cellular Botnet regarding DoS attacks 6
Introduction and Motivation
Objective: Study the possibilities of potential attacks
- Build up possible botnet control scenarios
- Simulate a cellular botnet using the different control scenarios
- Examine the test results
- Determine the danger degree of possible attacks
- Project the results of the simulations on a larger area
5 10 15 20 25 30 35 40 45 50 2 4 6 8 10 12 14 Number of Cell downs Mean speed (m/s) Random Walk Random Waypoint Random Waypoint Hotspots
Wednesday, November 17, 2010
SLIDE 7
Threat analysis of a Cellular Botnet regarding DoS attacks 7
Related Work
The Threat of Mobile Worms [Marc Fouquet, Elnaz Eghbali Afshar, and Georg Carle.] Bluetooth Worm Propagation: Mobility Pattern Matters! [Yan, Guanhua and Flores, Hector D. and Cuellar, Leticia and Hengartner, Nicolas and Eidenbenz, Stephan and Vu, Vincent .] On Cellular Botnets: Measuring the Impact of Malicious Devices on a Cellular Network Core [Patrick Traynor] An Empirical Study on 3G Network Capacity and Performance [Wee Lum Tan, Fung Lam and Wing Cheong Lau.] Mobility Models for Ad hoc Network Simulation [Guevara Noubir Guolong Lin und Rajmohan Rajaraman]
Wednesday, November 17, 2010
SLIDE 8
Threat analysis of a Cellular Botnet regarding DoS attacks 8
Analysis - Scenarios
Coordinated attack through a Master Server (Central Controlled) Produces a great amount of
control traffic
Botmaster has a more granular
view over his botnet
Cell exhaustion is guaranteed
as long as the needed amount
- f nodes exist within a cell
Wednesday, November 17, 2010
SLIDE 9
Threat analysis of a Cellular Botnet regarding DoS attacks 9
Analysis - Scenarios
Ad-Hoc networks acting independent (Autonomous) Produces no control traffic Botmaster has no control over
his botnet
Nodes must have a large
density for an attack to be launched
Possible attack situations may
get overlooked even if there are enough infected devices within a cell
Wednesday, November 17, 2010
SLIDE 10
Threat analysis of a Cellular Botnet regarding DoS attacks 10
Analysis - Scenarios
Coordinated attack through a Master Server (Hybrid) Produces control traffic Botmaster has partial control
- ver his botnet
Cell exhaustion is guaranteed
as long as the need amount of ad-hoc networks exist within a cell
Wednesday, November 17, 2010
SLIDE 11
Threat analysis of a Cellular Botnet regarding DoS attacks 11
Analysis - Node movement (Mobility Models)
Random Waypoint
- Random speed
- Random destinations
Random Waypoint with predefined hotspots
- Random speed
- Random destinations out of a pool of visit probability weighted locations
Random Walk
- Random speed
- Constant travel time
- Random travel direction
Wednesday, November 17, 2010
SLIDE 12
Threat analysis of a Cellular Botnet regarding DoS attacks 12
Evaluation
Testing the attack rate based on:
- Node’s threshold regarding Ad-Hoc size (Autonomous &
Hybrid)
- Changing node speeds (All scenarios)
- Botmaster’s threshold regarding nodes within a cell
(Central Controlled & Hybrid)
Test parameter configuration
- 100 - 400 nodes
- 1000m × 1000m surface (4 cells)
- 500m cell range
- maximum 52 simultaneous voice calls within a cell
- Initial node speed 1 - 2 m/s
Wednesday, November 17, 2010
SLIDE 13
5 10 15 20 25 30 35 40 45 50 5 10 15 20 25 Number of Cell downs Mean speed (m/s) Random Walk Random Waypoint Random Waypoint Hotspots
Threat analysis of a Cellular Botnet regarding DoS attacks 13
Evaluation - Test: Node’s speed
Scenario 1: Central Controlled
- Random Walk prevails with 300 or more nodes
- More than 400 nodes within the surface results in constant
attack rates with all three mobility models
Wednesday, November 17, 2010
SLIDE 14
5 10 15 20 25 30 2 4 6 8 10 12 14 Number of Cell downs Mean speed (m/s) Random Walk Random Waypoint Random Waypoint Hotspots 5 10 15 20 25 30 35 40 45 50 2 4 6 8 10 12 14 Number of Cell downs Mean speed (m/s) Random Walk Random Waypoint Random Waypoint Hotspots
Threat analysis of a Cellular Botnet regarding DoS attacks 14
Evaluation - Test: Node’s speed
Scenario 2 & 3: Autonomous & Hybrid
- Random Walk hardly produces any attacks
- Attack rate drops as mean speed increases
Autonomous Hybrid
Wednesday, November 17, 2010
SLIDE 15
10 20 30 40 50 60 50 100 150 200 250 300 350 400 Number of Cell downs Threshold(Nodes) Random Walk Random Waypoint Random Waypoint Hotspots 5 10 15 20 25 30 50 100 150 200 250 300 350 400 Number of Cell downs Threshold(Nodes) Random Walk Random Waypoint Random Waypoint Hotspots
Threat analysis of a Cellular Botnet regarding DoS attacks 15
Evaluation - Test: Node’s threshold
Scenario 2 & 3: Autonomous & Hybrid
- Random Walk hardly produces any attacks
- Attack rate drops radically as threshold increases
- Random Waypoint using hotspots prevails in
“Autonomous”
- Attack rate using the “Autonomous” scenario is higher
than with the “Hybrid” Autonomous Hybrid
Wednesday, November 17, 2010
SLIDE 16
10 20 30 40 50 60 70 80 100 150 200 250 300 350 400 Number of Cell downs Threshold(Nodes) Random Walk Random Waypoint Random Waypoint Hotspots 2 4 6 8 10 12 14 16 18 100 150 200 250 300 350 400 Number of Cell downs Threshold(Nodes) Random Walk Random Waypoint Random Waypoint Hotspots
Threat analysis of a Cellular Botnet regarding DoS attacks 16
Evaluation - Test: Botmaster’s threshold
Scenario 1 & 3” Central Controlled & Hybrid
- Random Walk hardly produces any attacks in “Hybrid”
- Attack rate drops as threshold increases
- Attack rate using “Central Controlled” is higher than in
“Hybrid”
- Attack rate in “Central Controlled” is about the same with
all three mobility models Central Controlled Hybrid
Wednesday, November 17, 2010
SLIDE 17
Threat analysis of a Cellular Botnet regarding DoS attacks 17
Evaluation - What about a larger area?
Larger area representing Munich
- Calculate a node distribution with Random Walk combined
based on the user placement according to population density maps
- Distribute cells within the city area based on real life data
(Deutsche Telekom)
- Set an hypothetical cell capacity for our cells based on the
number of sectors
- Place users within the city using the pre-calculated node
distribution
- Cell capacity in the center is larger than on the edges
How many cells can be taken down within a city with 1000 - 50 000 infected mobile devices?
Wednesday, November 17, 2010
SLIDE 18
50 100 150 200 250 300 10000 15000 20000 25000 30000 35000 40000 45000 50000 Number of Cell downs Nodes
Threat analysis of a Cellular Botnet regarding DoS attacks 18
Results
Nodes converge towards the center of the city Number of cells taken down monotonically increases as amount of
infected devices grows, especially in the center
Although people do not move according to Random Walk, attacks
may be possible with “Central Controlled” scenario
Wednesday, November 17, 2010
SLIDE 19
Threat analysis of a Cellular Botnet regarding DoS attacks 19
Summary
The scenario being used has a great impact on the attach rate
- Central controlled like scenarios usually produce more attacks but also
more control traffic making them easier to detect
- Autonomous and Hybrid like scenarios depend on node density and
threshold values in order for an attack to be launched
Mobility models affect our simulation results
- Random Walk had on average a smaller attack count
- Which model is more realistic?
Successful attacks are also possible in larger areas, making the
problem of cellular botnets critical
Wednesday, November 17, 2010
