slide-1
SLIDE 1

Email: optimist@intec.rug.ac.be http://www.ist-optimist.org

Results from the Results from the Results from the Results from the FP5 FP5 FP5 FP5-

  • IST optical networking projects

IST optical networking projects IST optical networking projects IST optical networking projects

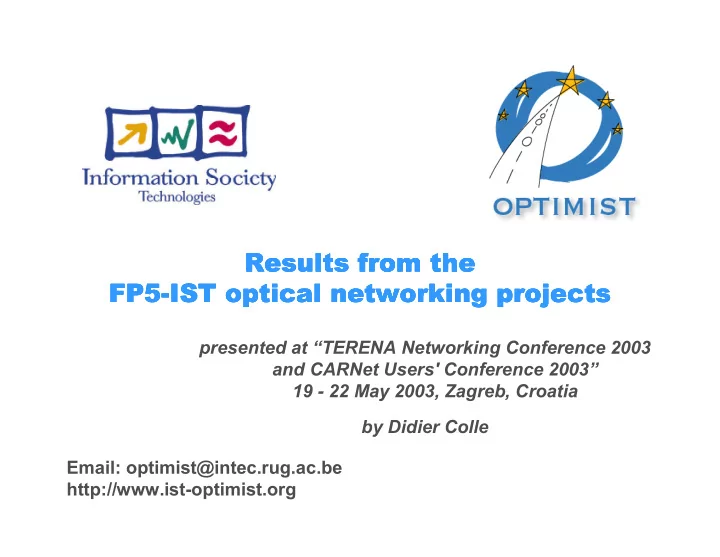

presented at “TERENA Networking Conference 2003 and CARNet Users' Conference 2003” 19 - 22 May 2003, Zagreb, Croatia by Didier Colle

slide-2
SLIDE 2

IST- OPTIMIST http://www.ist-optimist.org

IST-FP5 OPTIMIST Thematic Network

  • IST OPTIMIST: Optical Technologies in Motion

for the IST Programme

  • Thematic network project funded under the

FP5 Programme

  • Clustering optical projects working on:

advanced photonic networking technologies advanced photonic (sub)systems advanced photonic components and materials

  • Information exchange / dissemination of

results / workshops / roadmap activity / website

slide-3
SLIDE 3

IST- OPTIMIST http://www.ist-optimist.org

Wireless Link to Ambient Intelligence

PDA

Routing Resources Computing Resources Data Storage

Intelligent Optical Network

Intelligent Optical Network ION

UoP: Universal Optical Plug

slide-4
SLIDE 4

IST- OPTIMIST http://www.ist-optimist.org

IST IST IST IST -

  • FP5

FP5 FP5 FP5 High Bitrate Projects High Bitrate Projects High Bitrate Projects High Bitrate Projects

slide-5
SLIDE 5

IST- OPTIMIST http://www.ist-optimist.org

OTDM and WDM Transmission

Scheme of an OTDM Transmission System

WDM

80 Gbit/s - 10 Tbit/s - ....

  • 3

4 2 1

  • Controlled Laser

WDM

Modulators

ETDM ETDM ETDM ETDM

Partly adopted from: Kawanishi, IECE Trans. Comm., Vol.E84-B, (2001), pp. 1135-1141

Ultra Fast Optical DEMUX 1 2 3 4

80 Gbit/s - 1.28 Tbit/s - …

t 1 2 3 4

Pulse Source Modulators

1 2 3 4 ETDM ETDM ETDM ETDM

Scheme of a WDM Transmission System

slide-6
SLIDE 6

IST- OPTIMIST http://www.ist-optimist.org

Fibre capacity achievements

1994 1995 1996 1998 1999 2000 2001 2002

Year Capacity [Tbit/s]

10 1 2 5 .1 .2 .5 WDM OTDM

slide-7
SLIDE 7

IST- OPTIMIST http://www.ist-optimist.org

.5 1 2 5 10 20 .4 .8 1.2 1.6 Spectral Efficiency [(bit/s)/Hz] Capacity-Length Product [Pbit/s * km] OFC 2001 ECOC 2001 ECOC 2000 OFC 2000 OFC 2002

Spectral efficiency achievements

slide-8
SLIDE 8

IST- OPTIMIST http://www.ist-optimist.org

Impairments in ULH networks

  • Transmission impairments

attenuation chromatic dispersion and polarization mode

dispersion

non-linear Kerr effects (e.g. FWM, XPM) and

inelastic scattering effects

  • Networking impairments

filter concatenation effects cross talk power divergence signal transients

Careful design of high speed networks needed

slide-9
SLIDE 9

IST- OPTIMIST http://www.ist-optimist.org

High bitrate transmission - IST projects

ETDM / WDM OTDM / WDM OADM

TOPRATE METEOR FASHION ATLAS

slide-10
SLIDE 10

IST- OPTIMIST http://www.ist-optimist.org

IST ATLAS: Achievements/ Results

“All-optical Terabit per second LAmbda Shifted transmission”

  • Successful demonstration of 4 x 40 Gbit/s transmission
  • ver 500 km G.655

1552.52 nm 1550.92 nm 1554.13 nm 1555.73 nm Eye diagrams after 500 km (DM with prechirp map, ch 2 optimized): Eye diagrams after per channel dedicated postcompensation :

slide-11
SLIDE 11

IST- OPTIMIST http://www.ist-optimist.org

Wavelength conversion with SOA: conversion after 200 km and further propagation for other 300 km (G.655 fibre)

IST ATLAS: Achievements/ Results

1.E-12 1.E-11 1.E-10 1.E-09 1.E-08 1.E-07 1.E-06 1.E-05 1.E-04 1.E-03

  • 23
  • 22
  • 21
  • 20
  • 19
  • 18
  • 17
  • 16
  • 15
  • 14
  • 13
  • 12

Received Power (dBm) BER 200 km + AOWC 200 km + AOWC + 200 km 200 km + AOWC + 300 km btb w/o AOWC 18 dB OSNR

  • All optical wavelength conversion in-line

demonstrated with SOA and PPLN devices.

  • Allows for free-blocking routing
slide-12
SLIDE 12

IST- OPTIMIST http://www.ist-optimist.org

IST TOPRATE

40 Gbit/s 80 Gbit/s 160 Gbit/s TX: 4x40 Gbit/s OTDM multiplexing 160:40 Gbit/s demux RX: Clock recovery 160:40 Gbit/s demux

Nx160 Gbit/s DWDM MUX Nx160 Gbit/s DWDM DEMUX 10 Gbit/s 10 Gbit/s 10 Gbit/s 10 Gbit/s 40 Gbit/s ETDM 4x40 Gbit/s OTDM Nx160 Gbit/s DWDM transmission 40 Gbit/s ETDM 4x40 Gbit/s OTDM 10 Gbit/s 10 Gbit/s 10 Gbit/s 10 Gbit/s

“Terabit/s Optical Transmission Systems based on Ultra-high Channel Bitrate”

slide-13
SLIDE 13

IST- OPTIMIST http://www.ist-optimist.org

IST TOPRATE: Achievements/ Results

  • Optical Time Division Multiplexing (OTDM) technology

to the next bitrate hierarchy of 160 Gbit/s and beyond full use of 40 Gbit/s ETDM technology

  • Dense Wavelength Division Multiplexing (DWDM)

Nx160 Gbit/s DWDM / use of AWG demultiplexers

  • Fibre transmission

Dispersion management optimization 160 Gbit/s single channel transmission over 2x100 km 4x160 Gbit/s DWDM transmission over 3x80 km

  • Many novel techniques investigated / used for

PMD compensation: tunable planar devices (PLC) electronic 40Gbit/s eye-monitoring

  • ptical demultiplexing: novel photonic crystal fibre
  • ptical clock recovery: 40 GHz optical clock operated in 160

Gbit/s receiver

slide-14
SLIDE 14

IST- OPTIMIST http://www.ist-optimist.org

IST METEOR

  • High speed (40Gbit/s per channel)
  • WDM (up to 40 channels)
  • Networking (nodes with add-drop

functionality)

Mask layout active OADM

“Metropolitan Terabit Optical Ring”

slide-15
SLIDE 15

IST- OPTIMIST http://www.ist-optimist.org

IST FASHION

“UltraFast Switching in High-Speed OTDM Networks”

160Gb/s RZ 40Gb/s RZ 10Gb/s RZ 40Gb/s RZ 10Gb/s Tx 40 Tx 40 OTDM add/drop Tx 40 Tx 40 Tx 40 Tx 40 Tx 40 Tx 40 Tx 40 Tx 40 Rx 40 Rx 40 Rx 40 Rx 40 Rx 40 Rx 40 Rx 40 Rx 40 Rx 40 Rx 40 160-Gbit/s transceiver 160-Gbit/s receiver 160Gb/s 160Gb/s RZ 40Gb/s RZ 10Gb/s RZ 40Gb/s RZ 10Gb/s Tx 40 Tx 40 OTDM add/drop Tx 40 Tx 40 Tx 40 Tx 40 Tx 40 Tx 40 Tx 40 Tx 40 Rx 40 Rx 40 Rx 40 Rx 40 Rx 40 Rx 40 Rx 40 Rx 40 Rx 40 Rx 40 160-Gbit/s transceiver 160-Gbit/s receiver 160Gb/s

  • Transmission of 160 Gb/s OTDM data (16x10 Gb/s and 4x40 Gb/s)
  • ver 500 km of fiber to demonstrate the usability in ultra high

speed core networks

  • Adding to and dropping 10 Gb/s and 40 Gb/s data from a 160

Gb/s OTDM data stream to demonstrate the flexibility of OTDM technology for usage in flexible optical networks

  • 160 Gb/s OTDM field trial over installed fibers to study the

influence of environmental conditions

slide-16
SLIDE 16

IST- OPTIMIST http://www.ist-optimist.org

IST IST IST IST -

  • FP5

FP5 FP5 FP5 Optical Networking Projects Optical Networking Projects Optical Networking Projects Optical Networking Projects

slide-17
SLIDE 17

IST- OPTIMIST http://www.ist-optimist.org

Network Evolution – IST projects

Packet Burst FLEXIBILITY G R A N U L A R I T y Circuit Static Dynamic DAVID STOLAS LION WINMAN ATRIUM

Access Metro Wide Area

GIANT METEOR LION ATRIUM STOLAS DAVID HARMONICS OBANET

slide-18
SLIDE 18

IST- OPTIMIST http://www.ist-optimist.org Payload (in IM) Label level 2 (in FSK/DPSK)

Label level 1 (in wavelength)

STOLAS: 2 levels of optical labeling

Network management

Label 1 Labe l 2 L a b e l 3 FSK Labe l 0

Edge router Optical label controlled router

Access/Metro network Access/Metro network

Core router

  • a
  • b
  • b
  • c

Access/Metro network

packets

IST STOLAS: Technical Approach

“Switching Technologies for Optically Labeled Signals”

slide-19
SLIDE 19

IST- OPTIMIST http://www.ist-optimist.org

Simulations

Traffic sources Customer segmentation Penetration scenarios

Traffic Input

Node Architectures Synchronisation Burstification strategies Priority strategies

Architectures Performance evaluations

Core routers Edge Routers Client network, region

Assume a Full-Service STOLAS network with aggregated traffic inputs. Create a realistic traffic input scenario for this network that may be representative of a typical European region in year 2009. Realistic traffic input created using three generic sources: Voice (Poisson), Data (Pareto), Video (Gamma).

IST STOLAS:

Network simulations & traffic input

slide-20
SLIDE 20

IST- OPTIMIST http://www.ist-optimist.org

IST STOLAS:

Network Simulation Results

1.00E-05 1.00E-04 1.00E-03 1.00E-02 1.00E-01 1.00E+00 0.12 0.23 0.35 0.46 0.58 0.70 0.81 0.93

Load Loss ratio

Telephony File-tr M-M Video-str HQ Video-int HQ Video-int LQ Video-str LQ Web-res File-tr M-H-res Message-res Web-cor File-tr M-H-cor Message-cor

High burstiness application

  • higher loss!

Decreasing loss with increasing burst size

1.00E-04 1.00E-03 1.00E-02 1.00E-01 5 10 15 20

Burst size [us] Loss ratio

Telephony Video-str HQ Video-int HQ Video-int LQ Video-str LQ Web-res File-tr M-H-res Message-res Web-cor File-tr M-H-cor Message-cor

slide-21
SLIDE 21

IST- OPTIMIST http://www.ist-optimist.org

IST DAVID

OPADM BMTR x Data Channels MAC controller BMTR x Traffic Manager Board Control Channel

A MAN node

“Data and voice integration over WDM”

slide-22
SLIDE 22

IST- OPTIMIST http://www.ist-optimist.org

IST LION

reference network scenario : Automatic Switched Optical Networks / Generalised-MPLS

Client B Client A UNI CP CP CP NMS UNI NNI NNI Mangement Plane Control Plane Trasport Plane ITU-T

  • Rec. G.807
  • Rec. G.8080

Standards IETF, OIF

“Layers Internetworking In Optical Networks”

  • Traffic/demand model for ASON/ASTN networks
  • Definition of guidelines on the optimisation of the transport

network evolution (flexible connection provisioning, control plane, management plane, resilience, …)

  • ASON for survivability/ resilience using the ASON flexibility
  • Study of ASON dimensioning and dynamic traffic conditions

resulting in a joint optimisation planning scheme

slide-23
SLIDE 23

IST- OPTIMIST http://www.ist-optimist.org

IST LION: Achievements/ Results

  • Interfaces and OAM

Functional architecture of a control plane Comparison with status of standardisation Study of OAM mechanisms and their interworking

Node Personal Computer Control Plane LRM RC NetCallC CC

UNI (RSVP) NNI (RSVP) WMI API (DCOM) MI (DCOM) CCI (prop)

RS232 server socket server Ethernet port RS232 port Node controller DCN

Architecture of the Control Plane Implementation

slide-24
SLIDE 24

IST- OPTIMIST http://www.ist-optimist.org

IST LION: Achievements/ Results

  • Management

Management concept supporting a smooth

migration to ASTN-enabled Transport networks

Management Requirements for ASTNs Network Level Management Information model Implementation of two Management Prototypes for

the

LION testbed

validating the management concept ongoing

tnwNE cpNE client NE cpNE client NE cpNE astnTTP astnConnection astnTrail astnCTP clientConnection clientCTP transport network trail transport network connection nniTrail nniTTP tnwNE tnwNE terminating transport network TTP with switching capability (e.g. ochTTP) transport network CTP with switching capability (e.g. ochCTP)

Objects of the LION information model

slide-25
SLIDE 25

IST- OPTIMIST http://www.ist-optimist.org

IST LION: Achievements/Results

T-Nova NMS ci@oNe t NMS

OXC4

Tellium Domain

OXC1 OADM2 OADM3 OADM1

TILAB Domain Siemens Domain

OXC2 OXC3 IP IP IP IP IP

Siemens OXCs with NNI signaling Siemens OXCs with NNI signaling TILAB NNI signaling G.709 interfaces TILAB NNI signaling G.709 interfaces Interdomain NMS interworking via a CORBA-based interface Interdomain NMS interworking via a CORBA-based interface Tellium OXC with restoration capabilities Tellium OXC with restoration capabilities Cisco GSR with fast reroute capabilities Cisco GSR with fast reroute capabilities

test-bed development and demo

slide-26
SLIDE 26

IST- OPTIMIST http://www.ist-optimist.org

IST WINMAN

TELECOMMUNICATIONS INFRASTRUCTURE

Service Service Management Management Network Network Management Management Telecom Telecom Infrastructure Infrastructure

Order Mgt MANAGEMENT SYSTEM TECHNOLOGY A Trouble Mgt MANAGEMENT SYSTEM TECHNOLOGY B Billing Mgt MANAGEMENT SYSTEM TECHNOLOGY C Customer Service MANAGEMENT SYSTEM TECHNOLOGY D

Provides single access point for Service Management to simplify creation of services

WINMAN

INTER-DOMAIN MANAGEMENT

“WDM and IP Network MANanagement”

slide-27
SLIDE 27

IST- OPTIMIST http://www.ist-optimist.org

IST GIANT

  • GigaPON is based on passive optical technology (1.25 GBit/s symmetrical) ;

it can be seen as an upgrade for a BPON which is standardised up to 622 Mbit/s.

  • The system will be packet oriented with a mixture of real-time and non-real

time data in an IP dominated world. A GigaPON system that combines high transmission efficiency with a guaranteed level of QoS clearly represents a competitive opportunity.

  • The main technical issues are found in the upstream link, from the user side

(ONU) to the network side (LT).

PON LT PO N ONU PO N ONU

:

DS 1.25 Gbit/ s US 1.25 Gbit/ s

“GIgaPON Access NeTwork”

slide-28
SLIDE 28

IST- OPTIMIST http://www.ist-optimist.org

IST HARMONICS

OXC ONU ONU ONU FTTB/H FTTC/ FTTCab VDSL UMTS HFC ONU OLT

Optical Feeder Network WDM PON

  • 1
  • 1

1 M 1 1 NR AWG AWG

ME

LSC1 LSC2 LSC3

Core Network Last Mile Network

Edge Router Leaf Router K

  • L
  • L

1 M 1 N Protection ring OXC ONU ONU ONU FTTB/H FTTC/ FTTCab VDSL UMTS HFC ONU OLT

Optical Feeder Network WDM PON

  • 1
  • 1

1 M 1 1 NR AWG AWG

ME

LSC1 LSC2 LSC3

Core Network Last Mile Network

Edge Router Leaf Router K

  • L
  • L

1 M 1 N Protection ring

  • Novel optical system modules for flexible

wavelength-routed access networks were designed and integrated in a lab test. Optical Cross Connect Burst Mode Receiver

  • A management architecture for flow based IP

services across core, and multiple access domains has been developed and tested for different QoS.

  • A novel time-and-wavelength MAC protocol for

packet-based access networks has been designed. An implementation in an emulator for real data traffic will be used for the field trial.

1 ns / div.

Electrical command Optical response

1 ns / div.

Electrical command Optical response

“Hybrid Access Reconfigurable Multi-wavelength Optical Networks for IP-based Communication Services”

slide-29
SLIDE 29

IST- OPTIMIST http://www.ist-optimist.org

IST HARMONICS

Outline of the HARMONICS field trial running in Berlin (Optical Feeder Network emulation and Last Mile Access) and Darmstadt (Video Server)

WAN (WDM)

  • 1. MAN

(Switched Ethernet) Optical Feeder Network (Berlin) Video

ER LR 1

„Last Mile1“ EoVDSL

MAN Router 1 Layer

  • 2

Switch LR 2 MAN Router 2

  • 2. MAN

(Switched Ethernet)

Layer

  • 2

Switch

Service Network (Darmstadt) MAN Management

MT MT CPE CPE AP

LNC DS LNC OFN RM LNC DS OFN IP Flow Management „Last Mile2“ HiperLAN

EoVDSL Switch

WDM WDM WDM WDM WAN Management

DiffServ Router WAN MAN Access Last Mile

Network levels:

AP – Access Point CPE - Customer Premise Equipment EoVDSL– Ethernetover VDSL ER – EdgeRouter LNC - Layer Network Coordinator LR – Leaf Router MS - Management Station MT – Mobile Terminals OFN – Optical Feeder Network RM - ResourceManager Optical GigabitEthernet Copper basedFast Ethernet POTS wiring Wireless

LNC EoVDSL Internet (Berlin) MS 1 MS 2 MS 3 LNC HL/2 MS 5 MS 4 HARMONICS T-Systems Nova

slide-30
SLIDE 30

IST- OPTIMIST http://www.ist-optimist.org

www.ist-optimist.org

info on projects workshops tech trends FP6 Partner Search

Subscribe Subscribe Subscribe Subscribe to our Quarterly Electronic Newsletter

  • ptimist@
  • ptimist@
  • ptimist@
  • ptimist@intec

intec intec intec.rug.ac.be .rug.ac.be .rug.ac.be .rug.ac.be
