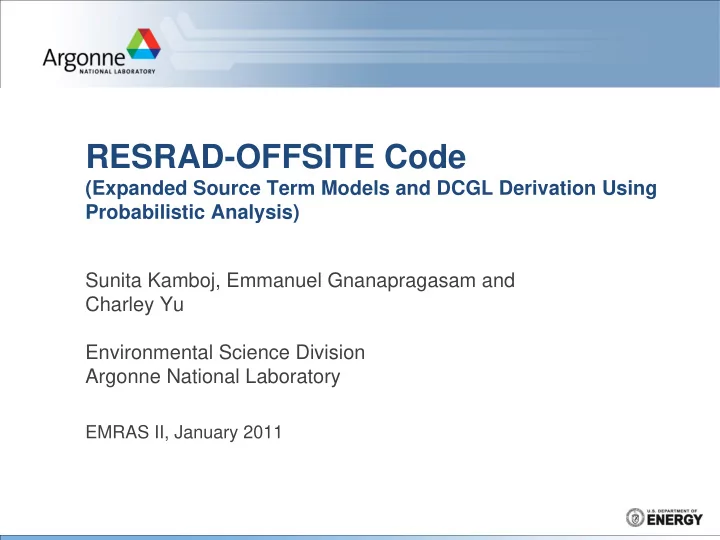

RESRAD-OFFSITE Code

(Expanded Source Term Models and DCGL Derivation Using Probabilistic Analysis) Sunita Kamboj, Emmanuel Gnanapragasam and Charley Yu Environmental Science Division Argonne National Laboratory

EMRAS II, January 2011

slide-2
SLIDE 2

3rd EMRAS II TM, WG2 2

Major Features in RESRAD-OFFSITE

  • Transport Pathways

– Air dispersion (Gaussian Plume) model – Groundwater transport model

  • 1‐D advective, 1‐D dispersive transport in unsaturated zone
  • 1‐D advective (straight or curved flow path), 3‐D dispersive transport

in saturated zone

  • Additional impacted areas

– Choice of 2 dwelling locations (onsite, offsite) – 4 agriculture areas – Well and surface water body can be at different locations – Accumulation in offsite soil and surface water body

  • Improved User Interface

– Graphical map user interface – Both deterministic and probabilistic analysis

slide-3
SLIDE 3

3rd EMRAS II TM, WG2 3

Environmental Pathways and Exposure Locations in RESRAD-OFFSITE Code

Fish Leaching Groundwater Drinking, Livestock & Irrigation Water Dust & Radon Onsite Boundary of Primary Contamination

Contamination

Offsite Surface water Meat & Milk Plant Foods Atmospheric release Surface runoff release

slide-4
SLIDE 4

3rd EMRAS II TM, WG2 4

Areas of Secondary Contamination – RESRAD- OFFSITE

Primary contamination Well Fruit, grain, non- leafy vegetables Leafy vegetables Pasture Livestock grain Offsite dwelling Surface water body

slide-5
SLIDE 5

3rd EMRAS II TM, WG2 5

Transport to Areas of Secondary Contamination

Well

Three interrelated releases: wind erosion, leaching, erosion by runoff

Surface water body

Wind erosion Leaching Runoff

slide-6
SLIDE 6

3rd EMRAS II TM, WG2 6

Computational Scheme

  • Maintain mass balance for the source term

– Calculate release rates (fluxes) at a series of time

  • Develop analytical expressions for transport and accumulation

– Track radioactive decay and ingrowth of progenies – Allow for different transport rates between parent and progenies

  • Evaluate some of the analytical expressions with numerical

formulations

– Allow subdivision of each transport zone to increase precision

  • The accuracy of predictions is affected by the choice of the

series of evaluation times

slide-7
SLIDE 7

3rd EMRAS II TM, WG2 7

RESRAD-OFFSITE Code Methodology

  • Primary contamination

– Source characterization and releases

  • Atmospheric transport
  • Groundwater transport
  • Accumulation in offsite locations
  • Exposure pathways
slide-8
SLIDE 8

3rd EMRAS II TM, WG2 8

Releases from the Primary Contamination Release to ground water (from the

contaminated mixing layer and primary contamination)

Erosion release to surface water body (from the contaminated

mixing layer)

Release to atmosphere

(from the contaminated mixing layer)

Primary contamination

Surface soil mixing layer

slide-9
SLIDE 9

3rd EMRAS II TM, WG2 9

Release to Atmosphere

Release to ground water

Release to atmosphere Primary contamination

Surface soil mixing layer

Erosion release to surface water body

  • Associated with the release of dust

– Proportional to the quantity of particulates (dust) released – Proportional to concentration in mixing layer

slide-10
SLIDE 10

3rd EMRAS II TM, WG2 10

Surface Hydrology

Primary contamination Cover

Runoff erodes surface Evapo- transpiration Irrigation Precipitation Infiltration leaches out contaminants

slide-11
SLIDE 11

3rd EMRAS II TM, WG2 11

Surface Erosion Release

Release to ground water Release to atmosphere

Primary contamination

Surface soil mixing layer

Erosion release to surface water body

  • Due to erosion of surface soil
  • Proportional to the quantity of

particulates eroded by runoff

– Proportional to concentration in mixing layer

slide-12
SLIDE 12

3rd EMRAS II TM, WG2 12

Release to Ground Water

Release to ground water

Release to atmosphere

Primary contamination

Surface soil mixing layer

Erosion release to surface water body

  • Currently modeled as a rate controlled

release

– Proportional to current inventory in the primary contamination and mixing layer

slide-13
SLIDE 13

3rd EMRAS II TM, WG2 13

t Lost to erosion dm Mixing Layer Nuc Parent Progeny Linear adsorption / desorption leaching Deposition (dust, irrigation water)

Process Modeled for Accumulation in Offsite Soil

  • Process modeled

– Uniform mixing within mixing layer – Loss due to surface erosion – Linear adsorption/desorption – Radiological transformations – Time dependent deposition

slide-14
SLIDE 14

3rd EMRAS II TM, WG2 14

Process Modeled for Accumulation in Surface Water Body

  • Process modeled

– Uniform mixing of water – Radiological transformations – Linear adsorption desorption exchange with sediments eroded from primary contamination – Time dependent influx of contaminants – Loss with water leaving the surface water body

Loss of contaminated water to stream flow and to groundwater Linear adsorption or/ desorption of eroded material Deposition

  • f dust

Stream flow carrying in eroded contamination Contaminated groundwater flow Nuc Par Pro Nuc Par Pro

slide-15
SLIDE 15

3rd EMRAS II TM, WG2 15

Process Modeled for Contamination of Plant Food

  • Root uptake from soil
  • Foliar interception of contaminated dust
  • Foliar interception of contaminated irrigation
  • Translocation of intercepted contamination to edible part of

plant

slide-16
SLIDE 16

3rd EMRAS II TM, WG2 16

Contamination of Meat and Milk

  • Ingestion of contaminated feed (grain, grass)
  • Ingestion of soil with feed
  • Ingestion of contaminated water
  • Transfer to milk or accumulation in meat

pasture livestock grain Surface water body Well

Livestock water

slide-17
SLIDE 17

3rd EMRAS II TM, WG2 17

Processes Modeled for Unsaturated Zone Transport

  • Vertical transport

– Longitudinal (z) advection – Longitudinal (z) dispersion – Transformations during transport – Nuclide specific solute‐soil interaction

  • Transport rate
  • Concentration in water

z x y

slide-18
SLIDE 18

3rd EMRAS II TM, WG2 18

Processes Modeled for Saturated Zone Transport

  • Longitudinal (x) advection
  • Longitudinal (x) dispersion
  • Nuclide specific solute‐soil interaction
  • Transverse (y, z) dispersion

z x y

slide-19
SLIDE 19

3rd EMRAS II TM, WG2 19

Current RESRAD-OFFSITE Capabilities

  • RESRAD‐OFFSITE can be flagged to read in:

– Releases and inventory of the primary contamination (deterministic run)

 Flux to ground water  Flux to atmosphere  Flux to surface water  Inventory remaining in the primary contamination and mixing layers

– Concentrations in surface water and well

  • This feature allows the application of RESRAD‐OFFSITE to

various contamination situations, e.g.

– waste disposed in soils, – emissions from effluent stacks, or – discharges from wastewater pipelines

slide-20
SLIDE 20

3rd EMRAS II TM, WG2 20

New Features Are Being Implemented into RESRAD-OFFSITE

  • Argonne National Laboratory is tasked by NRC to expand

the source term model in RESRAD‐OFFSITE so that the code can be used for waste disposal facility performance assessment

  • The objectives of the NRC task are

– to provide more release mechanisms for the user to choose from

  • After the expansion of the source term model, RESRAD‐

OFFSITE can be applied directly to

– evaluate different disposal methods

slide-21
SLIDE 21

3rd EMRAS II TM, WG2 21

Extension of RESRAD-OFFSITE Capabilities

  • The code currently includes the rate controlled release from

the primary contamination and mixing layer

– Release at any time is proportional to inventory at that time in the primary contamination and mixing layer

  • Release occurs over the entire depth of contamination
  • The code is being modified to model transport (by water)

within the contaminated zone and to provide 3 additional release options

– “Solubility rate‐controlled” release

  • A constant fraction of the source material is released over a user specified

release duration

– Release occurs over the entire depth of contamination

slide-22
SLIDE 22

3rd EMRAS II TM, WG2 22

Extension of RESRAD-OFFSITE Capabilities – contd.

– “Solubility equilibrium” release

  • A user specified constant aqueous concentration of the isotope is

released over time

– Release occurs from the top of the contamination

– “Adsorption‐desorption equilibrium” release

  • The aqueous concentration in the release is proportional to the

concentration in soil

– Release occurs from the top of the contamination

slide-23
SLIDE 23

3rd EMRAS II TM, WG2 23

DCGL Derivation Using Probabilistic Analysis

slide-24
SLIDE 24

3rd EMRAS II TM, WG2 24

Basic Components in Deriving DCGLs

  • Source term assumptions

– Media, radionuclide, characteristics of primary contamination

  • Exposure scenario

– Selection of appropriate exposure scenario

  • Mathematical dose model

– RESRAD/RESRAD‐OFFSITE/RESRAD‐BUILD

  • Parameter values used in dose models
slide-25
SLIDE 25

3rd EMRAS II TM, WG2 25

NRC’s Use of Probabilistic Analysis in DCGL Derivation

slide-26
SLIDE 26

3rd EMRAS II TM, WG2 26

Comparison of Deterministic and Probabilistic Calculations

  • Deterministic

– Calculations are performed one time in the main code

  • Probabilistic

– The number of times the calculations are performed by the main code is equal to the product of the number of

  • bservations and the

number of repetitions

  • 5000 observations & 5

repetitions = 25000 calculations

slide-27
SLIDE 27

3rd EMRAS II TM, WG2 27

Comparison of Deterministic and Probabilistic Results

  • Deterministic

– One result, whether it be

  • the peak dose,
  • the peak risk,
  • r the temporal plot of

dose (or risk)

  • Probabilistic

– As many results as there are

  • bservations

– A distribution of the result

  • the distribution of the peak dose,
  • the distribution of the peak risk
  • r the temporal plot of the distribution
  • f dose (or risk)
slide-28
SLIDE 28

3rd EMRAS II TM, WG2 28

Comparison of Deterministic and Probabilistic Dose or Soil Guideline

  • Deterministic

– Based on the peak dose, (or peak risk)

  • Probabilistic

– Based on some measure of the distribution of the peak dose (or peak risk)

  • A percentile (e.g. 99%, 95%) of the

distribution of the peak dose (or peak risk)

  • The mean of the peak doses
  • The peak of a percentile of the

distribution of the dose over time

  • The peak of the mean doses over time
slide-29
SLIDE 29

3rd EMRAS II TM, WG2 29

Probabilistic Terminology

  • Parameter sampling
  • Parameter correlations
  • “Peak of the mean”

(NRC uses this)

  • “Mean of the peaks”
  • Parameter sensitivity

– Deterministic – Probabilistic

Time Dose

D(1) D(2) D(3)

slide-30
SLIDE 30

3rd EMRAS II TM, WG2 30

Output Results

  • Output from a probabilistic dose calculation is a probability

distribution of dose.

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 0.01 0.10 1.00 10.00 Dose (mrem/yr) Cumulative Probability for All Pathways

Time Dose

slide-31
SLIDE 31

3rd EMRAS II TM, WG2 31

Probabilistic Results

  • Peak of the Mean

– Arithmetic mean of the dose for all observations at a given time period – The point in time where the arithmetic mean is the maximum is the “peak of the mean” dose

The thick black line is the mean of the 4 thin lines Time Dose

Peak of the Mean

slide-32
SLIDE 32

3rd EMRAS II TM, WG2 32

Probabilistic Results

  • “Mean of the Peaks”

– Arithmetic mean of the peak total dose from all pathways” – Peaks can occur different times

4 ) 4 ( ) 3 ( ) 2 ( ) 1 ( D D D D Peaks the

  • f

Mean    

Time Dose

D(1) D(2) D(3) D(4)

slide-33
SLIDE 33

3rd EMRAS II TM, WG2 33

Peak of the Mean Approach

50 1 00 1 50 200 250 300 350 1 1 01 201 301 401 501 601 701 801 901

Time (Year) Dose

Mean Dose for Each Time Period

slide-34
SLIDE 34

3rd EMRAS II TM, WG2 34

Mean of the Peak Dose: Identify the Peak Dose for Each

50 1 00 1 50 200 250 300 350 1 1 01 201 301 401 501 601 701 801 901

Time (Year) Dose

slide-35
SLIDE 35

3rd EMRAS II TM, WG2 35

Peak of the Mean of the Doses at Graphical Times

  • “Mean of the Peak”

doses is always greater than or equal to the “Peak of the Mean” doses at graphical times

  • When using the Peak of the Mean dose at graphical times,

– Use sufficient graphical time points to capture all the peaks from each individual sample – Linear spacing of graphical time points will give better coverage

  • ver the entire time horizon

– These are the defaults in RESRAD‐OFFSITE

slide-36
SLIDE 36

3rd EMRAS II TM, WG2 36

Probabilistic Analysis

Site data available? Physical parameter Metabolic and behavioral parameter Assign mean or median value

YES NO

Distribution available?

NO YES

Assign distribution Assign default or conservative value Assign site-specific value Compute dose distribution from probabilistic run Select peak of the mean dose Assign dose limit Derive probabilistic DCGLs

slide-37
SLIDE 37

3rd EMRAS II TM, WG2 37

Reasonably Conservative Deterministic Analysis

Site data available? Physical parameter Metabolic and behavioral parameter Assign mean or median value

YES NO

Distribution available?

NO YES

Assign value based on sensitivity analysis Assign default or conservative value Assign site-specific value Compute dose from deterministic run Assign dose limit Derive deterministic DCGLs

slide-38
SLIDE 38

3rd EMRAS II TM, WG2 38

Parameter Values for Reasonably Conservative Deterministic Analysis

  • Objective

– Select reasonably conservative values

  • Method

– List model parameters – Classify parameters (metabolic, behavioral, and physical) – Identify sensitive parameters – Determine parameter value – Use as input in a deterministic analysis

slide-39
SLIDE 39

3rd EMRAS II TM, WG2 39

Parameter Types

  • Metabolic

– Parameter that represents a metabolic characteristic of the potential receptor and is independent of scenario

  • Behavioral

– Parameter that depends on the receptor’s behavior and the scenario definition

  • Physical

– Parameter that is source‐

  • r site‐specific
slide-40
SLIDE 40

3rd EMRAS II TM, WG2 40

Parameter Value Selection Process

Perform sensitivity analysis Input parameter value Site data available? Physical Input parameter value Metabolic or behavioral Assign mean or median value List all model parameters Classify as metabolic, behavioral or physical

YES NO

slide-41
SLIDE 41

3rd EMRAS II TM, WG2 41

Why Find the Sensitive Parameters?

  • To justify the use of default values for some of the

parameters

– The parameters that have an insignificant influence on the variability of the dose

  • To identify the parameters for which additional data needs

to be collected in order to decrease the variability in the dose

– The parameters that have a significant effect on the variability

  • f

the dose

slide-42
SLIDE 42

3rd EMRAS II TM, WG2 42

Finding the Sensitive Parameters in RESRAD-OFFSITE

  • There are many ways to do this in RESRAD‐OFFSITE

– One input parameter at time using the “single parameter” sensitivity feature” – One input parameter at time using the probabilistic feature – Multiple input parameters at the same time using the probabilistic feature and regression analysis

slide-43
SLIDE 43

3rd EMRAS II TM, WG2 43

Probabilistic or Uncertainty Analysis

  • Probabilistic Analysis, all parameters simultaneously

– Can use sufficient number of observations to cover the entire range

  • f the selected parameters and the range of their interactions

– Considers the interaction of the parameters – Can not see the temporal effects of the different values of a selected parameter

  • Temporal plots are not available for the individual observations
  • All the parameters are varied simultaneously

– More difficult to understand and visualize the results

slide-44
SLIDE 44

3rd EMRAS II TM, WG2 44

Factors Deterministic Probabilistic

Data needs 1) Baseline parameter values 2) Ranges of parameter values Distributions of parameter values Calculation Procedures 1) Calculate peak dose at parameter’s base values 2) Calculate peak dose at parameter’s low and high value by keeping the

  • ther parameters at their base

values 3) Repeat (1) and (2) for all parameters 1) Sampling each parameter based on distribution 2) Generate numerous input data sets of the sampling data 3) Calculate peak dose for each input data set Parameter Sensitivity Percent change in the peak dose as defined by normalized dose difference SRRC quantifies contributions to radiation dose from each individual parameter Results NDD for each individual parameter SRRC for each individual parameter Easy to identify few most sensitive parameters Advantages Study the influence of a single parameter Consider variation in more than one parameter simultaneously Limitations Provides point (local) sensitivity and does not evaluate the effects of simultaneous changes in a large number of input parameters It is hard to identify less sensitive parameters in the presence of a few more sensitive parameters

Sensitivity Analysis

slide-45
SLIDE 45

3rd EMRAS II TM, WG2 45

Approaches for Determining Parameter S ensitivity

Approaches Advantages Disadvantages Scatter plots Visual display of the relationship Differentiate between the sensitivity

  • f parameters

PCC Linear relationship and unique contribution Nonlinear relationships SRC Linear relationship and shared contribution Nonlinear and correlated parameters PRCC Nonlinear monotonic relationship and unique contribution Non‐monotonic relationship SRRC Nonlinear monotonic relationship and shared contribution Correlated parameters

slide-46
SLIDE 46

3rd EMRAS II TM, WG2 46

Parameter Value Selection (cont.)

Input parameter value Non-sensitive, |PRCC or SRRC| < set criteria Sensitive, |PRCC or SRRC| > set criteria Dose positively correlated with parameter Parameter “sensitive” Or “non-sensitive” Assign median value Assign max(75% quantile, mean) Dose negatively correlated with parameter Input parameter value Input parameter value Assign min(25% quantile, mean)

slide-47
SLIDE 47

3rd EMRAS II TM, WG2 47

Some Observations about Finding the Sensitive Parameters

  • Scatter plots are useful in finding the sensitive parameters

when there are a few important inputs

– Can “see” the effect

  • Can have a high confidence that the effect is real
  • Must use regression coefficients when the interaction

between sensitive parameters masks the effect in 2 dimensional scatter plots

– Use the coefficient of determination to select the coefficient to be used

  • Standardize regression coefficient
  • Standardized rank regression coefficient
  • Code does this for you

– Can not “see” the effect, hence the reluctance to use this method

slide-48
SLIDE 48

3rd EMRAS II TM, WG2 48

Some Observations about Finding the Sensitive Parameters – cont.

  • Confirm that the selected sensitive parameters account for all

the variability in the dose

– Narrow the distribution of the insensitive parameters and rerun with uncertainty on the sensitive parameters

  • Retains the samples for the sensitive parameters and the grouping of

samples from the initial run

– Compare the two cumulative distribution plot

slide-49
SLIDE 49

3rd EMRAS II TM, WG2 49

Caution on Interpreting Probabilistic Results and Blindly Using Output Correlations

  • “He uses statistics

like a drunk uses a lamp post….for support rather than illumination”
