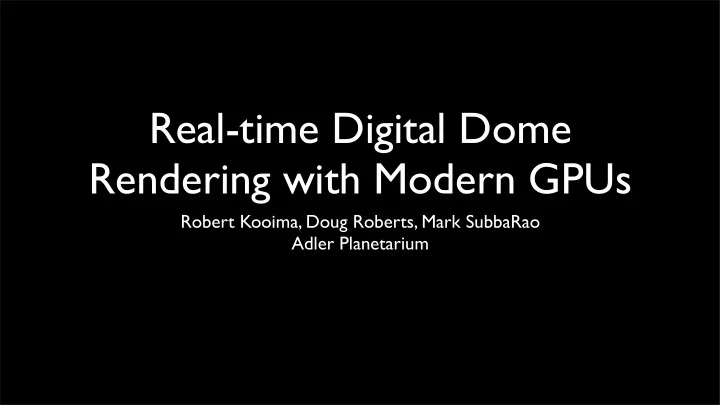

Robert Kooima, Doug Roberts, Mark SubbaRao Adler Planetarium
Real-time Digital Dome Rendering with Modern GPUs Robert Kooima, - - PowerPoint PPT Presentation
Real-time Digital Dome Rendering with Modern GPUs Robert Kooima, - - PowerPoint PPT Presentation
Real-time Digital Dome Rendering with Modern GPUs Robert Kooima, Doug Roberts, Mark SubbaRao Adler Planetarium Adler Space Visualization Lab Real-time 3D Dome Rendering Why? Why not? Live planetarium shows Technically feasible
SLIDE 2
SLIDE 3
Real-time 3D Dome Rendering
- Why?
- Live planetarium shows
- Adaptive
- Interactive
- Rapid content creation
- Why not?
- Technically feasible today
- Capable hardware is cheap
SLIDE 4
How do we get it?
- Open source
- Application porting
- Portability
- Collaboration
SLIDE 5
Real-time 3D Graphics
Vertices, Triangles, Fragments, Textures
SLIDE 6
The 3D Pipeline
SLIDE 7
The 3D Pipeline
SLIDE 8
The 3D Pipeline
SLIDE 9
The 3D Pipeline
SLIDE 10
The 3D Pipeline
SLIDE 11
Spherical Correction
SLIDE 12
Categories of Spherical Correction
- Vertex Correction
- Geometry Correction
- Fragment Correction
SLIDE 13
Vertex Correction
- Great for
- Points
- Finely-tessellated models
- Bad for
- Large polygons
- Long edges
- Programmable vertex processing helps!
SLIDE 14
Geometry Correction
- Recursive subdivision of triangles
- Solves the long-edge problem
- Can result in an explosion of geometry
- Programmable geometry processing helps
Original Projected One step Two steps
SLIDE 15
Fragment Correction
- Multi-pass render-to-texture
- Works in almost all circumstances
- Most expensive!
- As usual, programmable fragment processing helps
SLIDE 16
- Cube-map
- Fragment-program ray casting
- Distortion map texture lookup
Fragment Techniques
SLIDE 17
