Plasma-Induced Damage in 3D Structures behind Device Scaling K. Eriguchi, Y. Takao, and K. Ono Kyoto University, JAPAN Acknowledgements: This work was partly supported by JSPS and STARC project in Japan. Plasma R Si Project SHANa Damage

slide-1

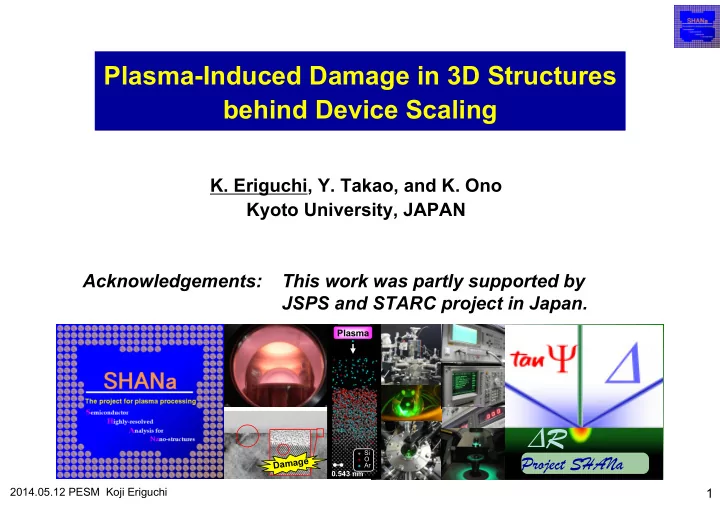

SLIDE 1

1

2014.05.12 PESM Koji Eriguchi

  • K. Eriguchi, Y. Takao, and K. Ono

Kyoto University, JAPAN Acknowledgements: This work was partly supported by JSPS and STARC project in Japan.

Plasma-Induced Damage in 3D Structures behind Device Scaling

Damage

R

Project SHANa

Plasma

Si O Ar

0.543 nm

slide-2
SLIDE 2

2

2014.05.12 PESM Koji Eriguchi

Outline Outline

  • 1. Introduction – Plasma-Induced Damage (PID)
  • 2. A Scenario for PID in Scaled 3D Structures

2-1 PID Models – Straggling & Sputtering 2-2 Molecular Dynamics Simulation 2-3 Electronic State of Defect

  • 3. PID Prediction in 3D Structure

4．Summary

slide-3
SLIDE 3

3

2014.05.12 PESM Koji Eriguchi

Plasma-Induced Damage (PID)

Plasma

Performance Reliability Yield Variability

PID naturally does not scale!!

slide-4
SLIDE 4

4

2014.05.12 PESM Koji Eriguchi

PID behind the scaling

Plasma-Induced Physical Damage (PPD) Power consumption increase & Operating speed down!!

Auth, VLSI 2012. Mistry, IEDM 2007.

slide-5
SLIDE 5

5

2014.05.12 PESM Koji Eriguchi

Previous reports on PID

  • S. A. Vitale and B. A. Smith: JVST B 21 (2003) 2205.
  • N. Yasui et al.: Proc. Symp. Dry Process (2007) 195.
  • T. Ohchi et al.: Jpn. J. Appl. Phys. 47 (2008) 5324.
  • H. Kokura et al., Proc. Symp. Dry Process, 2005, p. 27.

Presence of defects

slide-6
SLIDE 6

6

2014.05.12 PESM Koji Eriguchi

Outline Outline

  • 1. Introduction – Plasma-Induced Damage (PID)
  • 2. A Scenario for PID in Scaled 3D Structures

2-1 PID Models – Straggling & Sputtering 2-2 Molecular Dynamics Simulation 2-3 Electronic State of Defect

  • 3. PID Prediction in 3D Structure

4．Summary

slide-7
SLIDE 7

7

2014.05.12 PESM Koji Eriguchi

Gate Plasma (ne, Te, nion) ion Eion Si substrate

E 

ndam(x) x Si

Project Range  Stopping Power Project Range  Stopping Power

pdp p E T n E S n dx dE  2 ) , ( ) (

ion ion d ion

      

Potential-model-dependent

T: energy transfer p: impact parameter

 

1 n

5 . ) ( B s

low energy limit (Wilson model:  ~ 0.3)

  • N. Bohr: Mat. Fys. Medd. K. Dan. Vidensk. Selsk. 18 (1948).
  • J. Lindhard et al.: Mat. Fys. Medd. K. Dan. Vidensk. Selsk. 33, 1 (1963).
  • G. Moliere: Z. Naturforschung A2, 133 (1947).
  • W. D. Wilson et al.: Phys. Rev. B 15, 2458 (1977).

: reduced energy

x Rp p

Straggling Range

PID Range Theory – Planar Device

slide-8
SLIDE 8

8

2014.05.12 PESM Koji Eriguchi

PID Range Theory – Planar Device

ion Si radical Mask Si Plasma ion Etching

Damaged layer

Rp p

  • ex. Si Recess

) (

ion ion p

E A R  

p ion Si ion Si p

3 2 R M M M M   

(Eriguchi et al.) (LSS Theory)

p p V

   R d

slide-9
SLIDE 9

9

2014.05.12 PESM Koji Eriguchi

PID Range Theory – "Straggling"

Gate ion

Eion

Si sub.

Plasma

Mask

(a) Planar (1D)

Damaged layer Defect

(b) Fin-structured (3D) Etching

“Lateral straggling”

L

Rp & p Rp p

slide-10
SLIDE 10

10

2014.05.12 PESM Koji Eriguchi

PID Range Theory – "Straggling"

Mask

Etching

“Lateral straggling”

L

Rp p

) (

ion ion p

E A R  

p ion Si ion Si p

3 2 R M M M M   

p L

    K

(Eriguchi et al.) (LSS Theory) (Furukawa et al.)

 ) ( 3 2

ion ion Si ion Si ion L

E M M M M B   

(1) Lateral straggling depends on Mion, Eion, and Si–ion potential. (2) Sidewall etching mechanism is governed, not only by direct ion impact & deposition, but also by THIS STRAGGLING, L!  Damaged layer thickness ~ Rp + p (planar), L (3D)

slide-11
SLIDE 11

11

2014.05.12 PESM Koji Eriguchi

PID Model – 3D Device

Lateral straggling Sputtering

Mask Si Plasma ion  L ion Si radical

 

th ion sp sp

E E A    

p p L

R   

slide-12
SLIDE 12

12

2014.05.12 PESM Koji Eriguchi

Outline Outline

  • 1. Introduction – Plasma-Induced Damage (PID)
  • 2. A Scenario for PID in Scaled 3D Structures

2-1 PID Models – Straggling & Sputtering 2-2 Molecular Dynamics Simulation 2-3 Electronic State of Defect

  • 3. PID Prediction in 3D Structure

4．Summary

slide-13
SLIDE 13

13

2014.05.12 PESM Koji Eriguchi

Simulation scheme

Classical Molecular Dynamics

Si–Si, Cl, O: Stillinger–Weber

  • Phys. Rev. B, Vol.31, No.8, (1985), pp. 5262-5271

Noble gases: Wilson et al.

  • Phys. Rev. B, Vol.15, No.5, (1977), pp. 2458-2468

(Ohta and Hamaguchi, JVST 2001.)

Starting material Si Si Ne Defect analysis by dumbbell Si Interstitial ions

Density Functional Theory

Local defect Surface layer

slide-14
SLIDE 14

14

2014.05.12 PESM Koji Eriguchi

MD prediction results in Fin

Ar ion 100 eV (normal) Cl ion 100 eV (normal)

Si Ar Cl

dumbbell dumbbell Interstitial Interstitial

Sputtering Sputtering Lateral straggling Lateral straggling

slide-15
SLIDE 15

15

2014.05.12 PESM Koji Eriguchi

Defect creation in Fin

Counting the defects in this region one by one in accordance with the bond order and length.

100 200 300 400 100 200 300 400 500 0 100 200 300 400 500 Eion (eV) Eion (eV) Counts Ne Ar Xe Kr F Cl Br

An ion with lighter mass and higher incident energy  larger damage An ion with lighter mass and higher incident energy  larger damage

slide-16
SLIDE 16

16

2014.05.12 PESM Koji Eriguchi

Defect creation in "Fin"

5 10 15 20 25 30 0.0 1.0 2.0 3.0 4.0 5.0 Incident particle counts Distance from fin edge (nm) Fin region Damage layer F Cl Br 100 200 300 400

50 eV 100 eV 200 eV 400 eV

Defect counts 5 10 15 20 25 F Cl Br Particle counts fin body

“fin”

Both "sputtering" and "straggling" are responsible for PID in 3D. Both "sputtering" and "straggling" are responsible for PID in 3D. sputtering straggling

E = 200 eV

slide-17
SLIDE 17

17

2014.05.12 PESM Koji Eriguchi

Outline Outline

  • 1. Introduction – Plasma-Induced Damage (PID)
  • 2. A Scenario for PID in Scaled 3D Structures

2-1 PID Models – Straggling & Sputtering 2-2 Molecular Dynamics Simulation 2-3 Electronic State of Defect

  • 3. PID Prediction in 3D Structure

4．Summary

slide-18
SLIDE 18

18

2014.05.12 PESM Koji Eriguchi

Electronic structure of defect

Original super-lattice structure 40 80 120

  • 3.0
  • 2.0
  • 1.0

0.0 1.0 2.0 3.0 Density-of-state (arb. u.) Energy (eV)

DFT: 6-31G with PBEPBE & PBC

Damage

dumbbell He interstitial Ar interstitial No damage

0.0 0.4 0.8 1.2 0.0 0.2 0.4 0.6 0.8 Band gap energy (eV) Distance from lattice site (A) Displaced Si Displaced Si

slide-19
SLIDE 19

19

2014.05.12 PESM Koji Eriguchi

Experimental evidence

1017 1018 1019 1020 0.0 5.0 10.0 15.0 20.0

400 kHz 13.56 MHz no bias S.P.100W

Defect density: ndam (cm-3)

CV

dc plasma

V V 

(V1/2)

ndam Shield Stage Sample Control PC Vg Hg SiO2 Si

Eriguchi IEDM 2008 / Kamei Thin Solid Films 518 (2010) / Nakakubo AVS 2011

Defect Density ~ 1018 - 1019 cm-3

Ar plasma

slide-20
SLIDE 20

20

2014.05.12 PESM Koji Eriguchi

Outline Outline

  • 1. Introduction – Plasma-Induced Damage (PID)
  • 2. A Scenario for PID in Scaled 3D Structures

2-1 PID Models – Straggling & Sputtering 2-2 Molecular Dynamics Simulation 2-3 Electronic State of Defect

  • 3. PID Prediction in 3D Structure

4．Summary

slide-21
SLIDE 21

21

2014.05.12 PESM Koji Eriguchi

PID prediction in Fin-structure

Assumption: (1) PID is modeled by the present scheme. (2) Surface damaged layer was stripped off. (3) Latent-defect creation was uncorrelated. ~30 nm ~20 nm ~10 nm ~5 nm

! ) exp( ) (

MD dam dam MD

MD

n n n n P

n

   

MD dy n E dx x n

x ion ion dam

) ( ) (     

 PID Range Theory

?

Experiment in planar structure ndam ~ 1018 - 1019 cm-3

 ) ( 3 2

ion ion Si ion Si ion L

E M M M M B    Present Models Typical PID: Ar 200 eV np ~ 1011 cm-3

One in ~ every two snapshots

Typical fin size

 

th ion sp sp

E E A    

slide-22
SLIDE 22

22

2014.05.12 PESM Koji Eriguchi

Outline Outline

  • 1. Introduction – Plasma-Induced Damage (PID)
  • 2. A Scenario for PID in Scaled 3D Structures

2-1 PID Models – Straggling & Sputtering 2-2 Molecular Dynamics Simulation 2-3 Electronic State of Defect

  • 3. PID Prediction in 3D Structure

4．Summary

slide-23
SLIDE 23

23

2014.05.12 PESM Koji Eriguchi

Summary

Plasma-induced damage in 3D structures were discussed. (1) A new PID model was proposed on the basis of (A) lateral straggling at the etched surface and (B) bombardment of sputtered species at the sidewall. (2) A model prediction and MD simulations suggest that both the lateral straggling and the sputtered particle bombardment will become responsible for PID in scaled 3D structures. One should revise the views of plasma etching at the sidewall because the lateral PID is no longer negligible in ultimately scaled 3D devices.
