SLIDE 1

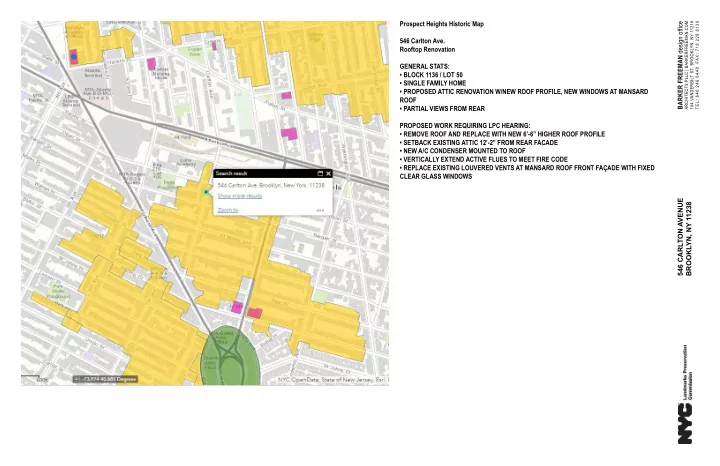

546 CARLTON AVENUE BROOKLYN, NY 11238 Prospect Heights Historic Map 546 Carlton Ave. Rooftop Renovation GENERAL STATS:

• BLOCK 1136 / LOT 50
• SINGLE FAMILY HOME
• PROPOSED ATTIC RENOVATION W/NEW ROOF PROFILE, NEW WINDOWS AT MANSARD

ROOF

• PARTIAL VIEWS FROM REAR

PROPOSED WORK REQUIRING LPC HEARING:

• REMOVE ROOF AND REPLACE WITH NEW 6’-6” HIGHER ROOF PROFILE
• SETBACK EXISTING ATTIC 12’-2” FROM REAR FACADE
• NEW A/C CONDENSER MOUNTED TO ROOF
• VERTICALLY EXTEND ACTIVE FLUES TO MEET FIRE CODE
• REPLACE EXISTING LOUVERED VENTS AT MANSARD ROOF FRONT FAÇADE WITH FIXED

CLEAR GLASS WINDOWS

SLIDE 2

546 CARLTON AVENUE BROOKLYN, NY 11238

The Renaissance Revival Style ........................................ (1880-1920)

• characterized by simple, restrained

Renaissance design forms, and an interest in classicism;

• two to three stories high;
• brownstone, limestone,
• r light-colored brick façade;
• subdued Classical ornament

concentrated around door and window openings;

• applied detail includes motifs
• f wreaths, baskets of fruit,

and garlands of flowers;

• L-shaped stoop, often with two landings;
• entrance surround features a full

stone enframement;

• wood double-leaf doors

with glazed openings, sometimes with iron grilles; and

• simple iron cornice with

Renaissance-inspired ornament. The Neo-Renaissance style (1890-1920) was an outgrowth of the Renaissance Revival style. Neo-Renaissance-style rowhouses are similar to Renaissance Revival style rowhouses but are more academic in their use and expression

• f classical ornament.

VIEW OF EXISTING JUNE 2016 LEFT: 1940 TAX PHOTO RIGHT: DEPARTMENT OF FINANCE 1939 VIEW OF EXISTING JUNE 2016

SLIDE 3

546 CARLTON AVENUE BROOKLYN, NY 11238

40'-0" MAX. BASE HEIGHT 15'-0" SETBACK 10'-0" 92'-1" TO STREET WALL 100'-0" LOT 47'-1" 50'-0" MAX. BUILDING HEIGHT

MAX ALLOWED ENVELOPE

30'-4" 43'-9"

NO WORK SELECTIVE WORK NO WORK NO WORK STREET WALL BEYOND FRONT LOT LINE

7'-11"

12 3.5 12 3.5

30'-0" MIN. BASE HEIGHT NO WORK NO WORK NO WORK

#546 2 STORY & BASEMENT BRICK & MANSARD ROOF AS ATTIC

+67.55' +67.58' +67.39' +66.91'

18'-0" 100'-0" 20'-0" 29'-5" 12'-9 1/2" 49'-10 1/2"

EXISTING FIRE HYDRANT NO REAR YARD REQUIREMENT AT CORNER LOT PER ZR 23-541

A B D C

MANSARD ROOF LINE

42'-2 1/2" 7'-11"

CELLAR DOOR

UP DN

5'-1 1/4" 2'-9 1/2"

NO REAR YARD REQUIREMENT AT CORNER LOT PER ZR 23-541

30'-0"

EXISTING BUILDING REAR LOT LINE

• MAX. BUILDING HEIGHT

BASEMENT FLOOR 1ST FLOOR 2ND FLOOR FRONT ROOF CELLAR FLOOR +57.75' +66.0' BASE PLANE +67.36' +75.41' +86.56' +97.70' T.O. MANSARD ROOF +104.65' T.O. ROOF +111.13' REAR ROOF +100.55'

• MIN. BASE HEIGHT

+97.36'

REAR LOT LINE

ATTIC +97.22'

• MAX. BASE HEIGHT

+107.36'

• MAX. BUILDING HEIGHT

+117.36'

2 STORY & BASEMENT BRICK & MANSARD ROOF AS 3RD FLOOR

80'-0"

STREET WALL WILL ALIGN WITH #544

DEAN ST. CARLTON AVE.

EXISTING FIRE HYDRANT

BASEMENT FLOOR 1ST FLOOR 2ND FLOOR FRONT ROOF +66.0' BASE PLANE +67.36' +75.41' +86.56' +97.70' T.O. MANSARD ROOF +104.65' T.O. ROOF +111.13' REAR ROOF +100.55'

• MIN. BASE HEIGHT

+97.36'

REAR LOT LINE

ATTIC +97.22'

• MAX. BASE HEIGHT

+107.36'

546 CARLTON AVE BROOKLYN 1136 50 3027823 Alexandra Barker

NTS

FRONT AXONOMETRIC

1/16" = 1'-0"

SITE SECTION

1/16" = 1'-0"

FRONT ELEVATION

PROPERTY: ZONING ANALYSIS:

1/16" = 1'-0"

SITE PLAN DIAGRAM

Address: 546 CARLTON AVENUE, BROOKLYN NY Block: 1136 Lot: 50 Zoning District R6B Map No. 16C Lot Area: 2,000 SF

• II. FLOOR AREA:

FLOOR EXISTING ADDITIONAL PROPOSED Cellar: 0 SF (Per ZR 12-10) 0 SF 0 SF (Per ZR 12-10) Basement: 1147.4 SF 0 SF 1147.4 SF 1st Floor: 1022.3 SF 0 SF 1022.3 SF 2nd Floor: 1022.3 SF 0 SF 1022.3 SF Attic: 0 SF (Per ZR 12-10) 761.0 SF 761.0 SF TOTAL: 3192.0 SF 761.0 SF 3,953.0 SF

• IV. BULK REGULATIONS:

ZONING REGULATION MAXIMUM PERMITTE D/ MINIMUM REQUIRED EXISTING PROPOSE D Residential FAR 2 1.59 1.97 ZR 23-153) (3,192 SF / 2,000 SF) (3,953 SF / 2,000 SF) Residential Floor Area: 4,000 SF 3192 3,953 SF < 4,000 SF (ZR 23-153) (2.00 x 2,000 SF) COMPLIE S Lot Coverage Ratio: 0.6 0.573 .57 < .60 (ZR 23-153) (Interior Lot) (1147.4 SF/ 2,000) COMPLIE S Lot Coverage 1,200 SF 1147.4 SF 1147.4 SF < 1,200.0 SF (.60 x 2,000 SF) COMPLIE S

• VI. YARD REGULATIONS:

NOTE: NO CHANGE TO YARDS PROPOSED UNDER THIS APPLICATION

ZONING REGULATION MAXIMUM PERMITTE D/ MINIMUM REQUIRED EXISTING PROPOSED Front Yard: Not Required 2.65’ 2.65’ (ZR 23-45) Side Yard: 0’ or 8’ Mini mum per ZR 23-462 0.13’ 0.13’ (EXIST. NON-COMPLIAN CE) (ZR 23-46) Rear Yard: Not Required per ZR 23-541 (Within 100'

• f corner)

29.42’ 29.42' (ZR 23-47)

• VII. HEIGHT AND SETBACK

REGULATIONS:

ZONING REGULATION MAXIMUM PERMITTE D/ MINIMUM REQUIRED EXISTING PROPOSED Minimum Base Height: 30’ 30.33' NO CHANGE (ZR 23-662) Maximum Base Height: 40’ 30.33' NO CHANGE (ZR 23-662) Maximum Building Height: 50’ 37.29’ 43.75' < 50' (COMPLIES) (ZR 23-662)

BASE PLANE = (67.39'+66.91'+67.58'+67.55') / 4 = +67.36'

NO WORK TO FRONT FACADE EXISTING 2-STORY & BASEMENT BRICK & MANSARD ROOF AS ATTIC TO REMAIN EXISTING 1 STORY EXTENSION TO REMAIN AS EXISTING NEW ROOF AND ATTIC FLOOR BUILDOUT CARLTON AVE. PROPOSED EXTENSION EXISTING STREET WALL TO REMAIN PROPOSED EXTENSION

• MAX. ALLOWED

ENVELOPE NO REAR YARD REQUIREMENT PER ZR 23-541 PLANTING AREA PER ZR 28-23 BASE PLANE STREET WALL ALIGNS WITH #544 40'-0" MAX. BASE HEIGHT 30'-0" REAR YARD 100'-0" SIDE LOT LINE 2 '

• "

REAR LOT LINE 30'-0" MIN. BASE HEIGHT 15'-0" SETBACK FROM STREET WALL 50'-0" MAX. BUILDING HEIGHT

SLIDE 4

546 CARLTON AVENUE BROOKLYN, NY 11238

1/4" = 1'0"

ATTIC PROPOSED PLAN - ONE FAMILY IN CONJUNCTION WITH CELLAR, BASEMENT, 1ST, 2ND

DN 1'-6" 23'-6 3/4" 11'-9 3/4" 100'-0" 38'-0 3/4" 8'-6 1/2" 1'-6" 2'-6" 7'-7" 2'-6" 5'-4" 19'-5" 20'-0" 24'-6 3/4" 5'-0" 8'-5 1/4" 14'-0" 18'-8 1/2" 14'-7" 13'-1" 13'-10 1/4" 9'-5 1/4" 18'-11" 7'-7 1/4" 11'-1 1/2" 11'-2 1/4" 49'-3" 3'-0" 3'-0" 11'-8 3/4" 7'-0" 3'-0" 11'-1 1/2" 12'-10 1/2"

39" H

1/4" = 1'0"

PROPOSED ROOF PLAN

1'-2" 3'-2" 7'-3" 2'-6" 5'-4" 19'-5"

4"Ø VENTS

49'-3" 8'-6 1/2" DOWN 3.5/12 2'-2 1/2" 6'-2 3/4" 1'-0" 2'-2 3/4" 4'-2 1/2" 4'-2 1/2" 6'-0" WIDE CLEAR PATH FOR FDNY ACCESS 6'-0" WIDE CLEAR PATH FOR FDNY ACCESS AIR 6'-0" 6'-0" 18'-8 1/2" 33'-6 3/4" 20'-0" 2'-5 1/2" MANSARD ROOF DOWN 41/12 38'-0 3/4" DOWN 3.5/12 NORTH

PROPOSED PLANS

NOT TO SCALE

SLIDE 5

546 CARLTON AVENUE BROOKLYN, NY 11238

3/8" = 1'0"

EXISTING FRONT ELEVATION

MANSARD LINE ROOF PARAPET 105.30' ATTIC ELEVATION 97.22' 2ND FLOOR ELEVATION 86.56' 1ST FLOOR ELEVATION 75.41' BASE PLANE ELEVATION 67.36' MANSARD LINE ROOF ELEVATION 104.65' FRONT ROOF ELEVATION 97.70' FRONT ROOF PARAPET 101.10' BASEMENT AT FRONT ELEV. 66.0' 37'-3 1/2"

NO WORK NO WORK NO WORK

30'-4" PROPOSED ROOF PEAK 111.13'' 3/8" = 1'0"

PROPOSED FRONT ELEVATION GENERAL NOTES KEYNOTES

43'-9 1/4"

NO WORK NO WORK NO WORK

37'-3 1/2" 30'-4" 6'-5 3/4" 2'-6" 2'-1 1/2" 3'-2" 2'-1 1/2"

FRONT ELEVATIONS

NOT TO SCALE

SLIDE 6

546 CARLTON AVENUE BROOKLYN, NY 11238

3/8" = 1'0"

EXISTING REAR ELEVATION

MANSARD LINE ROOF PARAPET 105.30' ATTIC ELEVATION 97.22' 2ND FLOOR ELEVATION 86.56' 1ST FLOOR ELEVATION 75.41' BASE PLANE ELEVATION 67.36' BASEMENT AT REAR ELEVATION 66.29' MANSARD LINE ROOF ELEVATION 104.65' REAR ROOF ELEVATION 100.55' REAR GRADE 66.20' REAR GRADE CURB 65.70' PROPOSED REAR PARAPET 109.81'

NO WORK NO WORK

33'-2 1/4" 4'-0 3/4" 37'-3"

NEW OPENING

PROPOSED ROOF PEAK 111.13'' PROPOSED REAR ROOF 108.50' 3/8" = 1'0"

PROPOSED REAR ELEVATION GENERAL NOTES KEYNOTES

3'-0"

NO WORK NO WORK

33'-2 1/4" 43'-9" 6'-4" 2'-6" 8'-0" V.I.F. 2'-6" 2'-6" 1'-10" 1'-0" 7'-11 1/2" 10'-6 3/4" 9'-3"

REAR ELEVATIONS

NOT TO SCALE

SLIDE 7

546 CARLTON AVENUE BROOKLYN, NY 11238

BASEMENT FLOOR 1ST FLOOR 2ND FLOOR FRONT ROOF CELLAR FLOOR +57.75' +66.0' BASE PLANE +67.36' +75.41' +86.56' +97.70' T.O. MANSARD ROOF +104.65' T.O. ROOF +111.13'

SEE Z-001 AND EN-001 FOR ZONING AND ENERGY CODE NOTES EXISTING MANSARD ROOF, DORMERS AND CORNICE TO REMAIN NEW ROOF LINE AS SHOWN MECHANICAL CONDENSER ON STEEL POSTS 30'-0" MIN. BASE HEIGHT 70'-0" STREET WIDTH 100'-0" EXISTING PARAPET WALLS TO REMAIN 3'-7" WATERPROOF AND DECK OVER EXISTING FLOOR STRUCTURE NO WORK PARTIAL WORK NO WORK NO WORK 15'-0" CARLTON AVE VIEW ANGLE FROM ACROSS STREET

REAR ROOF +100.55'

• MIN. BASE HEIGHT

+97.36'

6'-0" 8'-0" 12'-7 1/4" 10'-0"

ATTIC +97.22'

• MAX. BASE HEIGHT

+107.36'

• MAX. BUILDING HEIGHT

+117.36'

43'-9" BUILDING HEIGHT 30'-4" BASE HEIGHT 37'-3" 40'-0" MAX. BASE HEIGHT 50'-0" MAX. BUILDING HEIGHT 7'-11" 47'-1" 30'-0"

BASEMENT FLOOR 1ST FLOOR 2ND FLOOR CELLAR FLOOR +57.75' +66.0' BASE PLANE +67.36' +75.41' +86.56' T.O. MANSARD ROOF +104.65'

REMOVE EXISTING ROOF STRUCTURE AND UNUSED CHIMNEY FROM TOP EXISTING MANSARD ROOF, DORMERS AND CORNICE TO REMAIN

FRONT ROOF +97.70' REAR ROOF +100.55'

• MAX. BASE HEIGHT

+107.36'

• MAX. BUILDING HEIGHT

+117.36'

• MIN. BASE HEIGHT

+97.36' ATTIC +97.22'

30'-0" MIN. BASE HEIGHT 100'-0" 15'-0" 30'-4" BASE HEIGHT 37'-3" EXISTING BUILDING HEIGHT 40'-0" MAX. BASE HEIGHT 50'-0" MAX. BUILDING HEIGHT 7'-11" 47'-1" 30'-0" NO WORK PARTIAL WORK NO WORK NO WORK

EXISTING SECTION

NOT TO SCALE

PROPOSED SECTION

NOT TO SCALE

SLIDE 8

546 CARLTON AVENUE BROOKLYN, NY 11238

T.O. ROOF +111.13' T.O. MANSARD ROOF +104.65' FRONT ROOF +97.70' REAR ROOF +100.55' 4'-1" FLUE EXTENSIONS REQUIRED AT #544 BEYOND 10'-0" 10'-0" 3'-0" 3'-0" 7'-1 1/4" STUCCO PAINTED BENJAMIN MOORE SILENT NIGHT # 1613 T.O. ROOF +111.13' T.O. MANSARD ROOF +104.65' REAR ROOF +100.55' 8'-1 1/2" 3'-0" 10'-0" 10 3/4" 10'-0" 3'-0" CHIMNEY EXTENSIONS REQUIRED AT #546 STUCCO PAINTED BENJAMIN MOORE SILENT NIGHT #1613

LPC-07.00

SIDE ELEVATIONS SIDE ELEVATION - VIEW SOUTH TOWARD # 544

N.T.S. REAR YARD CARLTON AVENUE CARLTON AVENUE REAR YARD

SIDE ELEVATION - VIEW NORTH TOWARD # 548

N.T.S.

SLIDE 9

546 CARLTON AVENUE BROOKLYN, NY 11238

4"Ø VENTS DOWN 3.5/12 6'-0" WIDE CLEAR PATH FOR FDNY ACCESS 6'-0" WIDE CLEAR PATH FOR FDNY ACCESS 2 AIR 04 DOWN 3.5/12 3'-2 1/4" 1'-2 1/2" 18'-2 1/4" 21'-7" 11'-2 1/4" 1'-0" 6'-4 1/4" 9'-10 1/2" 1/4" = 1'0"

MOCKUP ROOF PLAN

LPC-02.00

2'-11" 8'-5 3/4" ROOF PEAK 21'-7" ROOF PEAK 11'-7 3/4" REAR WALL 8'-0" REAR WALL 6'-7 1/4" NEW REAR ROOF 18'-9 1/2" A/C CENTERLINE 1'-2 1/2" 12'-7" TOP OF A.C.

12 3.5 12 3.5

3'-3 1/4" 1'-0" 1/4" = 1'0"

MOCKUP BUILDING SECTION

LPC-02.00

SLIDE 10

546 CARLTON AVENUE BROOKLYN, NY 11238 F C D E B A G J K H

BLOCK 50 BERGEN CARLTON AVENUE DEAN STREET

BLOCK PLAN & PHOTO KEY

NEIGHBORING MODIFIED ROOF PROFILES TREE COVERAGE HIGH-RISE DEVELOPMENT OUTSIDE LANDMARKS DISTRICT OUTSIDE LANDMARKS DISTRICT

SLIDE 11

546 CARLTON AVENUE BROOKLYN, NY 11238 VISIBILITY: THE PROPOSED NEW ROOF IS NOT VISIBLE FROM ANYWHERE ALONG CARLTON AVE. THE ROOF SLOPES AWAY FROM THE EXISTING TOP OF THE MANSARD ROOF AND IS NOT VISIBLE FROM CARLTON AVE. THE PROPOSED PROJECT DOES NOT RESULT IN DAMAGE TO, OR THE DEMOLITION OF A SIGNIFICANT ARCHITECTURAL FEATURE OF THE HISTORIC BUILDING – THE EXISTING MANSARD ROOF REMAINS UNTOUCHED. PROPOSED FIXED CLEAR GLASS WINDOWS PROPOSED EXTENDED FLUES VIEW A DIRECTLY ACROSS STREET ON CARLTON AVE EXISTING CONDITIONS VIEW A DIRECTLY ACROSS STREET ON CARLTON AVE PROPOSED DESIGN

SLIDE 12

546 CARLTON AVENUE BROOKLYN, NY 11238 VIEW B - NO VISIBILITY NW VIEW FROM NE CORNER OF CARLTON AVE & BERGEN ST

SLIDE 13

546 CARLTON AVENUE BROOKLYN, NY 11238 VIEW C - MINIMALLY VISIBLE OBLIQUE NW VIEW FROM SOUTH SIDE OF BERGEN ST MOCKUP VIEW C - MINIMALLY VISIBLE OBLIQUE NW VIEW FROM SOUTH SIDE OF BERGEN ST RENDERING EXISTING MODIFIED ROOF PROFILES 558 CARLTON 558 CARLTON 560 CARLTON 560 CARLTON MOCKUP PROPOSED DESIGN

SCALE: THE SCALE OF THE PROPOSED PROJECT IS PROPORTIONAL TO EXISTING ROOFTOP ADDITIONS

ON NEIGHBORING BUILDINGS ALONG THE SAME SIDE OF THE BLOCK ON CARLTON AVE BETWEEN DEAN & BERGEN STREETS. THE PROPOSED CHANGE IS LESS THAN ONE FULL STORY IN HEIGHT.

FORM: THE PROFILE OF THE PROPOSED ROOF IS SIMILAR TO AN EXISTING ROOF ON THE SAME BLOCK

AT 558 CARLTON AVE., LOT 55.

VISIBILITY: THE PROPOSED PROJECT IS NOT VISIBLE FROM ANYWHERE ALONG CARLTON AVE. THE

PROPOSED PROJECT IS MINIMALLY VISIBLE FROM THE FRONT, AT AN OBLIQUE ANGLE ALONG BERGEN ST FOR A 10’ LENGTH OF SIDEWALK.

MATERIALITY: THE PROPOSED REAR WALL AND PARTY WALLS WILL BE PAINTED A MATTE BLACK TO MINIMIZE

VISUAL IMPACT.

SLIDE 14

546 CARLTON AVENUE BROOKLYN, NY 11238 VIEW D - NO VISIBILITY NW VIEW FROM SE CORNER OF CARLTON AVE & BERGEN ST EXISTING MODIFIED ROOF PROFILES 558 CARLTON 560 CARLTON VISIBLE ROOF

SLIDE 15

546 CARLTON AVENUE BROOKLYN, NY 11238 VIEW E - NO VISIBILITY NW VIEW FROM SE CORNER OF CARLTON AVE & BERGEN ST

SCALE: THE SCALE OF THE PROPOSED

PROJECT IS PROPORTIONAL TO EXISTING ROOFTOP ADDITIONS ON NEIGHBORING BUILDINGS ALONG THE SAME SIDE OF THE BLOCK ON CARLTON AVE BETWEEN DEAN & BERGEN

• STREETS. THE PROPOSED CHANGE IS

LESS THAN ONE FULL STORY IN HEIGHT.

FORM: THE PROFILE OF THE

PROPOSED ROOF IS SIMILAR TO AN EXISTING ROOF ON THE SAME BLOCK AT 558 CARLTON AVE., LOT 55.

MATERIALITY: THE PROPOSED REAR

WALL AND PARTY WALLS WILL BE PAINTED A MATTE BLACK TO MINIMIZE VISUAL IMPACT. HIGH RISE DEVELOPMENT

SLIDE 16

546 CARLTON AVENUE BROOKLYN, NY 11238 560 CARLTON 558 CARLTON VIEW F - PARTIAL VISIBILITY OBLIQUE NE VIEW OF REAR FROM SOUTH SIDE OF BERGEN ST. RENDERING VIEW F - PARTIAL VISIBILITY OBLIQUE NE VIEW OF REAR FROM SOUTH SIDE OF BERGEN ST. MOCKUP THE PROPOSED PROJECT IS PARTIALLY VISIBLE FROM THE REAR AGAINST A BACKDROP OF HIGH-RISE BUILDINGS FROM BERGEN ST. THE PROPOSED PROJECT:

• DOES NOT RESULT IN DAMAGE TO, OR THE DEMOLITION OF A SIGNIFICANT ARCHITECTURAL FEATURE OF THE HISTORIC BUILDING – THE EXISTING MANSARD ROOF.
• DOES NOT ADVERSELY AFFECT SIGNIFICANT ARCHITECTURAL FEATURES OF ADJACENT IMPROVEMENTS
• HAS NO OUTSTANDING DEPARTMENT OF BUILDINGS OBJECTIONS FOR USE OR BULK
• IS LESS THAN ONE STORY IN HEIGHT WITH A HEIGHT OF 6.5’ ABOVE THE EXISTING ROOF HIGH POINT
• IS SET BACK 12.2’ FEET FROM THE PLANE OF THE REAR FAÇADE
• IS NOT TO BE CONSTRUCTED ON A STRUCTURE WITH A GRANDFATHERED REAR YARD ADDITION OR ENLARGEMENT, A REAR YARD ADDITION OF ENLARGEMENT APPROVED BY THE LPC STAFF PURSUANT TO SECTION

2-16 OF THE LANDMARKS PRESERVATION COMMISSION’S RULES, OR A REAR YARD ADDITION OR ENLARGEMENT APPROVED BY THE FULL COMMISSION. EXISTING MODIFIED ROOF PROFILES SIMILAR IN SCALE & PROFILE PROPOSED DESIGN MOCKUP HIGH RISE DEVELOPMENT

SLIDE 17

546 CARLTON AVENUE BROOKLYN, NY 11238 OUTSIDE LANDMARKS DISTRICT VIEW G - PARTIAL VISIBILITY OBLIQUE SW VIEW FROM NORTH SIDE OF DEAN ST MOCKUP OUTSIDE LANDMARKS DISTRICT VIEW G - PARTIAL VISIBILITY OBLIQUE SW VIEW FROM NORTH SIDE OF DEAN ST RENDERING

SLIDE 18

546 CARLTON AVENUE BROOKLYN, NY 11238 OUTSIDE LANDMARKS DISTRICT VIEW H - NO VISIBILITY NW CORNER OF CARLTON AVE & DEAN ST LOOKING SW

SLIDE 19

546 CARLTON AVENUE BROOKLYN, NY 11238 OUTSIDE LANDMARKS DISTRICT VIEW J - MINIMAL VISIBILITY OBLIQUE VIEW FROM NORTH SIDE OF DEAN ST LOOKING SW MOCKUP OUTSIDE LANDMARKS DISTRICT VIEW J - MINIMAL VISIBILITY OBLIQUE VIEW FROM NORTH SIDE OF DEAN ST LOOKING SW RENDERING

SLIDE 20

546 CARLTON AVENUE BROOKLYN, NY 11238 VIEW K - NO VISIBILITY NEW CORNER OF CARLTON AVE & DEAN ST LOOKING SW

SLIDE 21

546 CARLTON AVENUE BROOKLYN, NY 11238

BLACK

CLAD COLORS

Wide selection of superior quality opaque paint for a beautiful an

Historic Profile Renaissance Revival Style

Brick Molds 2 1

2"

2 1

2"

2" 2 1

2"

2 1

2"

2" 2" 2" 2"

PAINTED STUCCO FRONT WINDOWS EXISTING OPENING FIXED WINDOW WINDOW SECTION PROPOSED FIXED WINDOW WITHIN EXISTING OPENING

MATERIALS & WINDOW DETAILS

PRESTIGE Collection

WINDOWS &DOORS
