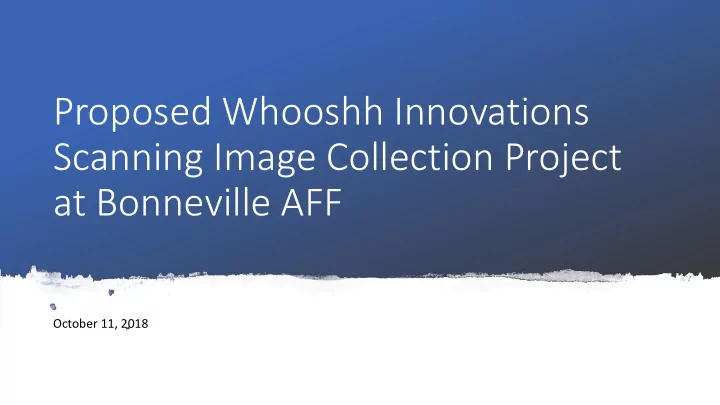

Proposed Whooshh Innovations Scanning Image Collection Project at Bonneville AFF

October 11, 2018

Sc Scannin ing Im Image Co Coll llectio ion AFF Projec ject t Obje jectiv ives

1. Install the Whooshh scanning system temporarily replacing the terminal end of the eastern-most AFF bypass pipe for one complete AFF year of operation (Spring through Fall). ❖ Installation plan and location designed to have zero impact on normal AFF operations. ❖ Installation during winter (AFF dry period) to minimize risk and impact on AFF operations. 2. Autonomously collect thousands of partially dewatered fish images representing the diversity of fish species migrating up the Columbia River. ❖ Image collection will occur as fish slide through the bypass path requiring no handling, fish delay, capture or containment. ❖ Scanning system autonomously senses fish sliding through and triggers camera shutter to capture images. 3. Collect fish counts on all fish that pass through the Whooshh scanning system. ❖ Scanning system autonomously senses fish sliding through and logs fish counts. ❖ Fish count data will be shared with Bonneville Fisheries Research Coordinators and/or Project Biologists and CRITFC.

Whooshh Scanning Capabilities

• Machine Vision Scanning:

❖Six fixed-angled machine vision cameras ❖High definition imaging ❖Proprietary operating system- optimized processor utilization for image processing ❖Proprietary computational algorithms ❖Real-time evaluations

• Current Capabilities:

❖ Size (Girth, Width, Length) ❖ Speciation by size (Girth, Length)

• Development Projects:

❖Hatchery vs. Wild ❖Invasive species recognition ❖Pinniped injury ❖Speciation

Length & girth calculated in real-time

Ringold Fall 2017

• Stu

tudy con

• nducted

ed with ith PNNL

• Installation completed in 2 weeks
• In operation for over 1.5 months
• >3

>300 Ch Chin inook and Steelh lhead volit

• litionall

lly entered and slid lid th through th the system ✓ Volitional Entry System (including steeppass and flow box ) ✓ Scanned and sorted by size automatically without human handling ✓ Multi-species passage ✓ Continuous uninhibited slide with no evidence of injury or delay

Machine Vision Scanning

Image #1 Image #2 Image #3 Left Camera Top Camera Right Camera Each fish image is captured and analyzed in real-time

POSSIBLE REPOSITION PATH OUTLET PIP IPE 2 IF IF REQUIRED PROPOSED WHO HOOSHH SCA CANNER LOCATION (OUTLET PIP IPE 1 – SUPPORTED WIT ITH I-BEAMS)

Feather River Scanner

Feather River Ladder: Scanner Installation site 10/2018
