Preventing Slips, Trips and Falls Rob Shaw www.robshawassociates.com Who We Are Rob: Over 14 years with HSE investigating and preventing falls Technical Lead for the HSE Falls Prevention Team Has delivered training and consultancy

slide-1

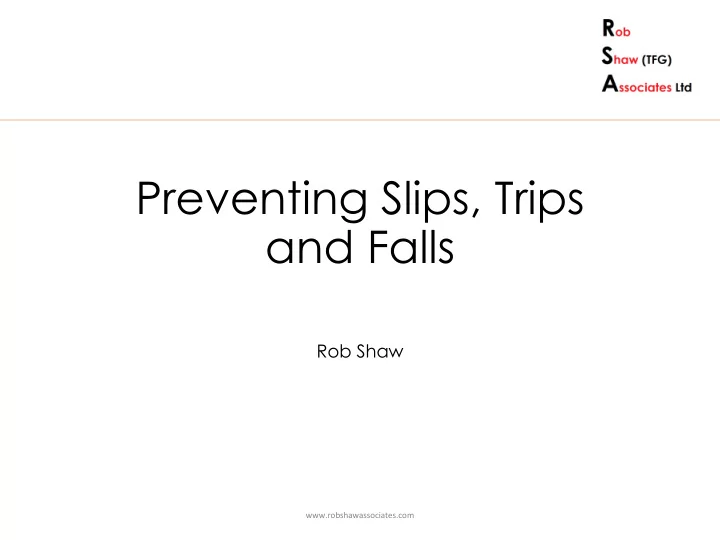

SLIDE 1

Preventing Slips, Trips and Falls

Rob Shaw

www.robshawassociates.com

slide-2
SLIDE 2

Who We Are

Rob:

  • Over 14 years with HSE investigating and preventing falls
  • Technical Lead for the HSE Falls Prevention Team
  • Has delivered training and consultancy internationally on the topic

Rachel:

  • Over 10 years experience providing training in education and industry
  • Project manager at HSE managing falls prevention work as well as other

reactive incident support work

  • Member of HSE Commercial Development team

www.robshawassociates.com

slide-3
SLIDE 3

www.robshawassociates.com

slide-4
SLIDE 4

Slips

www.robshawassociates.com

slide-5
SLIDE 5

Slips Hierarchy

www.robshawassociates.com

slide-6
SLIDE 6

Flooring

www.robshawassociates.com

slide-7
SLIDE 7

Friction Requirements

Risk 1 in: CoF Slip Potential 1,000,000 0.36 Low 100,000 0.34 Moderate 10,000 0.29 Moderate 200 0.27 Moderate 20 0.24 High For low risk activity – normal level walking

www.robshawassociates.com

slide-8
SLIDE 8

Portable Friction Tests

www.robshawassociates.com

slide-9
SLIDE 9

Invalid Tests

There are many portable friction tests available Few are relevant to pedestrian slipping Be wary of misinformation when assessing pedestrian slip risk, from e.g. Brungraber Mk 2; Bot 3000; Tortus; GMG

www.robshawassociates.com

slide-10
SLIDE 10

The Pendulum Test

Developed to simulate pedestrian gait Gives relevant information Method of operation is important

www.robshawassociates.com

slide-11
SLIDE 11

The Pendulum Test

www.robshawassociates.com

slide-12
SLIDE 12

Cleaning

www.robshawassociates.com

slide-13
SLIDE 13

Why Cleaning is Important

Cleaning should remove contamination Cleaning may introduce other slip and trip hazards Floors can be compromised by grease, leading to accidents when the floor becomes wet

www.robshawassociates.com

slide-14
SLIDE 14

A Tale of Two Cleaners

Simple changes to cleaning can make a big difference to risk Slips can have significant impact on people

www.robshawassociates.com

slide-15
SLIDE 15

Residual coverage following floor cleaning (Field conditions vs. Two-steps at 24°C)

20 40 60 80 100

K 3 ( . 7 , 7 2 ) K 1 6 ( . 5 , 3 6 ) L I F T ( . 3 3 , 5 2 ) F L A S H ( . 1 7 , 3 3 ) F L A S H ( . 2 , 1 5 ) F L A S H ( . 5 1 , 5 8 ) D A S H ( 1 . 2 2 , 2 2 ) H S D C ( . 1 1 , 1 ) U L T R A ( . 1 , 1 9 ) O X Y G E L ( . 1 1 , 5 4 )

RC (%)

Field (FQT, DM at C and T) Optimal (FQT, 2SM at Rec. And 24°C)

Residual Contamination (RC)

As Found Improved Regime

Using the Correct Method

www.robshawassociates.com

slide-16
SLIDE 16

Train Station

www.robshawassociates.com

slide-17
SLIDE 17

Train Station

www.robshawassociates.com

slide-18
SLIDE 18

Footwear

www.robshawassociates.com

slide-19
SLIDE 19

Footwear

Low down on the hierarchy of controls but often the easiest and cheapest control to implement May be the only control available:

  • Contract cleaners
  • Peripatetic workers

May already issue PPE footwear so could be a zero cost solution Getting good information can be difficult

www.robshawassociates.com

slide-20
SLIDE 20

GRIP rating scheme

For more information visit: www.hsl.gov.uk/products

www.robshawassociates.com

slide-21
SLIDE 21

Overshoes

www.robshawassociates.com

slide-22
SLIDE 22

Energy Company

Large peripatetic sales workforce HSL helped identify footwear for trial Trialled with 600 staff: In the year before the trial:

  • 74 lost time incidents, stood workforce down during the worst

weather

In the year of the trial:

  • 1 lost time incidents, did not stand the workforce down at all

www.robshawassociates.com

slide-23
SLIDE 23

Supermarket

Decided to issue safety footwear to staff in high risk areas 40,000 new pairs Cost £600,000 Was it worth it? In first 12 months saved them approximately £1,000,000

www.robshawassociates.com

slide-24
SLIDE 24

Trips

www.robshawassociates.com

slide-25
SLIDE 25

What is a Trip?

www.robshawassociates.com

slide-26
SLIDE 26

www.robshawassociates.com

slide-27
SLIDE 27

Stairs

www.robshawassociates.com

slide-28
SLIDE 28

www.robshawassociates.com

slide-29
SLIDE 29

www.robshawassociates.com

slide-30
SLIDE 30

www.robshawassociates.com

slide-31
SLIDE 31

www.robshawassociates.com

slide-32
SLIDE 32

www.robshawassociates.com

slide-33
SLIDE 33

www.robshawassociates.com

slide-34
SLIDE 34

www.robshawassociates.com

slide-35
SLIDE 35

Summary

Falls can be prevented The solutions are often simple Beware of test data Slips – slips hierarchy Trips – often a housekeeping or maintenance issue

RSA can assist

www.robshawassociates.com

slide-36
SLIDE 36

Contacts Us

rob@robshawassociates.com rachel@robshawassociates.com 07751 086383
