Point of Care Ultrasound UCSF Continuing Medical Education Cardiac Trevor Jensen, MD, MPH October 21-22, 2018 Disclosure I have no relevant financial relationships with any companies related to the content of this course. POCUS Cardiac and

slide-1

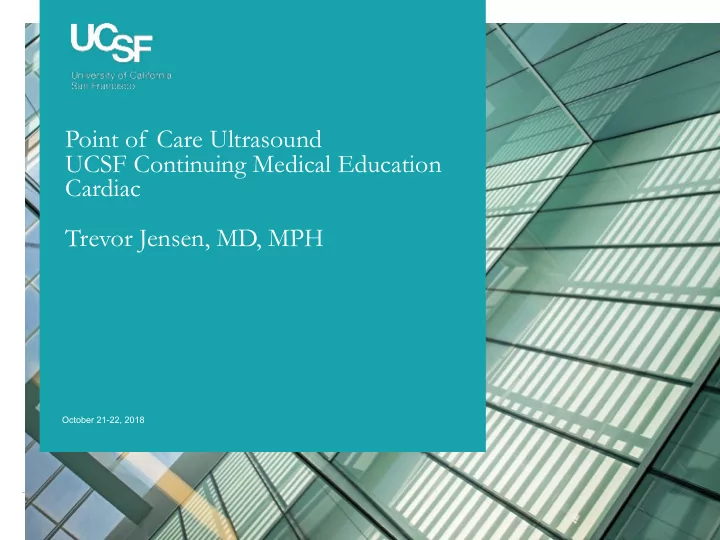

SLIDE 1

October 21-22, 2018

Point of Care Ultrasound UCSF Continuing Medical Education Cardiac Trevor Jensen, MD, MPH

slide-2
SLIDE 2

Disclosure

I have no relevant financial relationships with any companies related to the content of this course.

slide-3
SLIDE 3

POCUS Cardiac and IVC


slide-4
SLIDE 4

Cardiac US

  • Keep it basic
  • Echocardiography is very complex
  • We will focus on the fundamentals that

will help you care for your patients at the beside

  • These images will be used with the

clinical history to make decisions on your patient

slide-5
SLIDE 5

Utility & Protocols

  • RUSH

– Rapid Ultrasound in Shock – Patient is hypotensive or unresponsive

  • CLUE Protocol

– Cardiopulmonary Limited Ultrasound Exam – Patient needs rapid assessment for heart failure

  • BLUE Protocol

– Bedside Lung Ultrasound in Emergency – Patient is in respiratory failure

slide-6
SLIDE 6

Probe Selection

Phased Array Low Frequency Small footprint to image between ribs

slide-7
SLIDE 7

How to Hold the Probe

  • Hold probe like a pencil
  • Brace hand on the patient
  • Larger motions that gradually become finer

movements to improve image

  • Sufficient use of ultrasound gel
slide-8
SLIDE 8

Position of the Patient

  • Most likely will be supine in the ED/

Hospital/ICU

  • Left Lateral Decubitus will usually result

in improved images

slide-9
SLIDE 9
  • 3 Windows
  • Parasternal
  • Apical
  • Subcostal

Sonographic Windows

Slide adapted with permission from Arun Nagdev

slide-10
SLIDE 10

Parasternal Long

Parasternal Short Apical 4-Chamber Subcostal

slide-11
SLIDE 11

Parasternal Long: Probe + Position

slide-12
SLIDE 12

Parasternal Long Anatomy

Images obtained from echocardiographer.org

slide-13
SLIDE 13

LV

RV

Parasternal Long Axis View

LV

RV Ao

DTA

Mitral Valve Leaflets

Slide adapted with permission from Arun Nagdev

slide-14
SLIDE 14

Parasternal Long: Interpretation

  • Utility

– Effusion – LV Function

  • Indices

– Movement of mitral valve leaflet tips (EPSS) – Movement of lateral mitral valve annulus – LV Wall Thickening – Change in chamber size

  • Functional Categories (all views)

– Hyperdynamic – Normal – Mildly decreased – Severely decreased

slide-15
SLIDE 15

Parasternal Long: Normal

slide-16
SLIDE 16

Parasternal Long: Abnormal

slide-17
SLIDE 17

Parasternal Long Tips

  • Stay close to sternum
  • Sonographic windows and axes vary
  • Difficult in COPD
  • Look for the Mitral Valve
slide-18
SLIDE 18

Parasternal Short: Position

slide-19
SLIDE 19

Parasternal Short: Orientation

slide-20
SLIDE 20

Parasternal Short: Orientation

slide-21
SLIDE 21

Parasternal Short: Interpretation

  • Utility

– Gross LV systolic function – Assessed at level of papillary muscles – Regional wall motion abnormalities – RV size

slide-22
SLIDE 22

Parasternal Short: Normal

slide-23
SLIDE 23

Parasternal Short: Abnormal

slide-24
SLIDE 24

Parasternal Short Tips

  • Stay close to sternum
  • Sonographic windows and axes vary
  • Difficult in COPD
  • Look for the Mitral Valve
slide-25
SLIDE 25

Subcostal View: Position

slide-26
SLIDE 26

Subcostal View: Orientation

slide-27
SLIDE 27

Subcostal View: Interpretation

  • Utility

– LV Systolic Function – Pericardial Effusion – Right atrium and ventricle size

slide-28
SLIDE 28

Subcostal View: Normal

slide-29
SLIDE 29

Subcostal View: Abnormal

slide-30
SLIDE 30

Subcostal 4 Chamber View

  • Tips:
  • Firm pressure
  • Inspiratory hold
  • Bend the knees
  • Bowel Gas? Try right of midline
  • Great for COPD patients
slide-31
SLIDE 31

Apical 4 Chamber

  • Utility

– Systolic function – Chamber size – Valvular abnormalities – Doppler measurements

  • Challenges

– most difficult view to obtain – prone to errors in interpretation

slide-32
SLIDE 32

Apical 4 Chamber: Orientation

slide-33
SLIDE 33

Apical 4 Chamber: Normal

slide-34
SLIDE 34

Apical 4 Chamber: Abnormal

slide-35
SLIDE 35

Apical 4 Chamber

  • Tips:
  • Under the breast fold
  • Left lateral decubitus
  • End-expiratory hold
  • Aim sound waves


toward right scapula

slide-36
SLIDE 36

IVC: Position

slide-37
SLIDE 37

IVC: Orientation

slide-38
SLIDE 38

IVC: Measurement

slide-39
SLIDE 39

IVC: Interpretation

  • Location:
  • 2-3 cm caudal to RA or 0-1 cm caudal to hepatic vein
  • Metrics
  • Max diameter: 2.1 cm
  • Collapsibility: 50%
slide-40
SLIDE 40

Don’t fall for Aorta!

IVC Aorta

slide-41
SLIDE 41

Fan IVC/Aorta/IVC

slide-42
SLIDE 42

IVC: Abnormal

slide-43
SLIDE 43

Summary

  • Focus on the basic exams + basic interpretations

first

– Most evidenced based for non-cardiologists

  • Even basic exams have broad list of applications

– Hypotension – Dyspnea – Volume overload – Unresponsiveness

  • Build towards more complex exams and protocols
