Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica, Emmanuel Chaput, Andr-Luc Beylot University of Toulouse Institut de Recherche en Informatique de Toulouse IEEE 8 th International Conference on Mobile Ad-hoc and Sensor

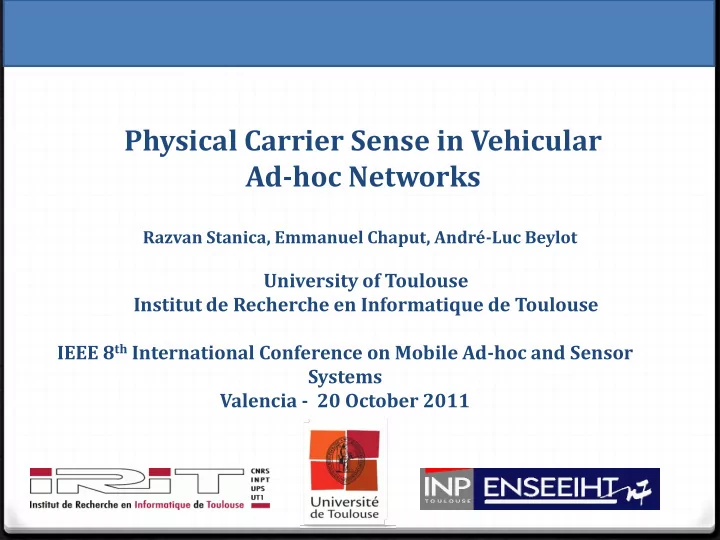

SLIDE 1

Physical Carrier Sense in Vehicular Ad-hoc Networks

University of Toulouse Institut de Recherche en Informatique de Toulouse IEEE 8th International Conference on Mobile Ad-hoc and Sensor Systems Valencia - 20 October 2011

Razvan Stanica, Emmanuel Chaput, André-Luc Beylot

SLIDE 2

Physical Carrier Sense in Vehicular Ad-hoc Networks

 Safety Communication in Vehicular Networks  Particularities of the VANET Control Channel  The Importance of the Carrier Sense Range  Adaptive Carrier Sense Threshold

Razvan Stanica University of Toulouse IEEE MASS 2011

SLIDE 3

Adaptive CS Safety V2V Carrier Sense Range

VANET objective: Building an accurate image of the exterior world  Cooperative Awareness Message (CAM)  Decentralised Environmental Notification (DEN)

Control Channel Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

SLIDE 4

Safety V2V Control Channel Adaptive CS Carrier Sense Range Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

 Intersection Collision Warning  Emergency Electronic Brake Lights  Approaching Emergency Vehicle  Lane Change Assistant  Left-Turn Collision Warning

Safety Applications

SLIDE 5

Safety V2V

5.860 5.870 5.880 5.890 5.900 5.910 5.920 G5SC4 G5SC3 G5SC1 G5SC2 G5CC CH172 CH174 CH176 CH178 CH180 CH182 CH184 USA Spectrum Allocation Europe Spectrum Allocation  Service channels (SCH) – non-safety (usually IP-based) applications  Control channel (CCH) – safety applications

Control Channel Adaptive CS Carrier Sense Range Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

SLIDE 6

Safety V2V Control Channel

Safety beaconing

 A beacon expires if the next CAM is produced  No exposed terminals  Practically no internal contention on the CCH  MAC delay automatically considered in the expiration probability  Metric of interest: reception probability

Adaptive CS Carrier Sense Range Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

SLIDE 7

Safety V2V Control Channel

IEEE 802.11p on the CCH

Adaptive CS Carrier Sense Range Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

100% broadcast communication No ACK message Collisions can not be detected BEB mechanism deactivated Always use the minimum value for CW

SLIDE 8

Safety V2V Control Channel

Congestion Control

 Reduce Beaconing Frequency

Adaptive CS Carrier Sense Range Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

SLIDE 9

Safety V2V Control Channel

Congestion Control

 Reduce Beaconing Frequency  Increase Data Rate

Adaptive CS Carrier Sense Range Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

SLIDE 10

Safety V2V Control Channel

Congestion Control

 Reduce Beaconing Frequency  Increase Data Rate  Control Transmission Power

Adaptive CS Carrier Sense Range Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

SLIDE 11

Safety V2V Control Channel

Congestion Control

 Reduce Beaconing Frequency  Increase Data Rate  Control Transmission Power  Modify Back-off Mechanism

Adaptive CS Carrier Sense Range Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

SLIDE 12

Safety V2V Control Channel

Congestion Control

 Reduce Beaconing Frequency  Increase Data Rate  Control Transmission Power  Modify Back-off Mechanism  Adapt Carrier Sensing

Adaptive CS Carrier Sense Range Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

SLIDE 13

Safety V2V Carrier Sense Range Control Channel Adaptive CS Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

Carrier Sense in IEEE 802.11

 MAC Layer – Network Allocation Vector

based on the RTS/CTS handshake
unusable on the broadcast CCH

 PLCP Layer – Clear Channel Assignment

header detection
energy detection

SLIDE 14

Safety V2V Carrier Sense Range Control Channel Adaptive CS Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

Carrier Sense Range

SLIDE 15

Safety V2V Carrier Sense Range Control Channel Adaptive CS Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

Carrier Sense Range Safety Range

SLIDE 16

Safety V2V Carrier Sense Range Control Channel Adaptive CS Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

Carrier Sense Range Safety Range Worst Case Scenario Pt CSt Pi CSi X= CSr/SFr SIR= Pt/Pi(X-1)θ

SLIDE 17

Safety V2V Carrier Sense Range Control Channel Adaptive CS Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

Carrier Sense Range Safety Range Transmission Power Control Pt CSt Pi - Pε CSi SIR

SLIDE 18

Safety V2V Carrier Sense Range Control Channel Adaptive CS Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

Carrier Sense Range Safety Range Carrier Sense Threshold Control Pt CSt Pi CSi - CSε SIR

SLIDE 19

Safety V2V Carrier Sense Range Control Channel Adaptive CS Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

Carrier Sense vs. Transmission Power

SLIDE 20

Safety V2V Carrier Sense Range Control Channel Adaptive CS Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

Carrier Sense Range Safety Range Why Not Use the Minimum Carrier Sense Threshold?

SLIDE 21

Safety V2V Carrier Sense Range Control Channel Adaptive CS Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

Carrier Sense Range = Competition for Channel Access Safety Range Why Not Use the Minimum Carrier Sense Threshold?

SLIDE 22

Vehicular Density

 More neighbours – longer back-off  More neighbours – more expired beacons  More neighbours – more collisions

Control Channel Safety V2V Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

Collision Capture Effect Capture Effect

Carrier Sense Range Adaptive CS

SLIDE 23

Vehicular Density

 More neighbours – longer back-off  More neighbours – more expired beacons  More neighbours – more collisions

Control Channel Safety V2V Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

Collision

Carrier Sense Range Adaptive CS

SLIDE 24

Adaptive Carrier Sense Threshold

 Low CSt value under low density  High CSt value under high density  Beacon-based density estimation – λ  CSt= f(λ)

Adaptive CS Control Channel Safety V2V Carrier Sense Range Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

SLIDE 25

Simulation Study

 JiST/SWANS framework  Street Random Waypoint mobility model  Three different real maps from TIGER database  Medium and high vehicular density

Adaptive CS Control Channel Safety V2V Carrier Sense Range Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

SLIDE 26

Adaptive CS Control Channel Safety V2V Carrier Sense Range Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

Beaconing Reception Probability for different Densities and CS Thresholds

SLIDE 27

Adaptive CS Control Channel Safety V2V Carrier Sense Range Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

Impact of the Carrier Sense Range

SLIDE 28

Adaptive CS Control Channel Safety V2V Carrier Sense Range Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

Adaptive vs. Best Fixed CSt

SLIDE 29

Adaptive CS Control Channel Safety V2V Carrier Sense Range Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

Different Optimal Values for CSt

Adaptive vs. Best Fixed CSt

SLIDE 30

Adaptive CS Control Channel Safety V2V Carrier Sense Range Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

Vehicular Density Adaptive Mechanism CSt= -95 dBm CSt= -85 dBm CSt= -75 dBm 25 veh/lane/km 91.02% 86.42% 89.88% 88.64% 35 veh/lane/km 86.12% 78.38% 84.27% 81.81% 45 veh/lane/km 81.41% 69.76% 76.32% 80.20%

Adaptive vs. Best Fixed CSt

SLIDE 31

Adaptive CS Control Channel Safety V2V Carrier Sense Range Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

Distribution of CSt for the Adaptive Mechanism

SLIDE 32

Conclusion

Physical Carrier Sense in Vehicular Ad-hoc Networks Razvan Stanica University of Toulouse IEEE MASS 2011

 The properties of the CCH need to be taken into account when studying V2V communication  The carrier sense mechanism represents the basis for CSMA/CA channel access techniques and should receive more attention  Carrier sense threshold control is more powerful than transmission power control on the VANET CCH  A simple adaptive mechanism can bring important performance improvement in IEEE 802.11p networks

SLIDE 33

Physical Carrier Sense in Vehicular Ad-hoc Networks

University of Toulouse Institut de Recherche en Informatique de Toulouse IEEE 8th International Conference on Mobile Ad-hoc and Sensor Systems Valencia - 20 October 2011
