Perception Motivated Hybrid Approach to Tone Mapping Martin adk Czech Technical University in Prague, Czech Republic Content HDR tone mapping Hybrid Approach Perceptually plausible approach Cognitive approach Conclusion

slide-1
SLIDE 1

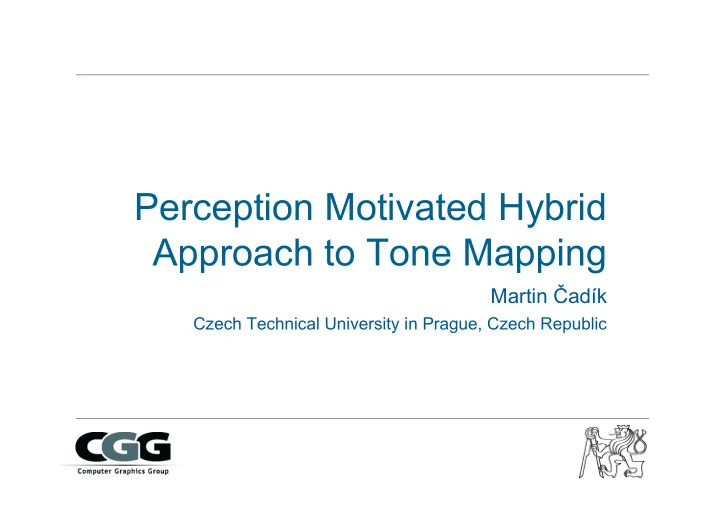

Perception Motivated Hybrid Approach to Tone Mapping

Martin Čadík

Czech Technical University in Prague, Czech Republic

slide-2
SLIDE 2

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(2)

Content

HDR tone mapping Hybrid Approach Perceptually plausible approach Cognitive approach Conclusion

slide-3
SLIDE 3

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(3)

High Dynamic Range Imaging

HDRI

– useful in many areas of computer graphics and applications

HDR images

– several orders of magnitude – high precision

  • [Reinhard et al. 05]
slide-4
SLIDE 4

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(4)

Tone Mapping Issue

10-6 108 10-6 108

Real world Ordinary picture

Low Dynamic Range High Dynamic Range

slide-5
SLIDE 5

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(5)

Tone Mapping Goals Tone Mapping Goals

Aesthetical Cognitive Perceptual

[Cadik et al. 06]

slide-6
SLIDE 6

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(6)

Global and Local Methods

Global methods (TRC)

– fast – simple, easy to implement – good reproduction of overall image attributes (perceptual)

Local methods (TMO)

– spatial processing – time-consuming – good in reproduction of details (cognitive) – artifacts

slide-7
SLIDE 7

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(7)

Global and Local Methods

[Ward94] [LCIS99]

slide-8
SLIDE 8

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(8)

Subjective Perceptual Experiments

[Cadik et al. 06]

– superiority of global methods for reproduction

  • f natural scenes
slide-9
SLIDE 9

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(9)

Hybrid Approach to Tone Mapping

Global TM Enhancement Map HDR Image LDR Image

Locally Enhanced Details

Local TM

slide-10
SLIDE 10

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(10)

Hybrid Approach to Tone Mapping

Global TM Enhancement Map HDR Image LDR Image

Locally Enhanced Details

Local TM

slide-11
SLIDE 11

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(11)

Hybrid Approach to Tone Mapping

Global TM Enhancement Map HDR Image LDR Image

Locally Enhanced Details

Local TM

slide-12
SLIDE 12

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(12)

Hybrid Approach to Tone Mapping

Global TM Enhancement Map HDR Image LDR Image

Locally Enhanced Details

Local TM

slide-13
SLIDE 13

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(13)

Hybrid Approach to Tone Mapping

Global TM Enhancement Map HDR Image LDR Image

Locally Enhanced Details

Local TM

slide-14
SLIDE 14

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(14)

Enhancement Map

map we use to guide local enhancement construction according to the aim of the method floating point values (blend of TRC and TMO)

HDR LDR

slide-15
SLIDE 15

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(15)

Enhancement Map Benefits

Reproduction of overall attributes

– not affected by local method

Lost details recovered Fast computation

– local method applied to small portion of image

slide-16
SLIDE 16

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(16)

Perceptually Plausible Implementation [Ward 94] Bilateral filtering [Durand & Dorsey 02]

slide-17
SLIDE 17

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(17)

Transformations

Global method Hybrid method Local method

slide-18
SLIDE 18
slide-19
SLIDE 19
slide-20
SLIDE 20

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(20)

Our Results

slide-21
SLIDE 21

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(21)

Our Results

slide-22
SLIDE 22

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(22)

Cognitive Approach

[Ward et al. 97] +

Trilateral filter [Choudhury & Tumblin 03]

different construction

  • f enhancement map

details in the paper

slide-23
SLIDE 23

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(23)

Performance Results

slight slowdown of original global approaches

(we ‘pay’ a bit for the wanted details)

speedup to the original local approaches

(average results over 10 HDR images)

41.7 0.132% 118.5 1.4e-3%

Speedup Enhancement map [%of pixels] Speedup Enhancement map [%of pixels]

Cognitive implementation Perceptually plausible

slide-24
SLIDE 24

Perception Motivated Hybrid Approach to Tone Mapping, Martin Čadík, cadikm@fel.cvut.cz WSCG’07, Pilsen, Czech Republic, 31. 1.2007

(24)

Conclusions

General hybrid approach

– utilization of existing methods – can be tailored to miscellaneous goals

Global method (TRC) + local method (TMO)

– general paradigm of perceptually plausible TMO design

Enhancement map Fast, simple, scalable, perceptually plausible

– suitable also for time-critical HDR applications

slide-25
SLIDE 25

Perception Motivated Hybrid Approach to Tone Mapping

Martin Čadík

cadikm@fel.cvut.cz http://www.cgg.cvut.cz/~cadikm Thank You for Your Attention
