PEDESTRIAN BRIDGE PUBLIC OUTREACH MEETING LA State Historic Park | October 2019 | 1 PROJECT GOAL PROVIDE A SAFE PEDESTRIAN + BIKE CONNECTION TO LOS ANGELES STATE HISTORIC PARK FROM COMMUNITIES NORTH OF SITE. CORNFIELD / ARROYO SECO CORNFIELD

SLIDE 1

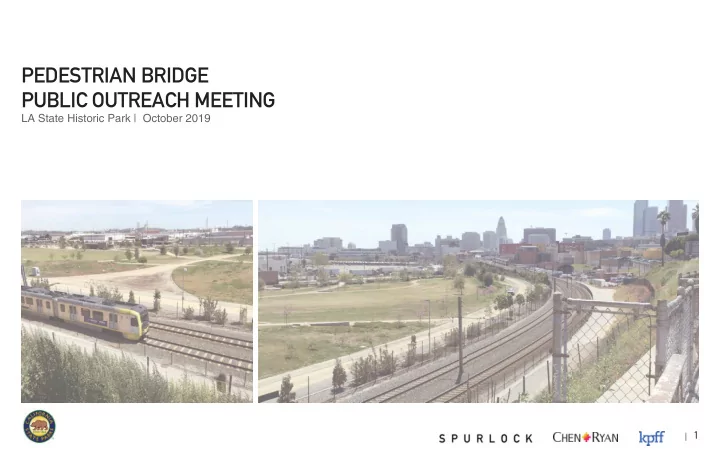

PEDESTRIAN BRIDGE PUBLIC OUTREACH MEETING

LA State Historic Park | October 2019

| 1

SLIDE 2

LASHP Pedestrian Bridge Public Outreach Meeting | | 2

| | | LA State Historic Park

PROVIDE A SAFE PEDESTRIAN + BIKE CONNECTION TO LOS ANGELES STATE HISTORIC PARK FROM COMMUNITIES NORTH OF SITE.

PROJECT GOAL

LA METRO GOLD LINE METRO STATION MAJOR ROADS

DODGER STADIUM

CHINATOWN RADIO HILL GARDENS ELYSIAN PARK SOLANO CANYON CORNFIELD / ARROYO SECO CORNFIELD / ARROYO SECO LOS ANGELES RIVER LA STATE HISTORIC PARK CATHEDRAL HIGH SCHOOL SOLANO CANYON ELEMENTARY

NORTH BROADWAY NORTH BROADWAY SOLANO AVENUE S O T E L L O S T . BISHOPS AVE COTTAGE HOUSE ST.

N. SPRING STREET
N. MAIN ST.

110

Legend

M M

SLIDE 3

N NTS

LASHP Pedestrian Bridge Public Outreach Meeting | | 3

| | | LA State Historic Park

PROJECT CONTEXT

WALKING ROUTE DESTINATION WALKING TIME TO LASHP PEDESTRIAN CROSSWALK BUS STOP METRO STATION

Legend

M M

DODGER STADIUM CATHEDRAL HIGH SCHOOL ELSYIAN PARK LOS ANGELES RIVER RADIO HILL GARDENS

SOLANO ELEMENTARY SCHOOL

LOS ANGELES STATE HISTORIC PARK

NORTH BROADWAY FROM LINCOLN HEIGHTS TO LINCOLN HEIGHTS NORTH BROADWAY ELYSIAN PARK DRIVE NORTH BROADWAY SOLANO AVENUE BISHOPS ROAD C O T T A G E H O M E S T .

W. COLLEGE ST.

NORTH SPRING STREET

110

16 MIN. 9 MIN. 23 MIN. 8 MIN. 22 MIN.

B B B B B B

CHINATOWN CENTRAL PLAZA

X MIN.

WALKING TIME TO LASHP

SLIDE 4

N NTS

NORTH BROADWAY

BISHOPS RD. SAVOY ST. COTTAGE HOME ST. BERNARD ST. SOLANO AVE. CASSANOVA ST.

N O R T H S P R I N G S T . NORTH BROADWAY

X 309.50 X X

315.0 311.0

X 310.0 X330.0 X344.0 X 322.0 X X X X X X

302.0 306.0 305.0 306.0 300.0

LASHP Pedestrian Bridge Public Outreach Meeting | | 4

| | | LA State Historic Park

Constraints Diagram

PROJECT CONTEXT

LASHP SERVICE ACCESS LANE (POTENTIALLY ADJUSTABLE) MTA GOLD LINE - LA METRO PRIVATE DEVELOPMENT PROPERTY

N. BROADWAY BRIDGE

GRADE BREAK SPOT GRADE

Legend

MTA GOLD LINE FIRE LANE PRIVATE DEVELOPMENT WELCOME CENTER RANGER STATION PARKING LOT GREAT MEADOW

SLIDE 5

LASHP Pedestrian Bridge Public Outreach Meeting | | 5

| | | LA State Historic Park

Assumed LA Metro Clearance

PROJECT CONTEXT

CATENARY SUPPORT POST* LA METRO LIGHT POLE * Approximate location based on Aerial Survey

Plan Legend

O C S C L E A R A N C E E N V E L O P E SUPPORT POST SUPPORT POST TRACKS LOWEST POINT OF OCS CLEARANCE ENVELOPE Per LA Metro Adjacent Development Handbook WIDTH VARIES PER LA METRO 20’ CATENARY LINE HEIGHT VARIES

APPROX. < 30’
APPROX. 30’

ELEVATION: OCS CLEARANCE ENVELOPE

SLIDE 6

VIEWS FROM SOUTHWEST END OF PARK TOWARD NORTH BROADWAY VIEWS LOOKING ACROSS LASHP FROM NORTH BROADWAY AND BISHOPS RD. INTERSECTION VIEW LOOKING SOUTH FROM NORTH BROADWAY AND BISHOPS RD. INTERSECTION DOWN TO LASHP VIEWS ON N. BROADWAY AT BISHOPS RD.

VIEW LOOKING UP AT NORTH BROADWAY FROM ROUNDHOUSE WALKWAY

VIEWS ON N. BROADWAY AT BISHOPS RD.

LASHP Pedestrian Bridge Public Outreach Meeting | | 6

| | | LA State Historic Park

SITE PHOTOS

SLIDE 7

N O R T H B R O A D W A Y

BISHOPS RD. SAVOY ST. COTTAGE HOME ST. BERNARD ST. SOLANO AVE. CASSANOVA ST.

N O R T H S P R I N G S T . P A R K I N G L O T R O U N D H O U S E P L A Z A R A N G E R S T A T I O N W E L C O M E C E N T E R T H E G R E A T M E A D O W L A M E T R O R I G H T O F W A Y L A M E T R O R I G H T O F W A Y LA METRO RIGHT OF WAY NORTH BROADWAY

N NTS

LASHP Pedestrian Bridge Public Outreach Meeting | | 7

| | | LA State Historic Park

CONCEPTUAL BRIDGE LOCATIONS

WEST SIDE BRIDGE ROUNDHOUSE BRIDGE CENTRAL BRIDGE EAST SIDE BRIDGE

Where The Bridge Could Connect.

1 1 2 3 4 3 2 4

SLIDE 8

LASHP Pedestrian Bridge Public Outreach Meeting | | 8

| | | LA State Historic Park

CONCEPTUAL SECTION

SERVICE ROAD 30' TALL BRIDGE CLEARANCE STAIR AND/OR ELEVATOR 400' ± LONG ACCESSIBLE RAMP, 7.5% SLOPE (~1 SOCCER FIELD LENGTH) OR 650' ± LONG SLOPED WALK, 4.5% SLOPE (~1.5 SOCCER FIELD LENGTH) 80' ± WIDE LA METRO R.O.W. 50' ± WIDE

LA METRO PRIVATE DEVELOPMENT LOS ANGELES STATE HISTORIC PARK NORTH BROADWAY

LA METRO OCS CLEARANCE

SLIDE 9

LASHP Pedestrian Bridge Public Outreach Meeting | | 9

| | | LA State Historic Park

CHARACTER AND APPROACHES

BRIDGE RAMP

SLIDE 10

LASHP Pedestrian Bridge Public Outreach Meeting | | 10

| | | LA State Historic Park

CHARACTER AND APPROACHES

STAIR ELEVATOR

SLIDE 11

LASHP Pedestrian Bridge Public Outreach Meeting | | 11

| | | LA State Historic Park

WHICH APPROACH DO YOU PREFER?

RAMP RAMP + STAIR RAMP + STAIR + ELEVATOR STAIR + ELEVATOR

Place your dot next to your preferred option.

SLIDE 12

THANK YOU

ANY QUESTIONS?

LASHP Pedestrian Bridge Public Outreach Meeting | | 12

| | | LA State Historic Park

SLIDE 13

TO LEAVE FEEDBACK, EMAIL

ENVIRO@PARKS.CA.GOV

BY OCTOBER 16th
