SLIDE 1

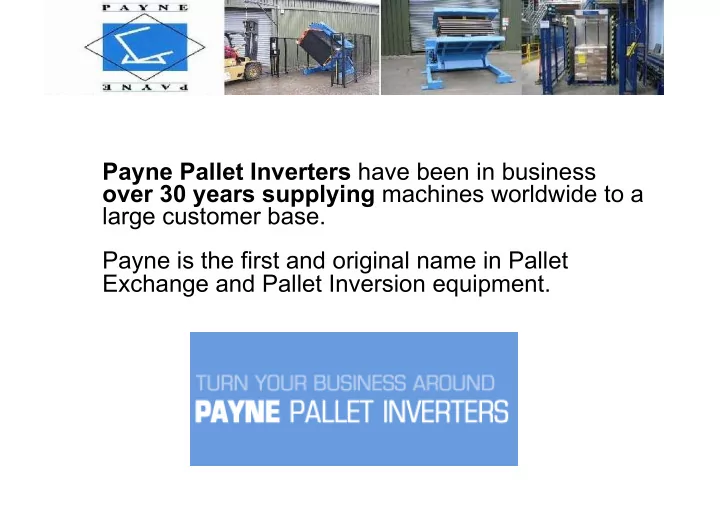

Payne Pallet Inverters have been in business
- ver 30 years supplying machines worldwide to a
Payne Pallet Inverters have been in business over 30 years supplying - - PowerPoint PPT Presentation
Payne Pallet Inverters have been in business over 30 years supplying - - PowerPoint PPT Presentation
Payne Pallet Inverters have been in business over 30 years supplying machines worldwide to a large customer base. Payne is the first and original name in Pallet Exchange and Pallet Inversion equipment. PALLET INVERTER / PALLET EXCHANGER / PALLET
SLIDE 2
SLIDE 3
KEY FEATURES
Easy damage load recovery
Reduce pallet rental costs, keep own pallets in your facilities.
Exchange damaged pallet
Realignment of displaced stack of goods
For reasons of hygiene, pallets have to be changed from wood to aluminium
- r plastic pallets in order to comply with GMP and hygiene regulations in
pharmaceutical, cosmetic and foodstuffs industries.
Pallet exchange for export countries which use difeferent size of pallets. Invert a product
SLIDE 4
Pharmaceutical, cosmetic and foodstuffs industries
some references....
SLIDE 5
Logistic and Transport some references....
SLIDE 6
Other sectors:
Chemical industry Printing industry Export companies to Russia, USA ... (change
Europallets to other size of pallets)
Coldstores
....
SLIDE 7
180º PALLETINVERTER
SLIDE 8
180º PALLETINVERTER Modell: Standard
1 single moving clamp to be loaded by a forklift or similar.
SLIDE 9
180º PALLETINVERTER Modell: MSL and Triple L M2
2 moving clamps. Can be loaded at floor level with a ramp.
SLIDE 10
180º PALLETINVERTER Modell: Triple L M1
Can be loaded directly at floor level. 2 moving clamps.
SLIDE 11
180º PILE TURNER
Ideal for heavy loads, piles of paper, steel...
SLIDE 12
95º PALLETINVERTER Modell: Lowline retriever
1 moving clamp. Turns the load 95º and can be loaded at floor level.
SLIDE 13
105º PALLET EXCHANGER Modell: Pallet exchanger
Eliminates any manual handling when you need to transfer your load from pallet to pallet, wood to plastic.
SLIDE 14
Models from 1000kg up to 1500kg Battery operated Powered lift and clamp Manual rotation Best suited for areas with limited space Ideal application within print shops / small loads
NEW PAYNE Mobile Pallet Inverter
SLIDE 15
NEW PAYNE Mobile Loading Platform
SLIDE 16
INLINE PALLETINVERTER 1 2 3 4
SLIDE 17
1 4 3 2 INLINE PALLETINVERTER
SLIDE 18
1 4 3 2
It is possible not to ivert all the pallets
INLINE PALLETINVERTER
SLIDE 19
Lever control on boom Lever control
- n guards
Solenoid control box fitted to front of guards Overhang pendant control to
- perate from forklift
Auto One-Touch-control Pallet clamps retaining top pallet
