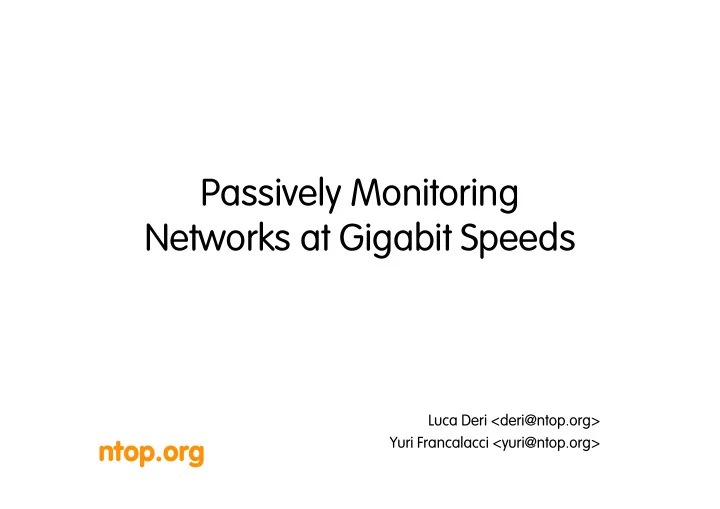

Passively Monitoring Networks at Gigabit Speeds

Luca Deri <deri@ntop.org> Yuri Francalacci <yuri@ntop.org>

slide-2
SLIDE 2

L.Deri and Y.Francalacci 2

ntop.org

Presentation Overview

  • Monitoring Issues at Wire Speed
  • Traffic Filtering and Protocol Conversion
  • Packet Capture and Classification
  • Final Remarks
slide-3
SLIDE 3

L.Deri and Y.Francalacci 3

ntop.org

Monitoring Issues at Wire Speed

  • Monitoring low speed (100Mb) network is

already available with common tools libpcap based

  • Problem Statement: monitor high speed (10

GB and over) network with common PC’s (64 bit 66MHz PCI bus)

  • PCI Bus Limited Bandwidth (64 bit bus

transfer limit 533 Mbit/s)

slide-4
SLIDE 4

L.Deri and Y.Francalacci 4

ntop.org

Proposed Approach: Requirements

  • Hardware and Software:

– Intelligent routers (e.g. Juniper M-series): they are needed to run the network – x86-based PCs for capturing traffic – Linux/FreeBSD Operating System – Standard 64 bit PCI Gigabit NICs (Intel)

slide-5
SLIDE 5

L.Deri and Y.Francalacci 5

ntop.org

Proposed Approach: Goals

  • Passively monitor networks at Gbit speeds

with no (or very little) packet loss

  • Traffic information generated in a standard

format (NetFlow/nFlow)

  • Ability to monitor both IPv4/v6
  • Provide accounting, performance

information

slide-6
SLIDE 6

L.Deri and Y.Francalacci 6

ntop.org

Architecture Overview

Juniper M-series Juniper M-series Local Local Network Network

Traffic Mirror Packet Filtering

Internet Internet nProbe nProbe ntop ntop

NetFlow

slide-7
SLIDE 7

L.Deri and Y.Francalacci 7

ntop.org

Traffic Filtering and Protocol Conversion [1/3]

  • Juniper routers provide:

– a built-in traffic-filter (firewall configuration statement) – traffic mirroring (forwarding configuration statement)

slide-8
SLIDE 8

L.Deri and Y.Francalacci 8

ntop.org

Traffic Filtering and Protocol Conversion [2/3]

  • Traffic filter capabilities:

– IPv4 and IPv6 filter types available – BPF-like filtering terms – Filter complexity as user request

  • Traffic filter term counter

– Possibility to define a counter for each term (could be used for accounting reason) – All counters could be read via SNMP

slide-9
SLIDE 9

L.Deri and Y.Francalacci 9

ntop.org

Traffic Filtering and Protocol Conversion [3/3]

  • Traffic mirroring advantages:

– Interface type independency (router provides the protocol conversion) – Sampling capabilities (if link speed > monitoring NIC speed) – Multilink mirroring (on the monitoring link can be mirrored more than one line)

slide-10
SLIDE 10

L.Deri and Y.Francalacci 10

ntop.org

Juniper Accounting

  • NetFlow (v5/v8) support
  • Flexible flow aggregation (AS, service, etc)
  • Complex accounting (e.g. using ntop) using

a PC connected on a mirror port

slide-11
SLIDE 11

L.Deri and Y.Francalacci 11

ntop.org

Packet Capture and Classification: Issues

  • Most Gbit network cards/OSs have not been

designed for capturing thousand of packets per second in promiscuous mode

  • Most NetFlow implementations (e.g. Juniper,

Cisco, Extreme Networks) handle up to ~10k packet/sec and/or decrease dramatically switch performances

  • Flow collector performance is often rather limited

(load balancing)

slide-12
SLIDE 12

L.Deri and Y.Francalacci 12

ntop.org

Userland Packet Capture: libpcap

TCP,UDP IP,ICMP

Ethernet Device driver

BPF driver filter filter sniffer sniffer

Packet Copy kernel

slide-13
SLIDE 13

L.Deri and Y.Francalacci 13

ntop.org

Libpcap Limitations

  • Multiple packet copies.
  • Costly data exchange from kernel to user

space via system calls

  • Severe packet loss if userland applications

cannot cope with packet/kernel speed

slide-14
SLIDE 14

L.Deri and Y.Francalacci 14

ntop.org

Solution 1: Kernel Packet Capture

TCP,UDP IP,ICMP

Ethernet Device driver

Packets Circular Buffer sniffer

Packet Copy Linux/BSD kernel Kernel Module Direct Packet Access via mmap() Packets

slide-15
SLIDE 15

L.Deri and Y.Francalacci 15

ntop.org

Kernel Packet Capture: Code

packetBuffer = mmap(fd); while(1) { if(select(fd)) { /* There’s a Packet to read */ packet = packetBuffer[slotId]; /* Handle packet here */ slotId = (slotId +1) % numSlots; } /* select */ } /* while */

slide-16
SLIDE 16

L.Deri and Y.Francalacci 16

ntop.org

Kernel Packet Capture: Limitations [1/2]

  • Little (~10%) performance improvement
  • ver pcap due to select() call (test

performed on a 10/100 MBit/sec link).

  • Possible workarounds:

– Smart Select: as soon select() returns 1, keep

  • n reading. When there’s nothing to read call

select() again. – Active polling: infinite loop until there’s something to read on packetBuffer[slotId]

slide-17
SLIDE 17

L.Deri and Y.Francalacci 17

ntop.org

Kernel Packet Capture: Limitations [2/2]

  • Both workarounds to not improve performance

significantly.

– Smart Select:some select() calls are avoided. – Active polling:user time vs. kernel time increases

  • significantly. At very high speeds (probability that

there’s something to read is high) it’s better than smart select (see L. Rizzo).

  • Drawback: user time increases causing packet

loss.

slide-18
SLIDE 18

L.Deri and Y.Francalacci 18

ntop.org

Solution 2: Kernel Packet Classification

  • Principles:

– Handle packets only inside the kernel (i.e. they are not passed to userland applications). – Pass flows, not packets, (flows << packets) to userland applications.

slide-19
SLIDE 19

L.Deri and Y.Francalacci 19

ntop.org

Kernel Packet Classification: Architecture

TCP,UDP IP,ICMP

Ethernet Device driver

Flows Circular Buffer Flow Probe

Packet Reference Linux/BSD kernel Kernel Module Direct Flow Access via mmap() Flows

slide-20
SLIDE 20

L.Deri and Y.Francalacci 20

ntop.org

Kernel Packet Classification: Features

  • Strong performance improvement over pcap due

to full in-kernel packet processing.

  • No NIC (DMA)->kernel->userland packet copy
  • No packet loss
  • Speed limited by the CPU speed (ability to handle

interrupts)

  • Simple userland NetFlow probe implementation
slide-21
SLIDE 21

L.Deri and Y.Francalacci 21

ntop.org

nFlow (http://www.nflow.org)

  • New flow definition based on NetFlow
  • Major features:

– Support for both IPv4 and IPv6 – Added VLAN tagging/MPLS label support – Added (network and application) performance and (passive) fingerprinting information – Flow compression (gzip), non ripudiation (MD5)

slide-22
SLIDE 22

L.Deri and Y.Francalacci 22

ntop.org

Final Remarks

  • Packet filtering and protocol conversion in

hardware (Juniper).

  • External accounting application based on a PC

with in-kernel NetFlow flow generation.

  • Kernel-based nProbe (alpha-code) runs at

kernel/interrupt speed (pcap-based version handles <= 250k pkt/sec)
