SLIDE 1

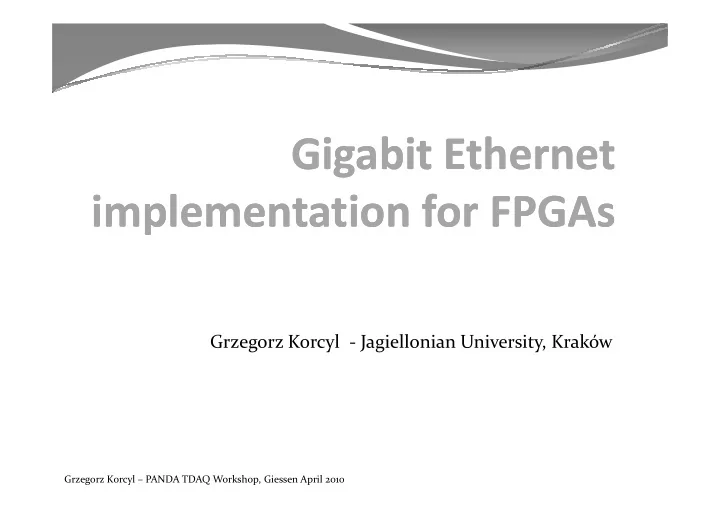

Gigabit Ethernet Gigabit Ethernet implementation for implementation for FPGAs FPGAs

Grzegorz Korcyl - Jagiellonian University, Kraków

Grzegorz Korcyl – PANDA TDAQ Workshop, Giessen April 2010

slide-2
SLIDE 2

Outline

1.

Motivation

2.

General structure

a)

GbE Buffer

b)

Packet Constructor

c)

Frame Constructor

c)

Frame Constructor

d)

Frame Transmitter

e)

Resources utilization 3.

Results

a)

Setup 1

b)

Setup 2 4.

Summary

5.

Future plans

Grzegorz Korcyl – PANDA TDAQ Workshop, Giessen April 2010

slide-3
SLIDE 3
  • 1. Motivation

Addon + GbE 1 Evt 2 Evt 3 Evt GbE Switch

The way to transport large amounts of data at high

speed

Protocol with routing capabilites needed UDP over GbE is going to be implemented on HUB2,

MDC, Shower addons

Grzegorz Korcyl – PANDA TDAQ Workshop, Giessen April 2010 1 Evt builder 2 Evt builder 3 Evt builder

slide-4
SLIDE 4
  • 2. General Structure

TrbNet – Hades trigger, slow control

and data transport network system

GbE Buffer gathers subevents

from TrbNet and prepares packet construction construction

Packet Constructor creates a

HadesTransportUnitQueue

Frame Constructor fragments

data and creates Ethernet frames

Frame Transmitter transmits each frame

Grzegorz Korcyl – PANDA TDAQ Workshop, Giessen April 2010

slide-5
SLIDE 5
  • 2. General Structure

Message Subevent 1 Subevent 2 Subevent 3 Subevent 4 GbE Buffer TrbNet Message Packet 1 Packet 2 Packet 3

Frame 1 Frame 2 Frame 3 Frame 1 Frame 2 Frame 3 Frame 1 Frame 2 Grzegorz Korcyl – PANDA TDAQ Workshop, Giessen April 2010

Packet Constructor Frame Constructor ETHERNET Frame Transmitter

slide-6
SLIDE 6

2.a GbE Buffer

Interface between TrbNet and GbE logic

Buffers incoming data Responds back to readout request Allows configuration via slow control Allows configuration via slow control

Pepares the data for Packet Constructor

Decides about the start/close a packet Selects event builder address basing on the readout

parameteres

Adds additional internal subevent headers

Grzegorz Korcyl – PANDA TDAQ Workshop, Giessen April 2010

slide-7
SLIDE 7

2.b Packet Constructor

Constructs HadesTransportUnitQueue:

Several subevents in one queue Consistency check by termination bytes Right now up to 64kB in total Minimum overhead (one subevent case) is 56B per

queue

Grzegorz Korcyl – PANDA TDAQ Workshop, Giessen April 2010

slide-8
SLIDE 8

2.c Frame Constructor

Constructs IP frames: Fragments the whole queue into 1.5kB (MTU) parts

and encapsulates with network headers

42B of headers overhead per frame

Grzegorz Korcyl – PANDA TDAQ Workshop, Giessen April 2010

slide-9
SLIDE 9

2.d Frame Transmitter

Uses two IP Cores to transmit bytes over fiber:

1.

Tri-Speed MAC

  • Transmit state machine
  • Transmit state machine
  • Insertion of pause frames
  • Addition of Ethernet preamble and CRC

2.

SGMII/GbE PCS

  • Interface between TS MAC and SERDES
  • Link state machine
  • Autonegotiation
  • Conversion to 8b/10b

Grzegorz Korcyl – PANDA TDAQ Workshop, Giessen April 2010

slide-10
SLIDE 10

2.e Resources utilization

Built on Lattice ECP2M LFE2M100E

Resource Utilization Percentage Slices 4256 out of 47376 8%

Mainly consumes RAM blocks inside FPGA

Grzegorz Korcyl – PANDA TDAQ Workshop, Giessen April 2010

Slices 4256 out of 47376 8% LUTs 5984 out of 95000 6% Blocks RAM 76 out of 288 (~150kB) 26%

slide-11
SLIDE 11

3.a Results – setup 1

One data source – dummy front-end HUBv2 Netgear optical GbE switch One event builder Triggering by TRB

Grzegorz Korcyl – PANDA TDAQ Workshop, Giessen April 2010

slide-12
SLIDE 12

3.a Results – setup 1

No pipelining, single packet construction at a time

limits throughput to half of nominal link bandwidth

Event rate limited by single trigger in the system at a

time

Grzegorz Korcyl – PANDA TDAQ Workshop, Giessen April 2010

slide-13
SLIDE 13

3.b Results – setup 2

5x ADCM data sources HUBv2 Longshine optical GbE switch One event builder Triggering by generator

Grzegorz Korcyl – PANDA TDAQ Workshop, Giessen April 2010

slide-14
SLIDE 14

3.b Results – setup 2

Packet size 38.8kB Accepted event rate 1.25kHz and 49MB/s throughput Long-lasting and stable connection

Grzegorz Korcyl – PANDA TDAQ Workshop, Giessen April 2010

Old DAQ New DAQ Factor Bandwith to Event builder 6 MB/s 150 MB/s 25x faster Event rate / sector 50 Hz 1.25 kHz 25x faster Throughput / sector 1 MB/s 49 MB/s 50x faster

slide-15
SLIDE 15
  • 4. Summary

1.

Construction of HadesTransportUnitQueues of the size up to 64kB

2.

Transmission of packets at satisfying speed

3.

Multiple subevents combined into one queue

3.

Multiple subevents combined into one queue

4.

Configuration via slow control

5.

Autonegotiation

6.

Dynamic event builder selection

Basic, ready to use GbE component is ready

Grzegorz Korcyl – PANDA TDAQ Workshop, Giessen April 2010

slide-16
SLIDE 16
  • 5. Future Plans

1.

Stabilize fast packet construction

  • Pipeline packet construction in order to reach the full Gb

2.

Large queues fragmentation into multiple UDP packets

  • Ability to transport queues (subevents) larger than one UDP

packet (64kB) packet (64kB)

  • Test different MTU sizes (Jumbo packets) in order to find

the optimal configuration

3.

Control of the transmission status and statistics

Generate status information and create systems to handle

unexpected situations

Full featured GbE component planed to be ready in May

Grzegorz Korcyl – PANDA TDAQ Workshop, Giessen April 2010
